Factory Direct Kitchen Cabinets — Shaker & Vanity
Shop by Style
Product images are technical line drawings with the cabinet's measurements printed on them.
Base Cabinets
Our shaker base cabinets run from 9 inches to 48 inches wide, with standard 34½-inch height and 24-inch depth — the dimensions every American countertop is sized for. Whether you need a standard double-door unit, a sink base with a full-access opening, a drawer base for utensils, or a blind-corner configuration, each box ships ready to assemble from all-plywood construction with CARB P2-compliant materials.

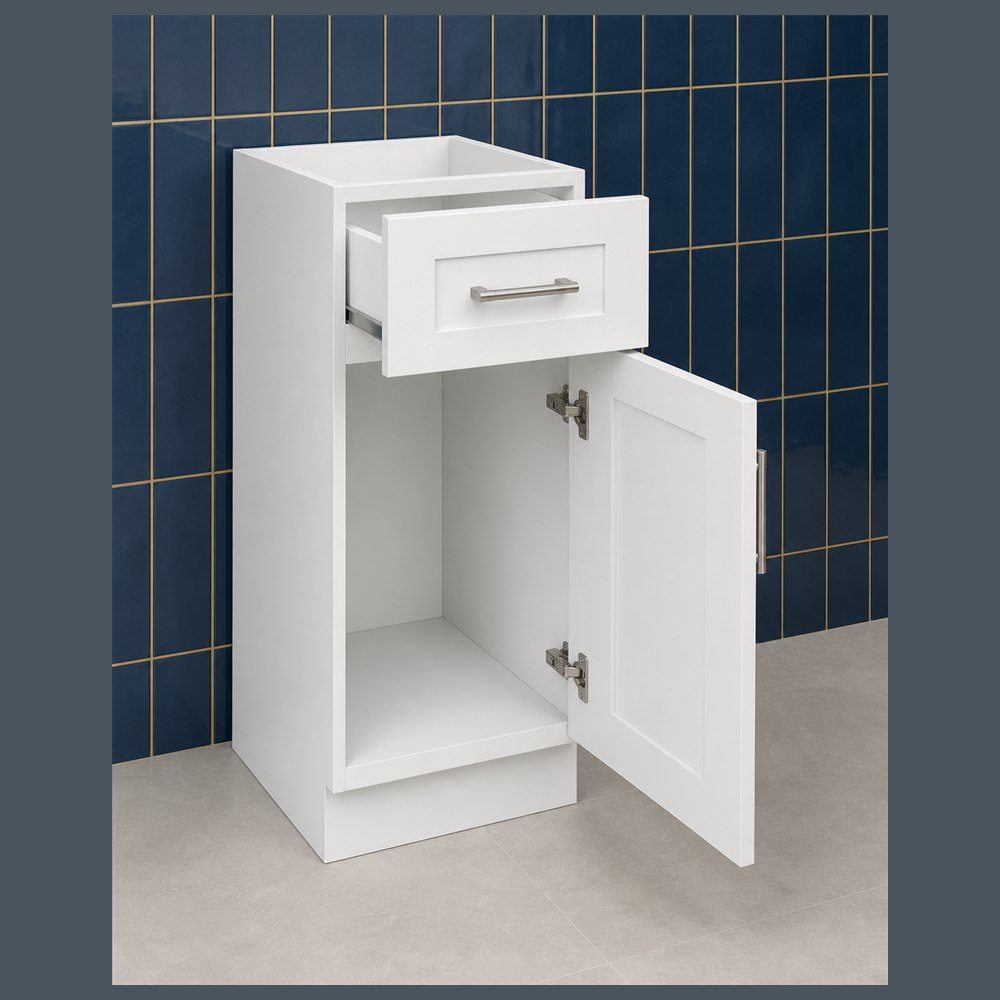

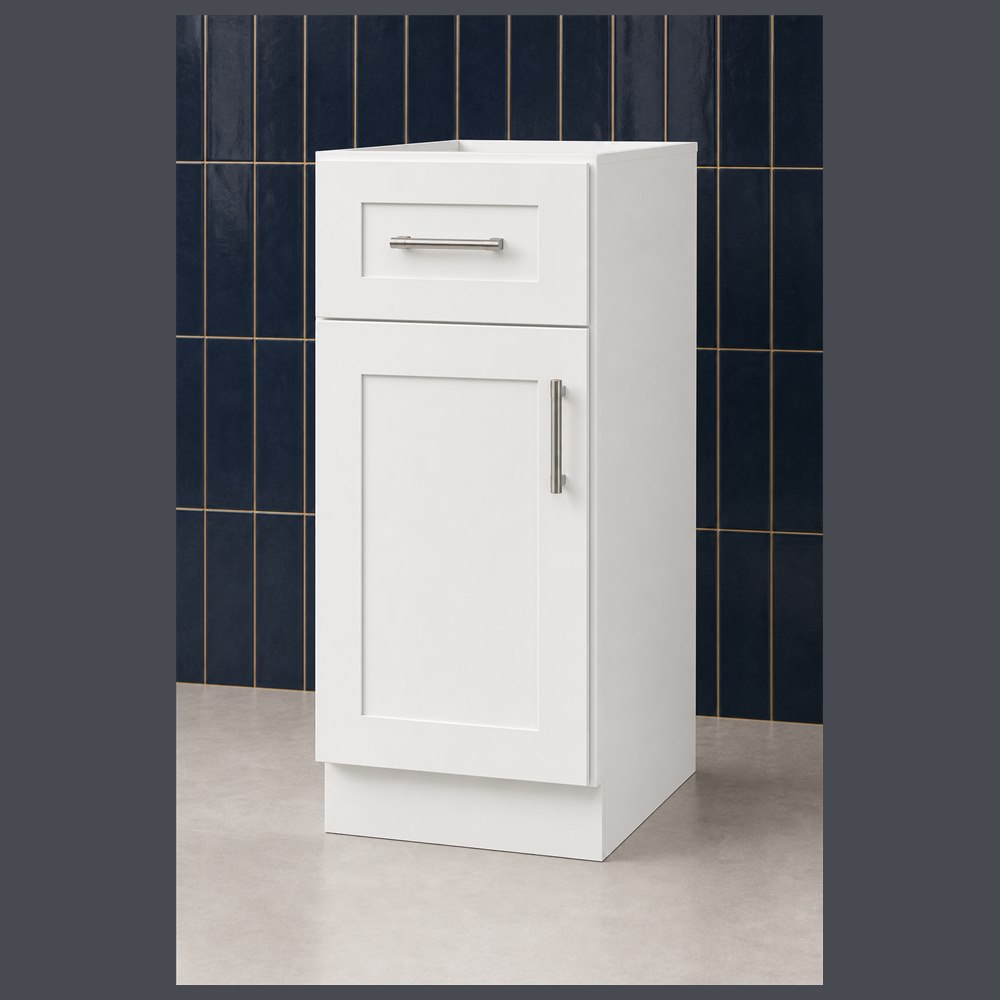

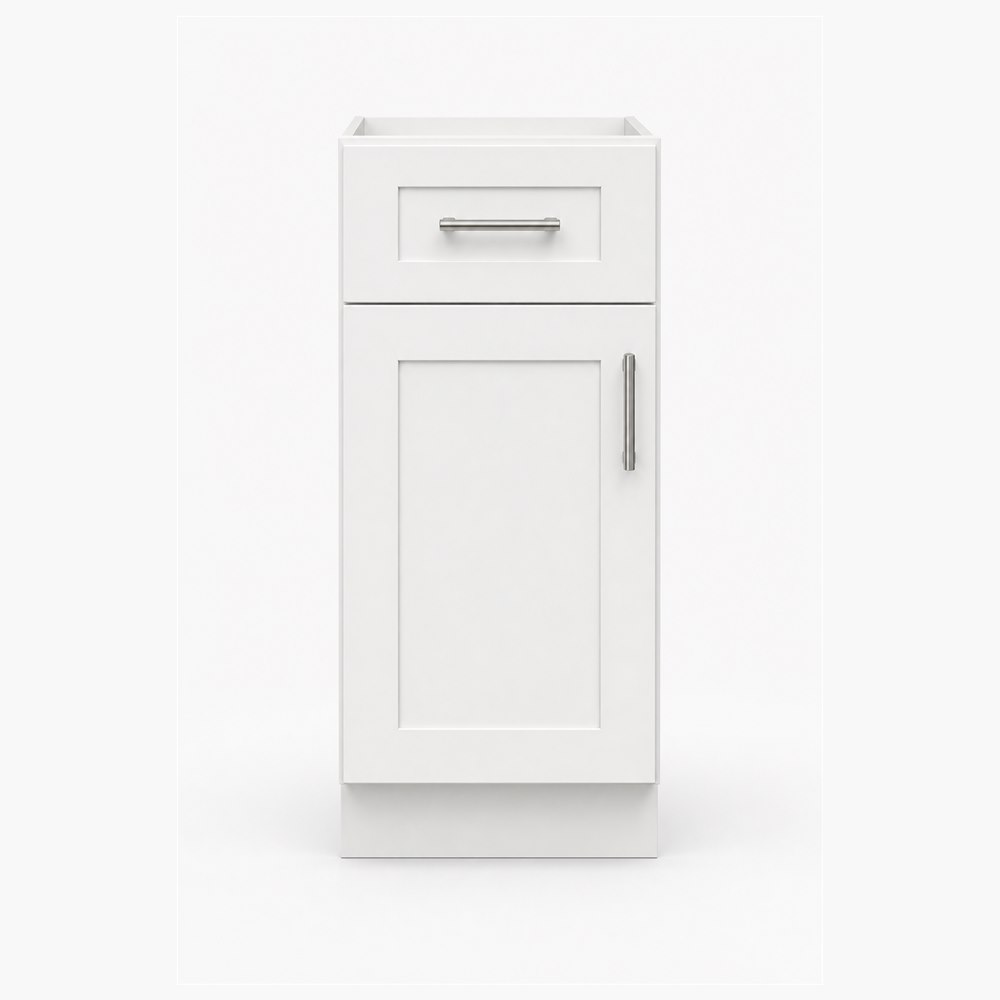

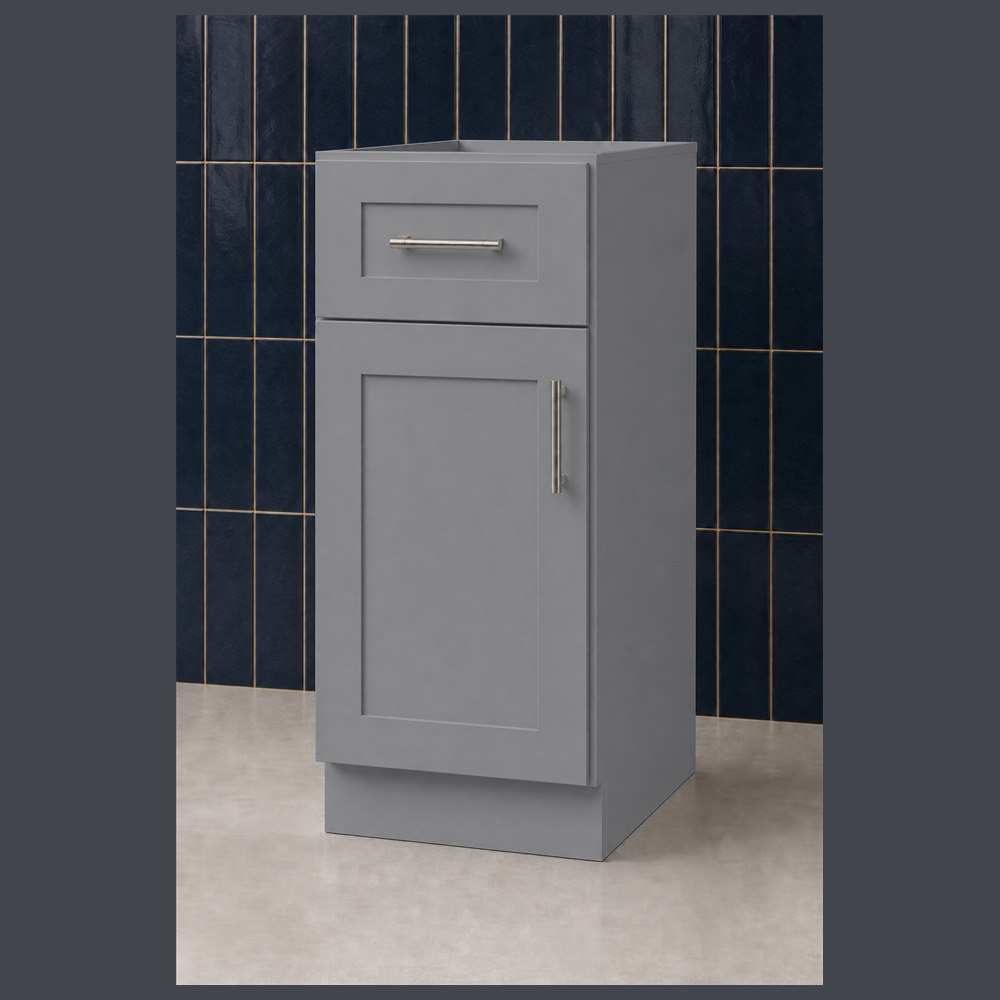

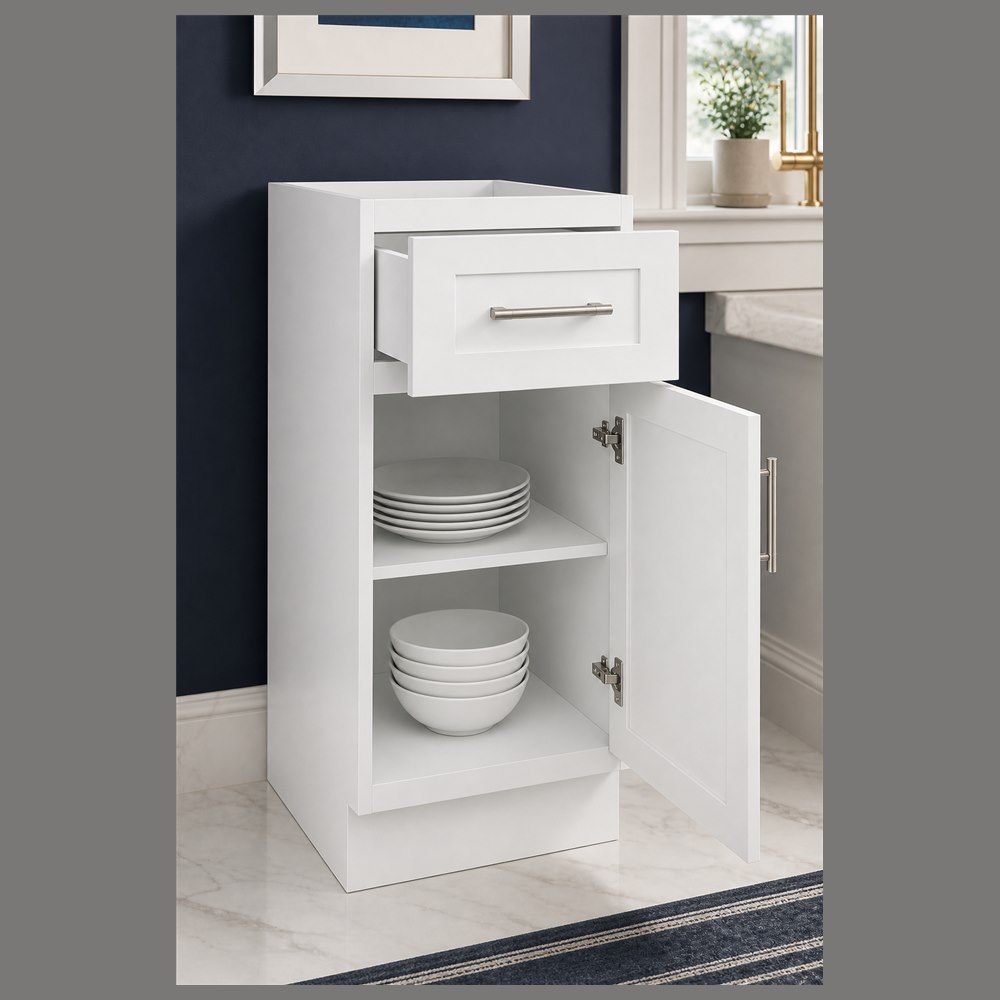

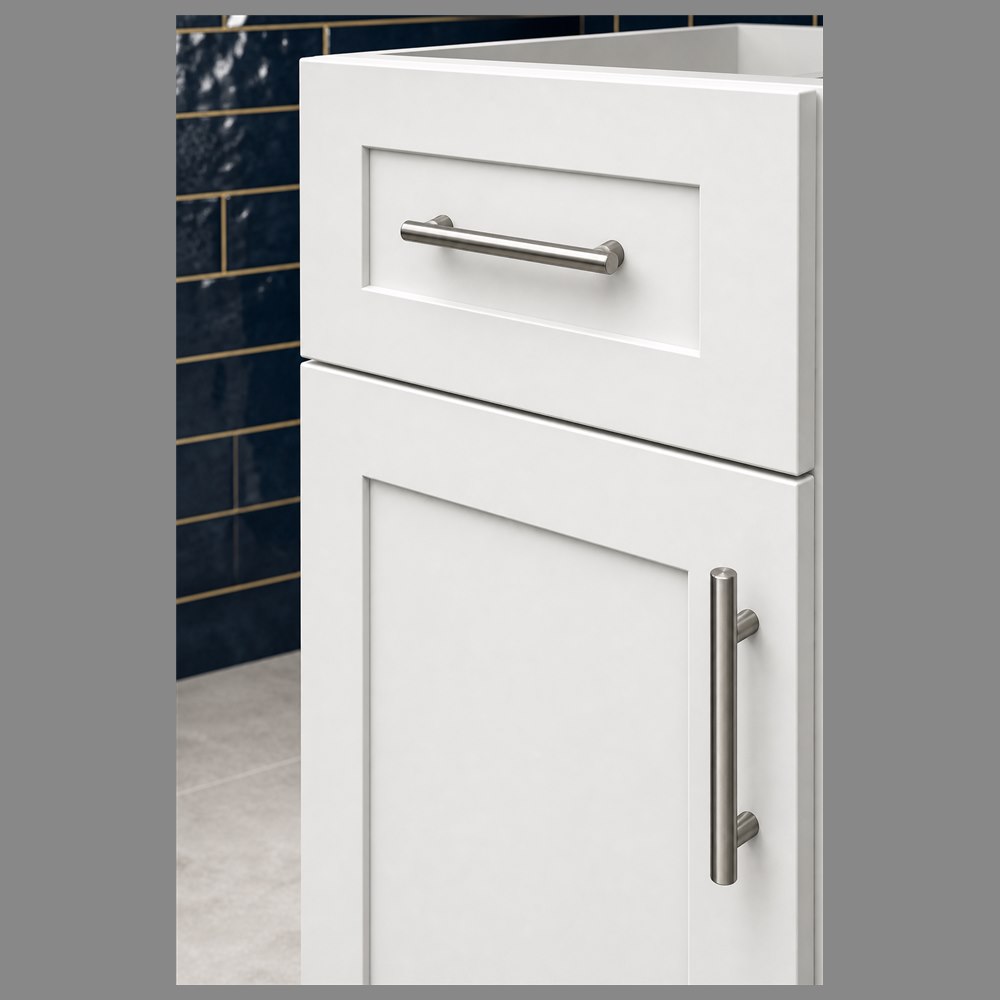

15-inch Shaker Base Cabinet
B15
15" W × 34 1/2" H × 24" D

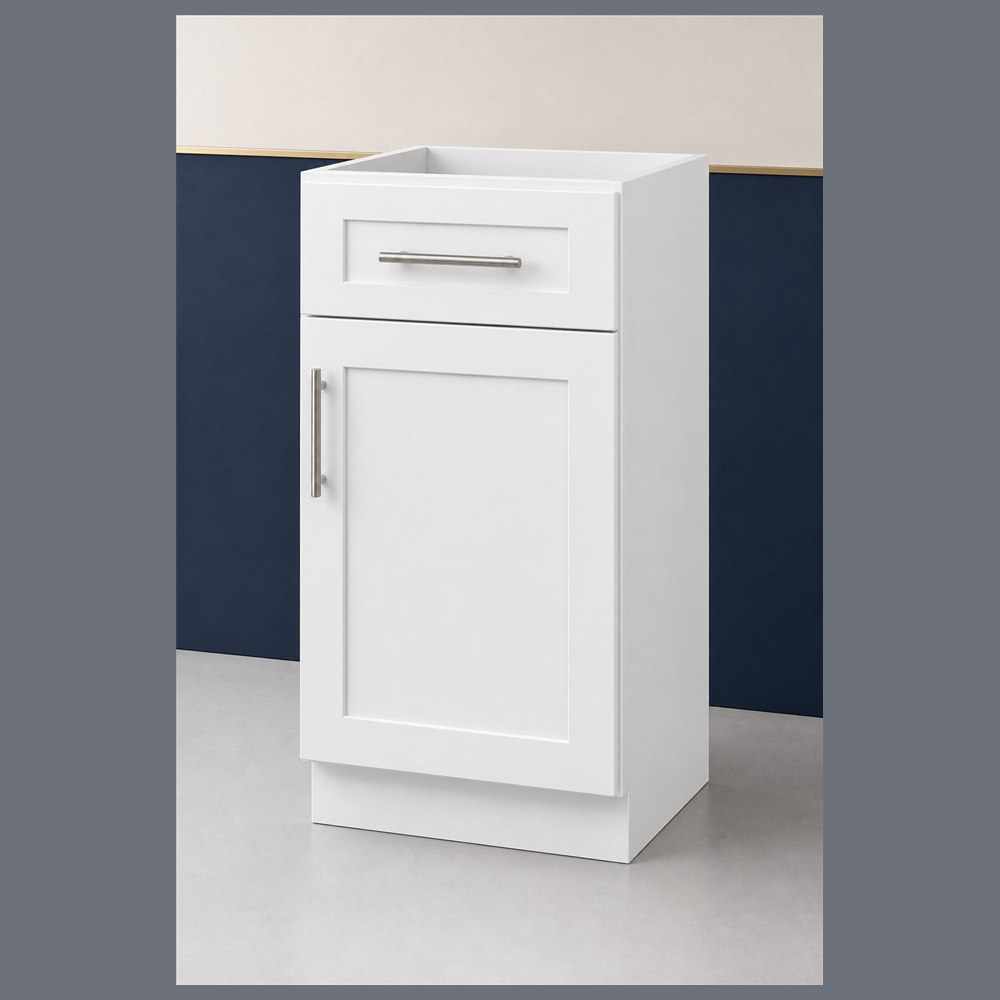

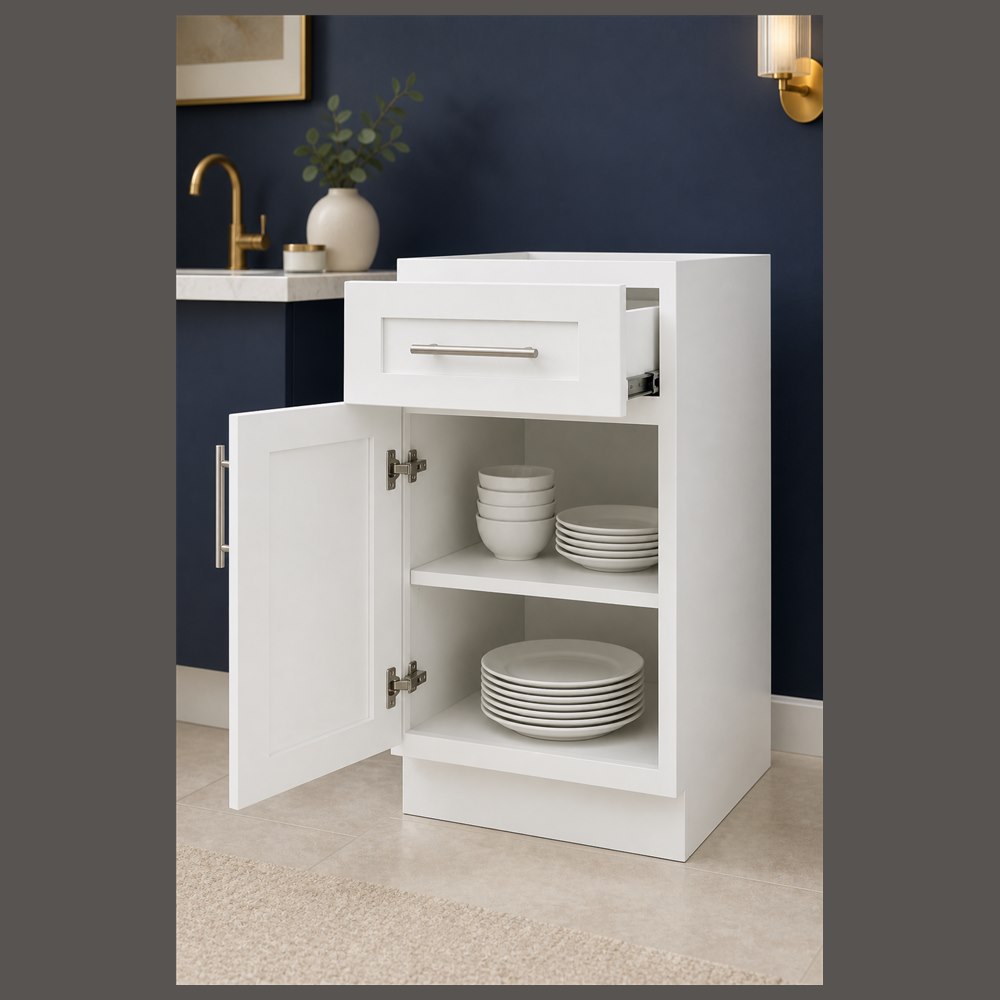

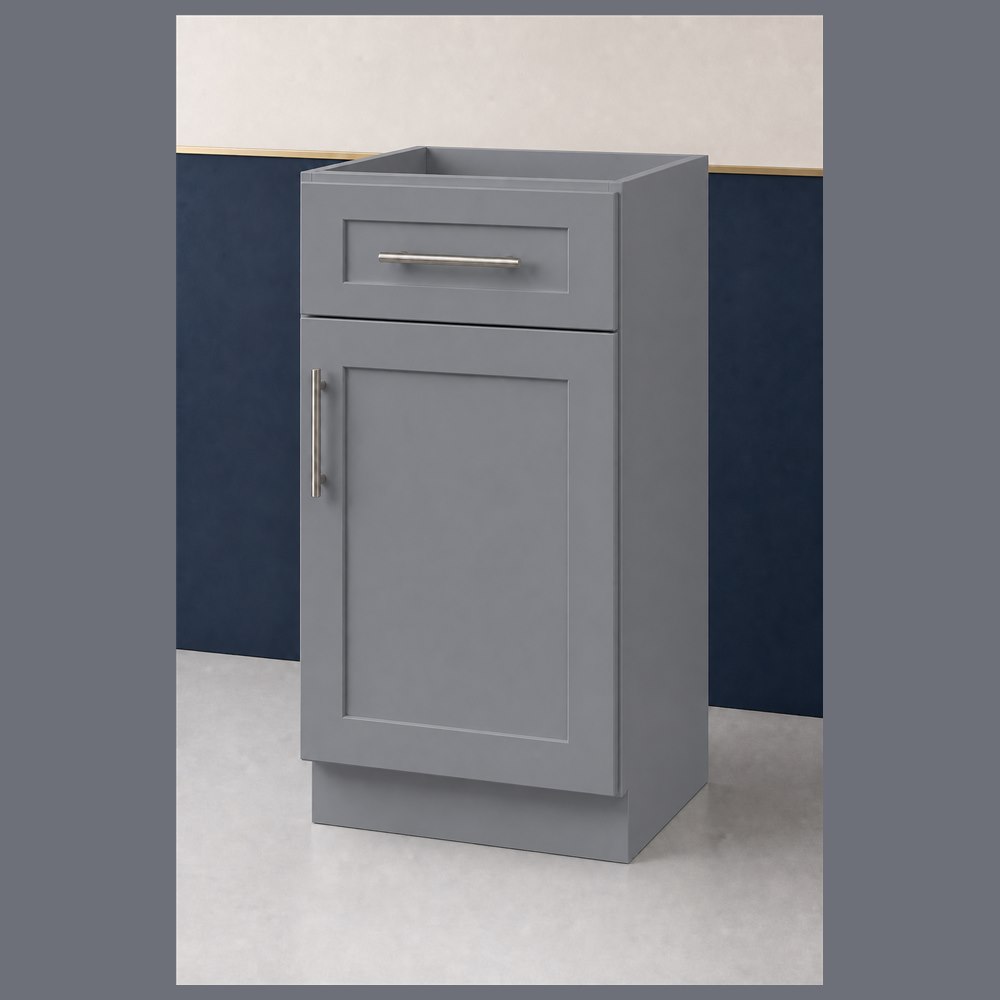

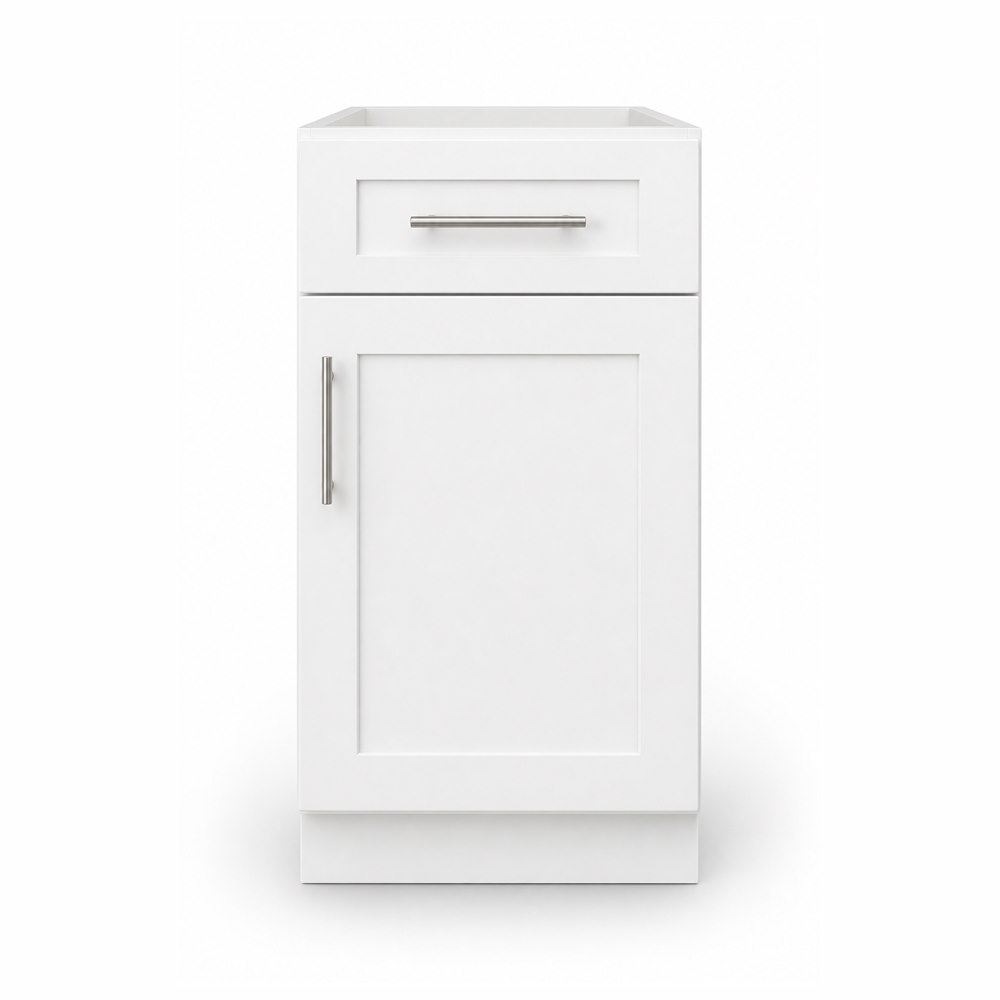

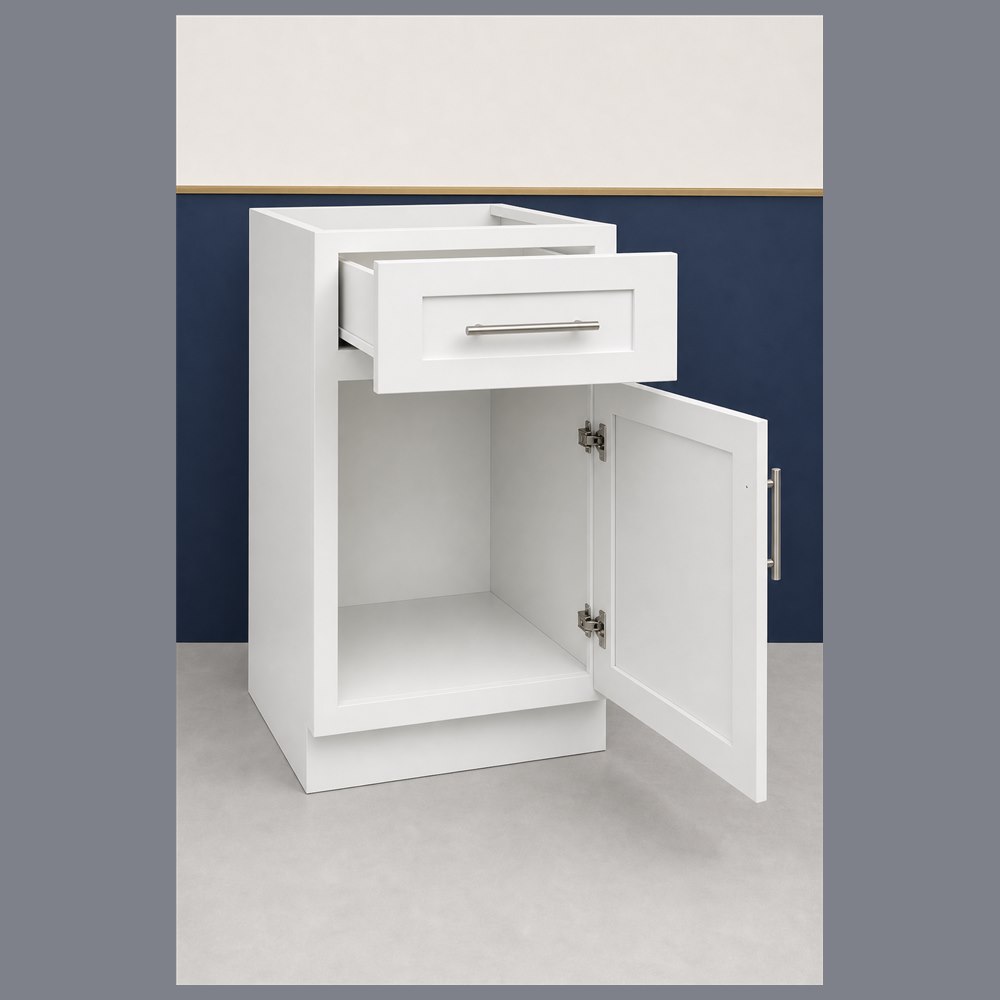

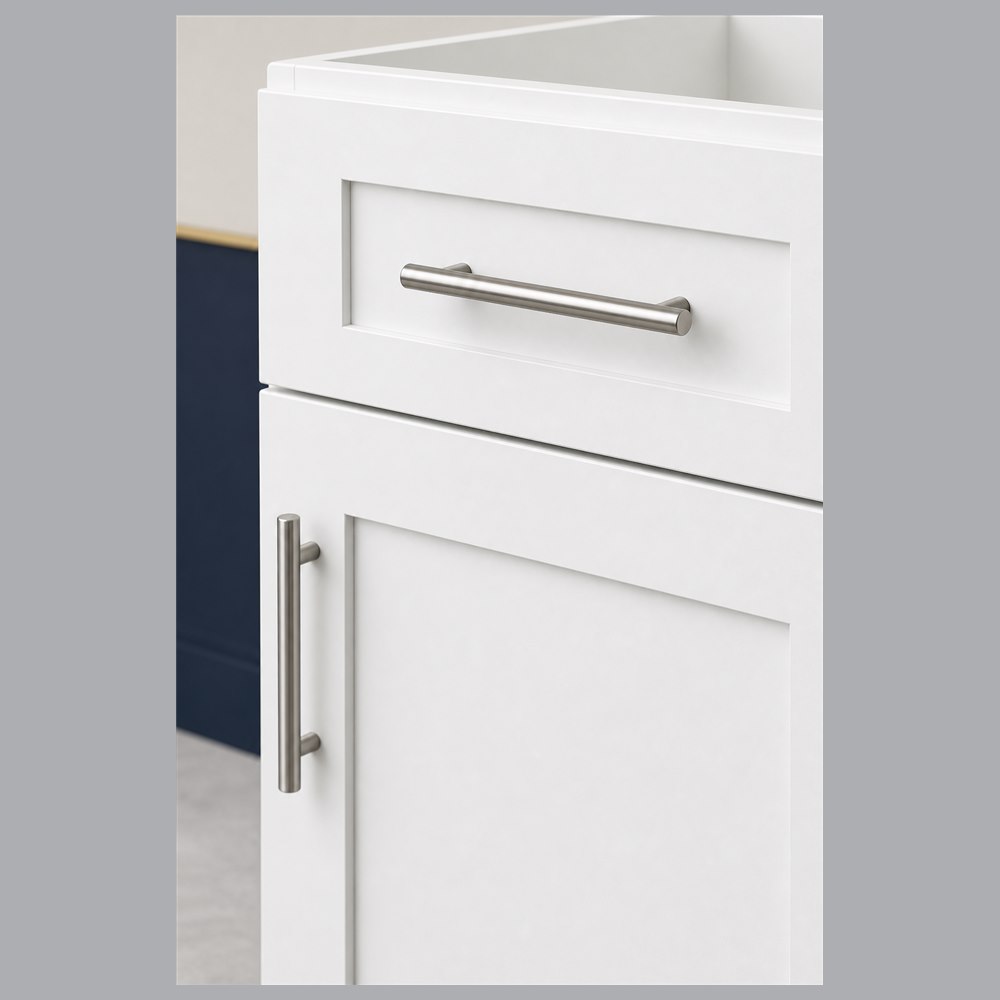

18-inch Shaker Base Cabinet
B18
18" W × 34 1/2" H × 24" D

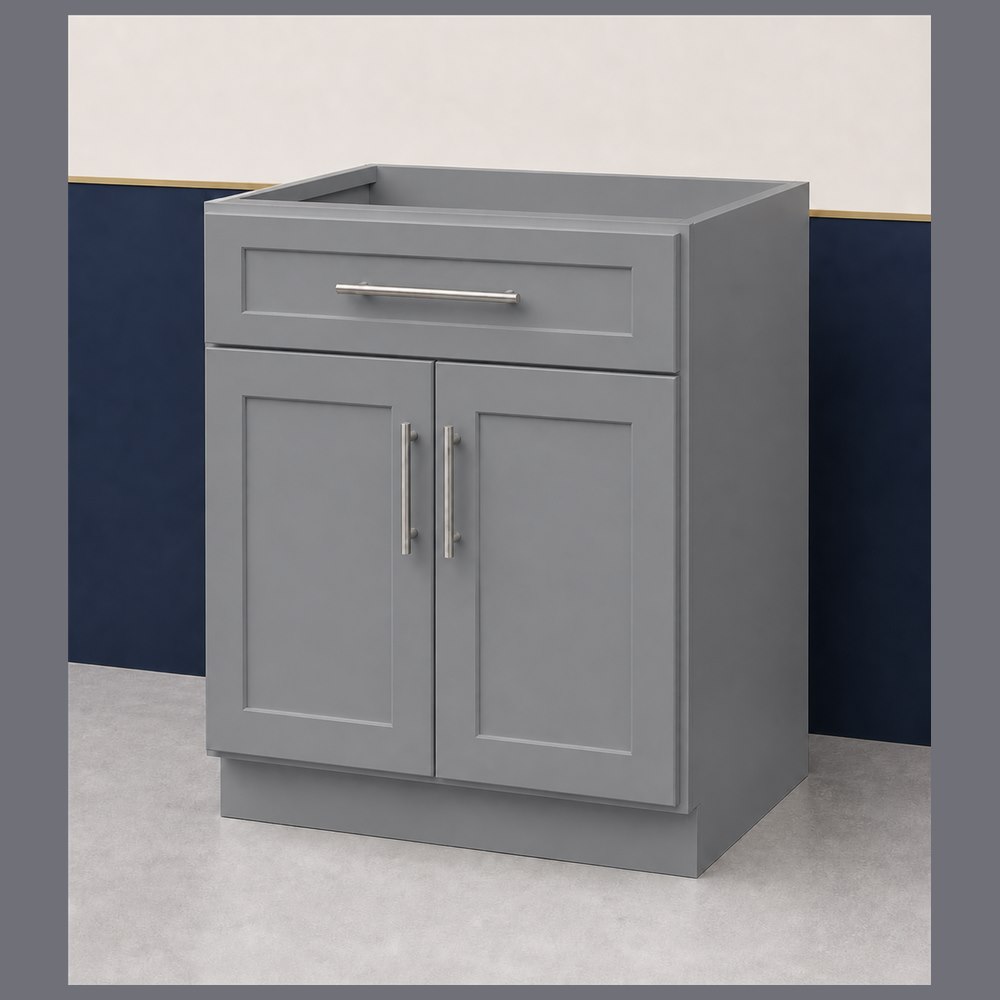

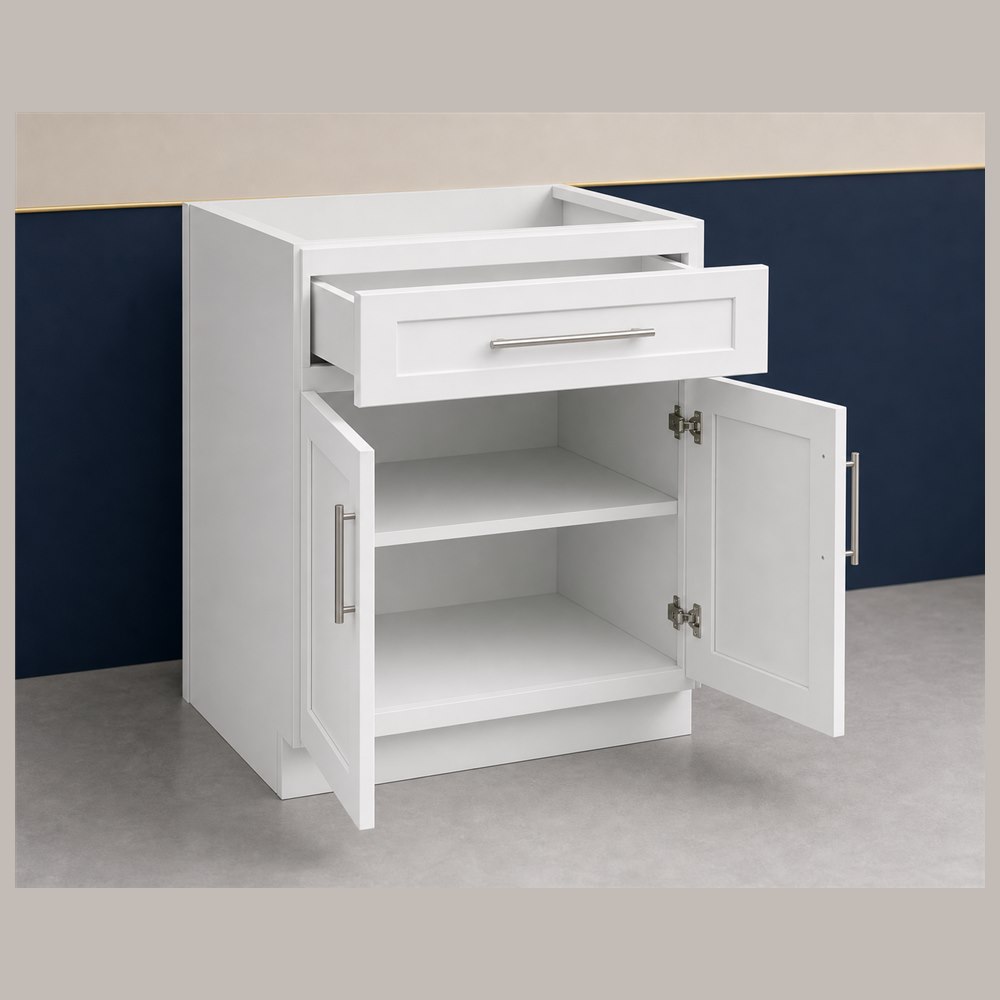

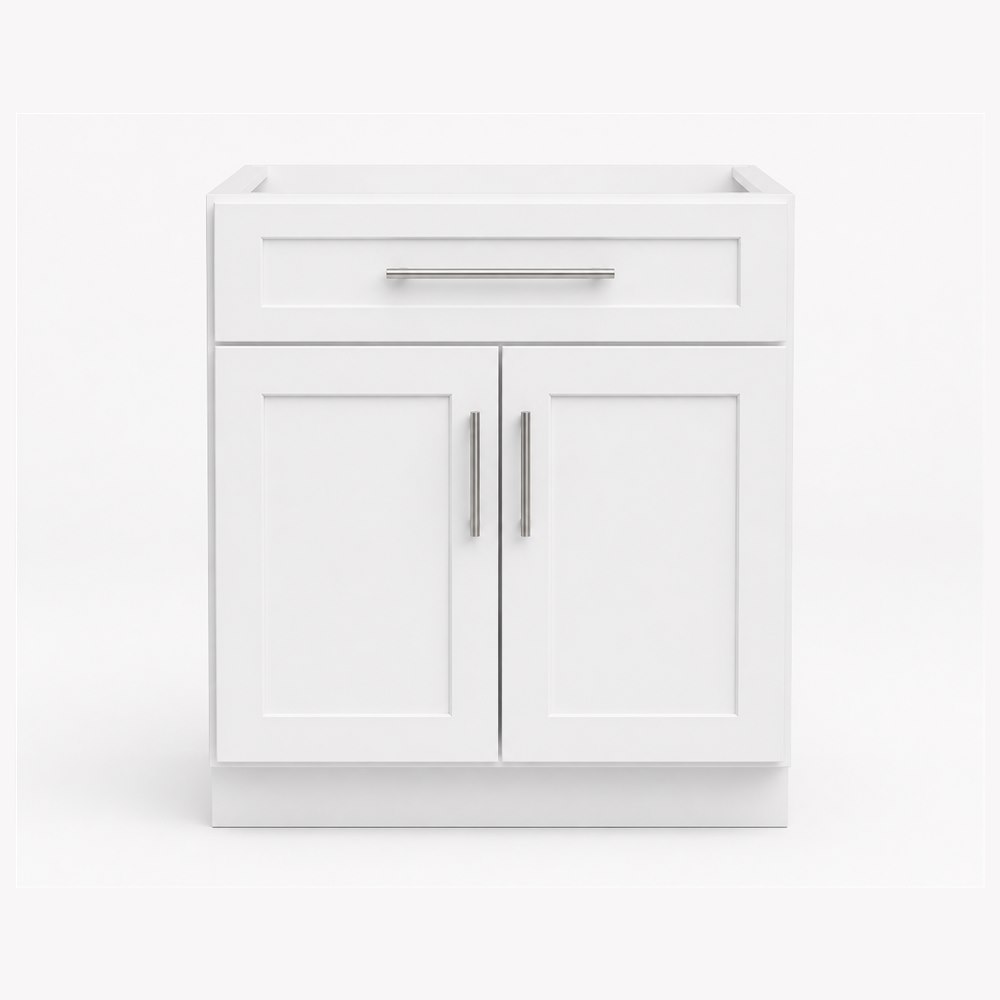

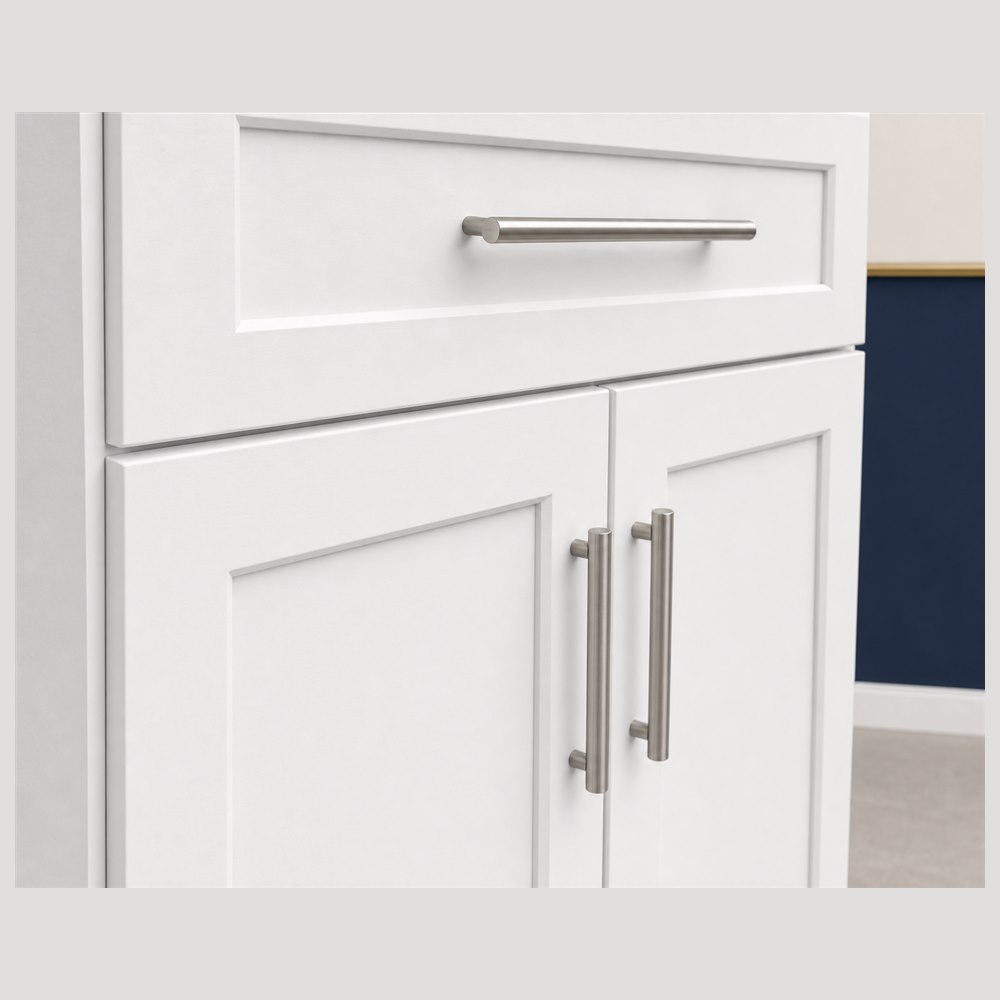

30-inch Shaker Base Cabinet
B30
30" W × 34 1/2" H × 24" D

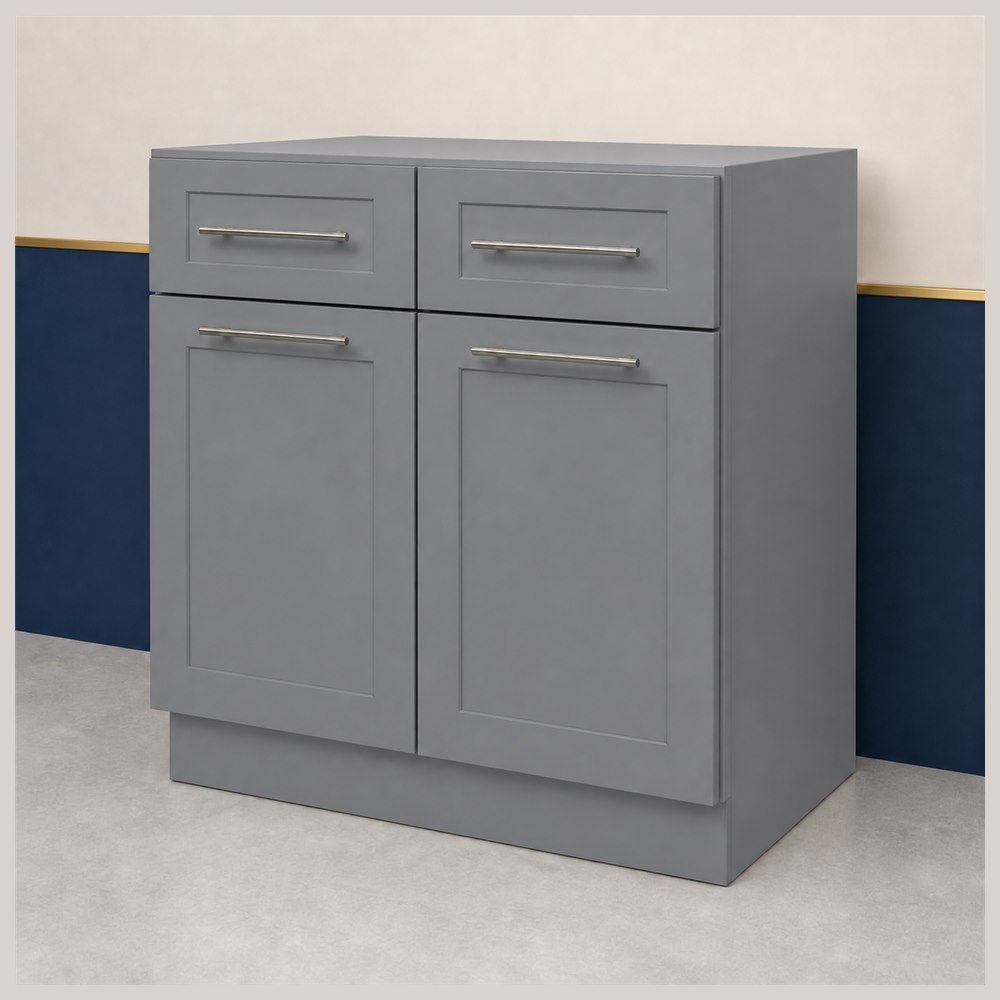

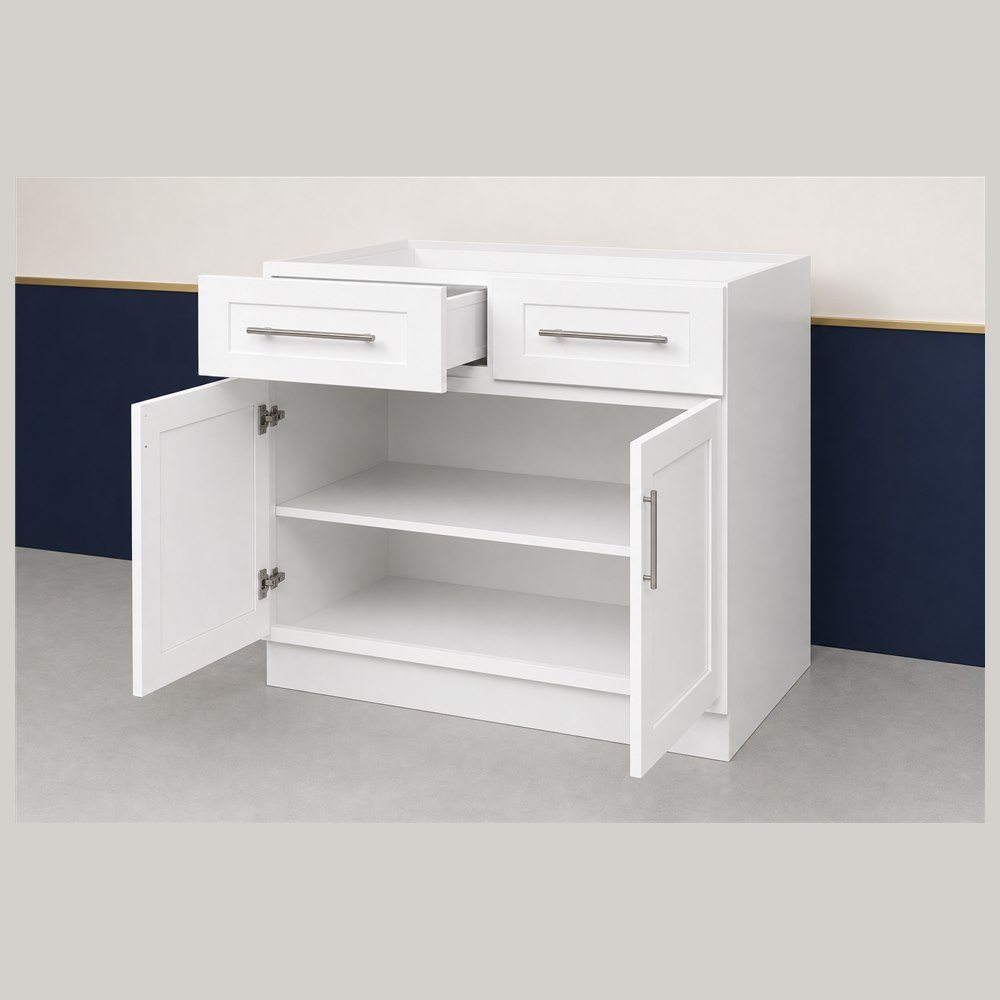

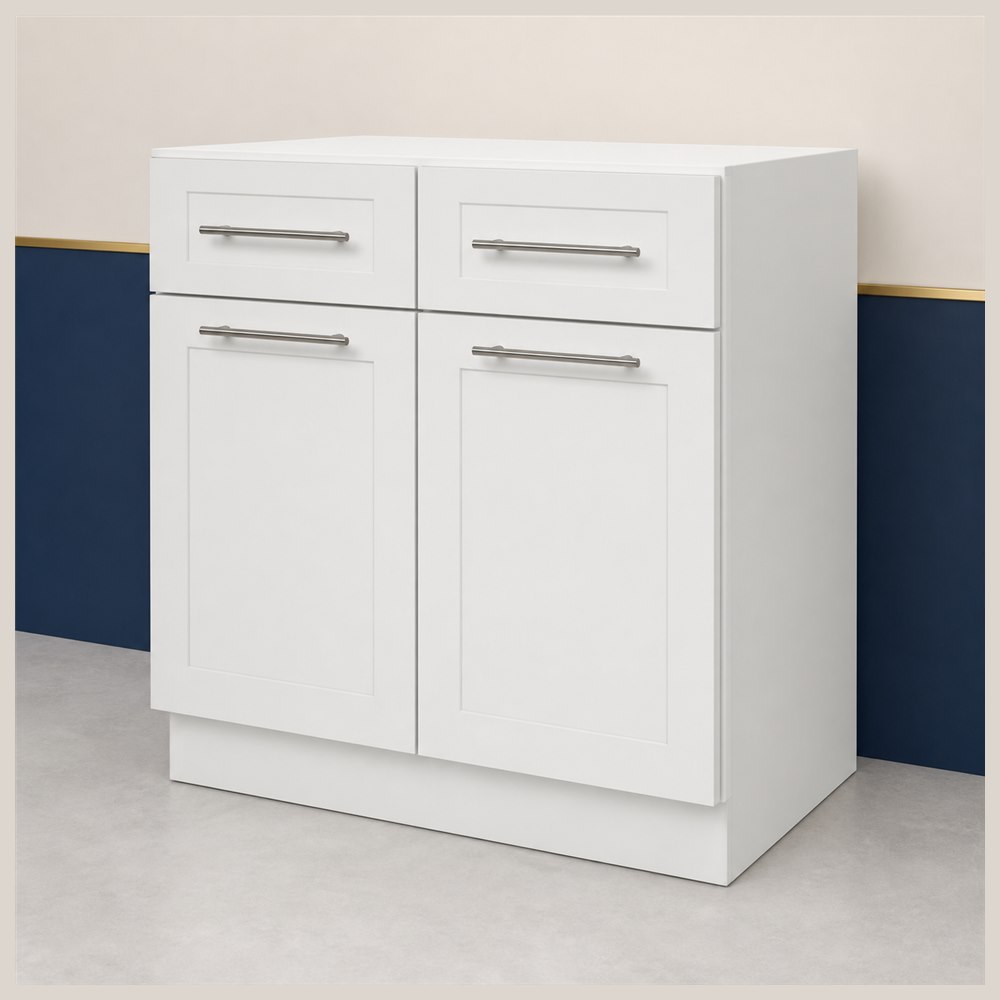

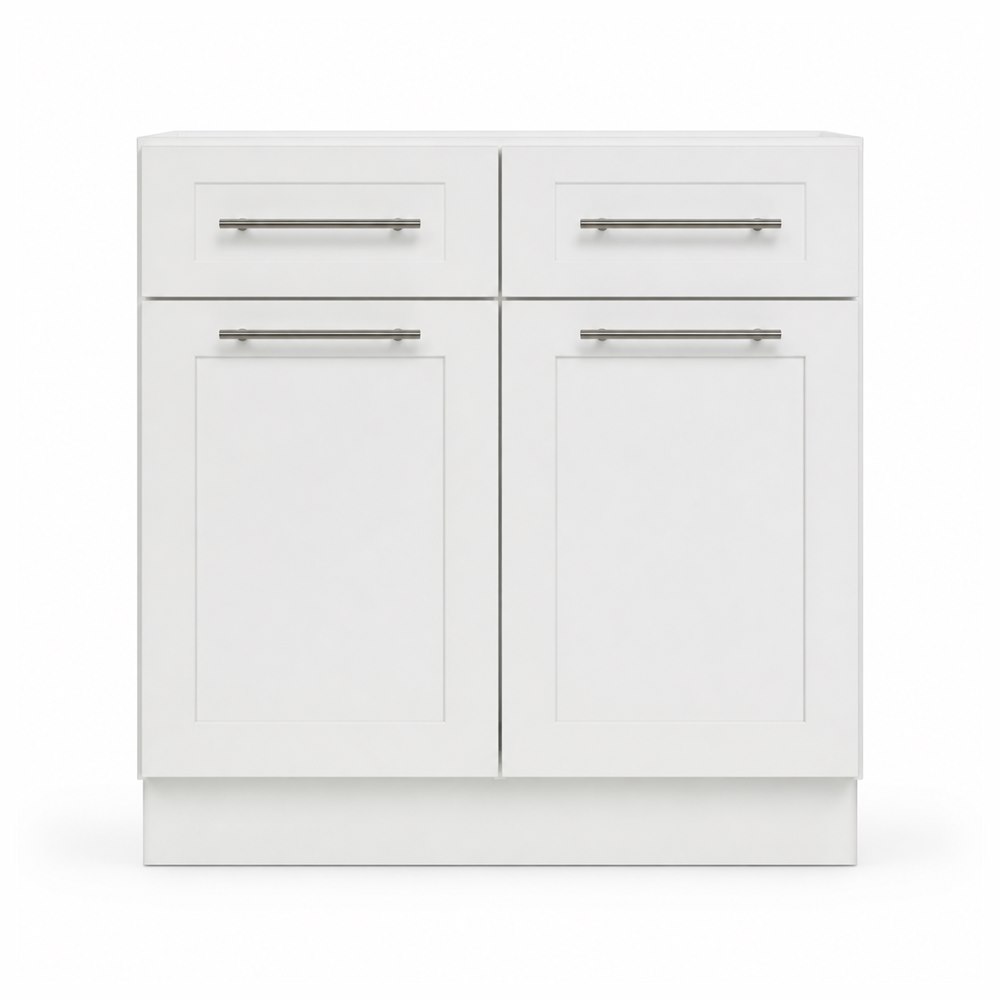

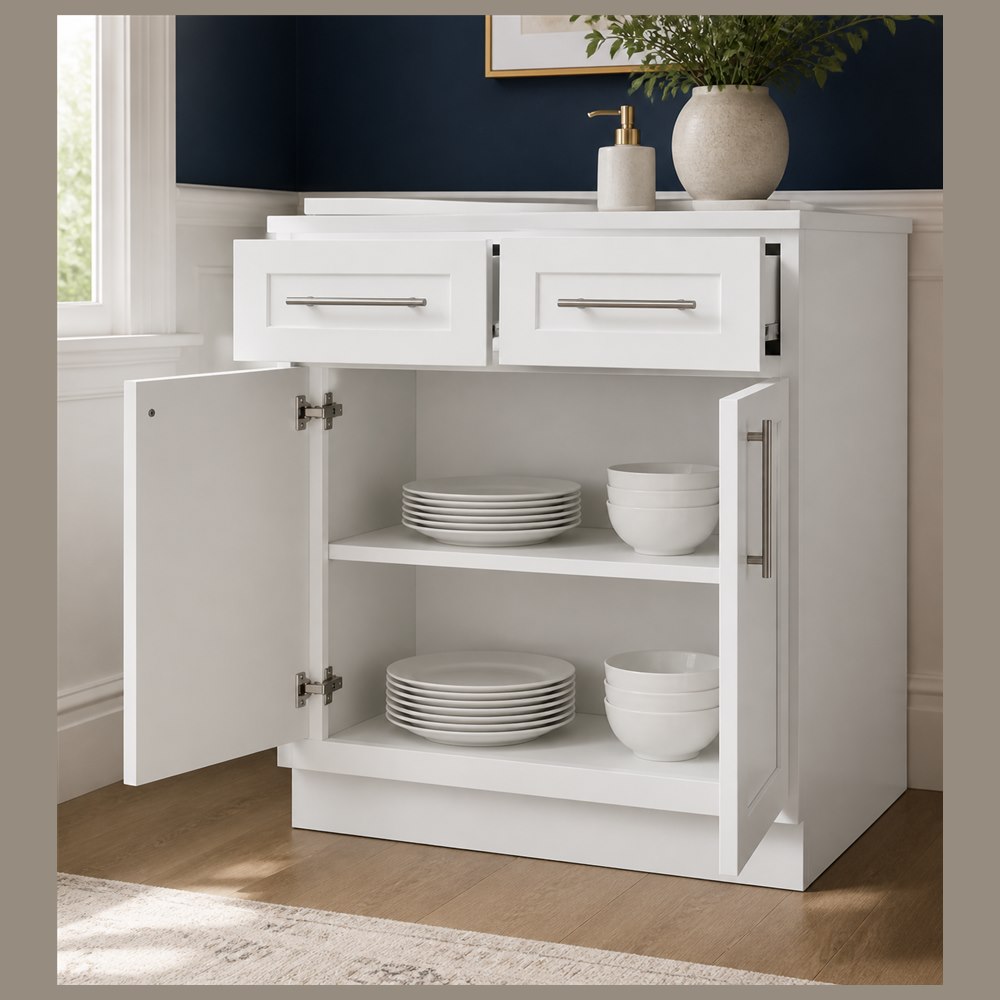

36-inch Shaker Base Cabinet
B36
36" W × 34 1/2" H × 24" D

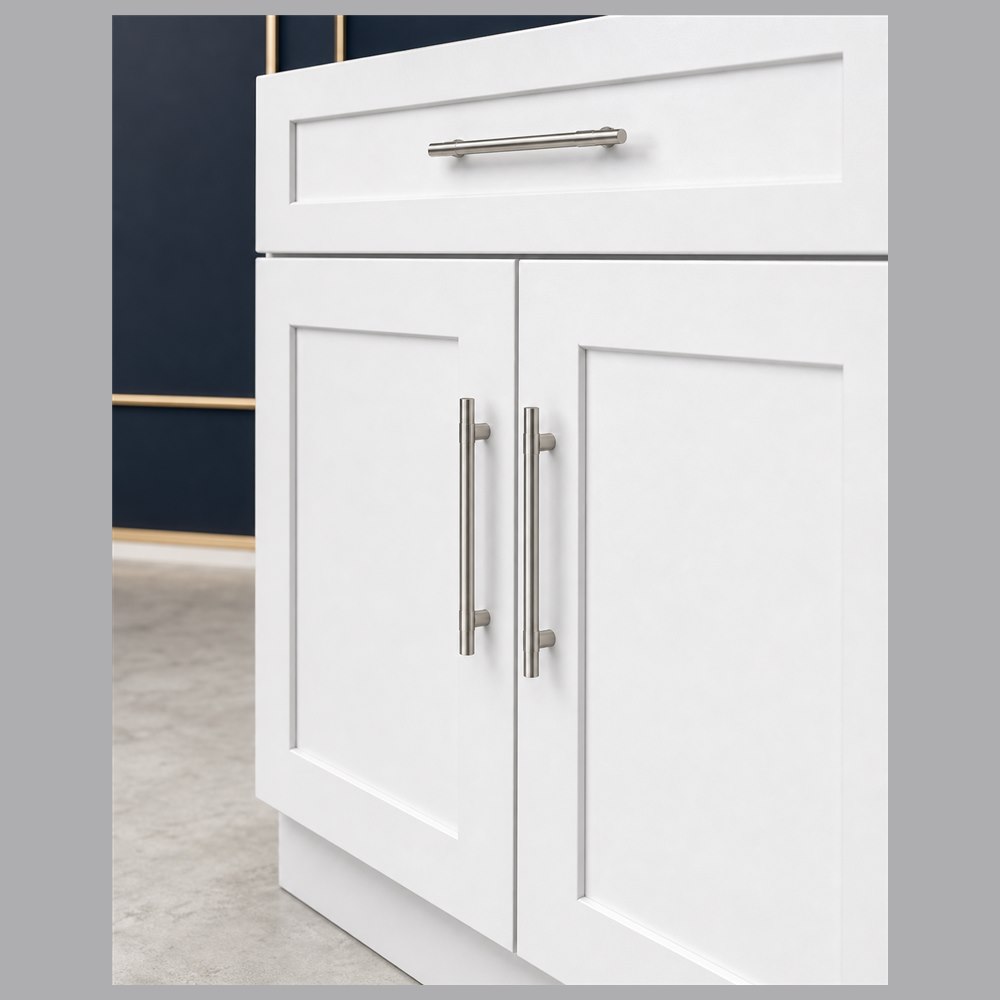

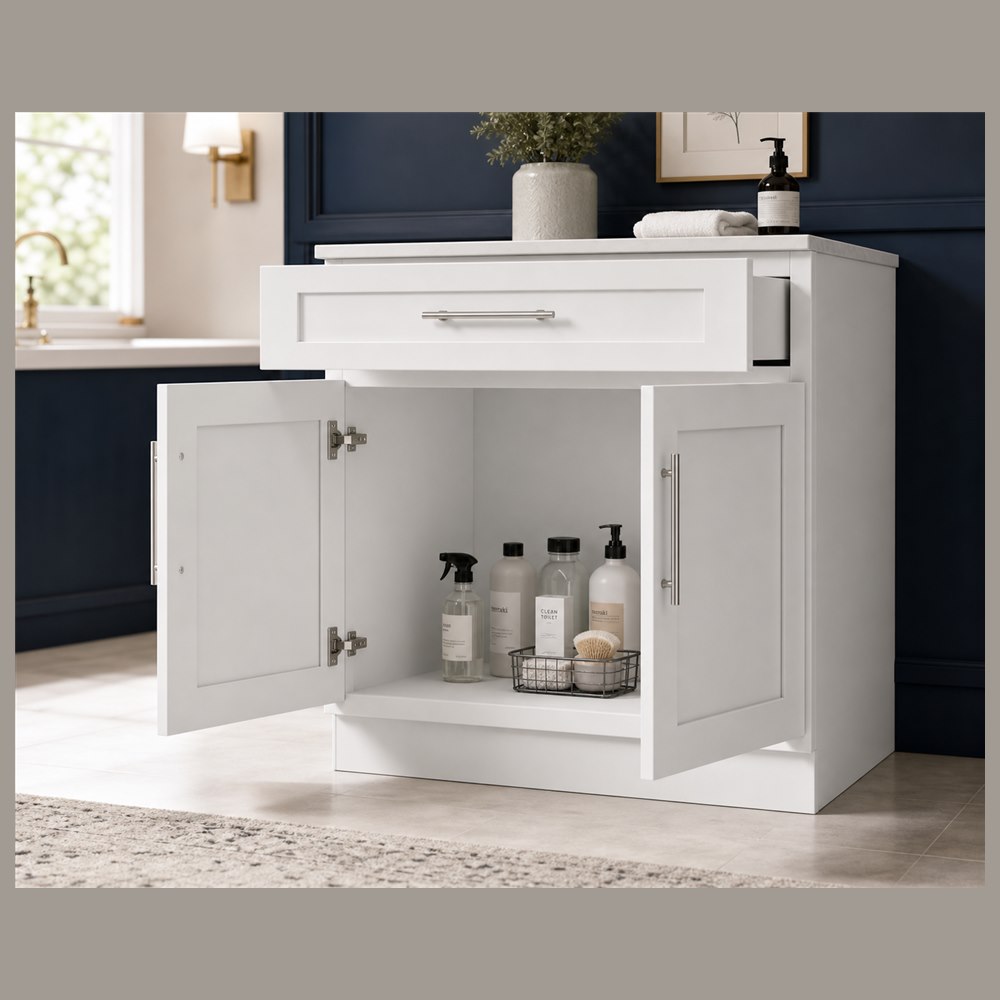

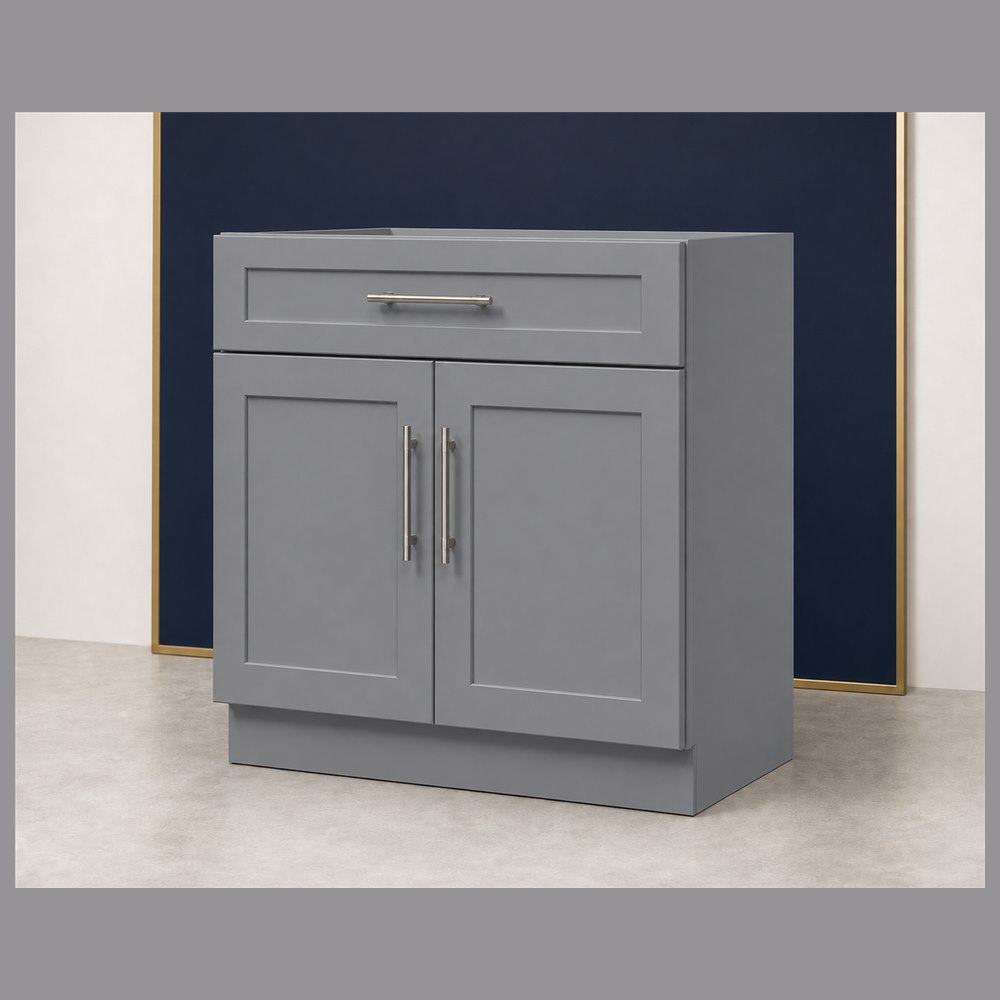

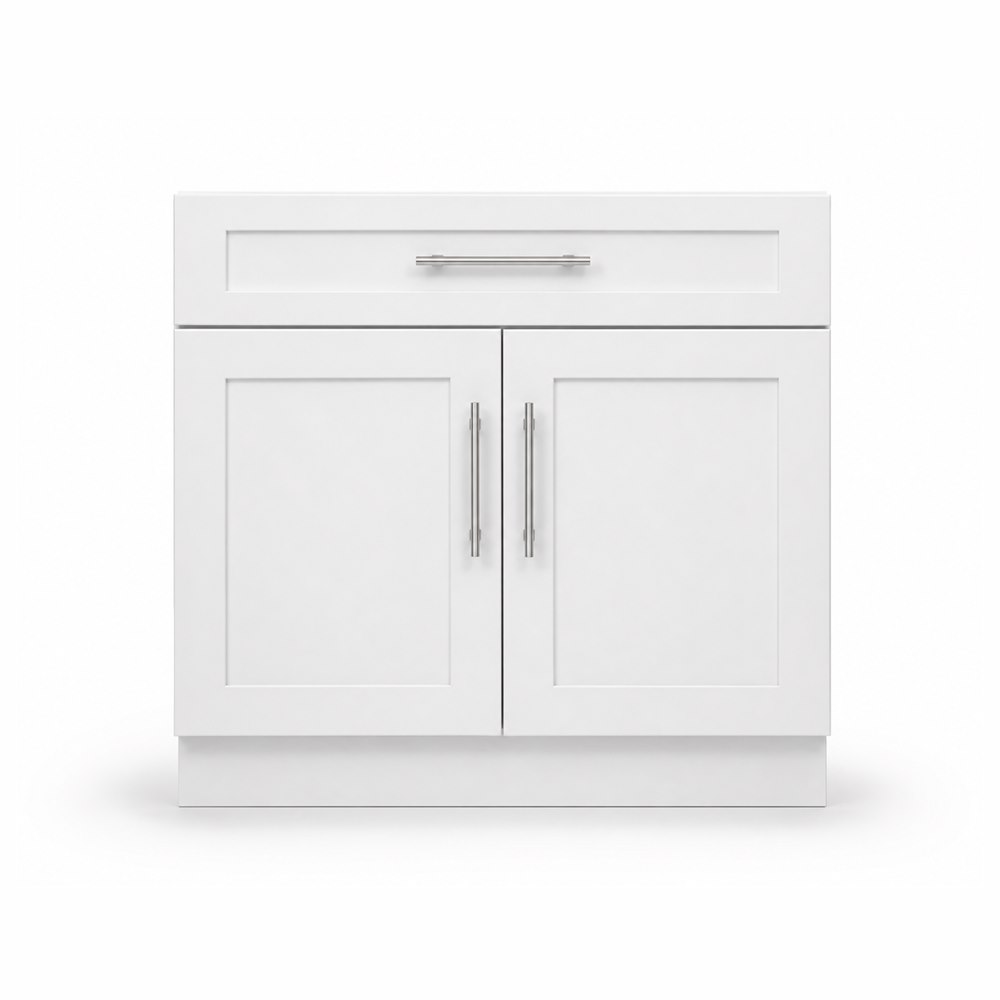

36-inch Shaker Sink Base Cabinet
SB36
36" W × 34 1/2" H × 24" D
Dimension drawing coming soon

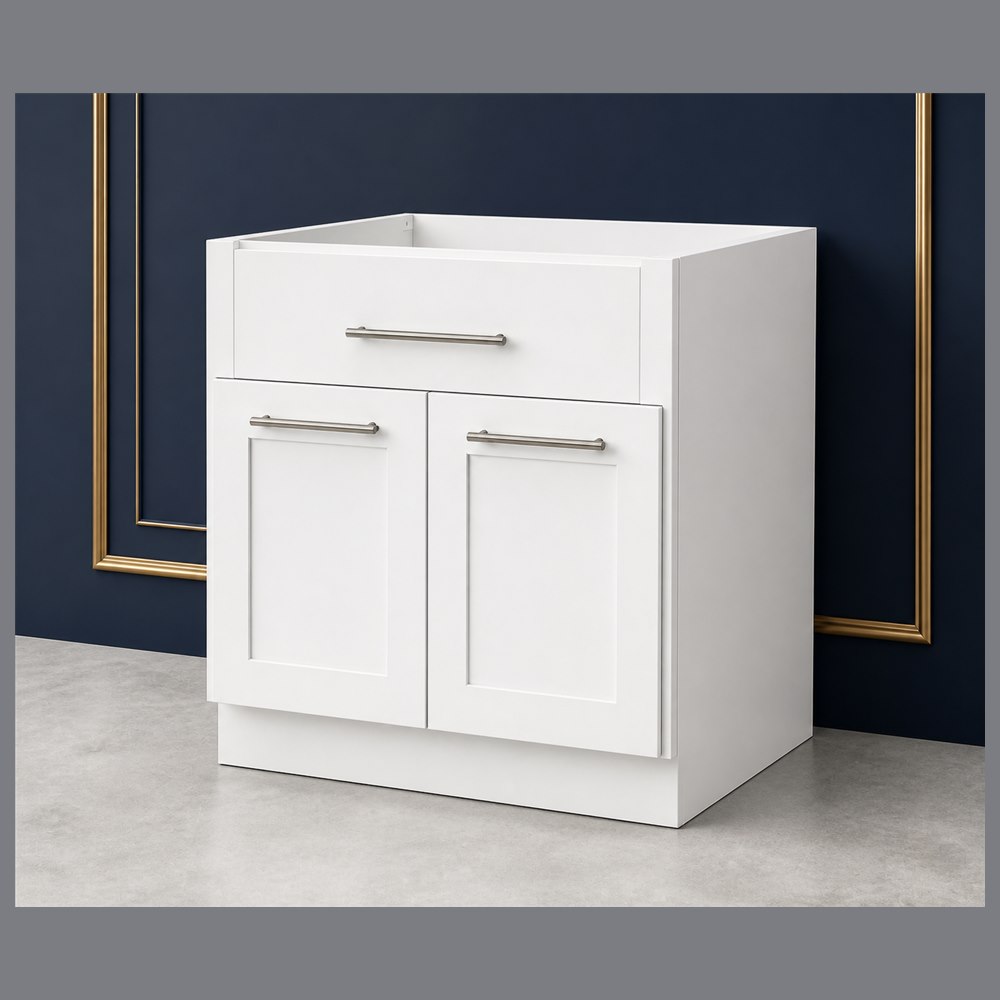

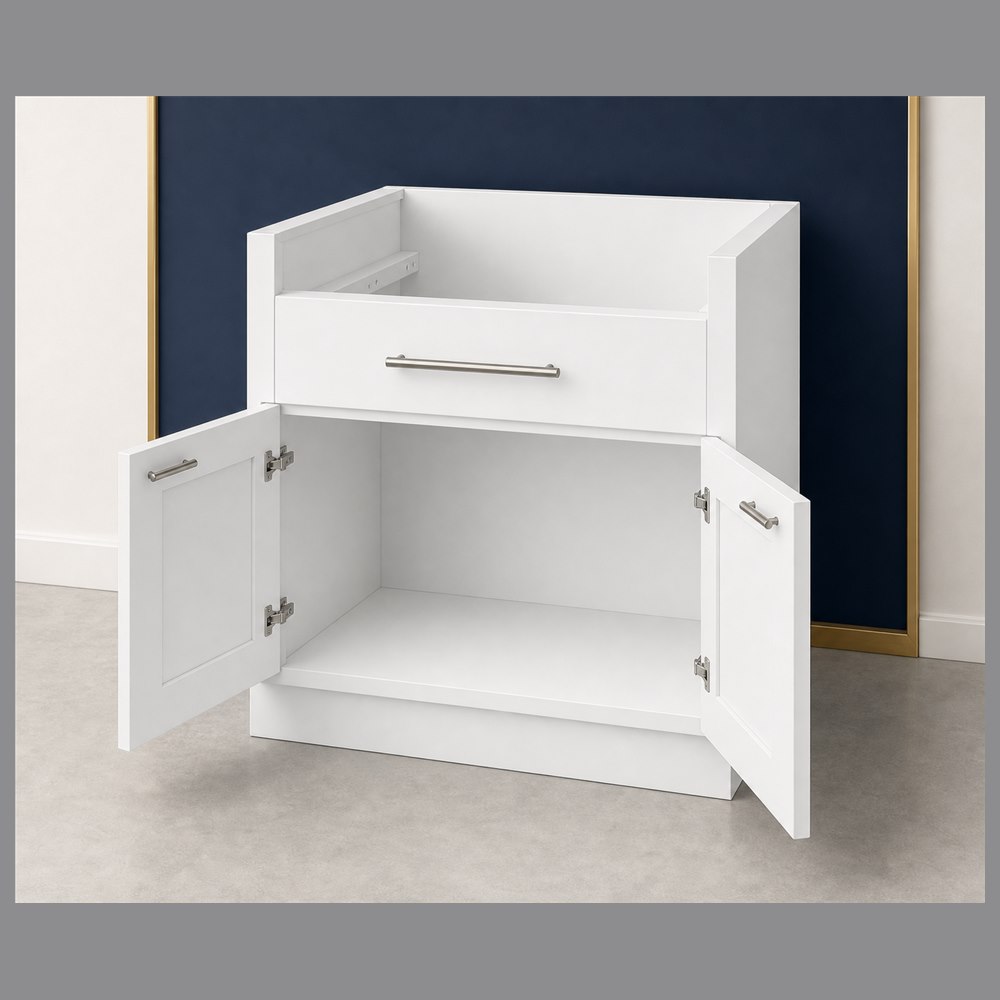

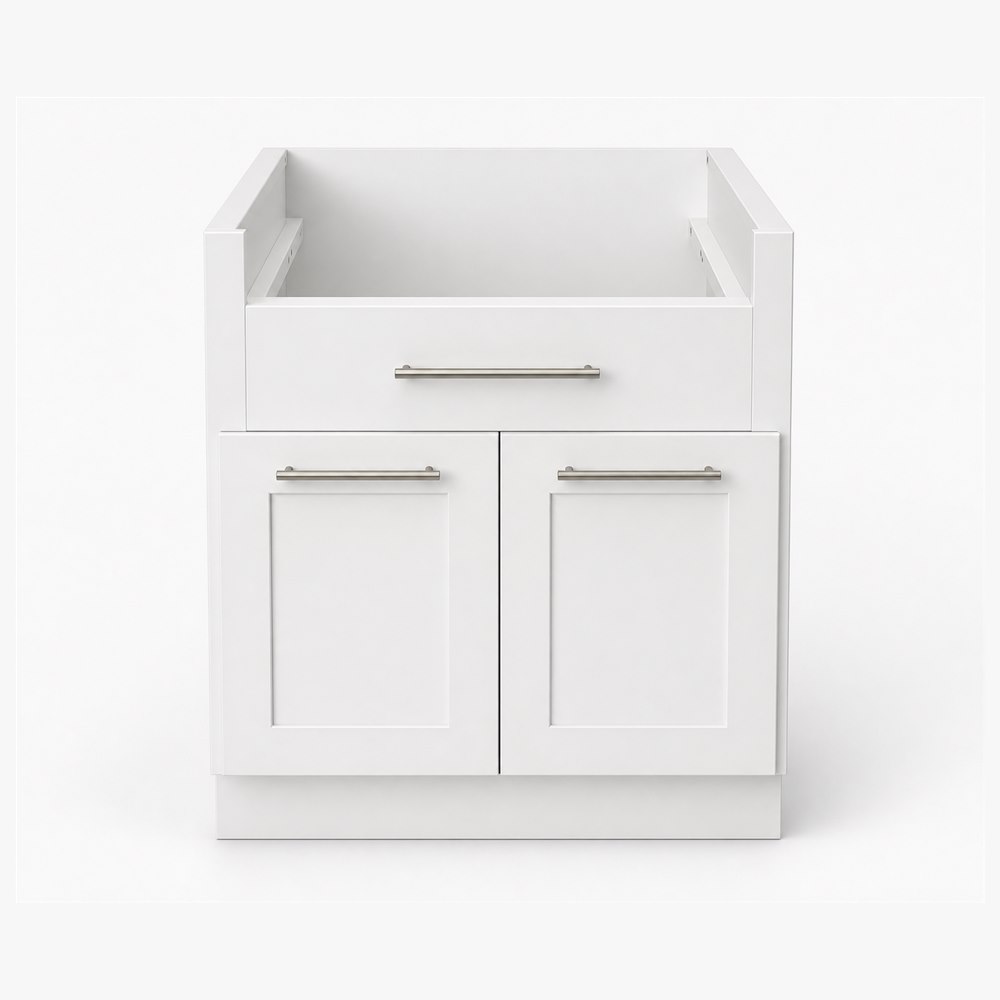

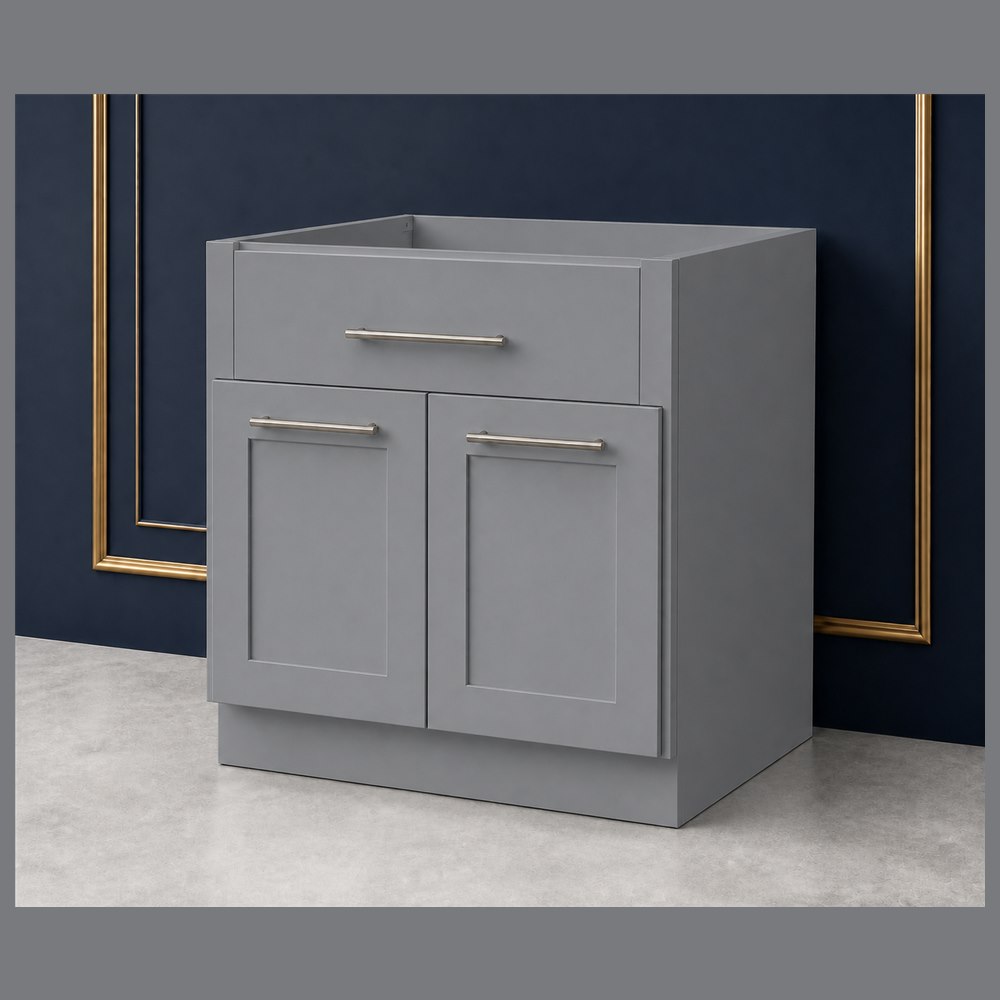

33-inch Shaker Farmhouse Sink Base Cabinet
FSB33
33" W × 34 1/2" H × 24" D

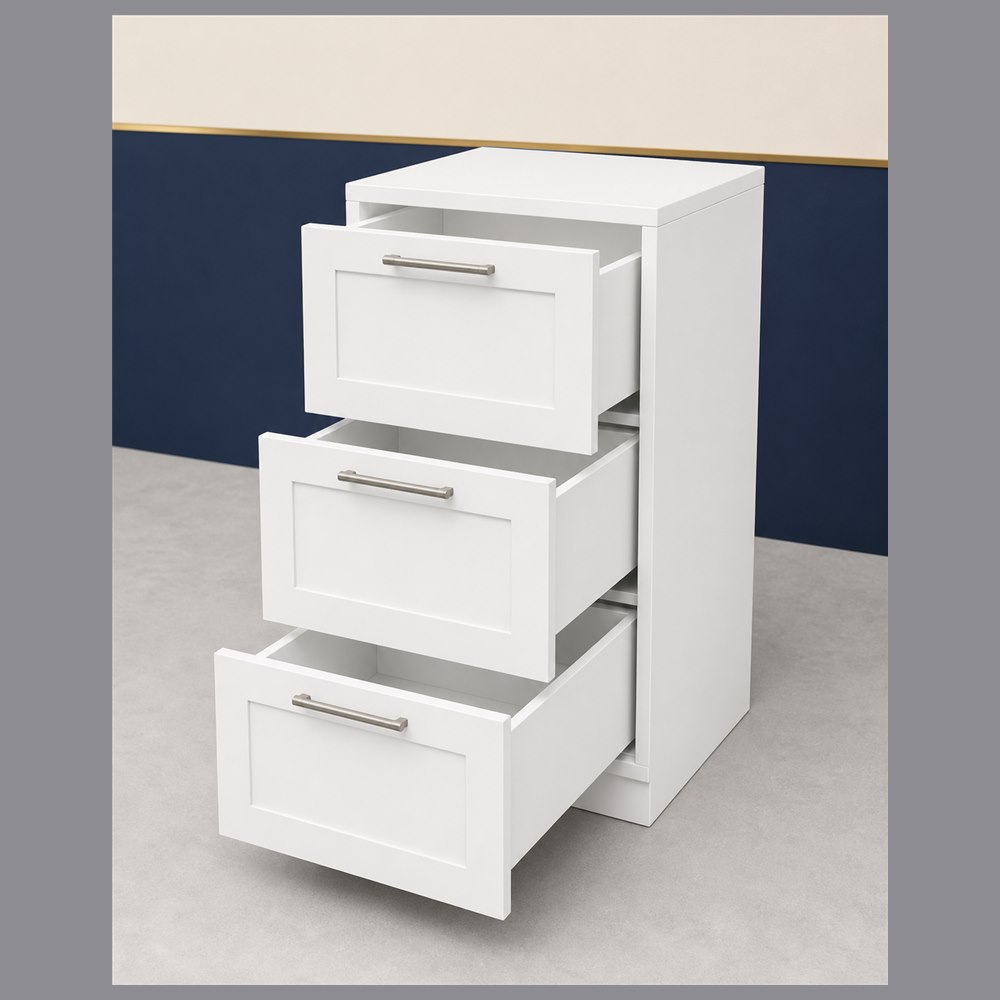

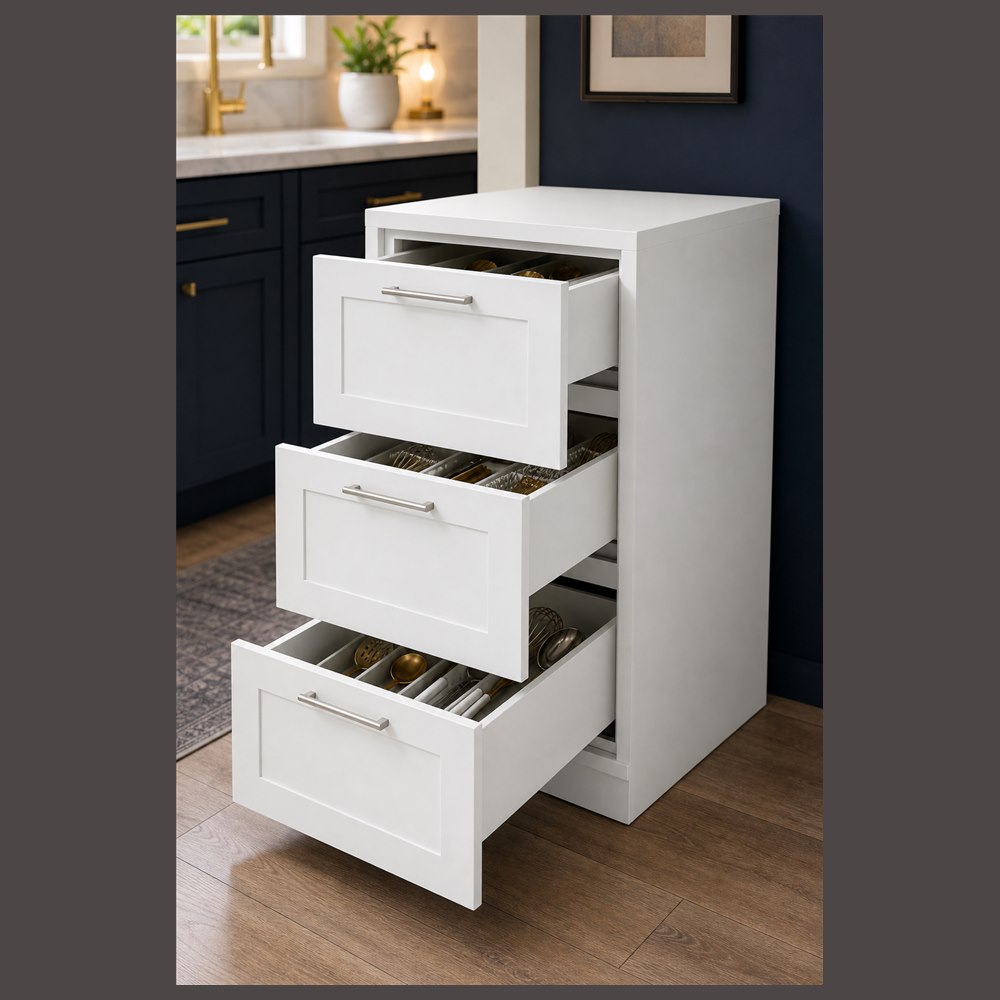

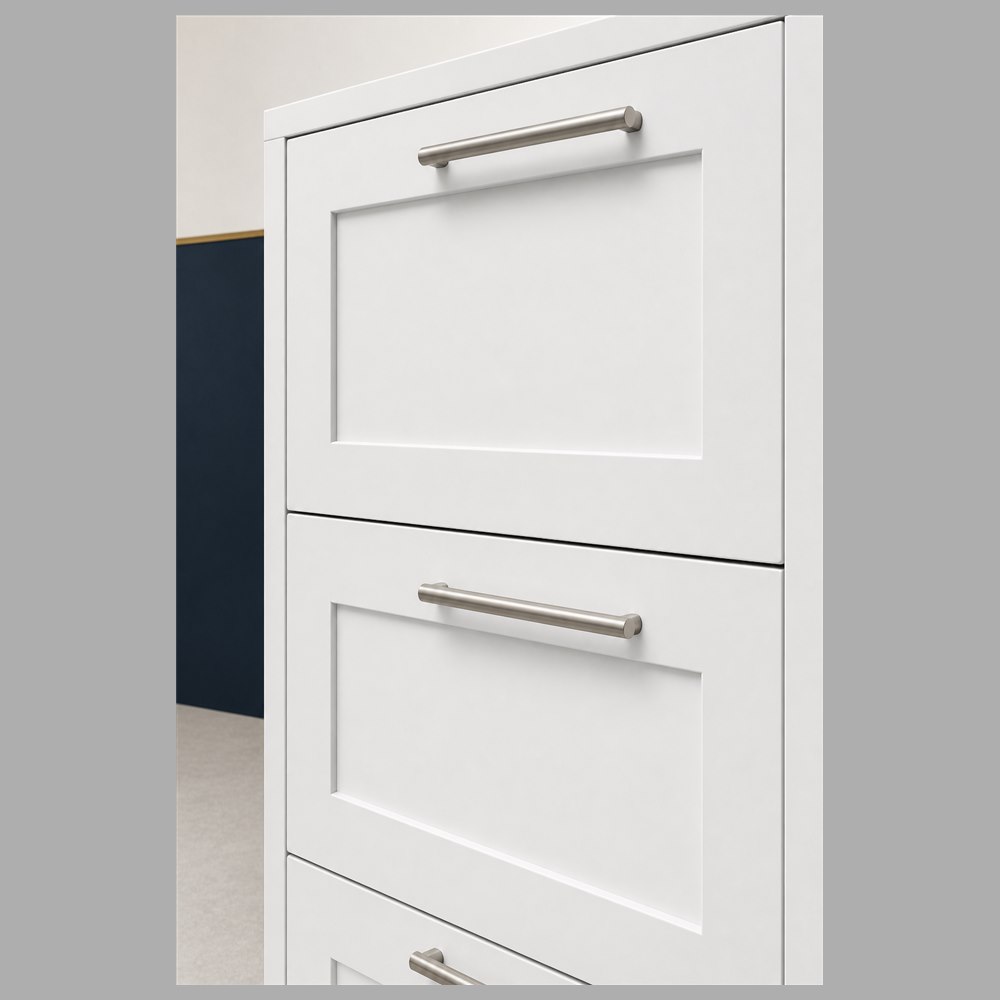

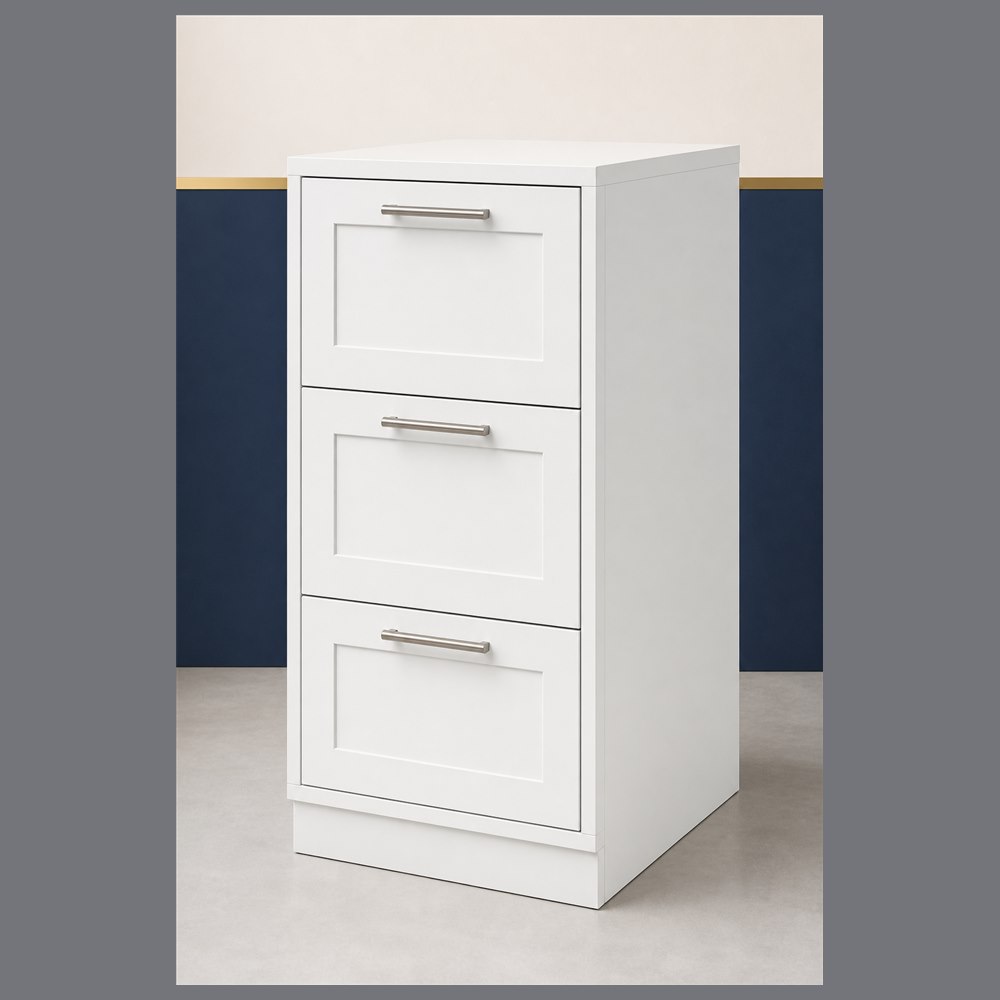

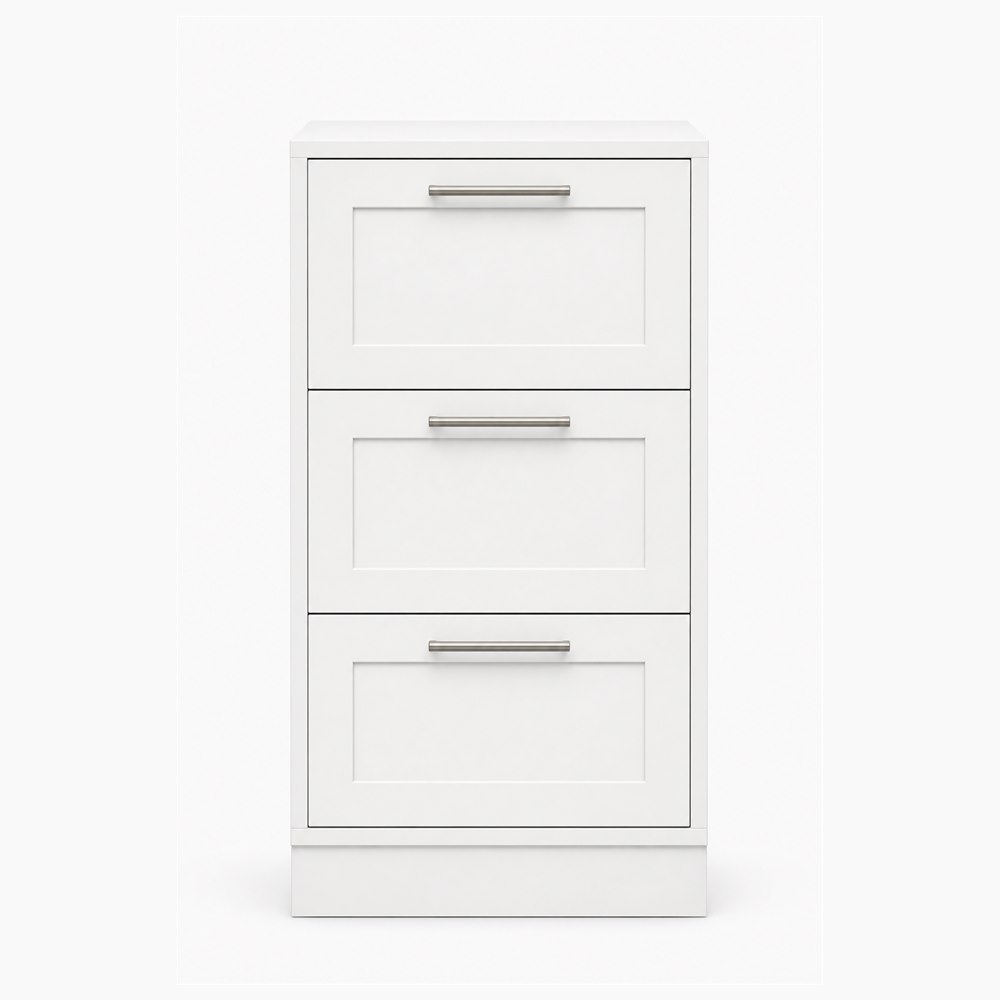

18-inch Shaker Drawer Base Cabinet
DB18
18" W × 34 1/2" H × 24" D
Dimension drawing coming soon

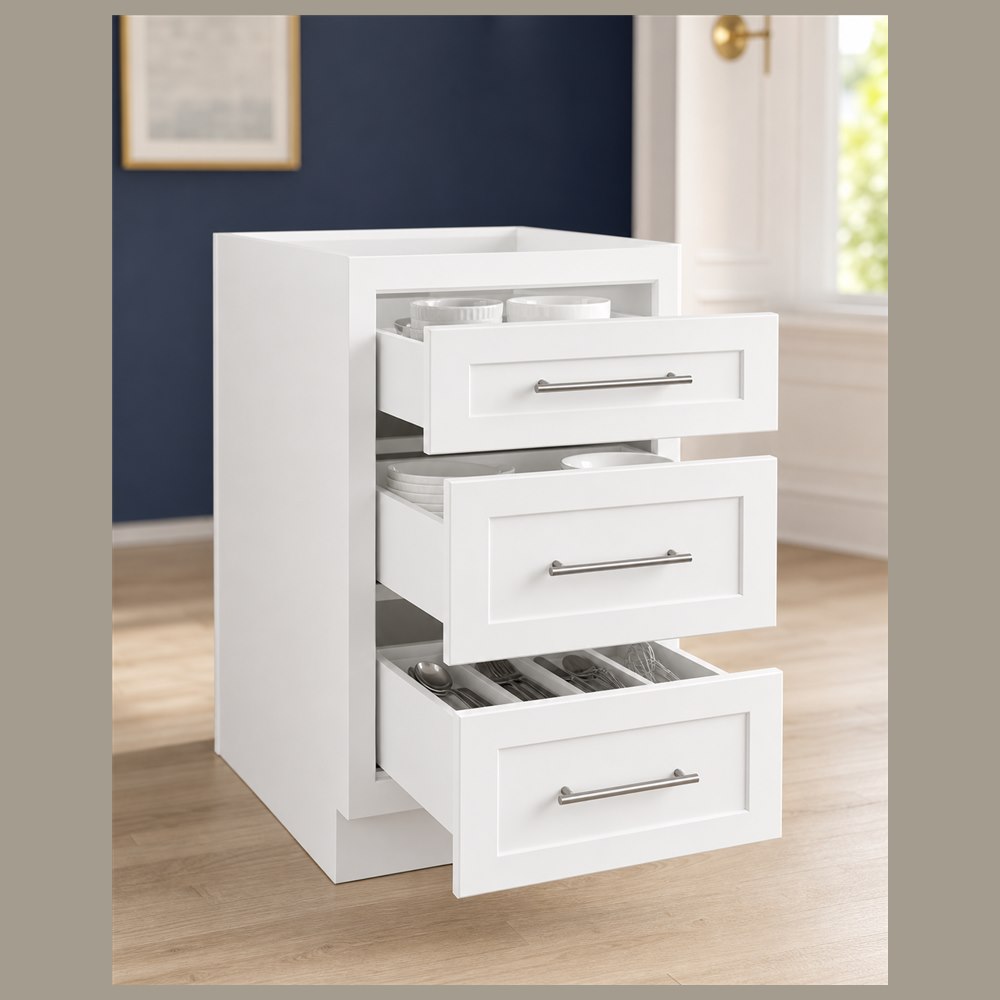

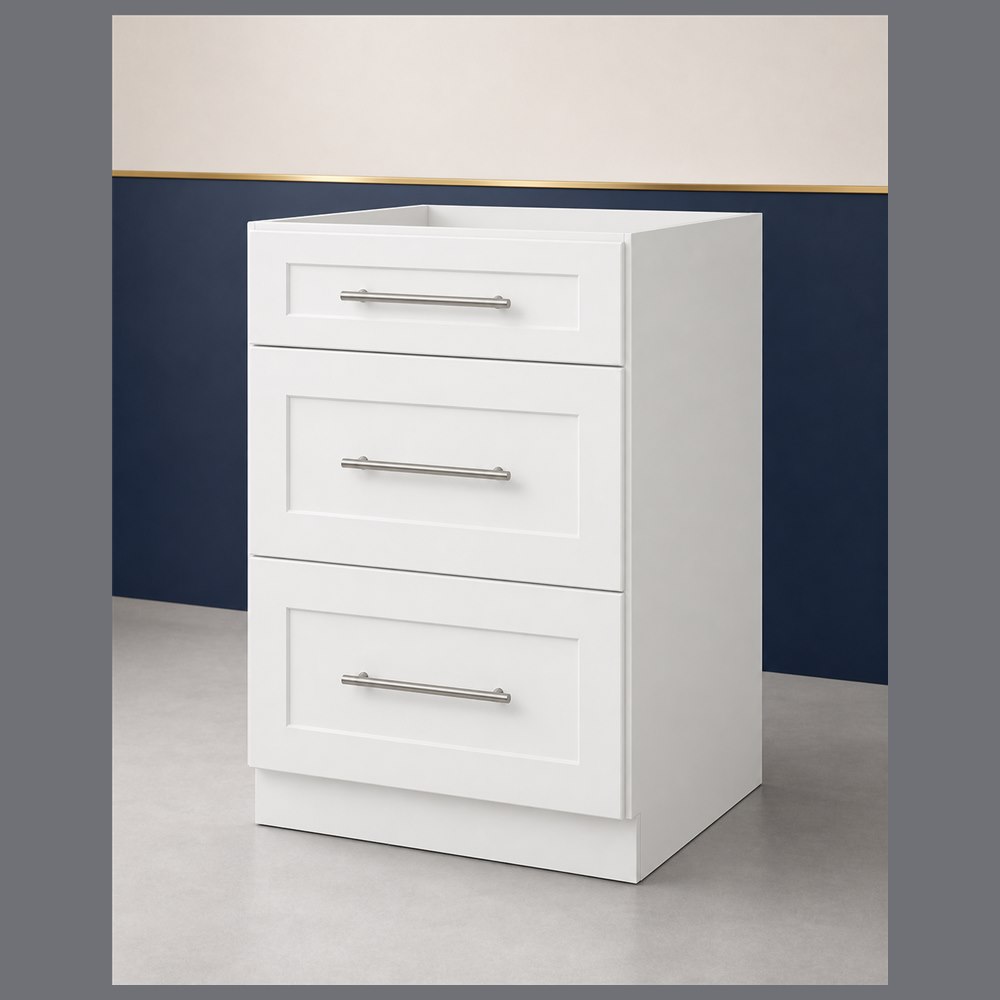

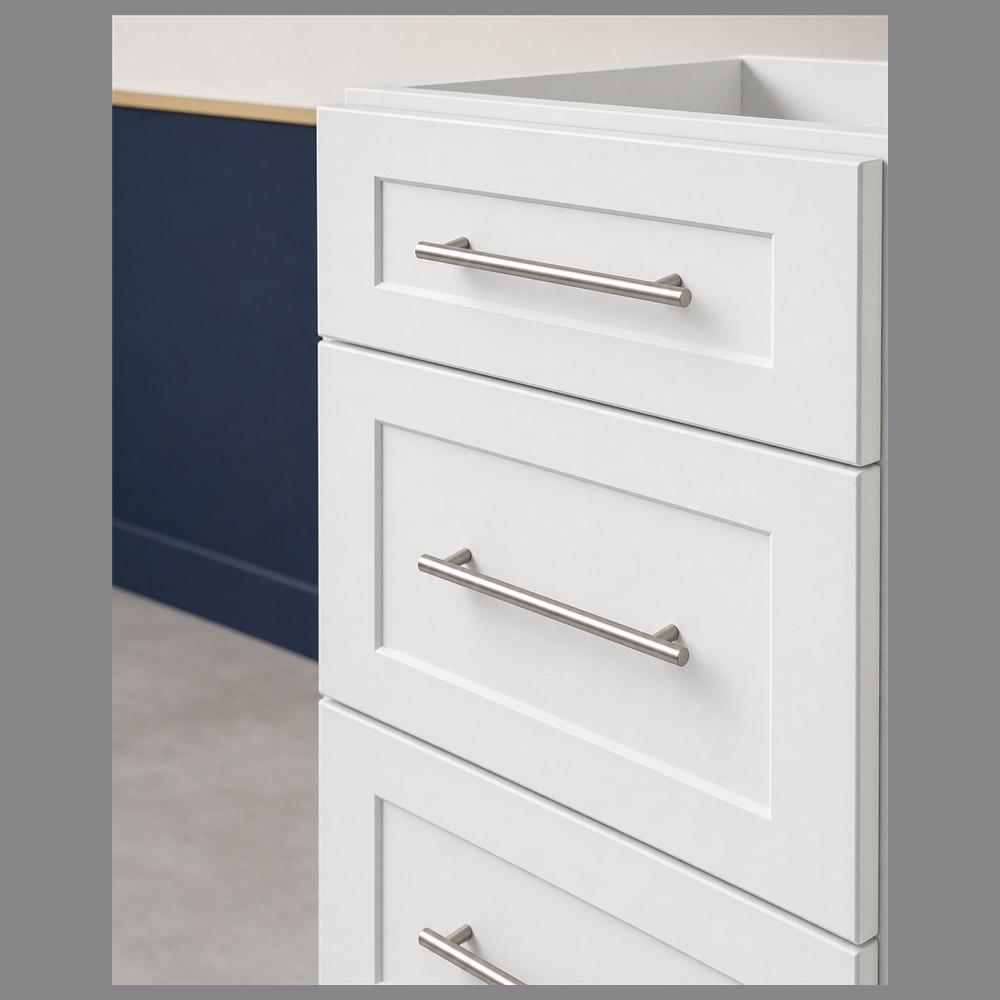

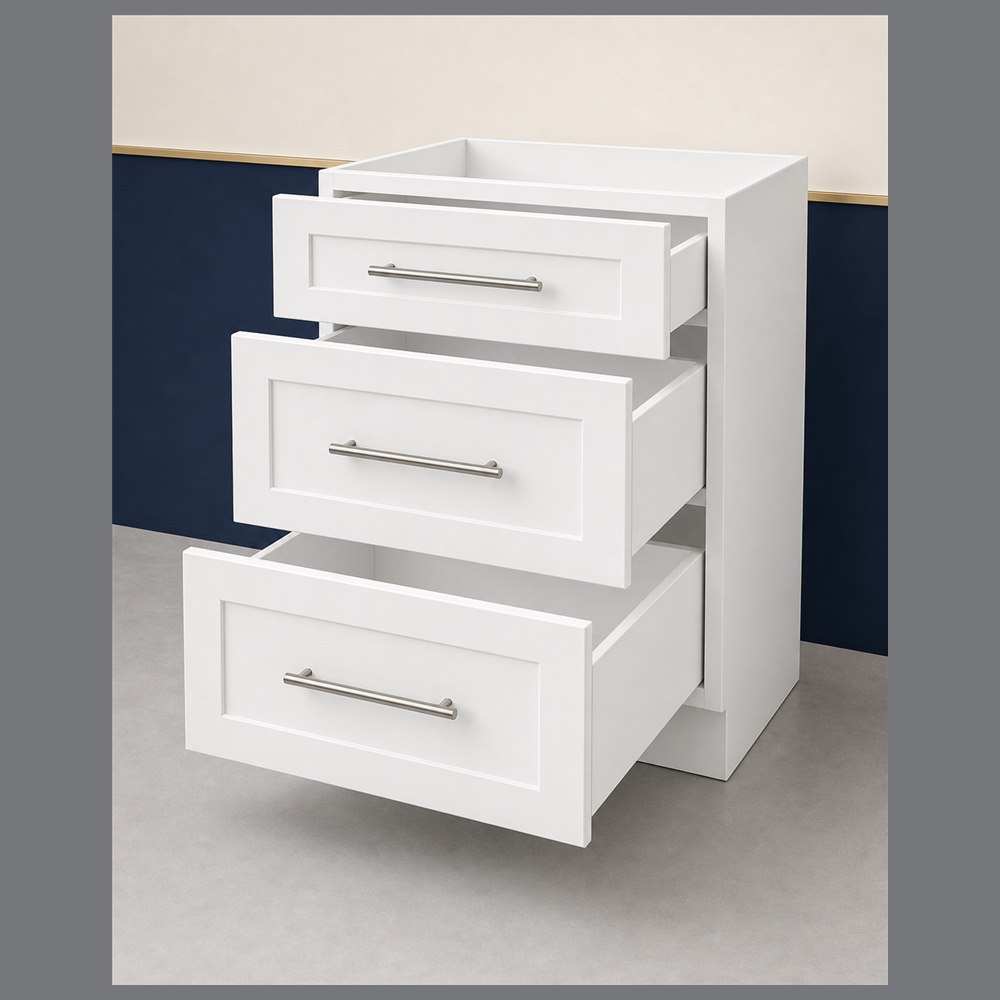

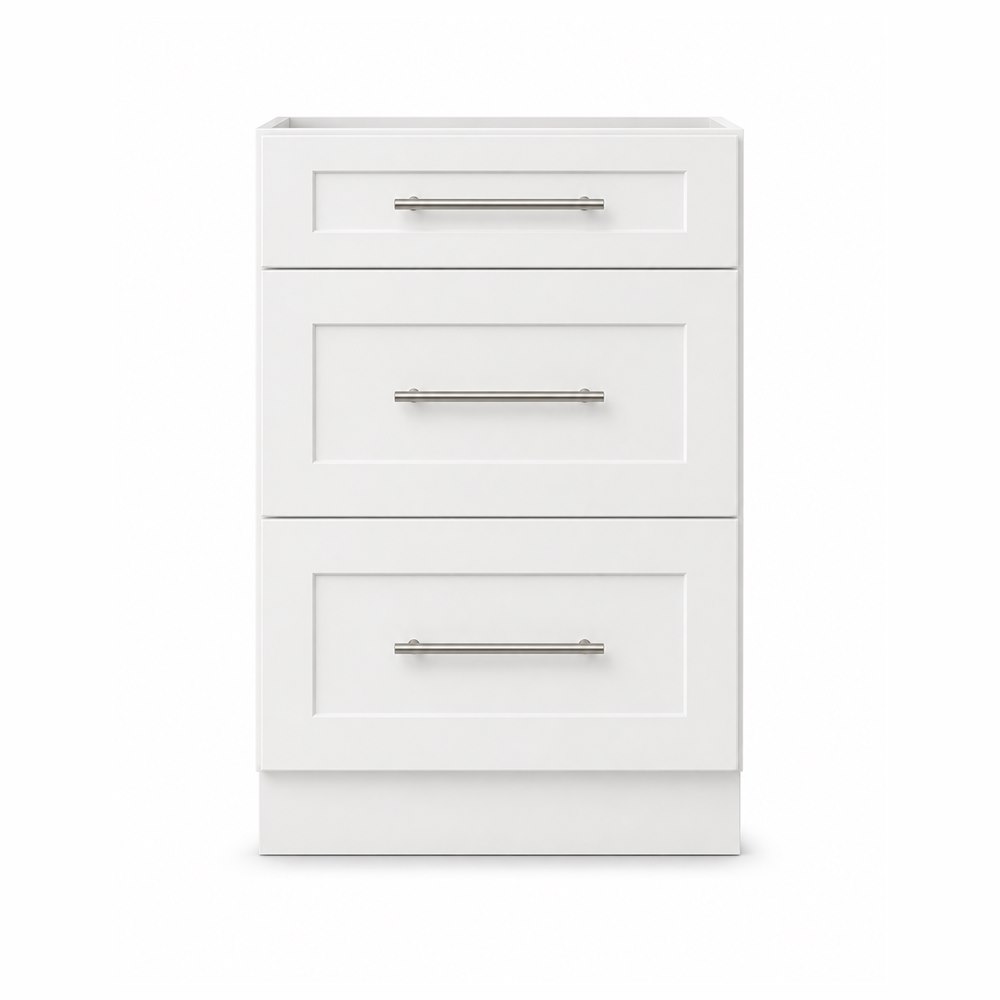

24-inch Shaker Drawer Base Cabinet
3DB24
24" W × 34 1/2" H × 24" D
Dimension drawing coming soon

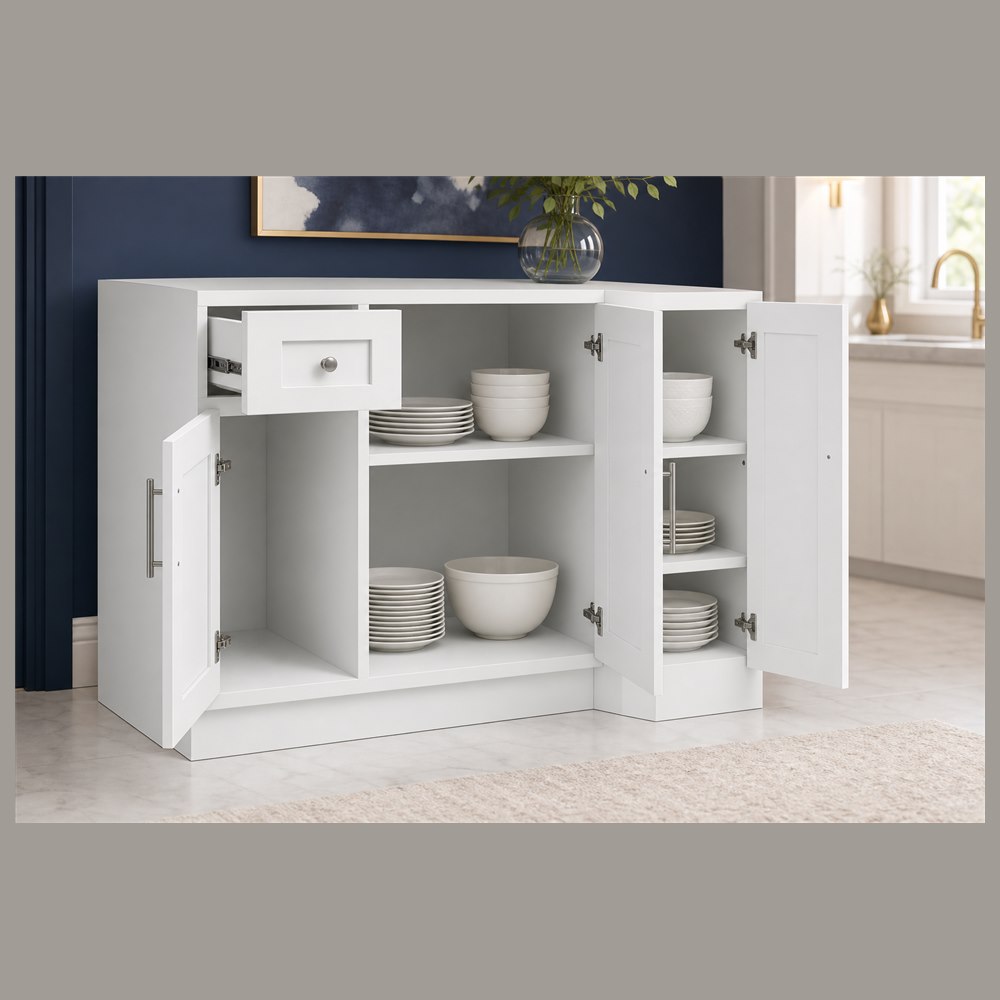

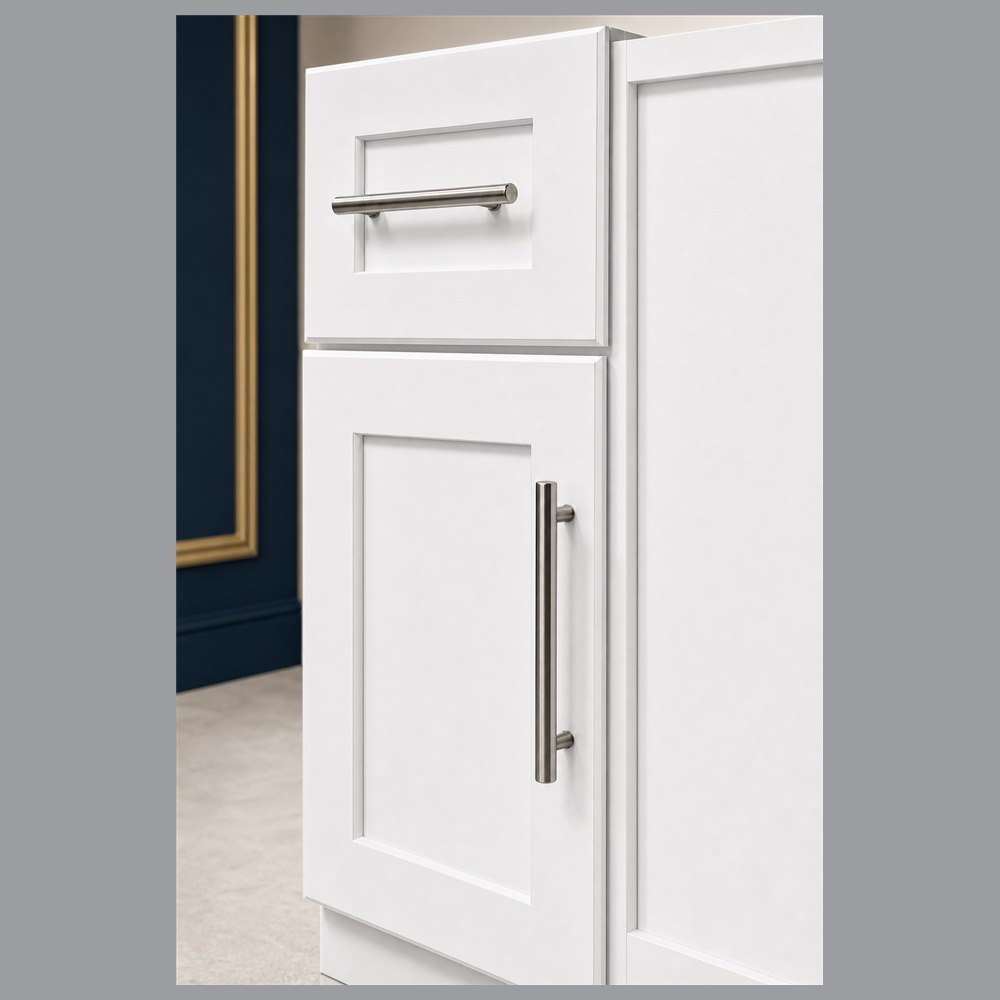

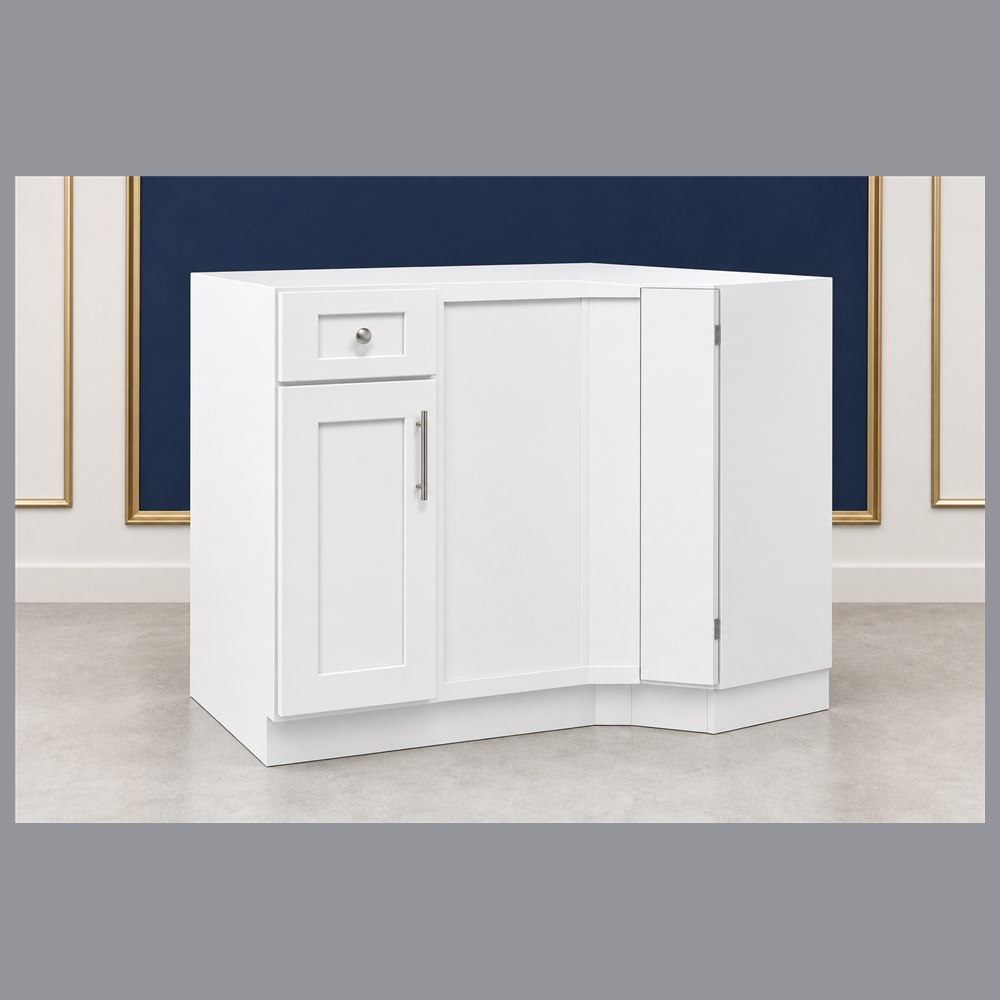

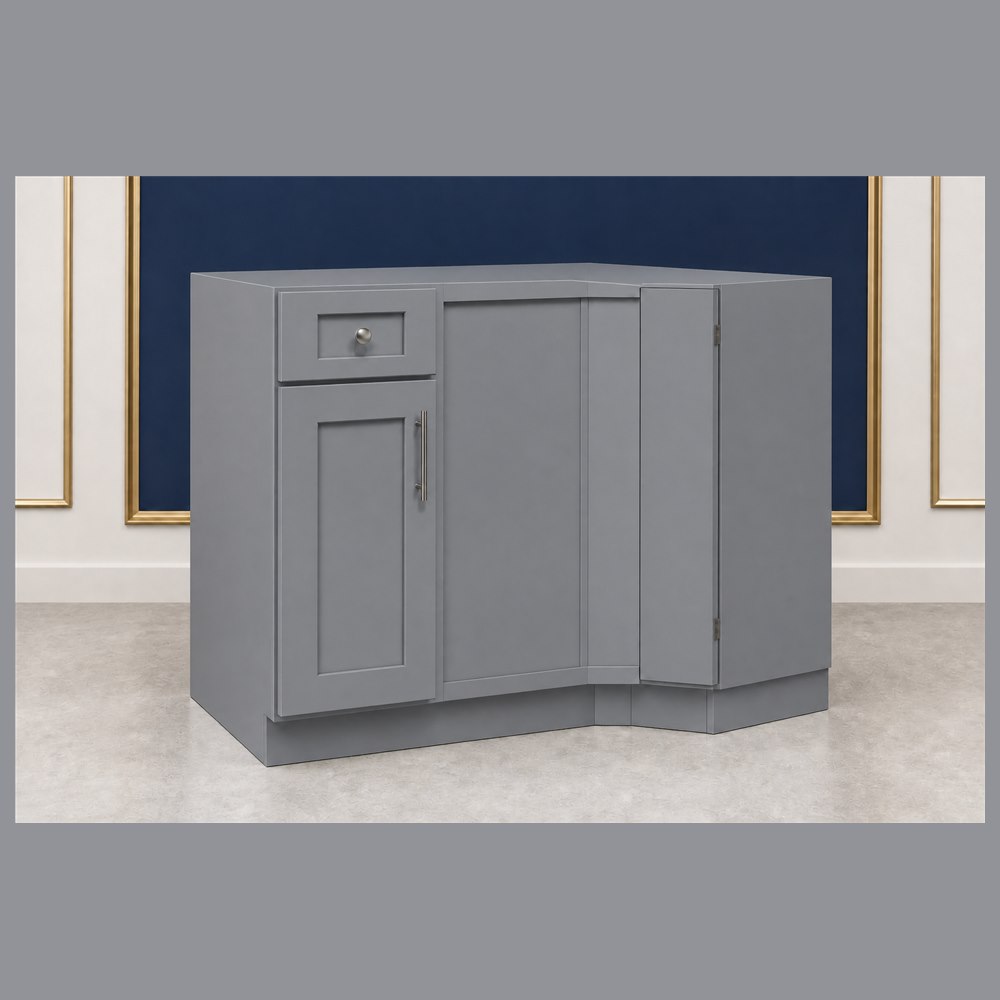

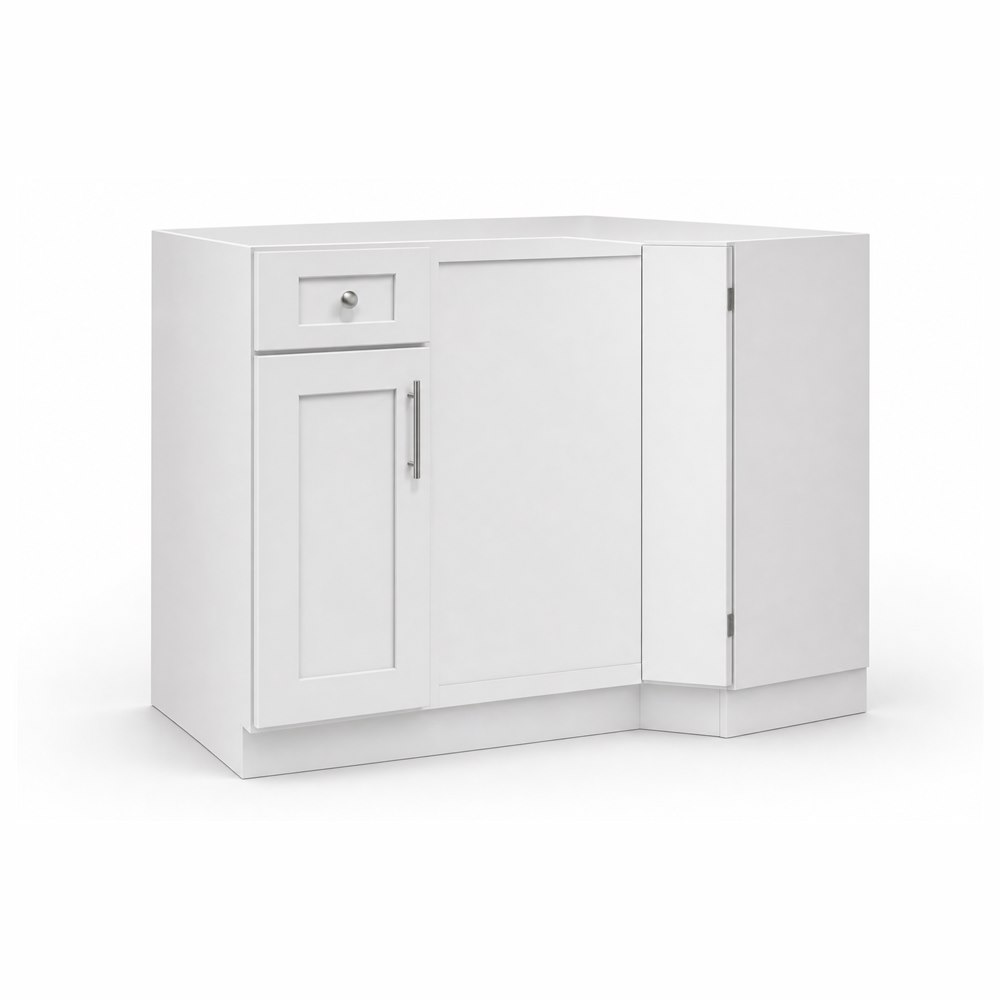

39-inch Shaker Blind Corner Base Cabinet
BBC39FHD-9
39" W × 34 1/2" H × 24" D

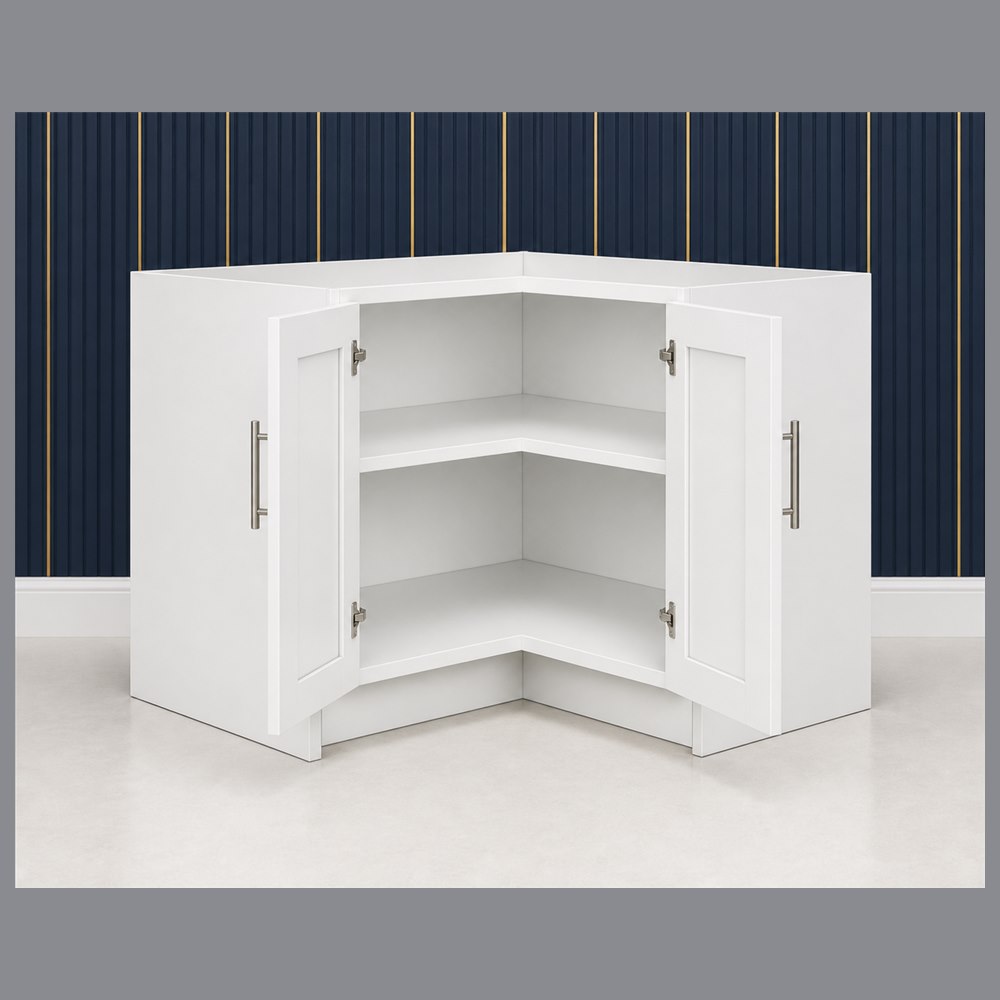

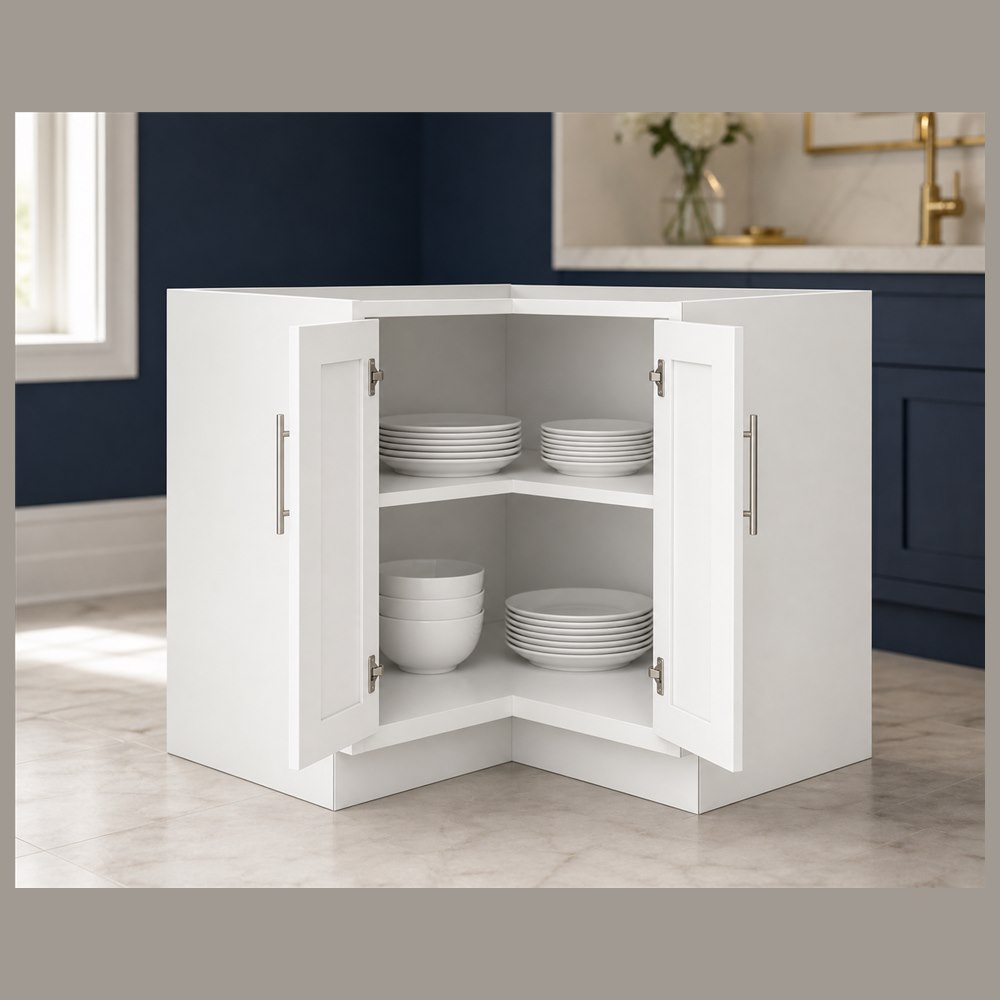

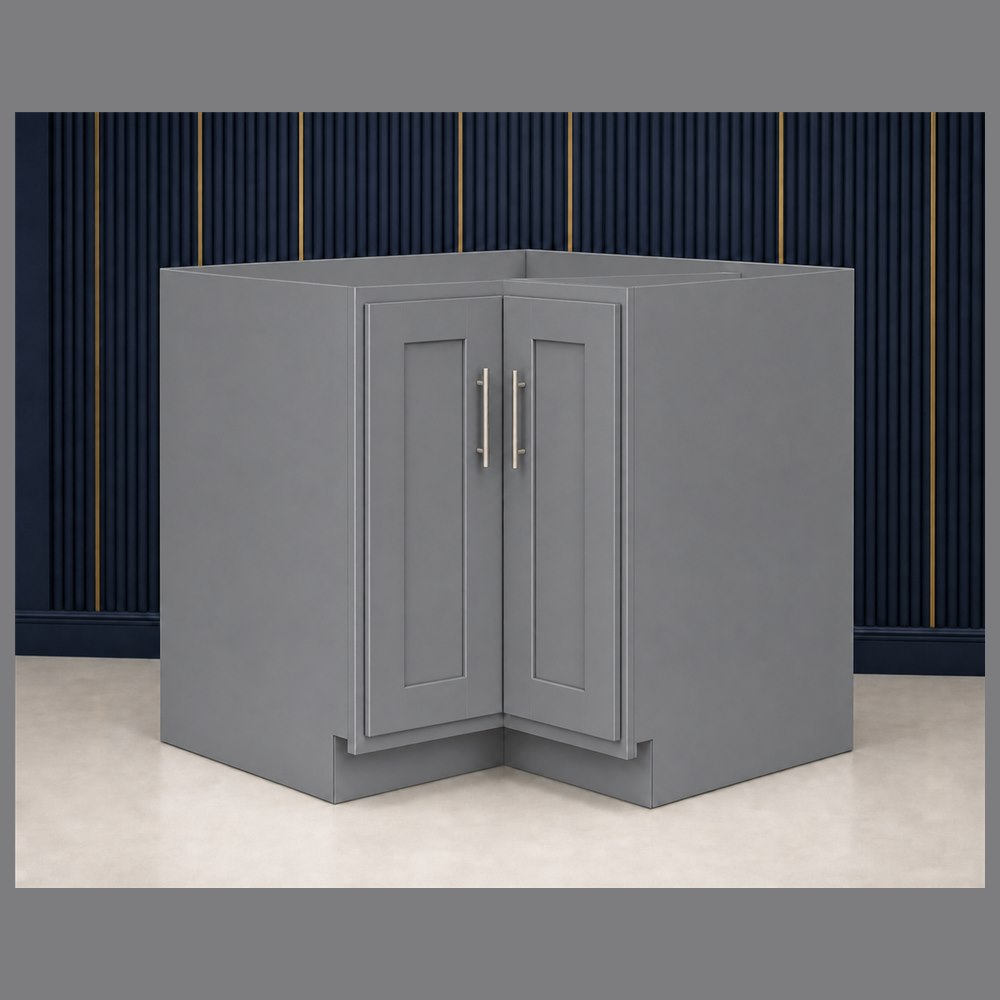

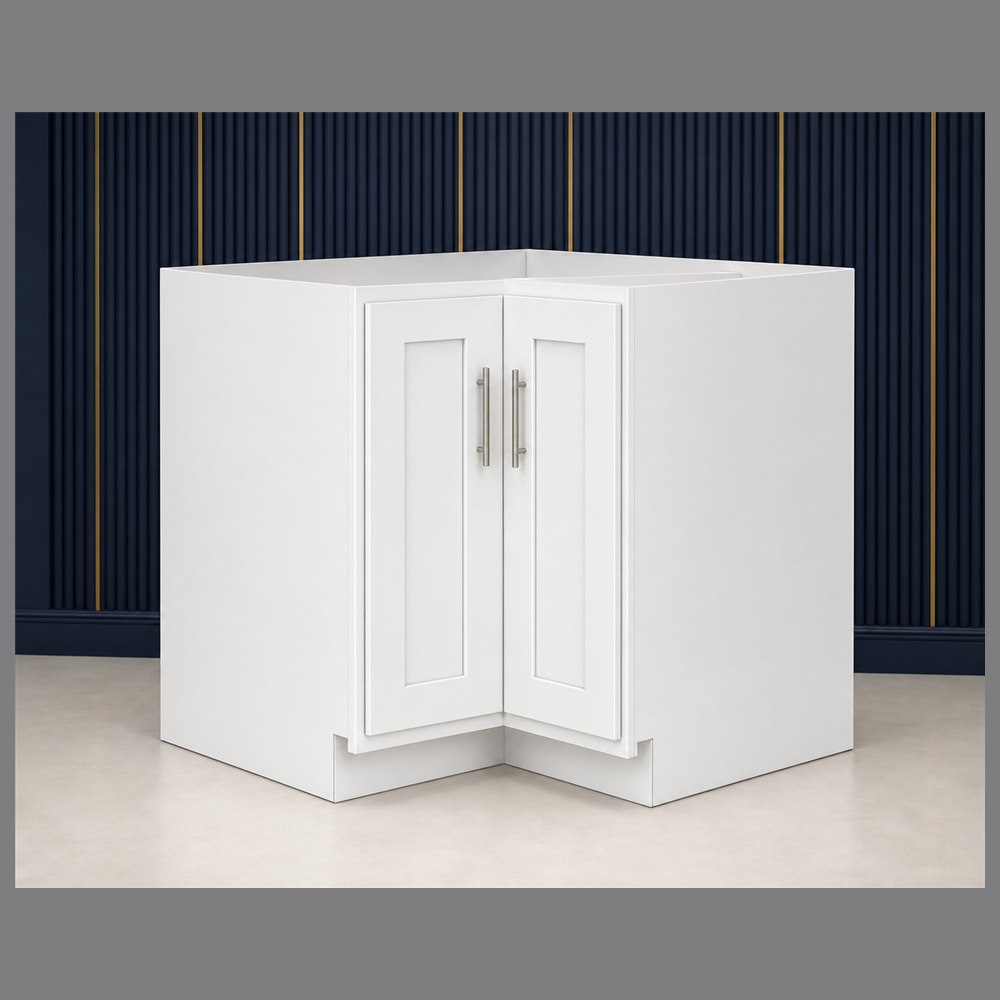

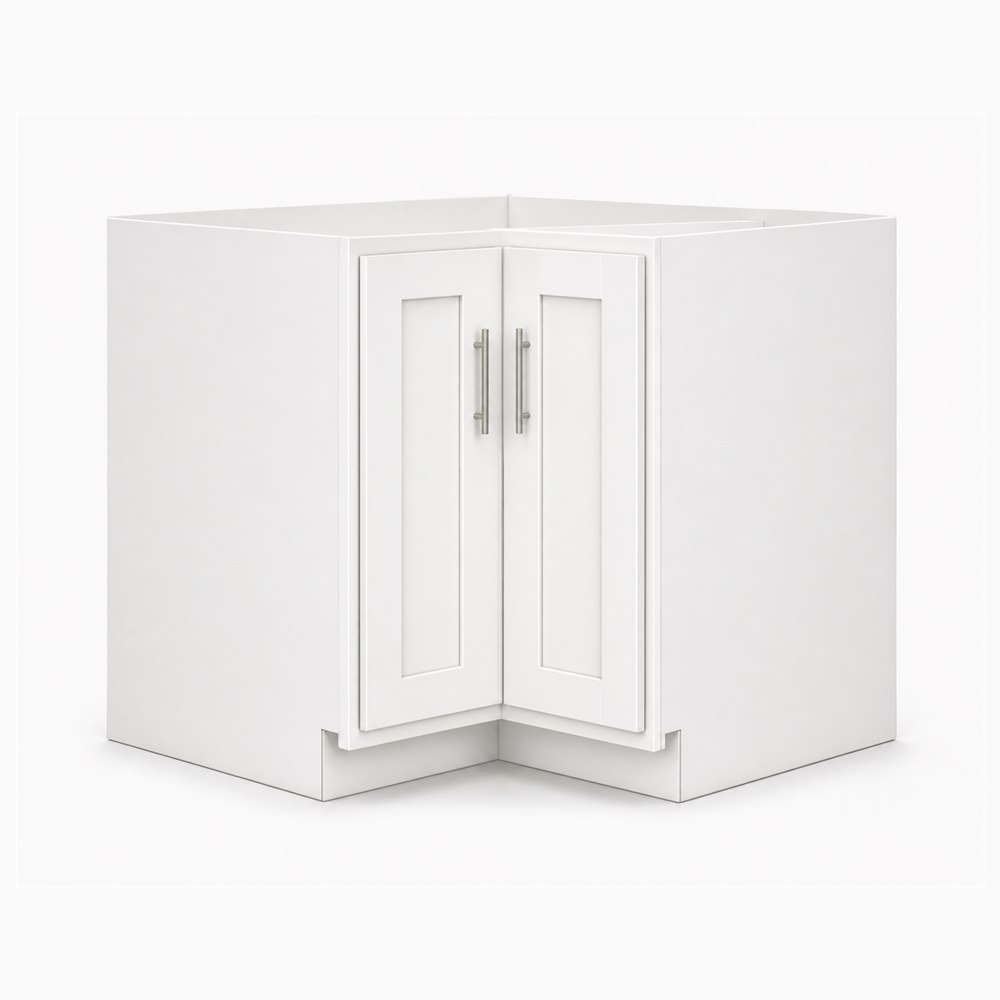

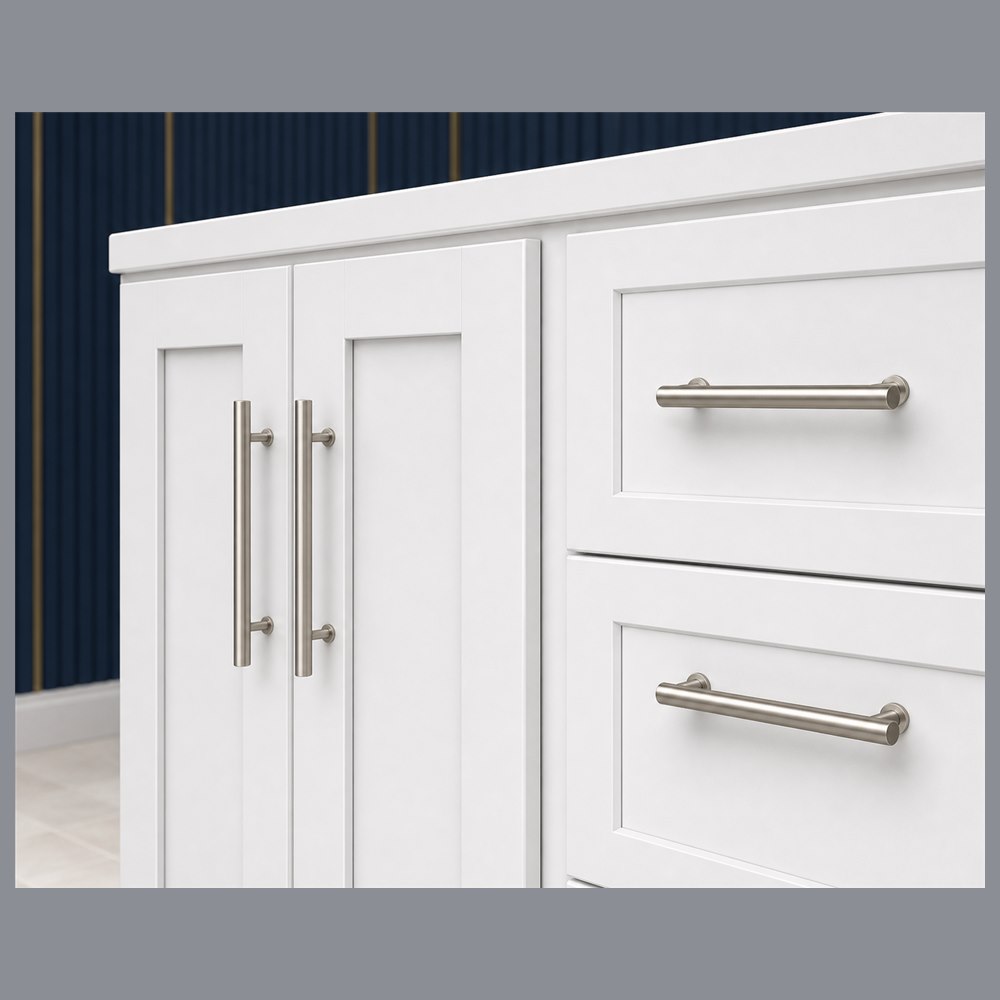

36-inch Shaker Lazy Susan Base Cabinet
LZS3624
36" W × 34 1/2" H × 24" D
Wall Cabinets
Shaker wall cabinets pair with any base run and are available in 12-inch depth, with heights from 30 inches to 42 inches (full-height to soffit). Glass-door options let you display dishware while keeping the same five-piece shaker frame. All units include adjustable shelves.

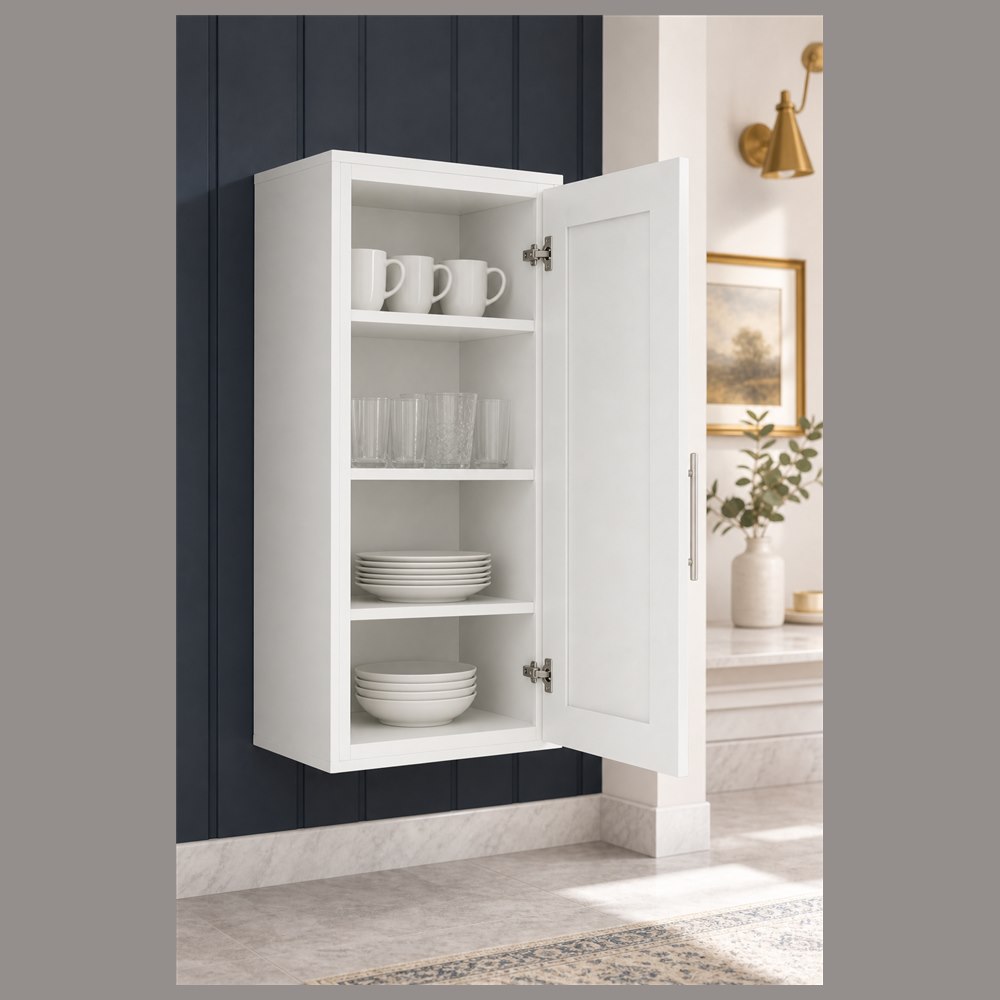

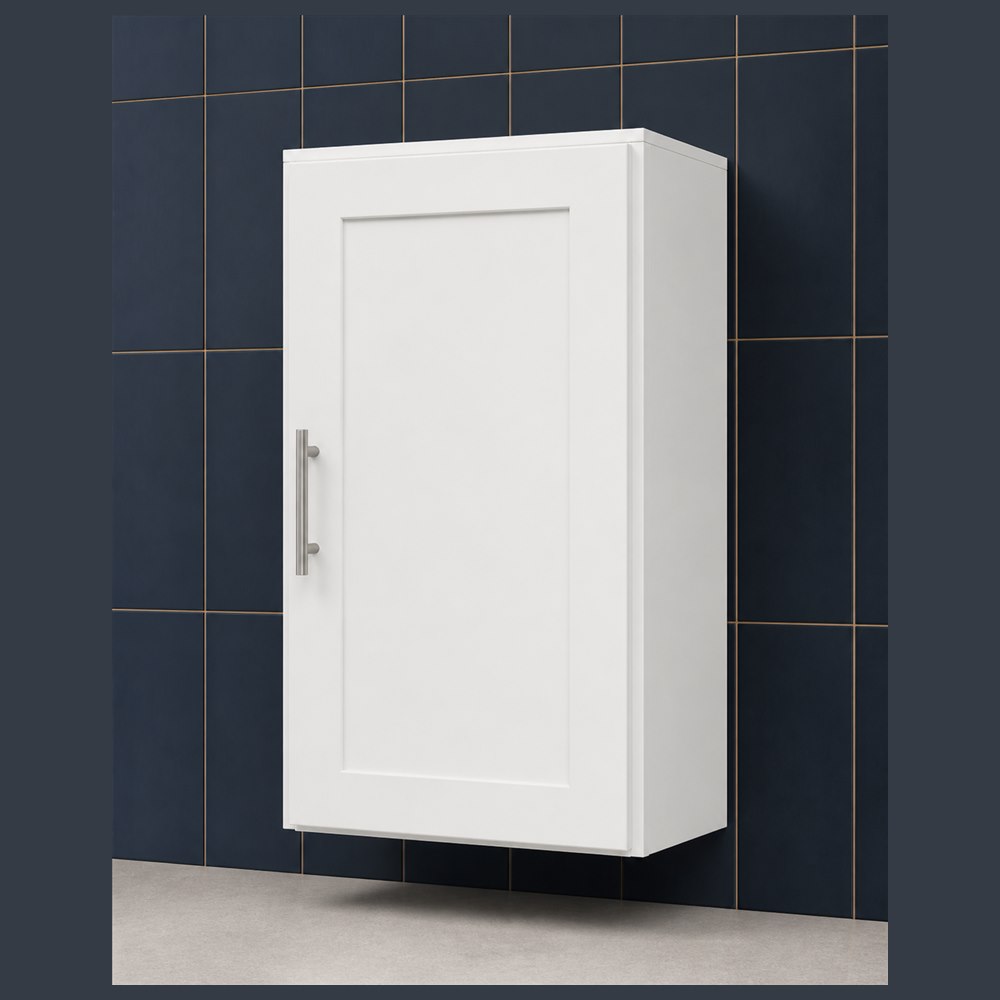

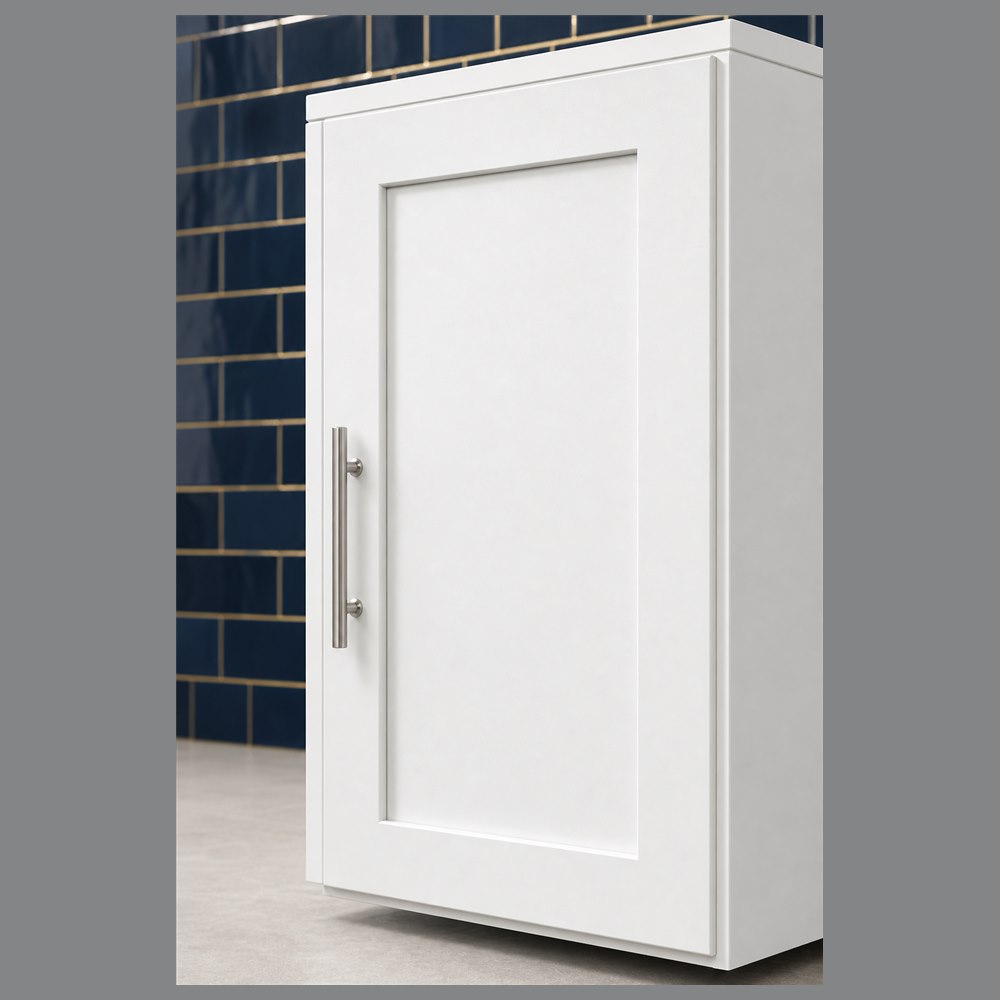

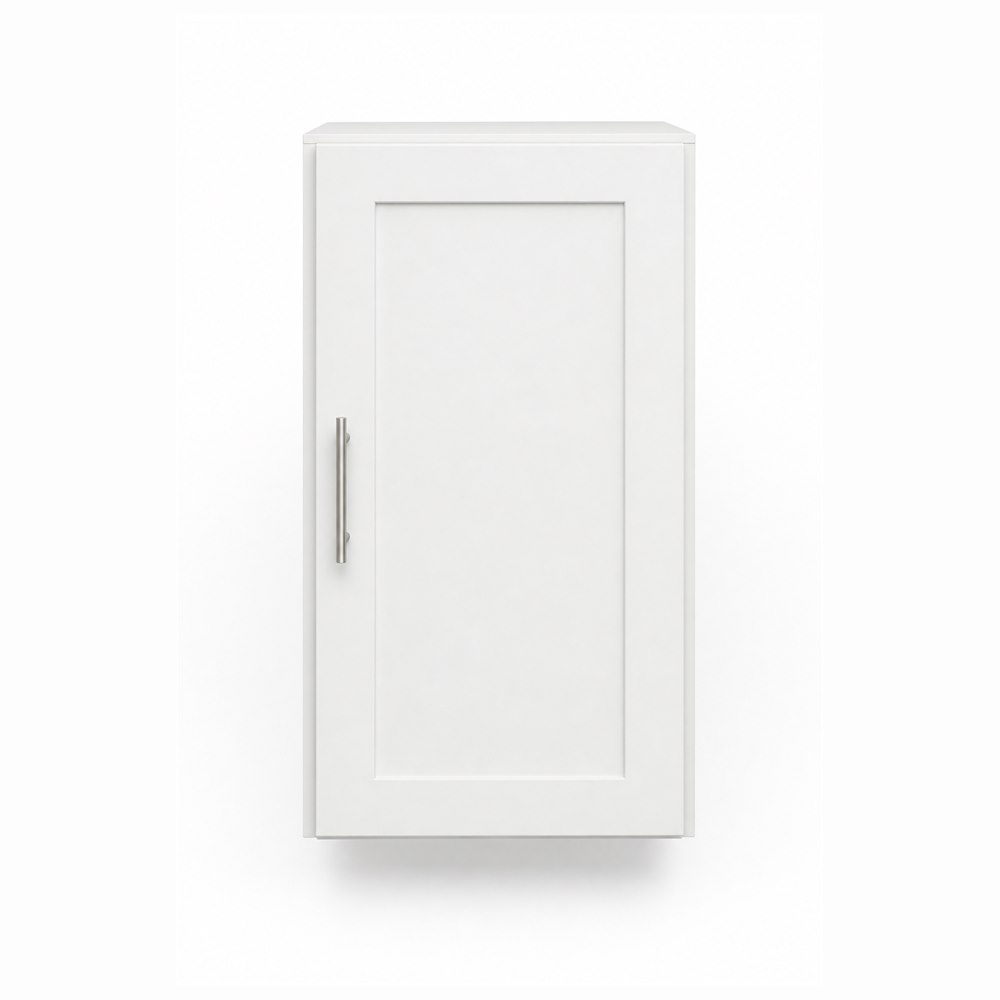

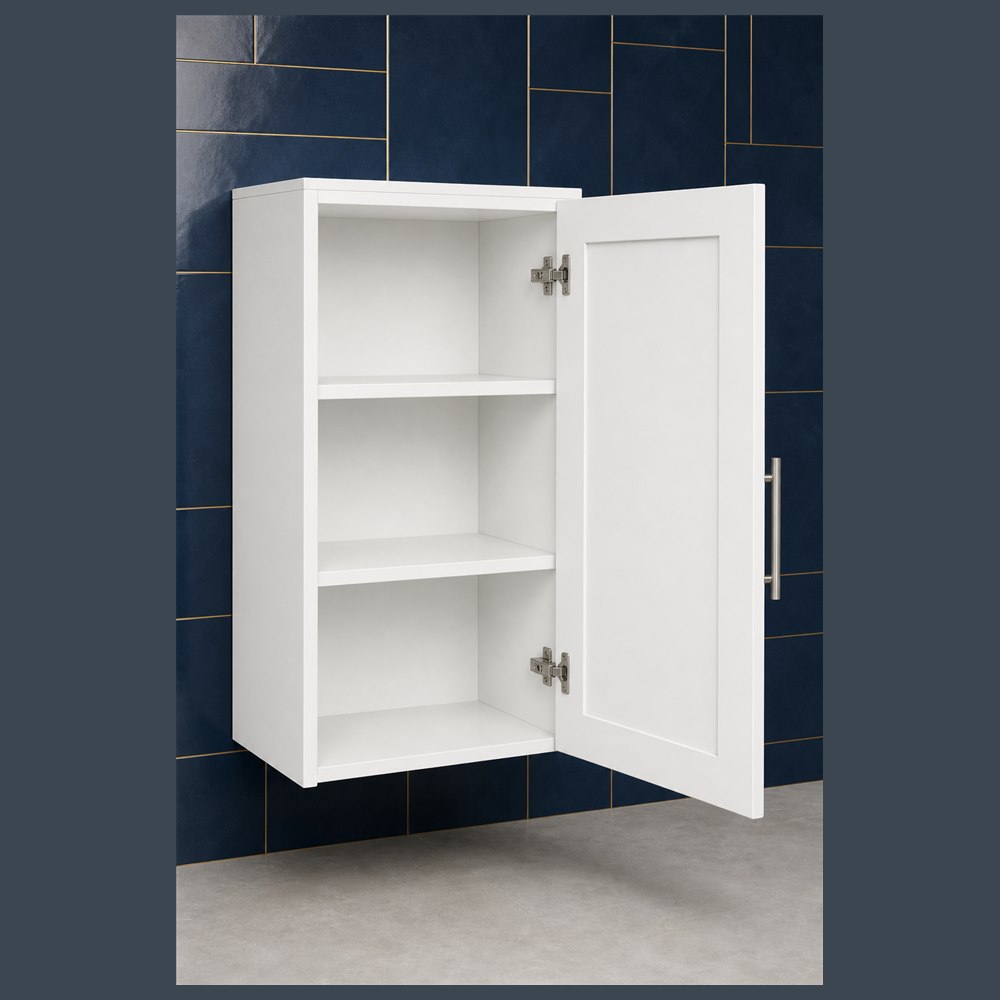

18-inch Shaker Wall Cabinet
W1830
18" W × 30" H × 12" D

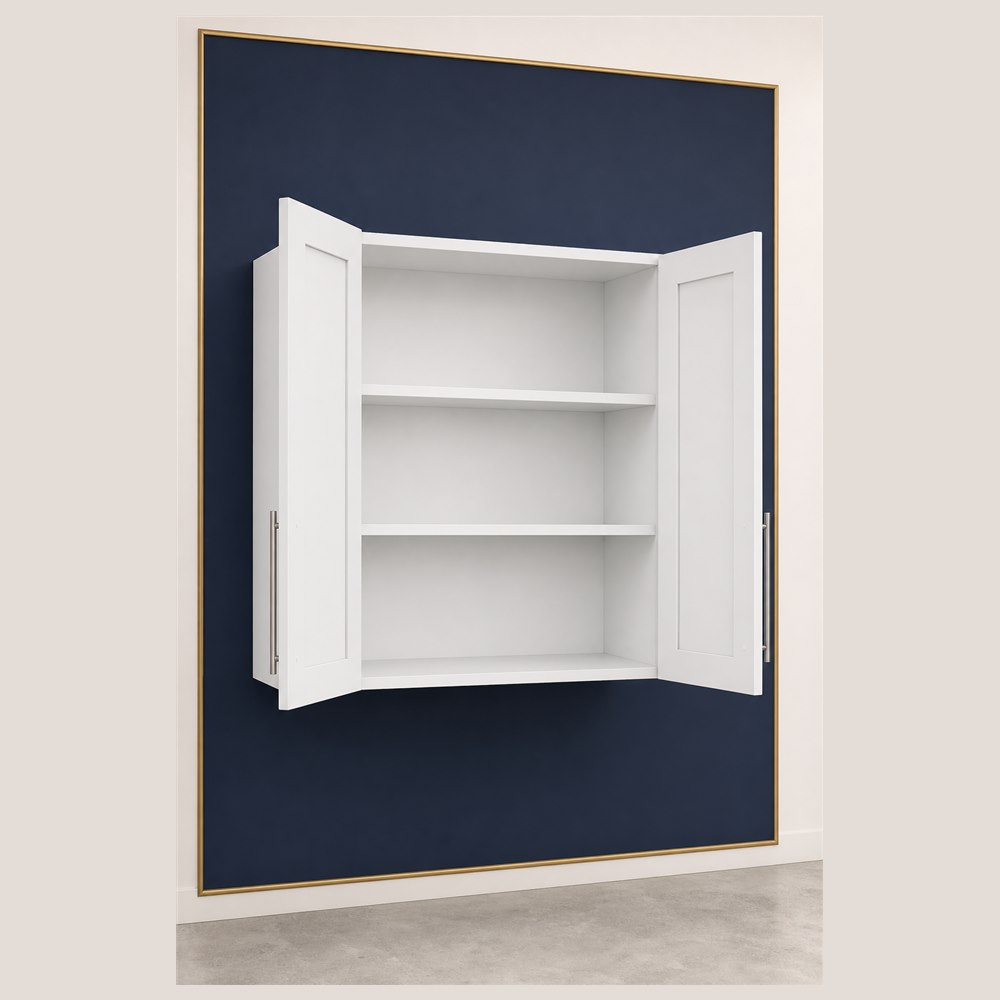

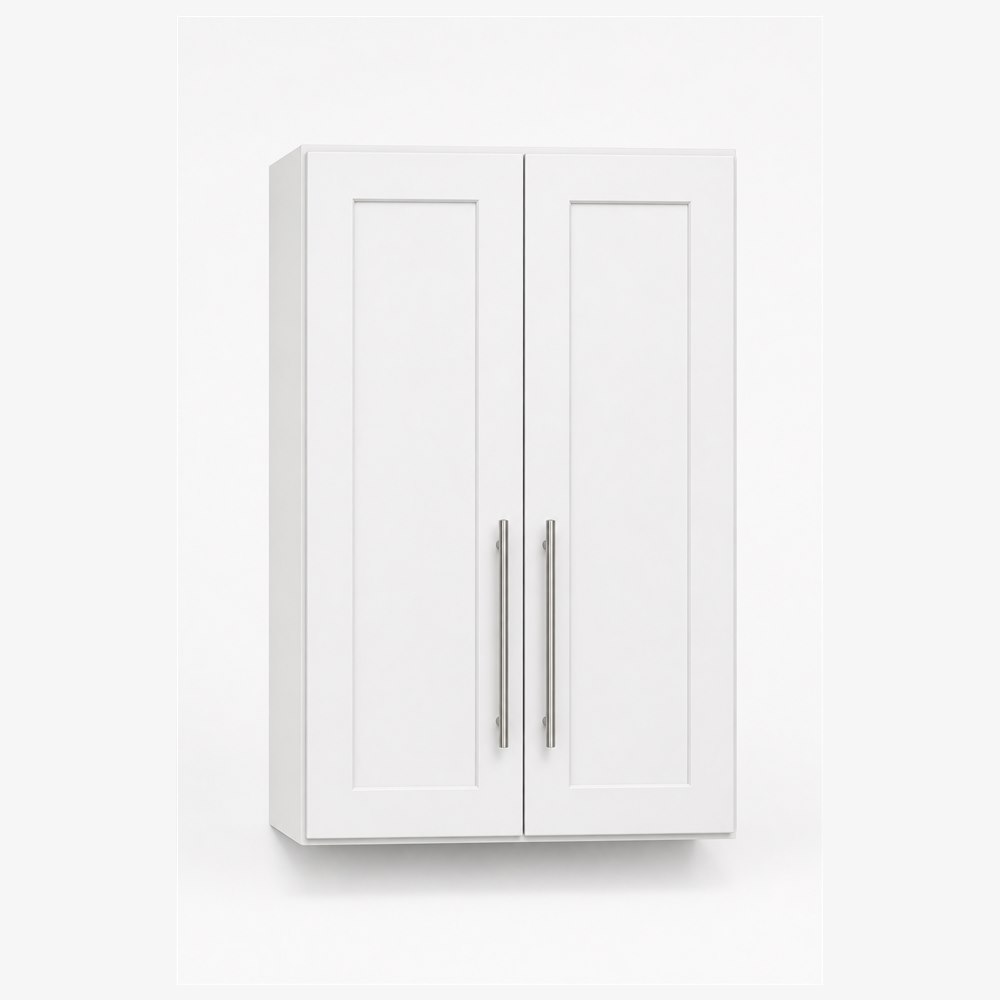

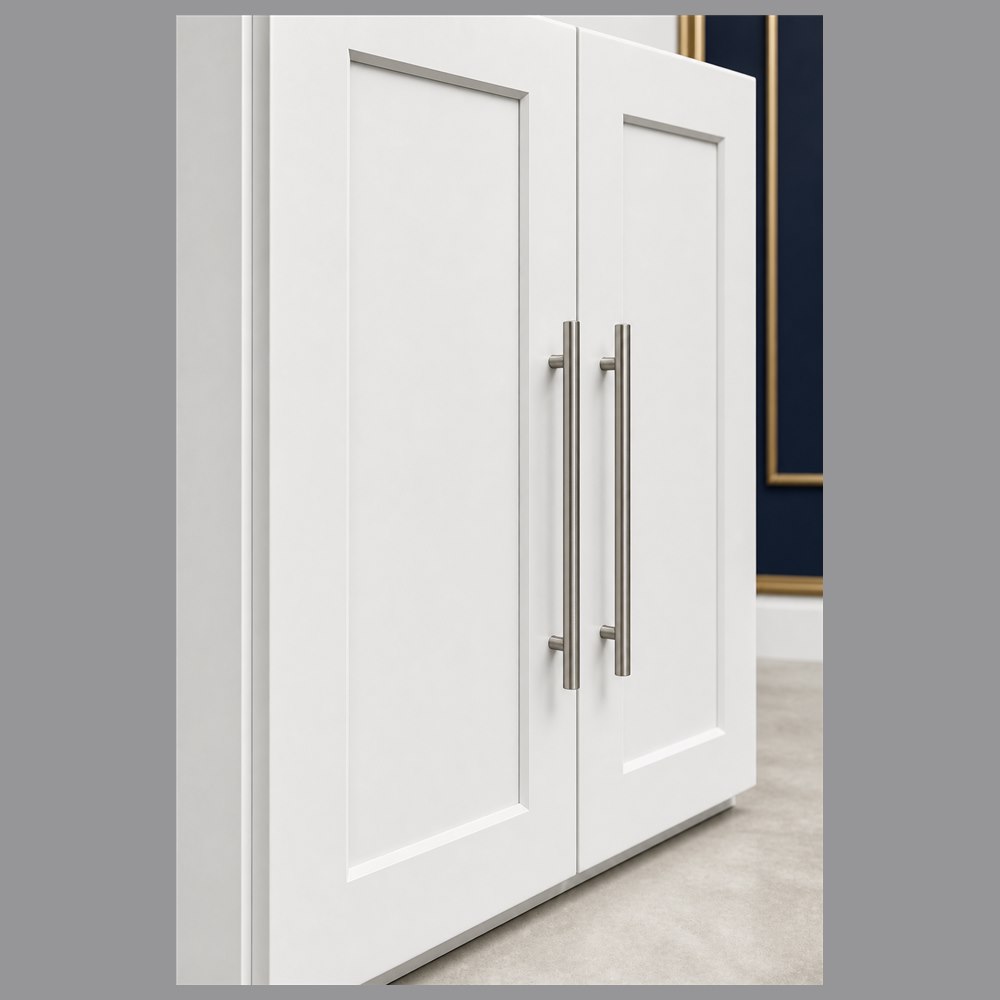

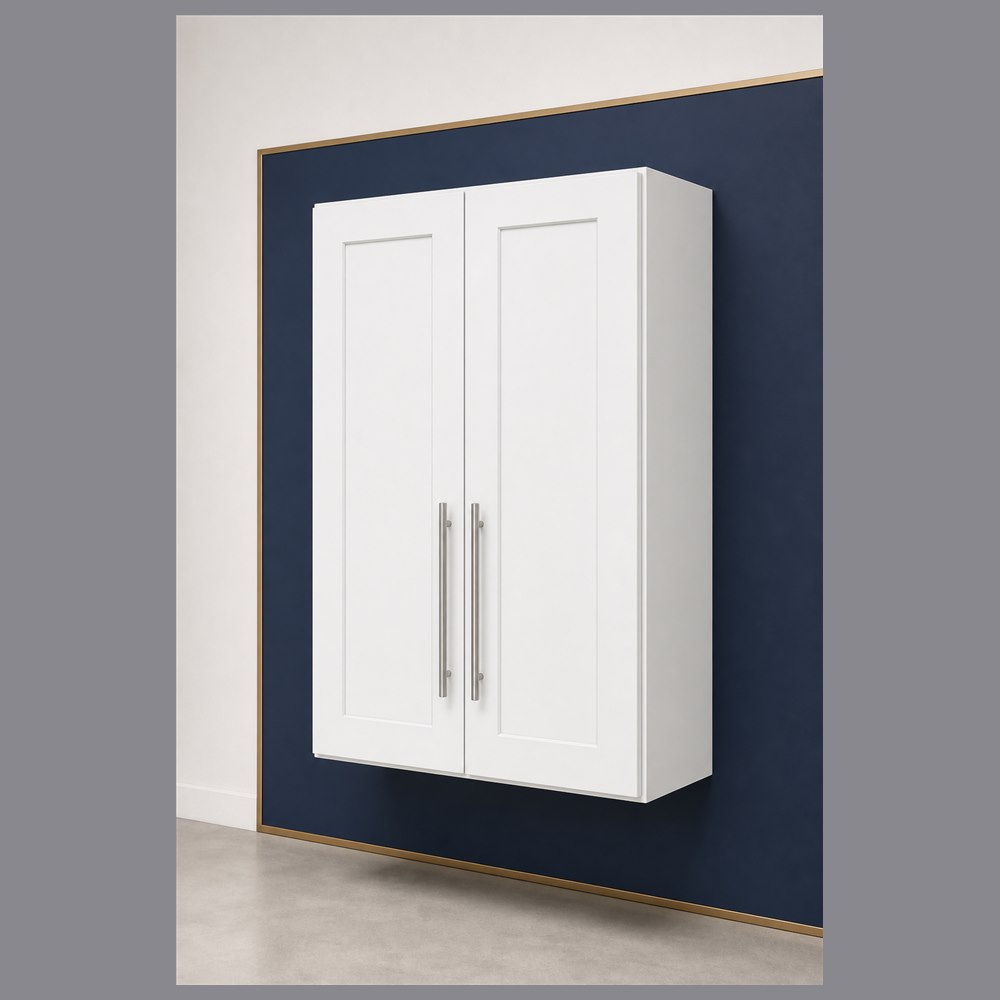

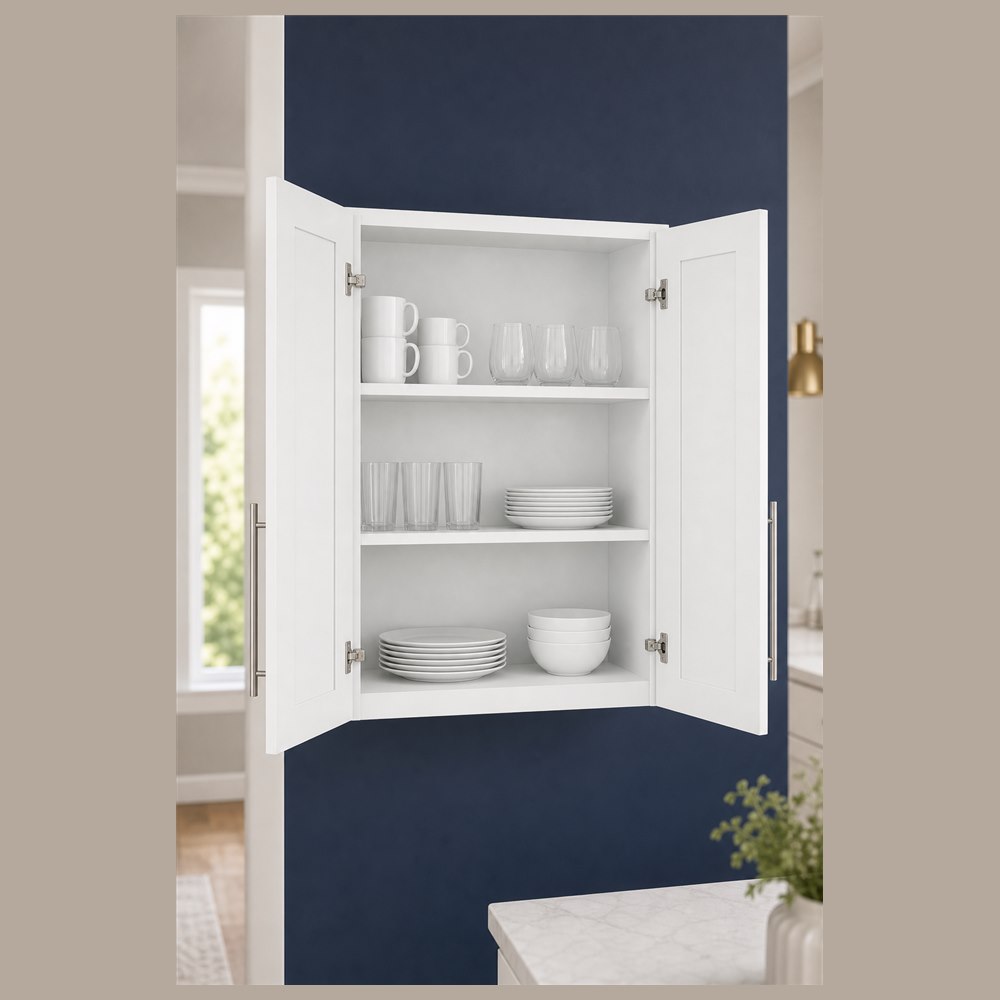

24-inch Shaker Wall Cabinet
W2436
24" W × 36" H × 12" D

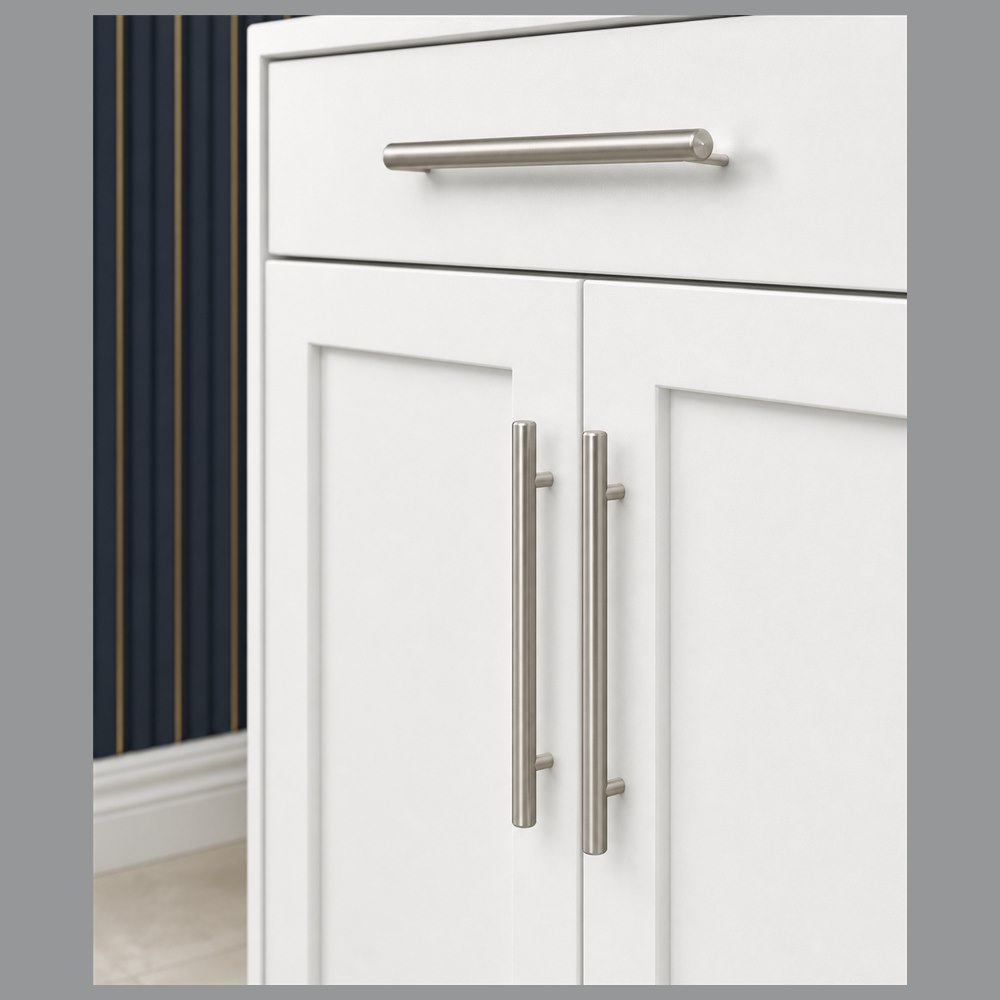

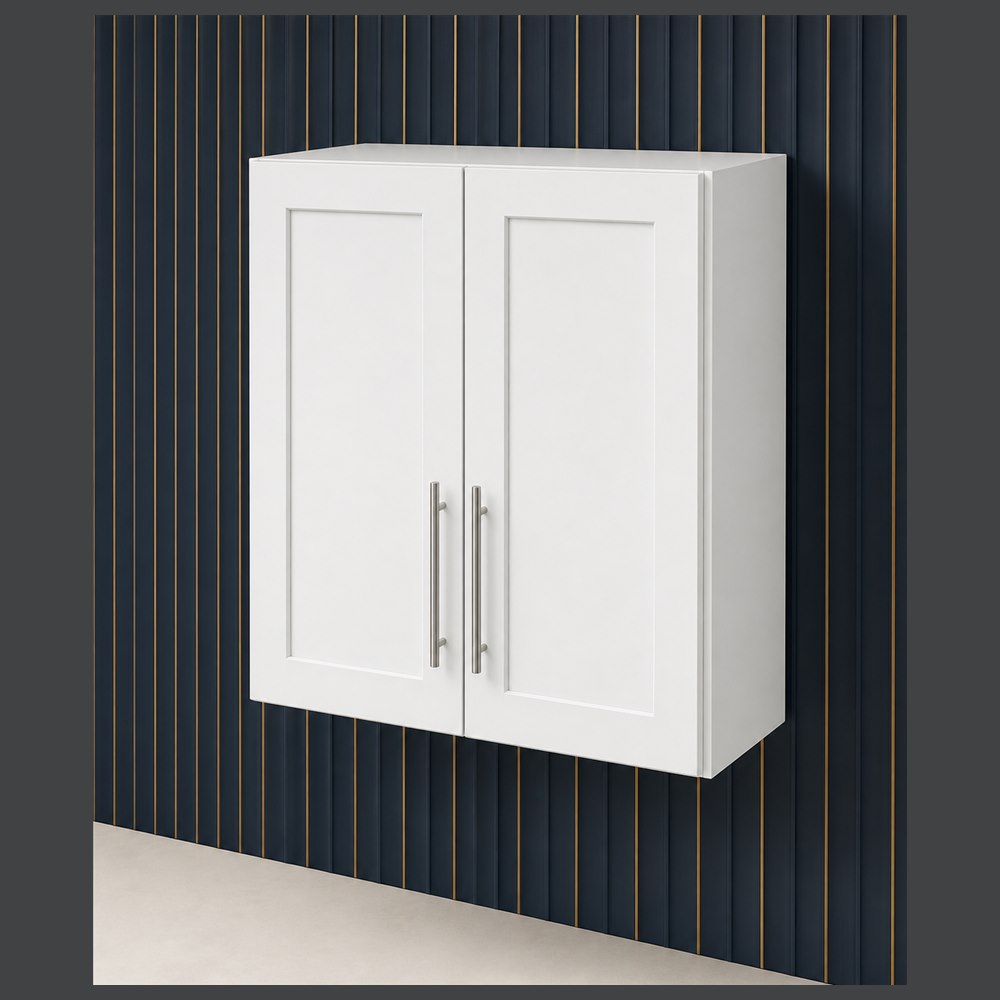

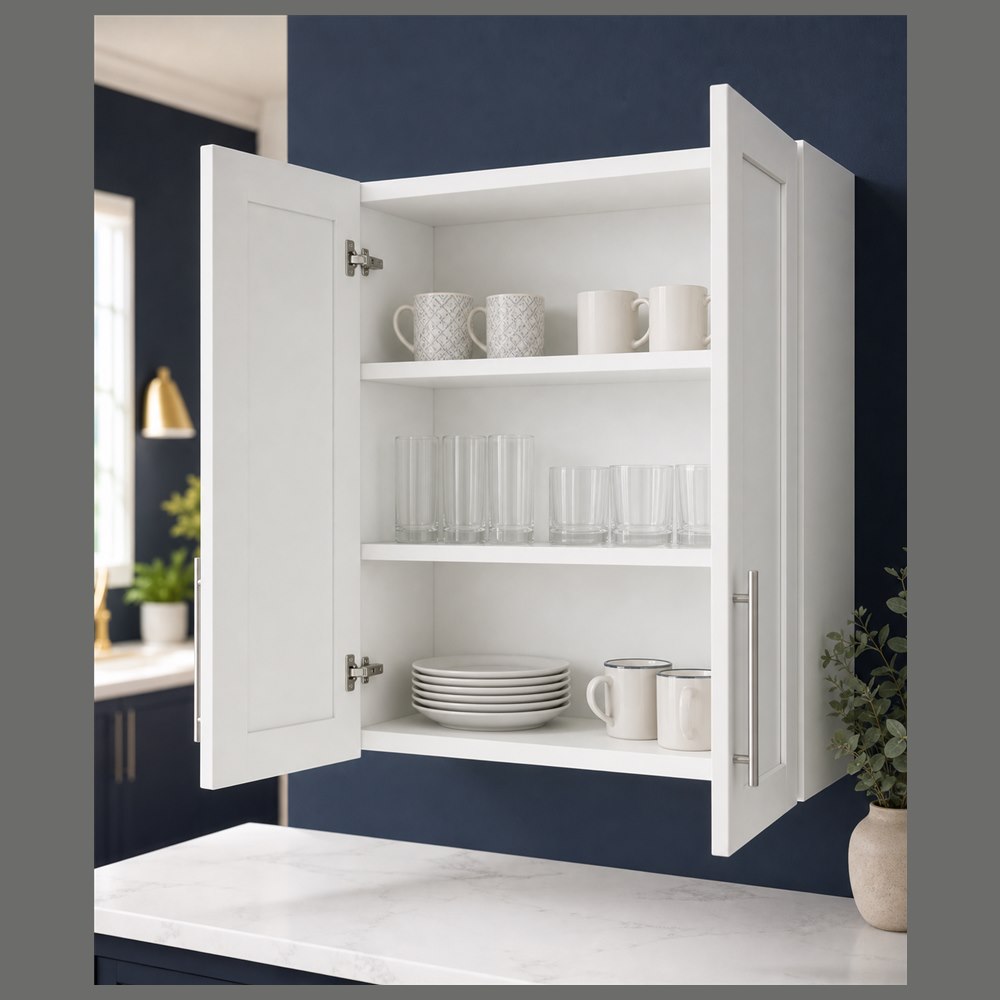

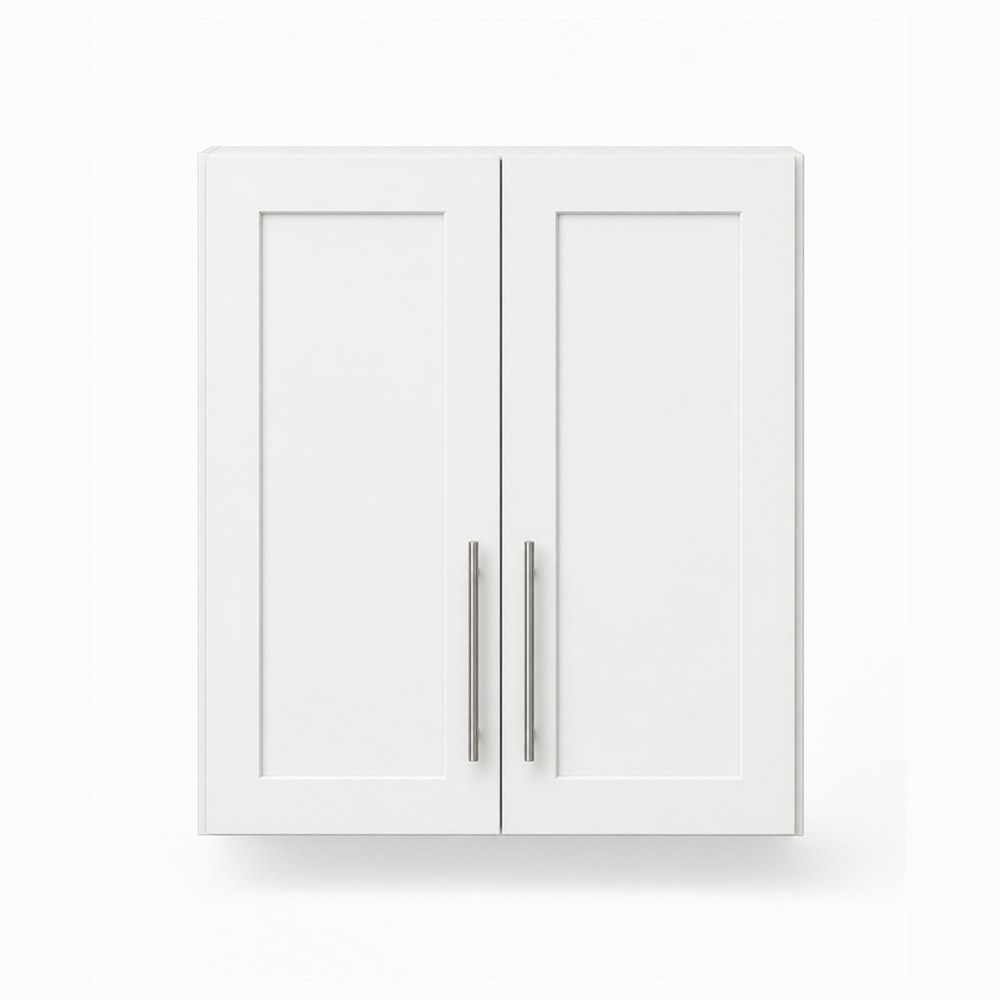

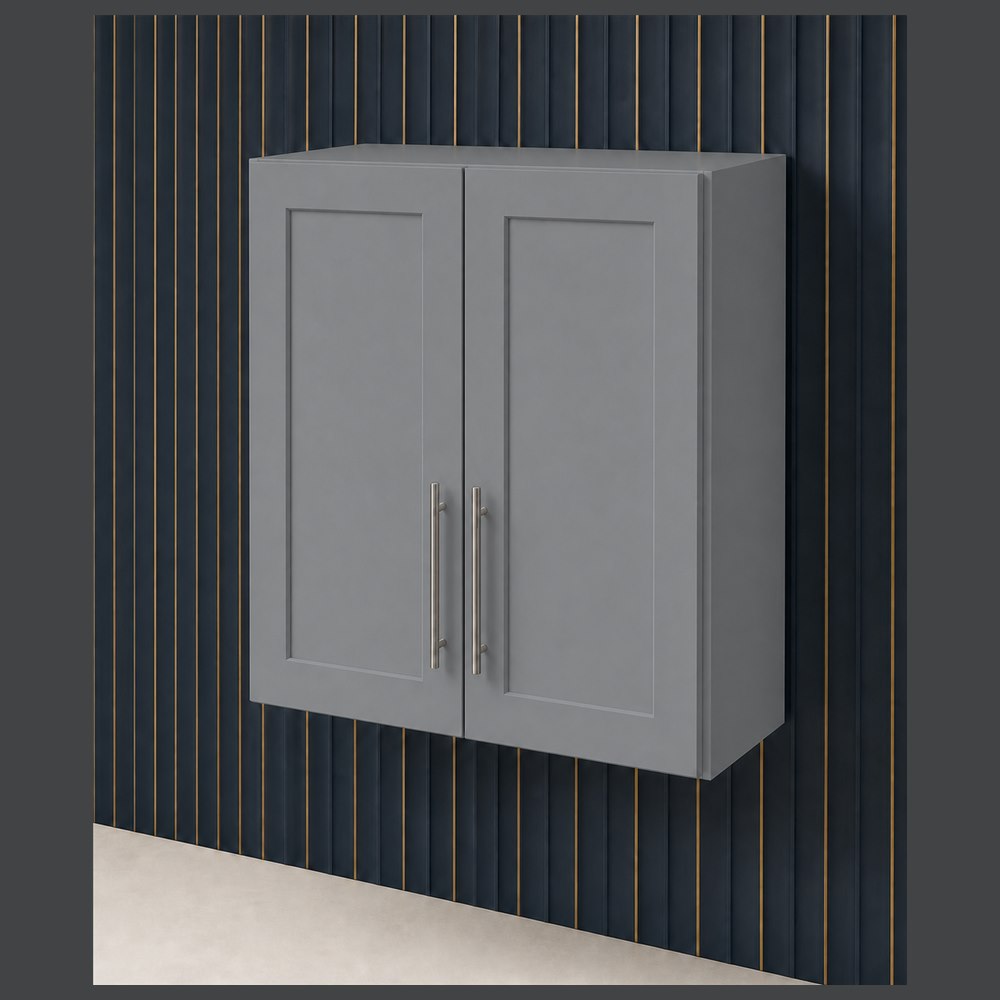

30-inch Shaker Wall Cabinet
W3036
30" W × 36" H × 12" D

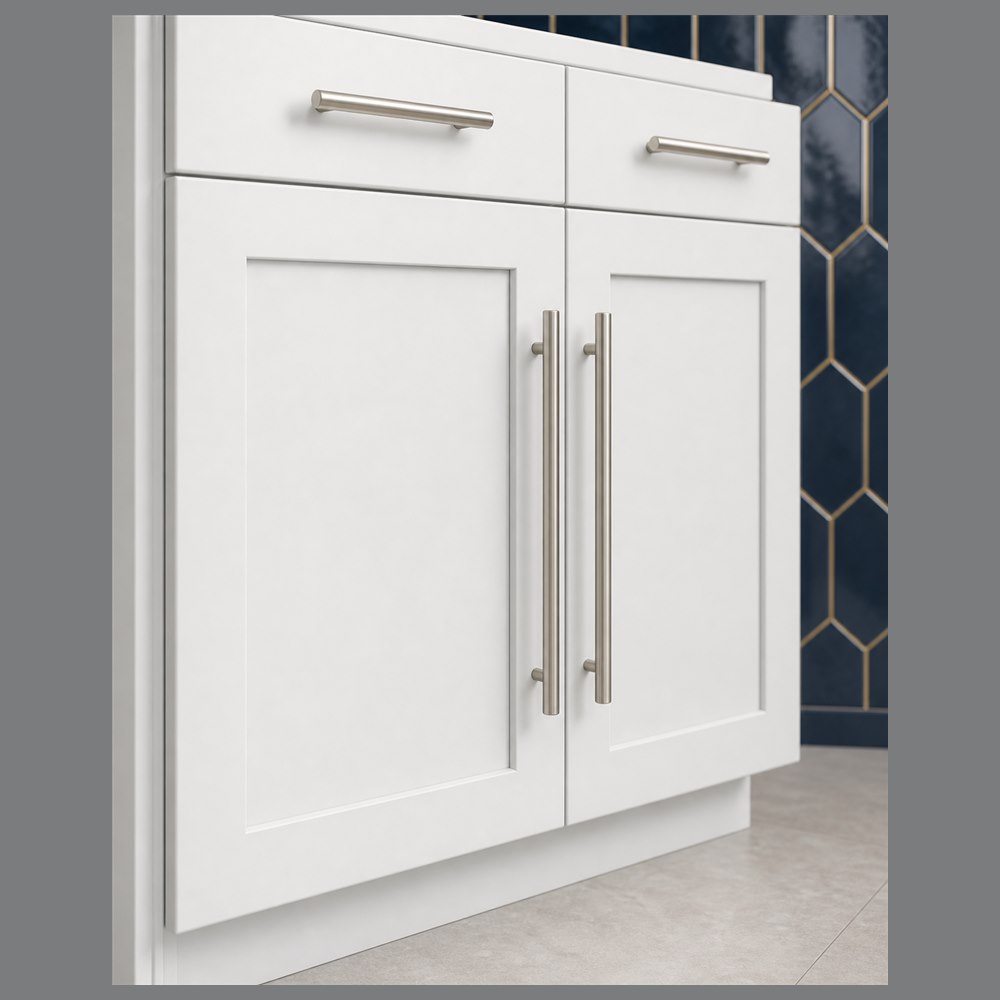

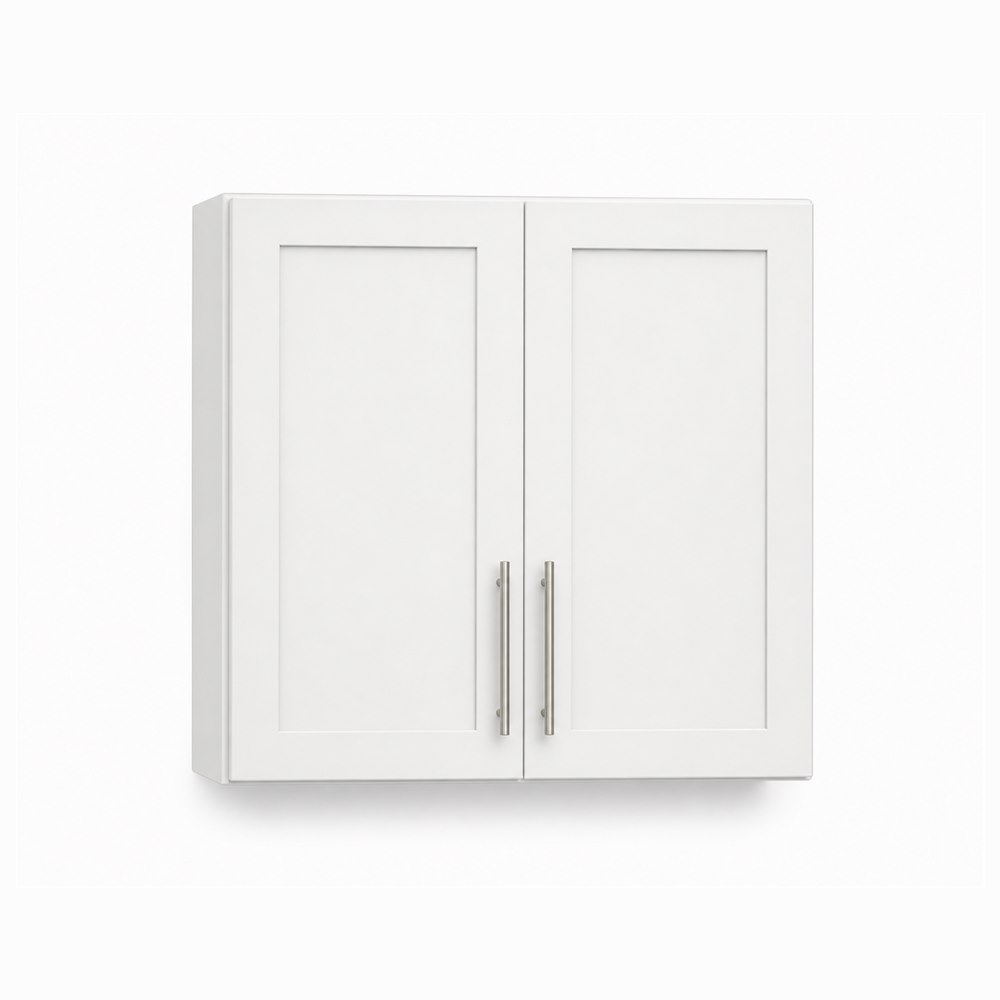

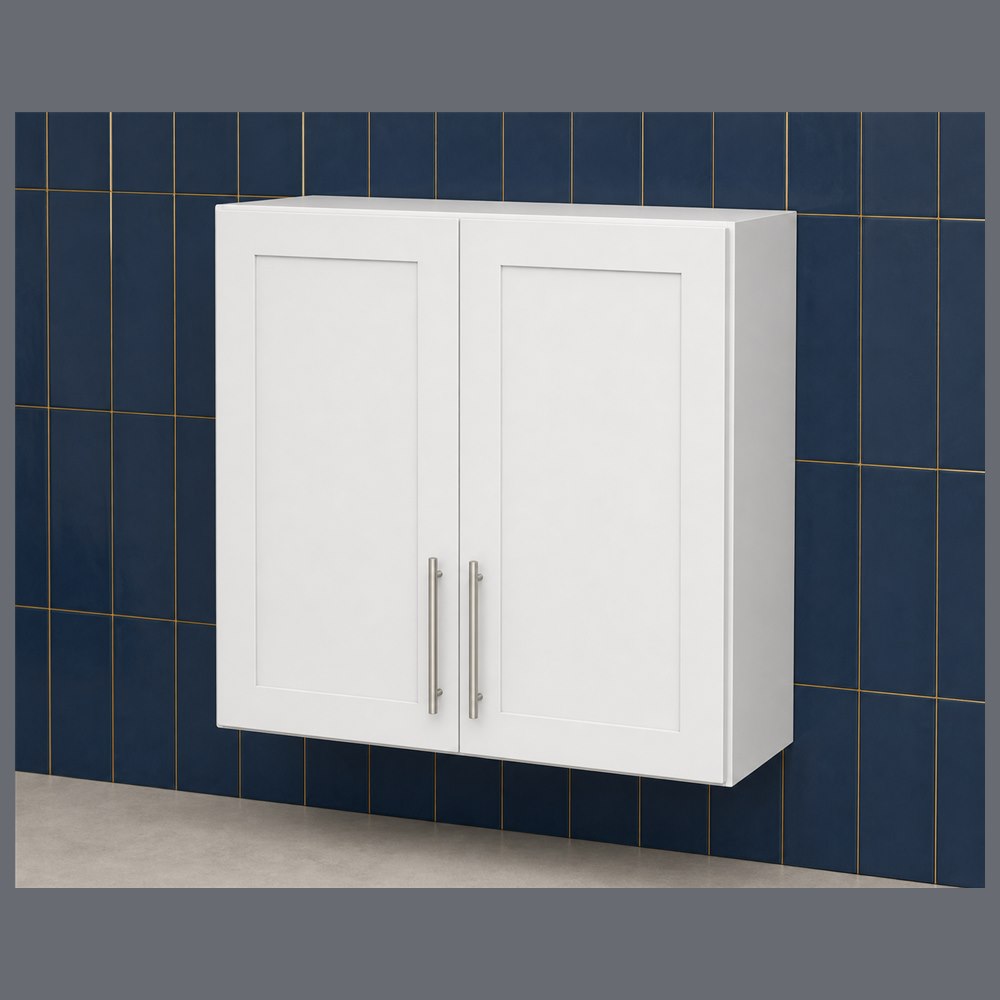

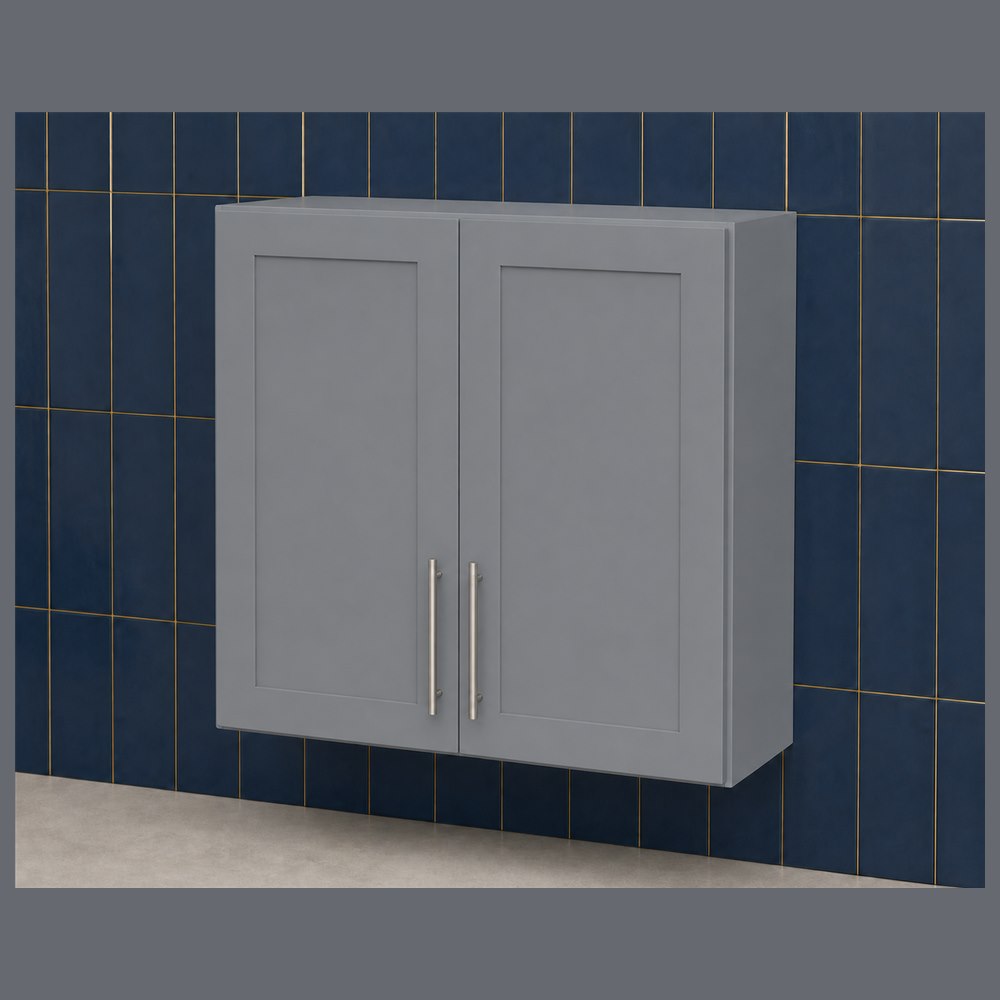

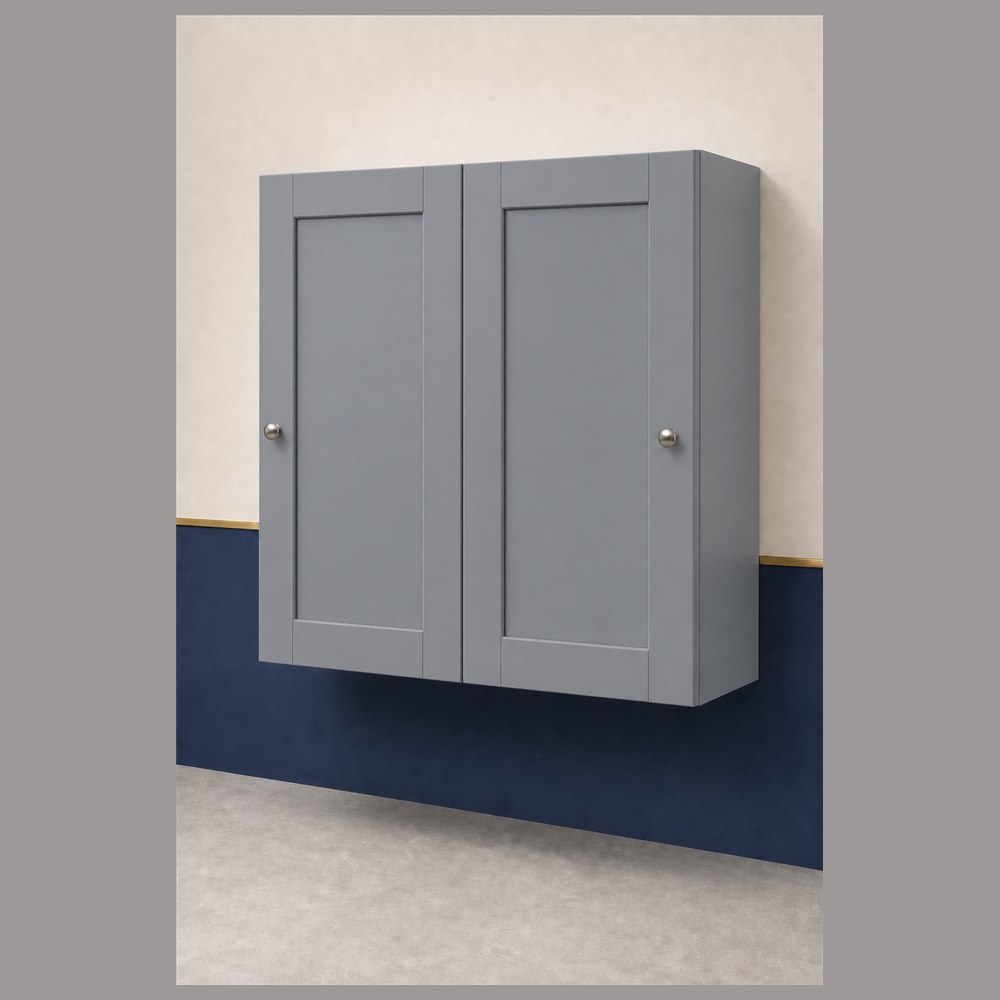

36-inch Shaker Wall Cabinet
W3636
36" W × 36" H × 12" D
Dimension drawing coming soon

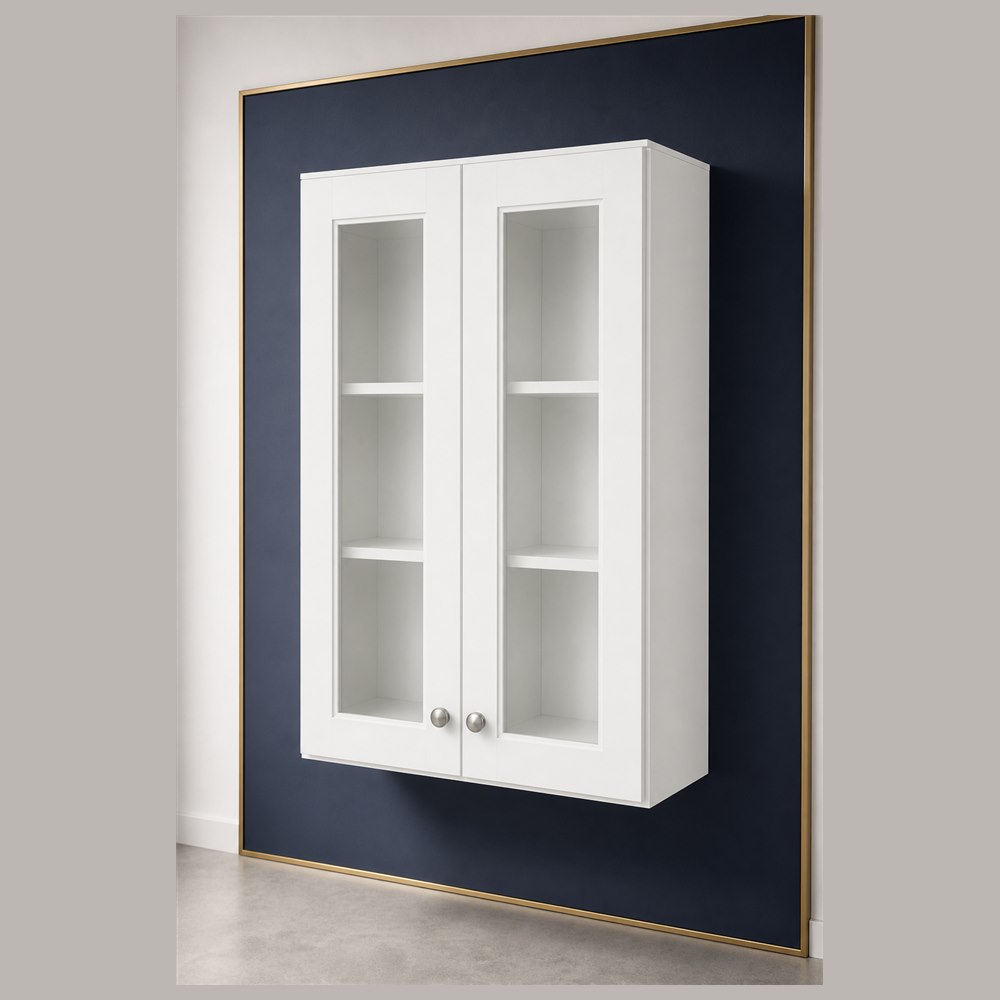

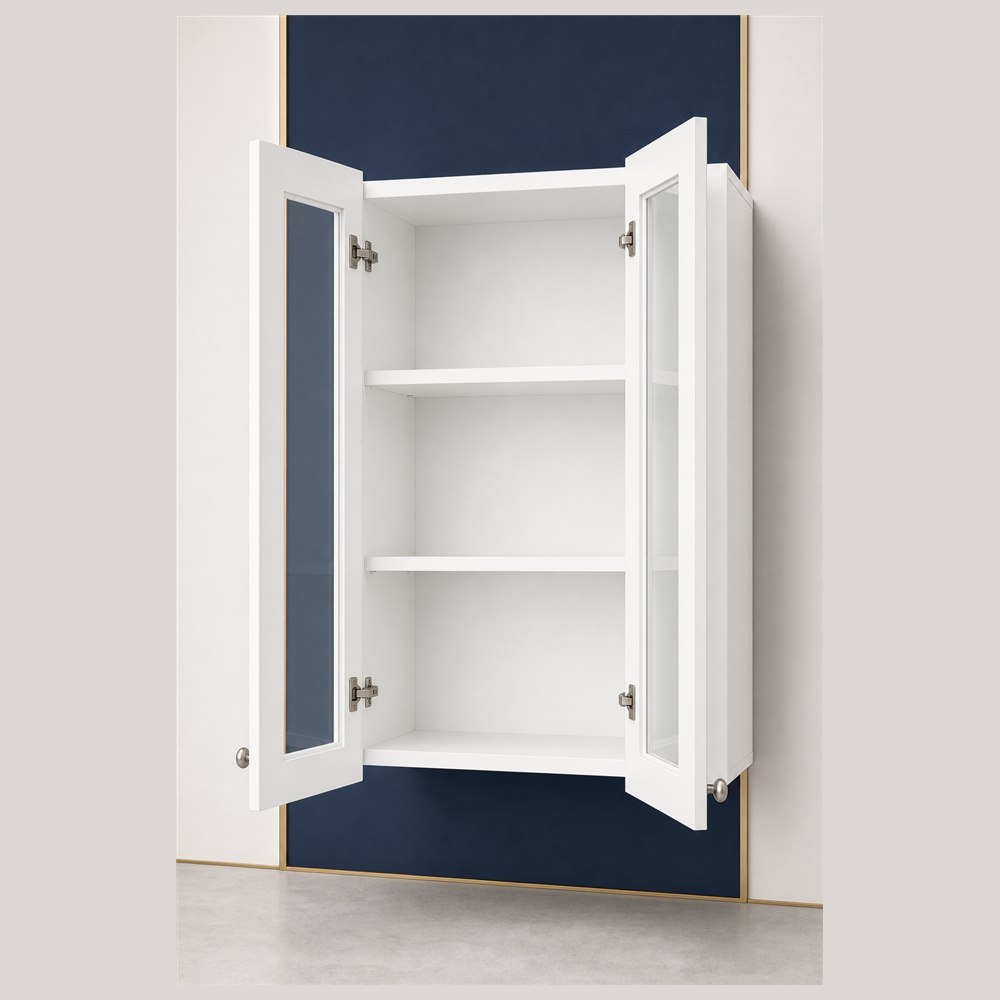

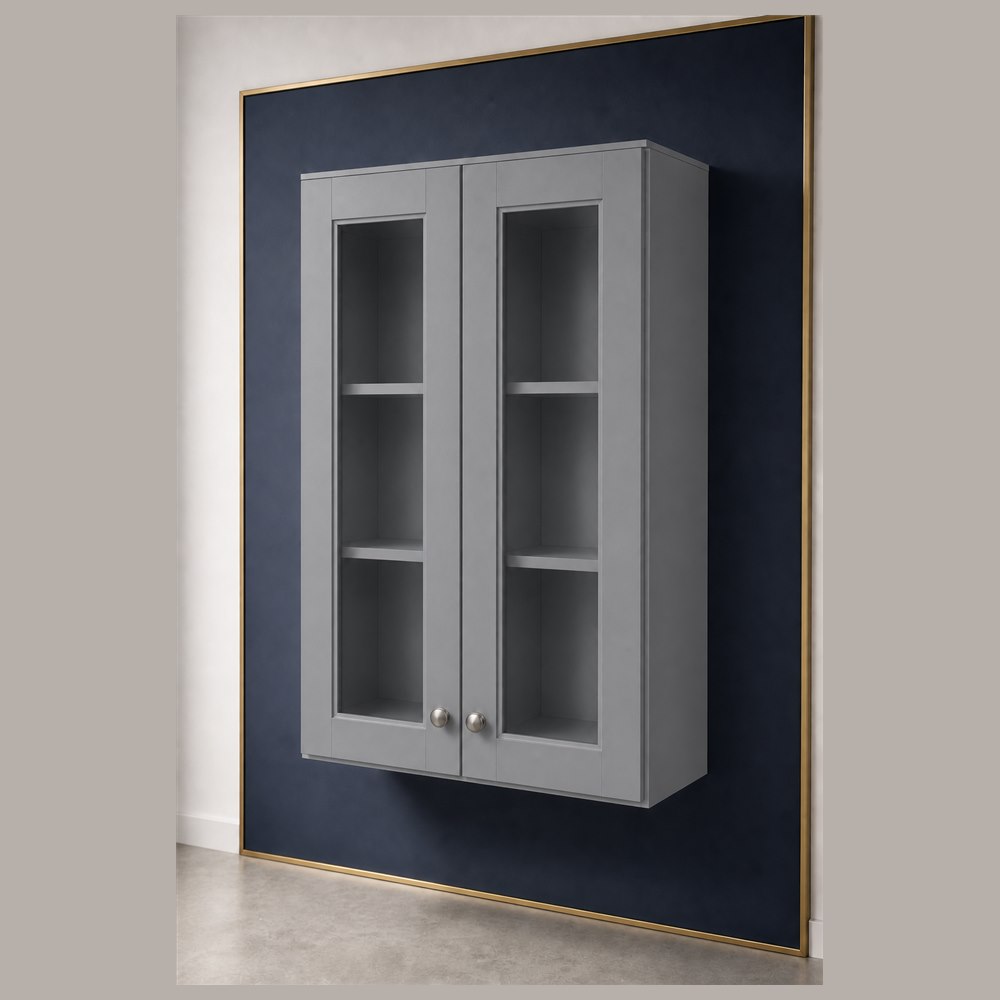

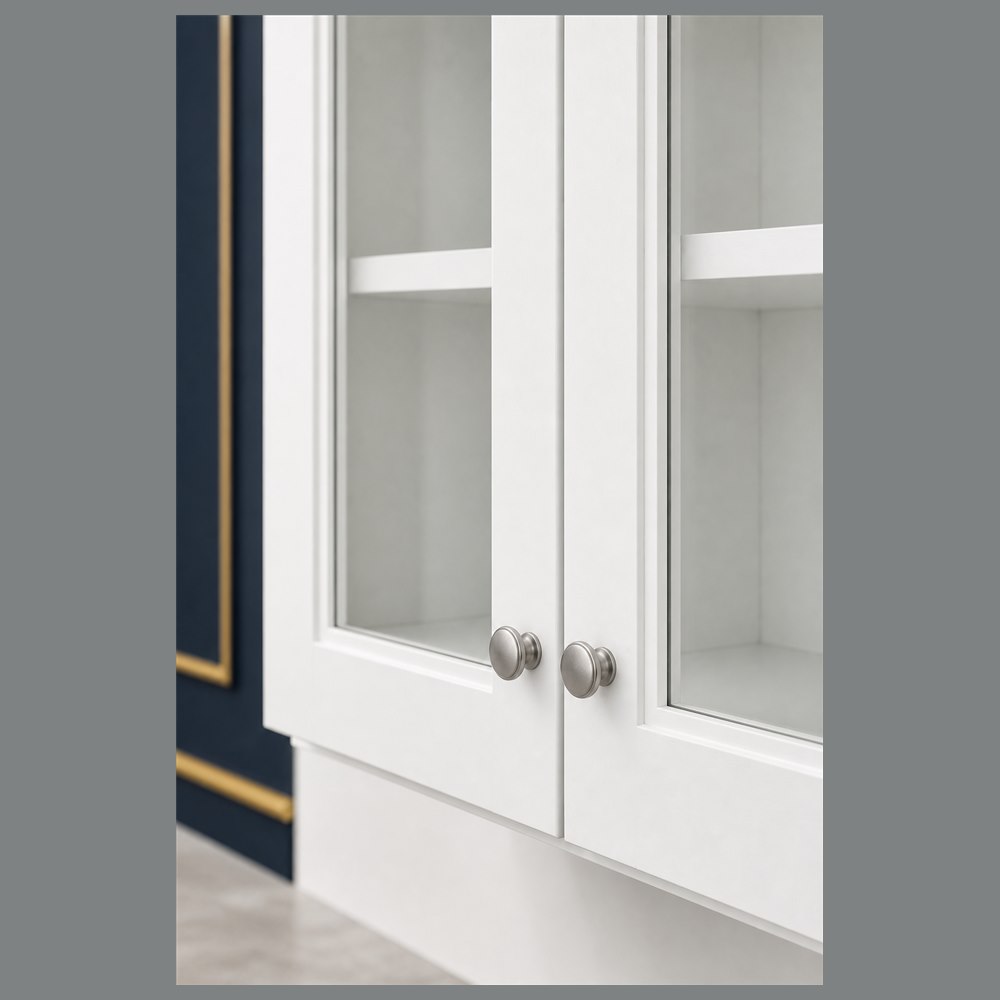

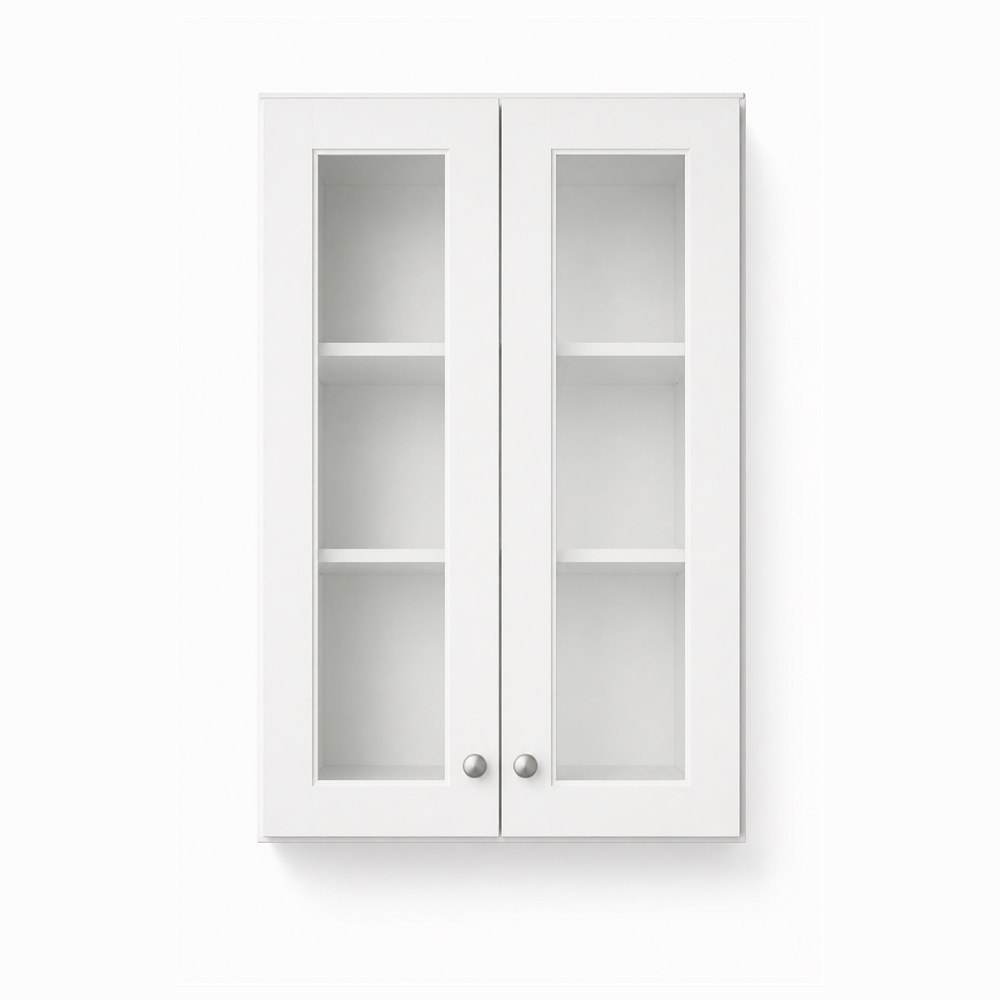

24-inch Shaker Glass-Door Wall Cabinet
WGD2442
24" W × 42" H × 12" D
Dimension drawing coming soon

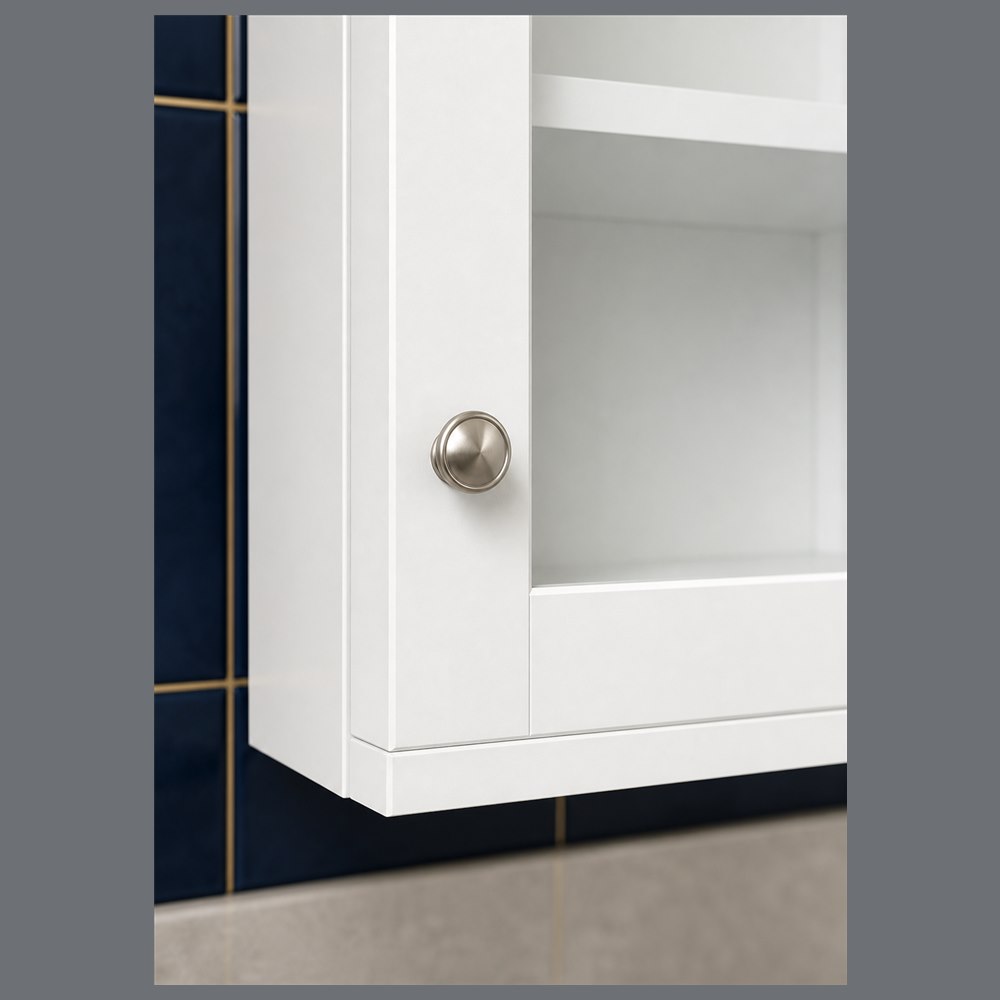

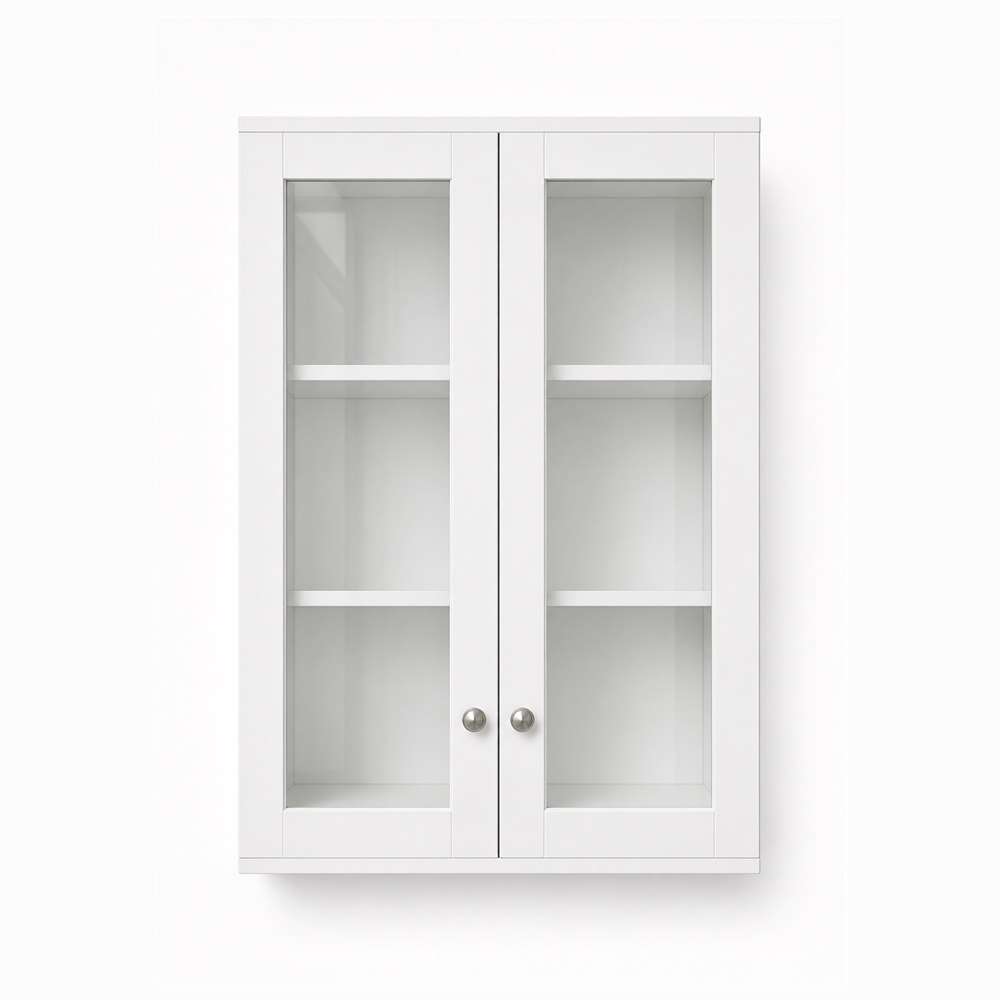

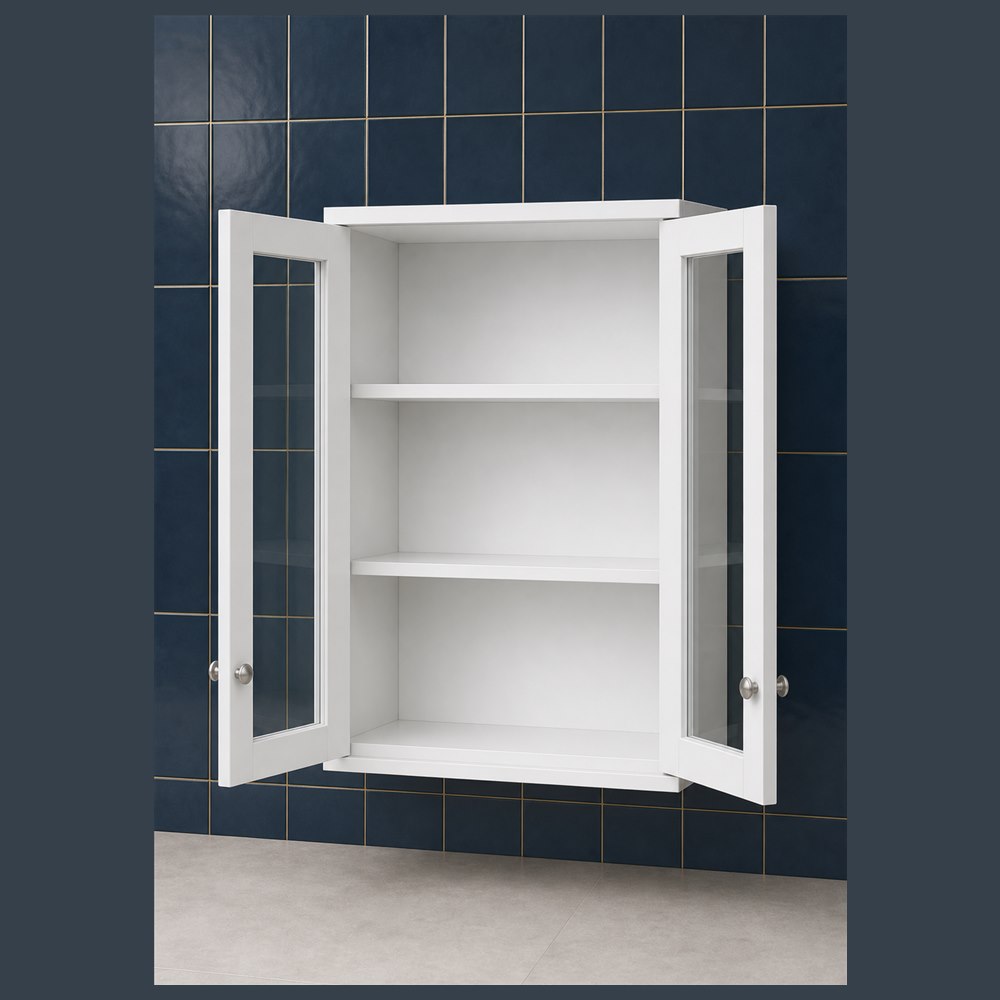

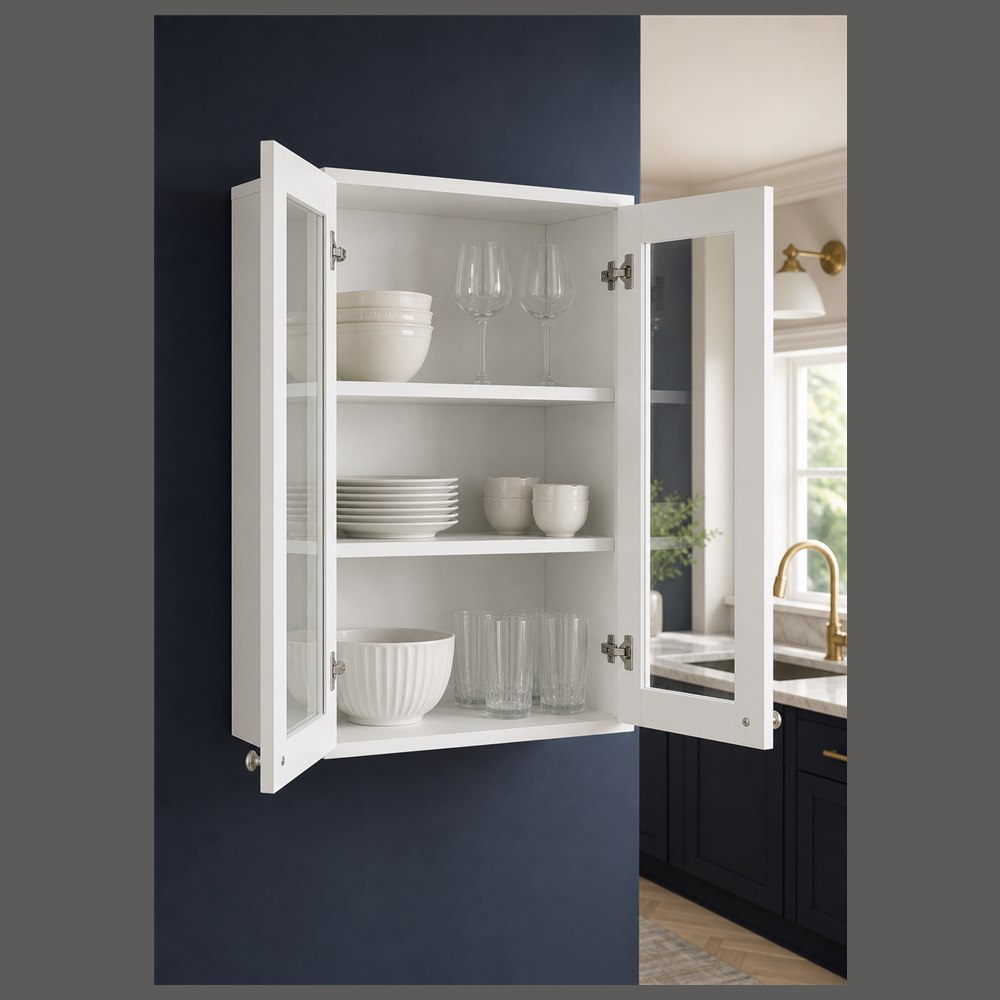

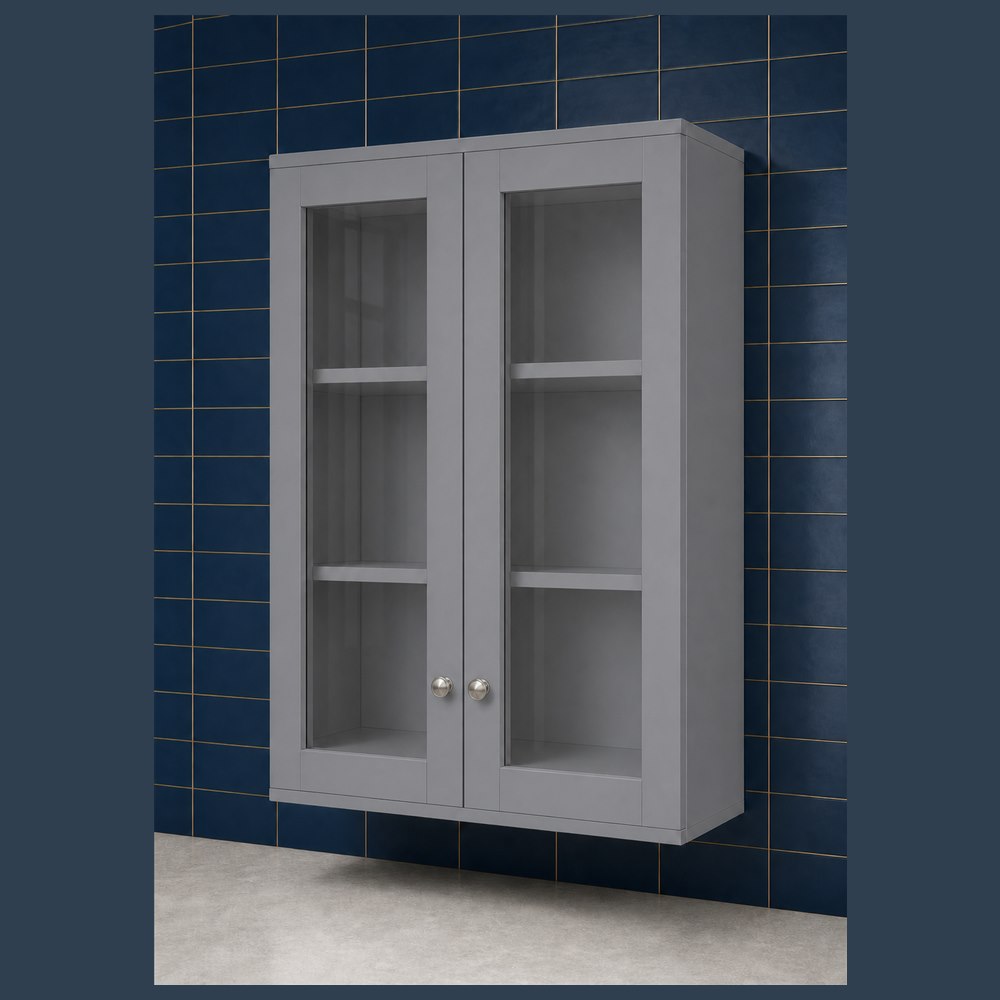

30-inch Shaker Glass-Door Wall Cabinet
WGD3042
30" W × 42" H × 12" D
Dimension drawing coming soon

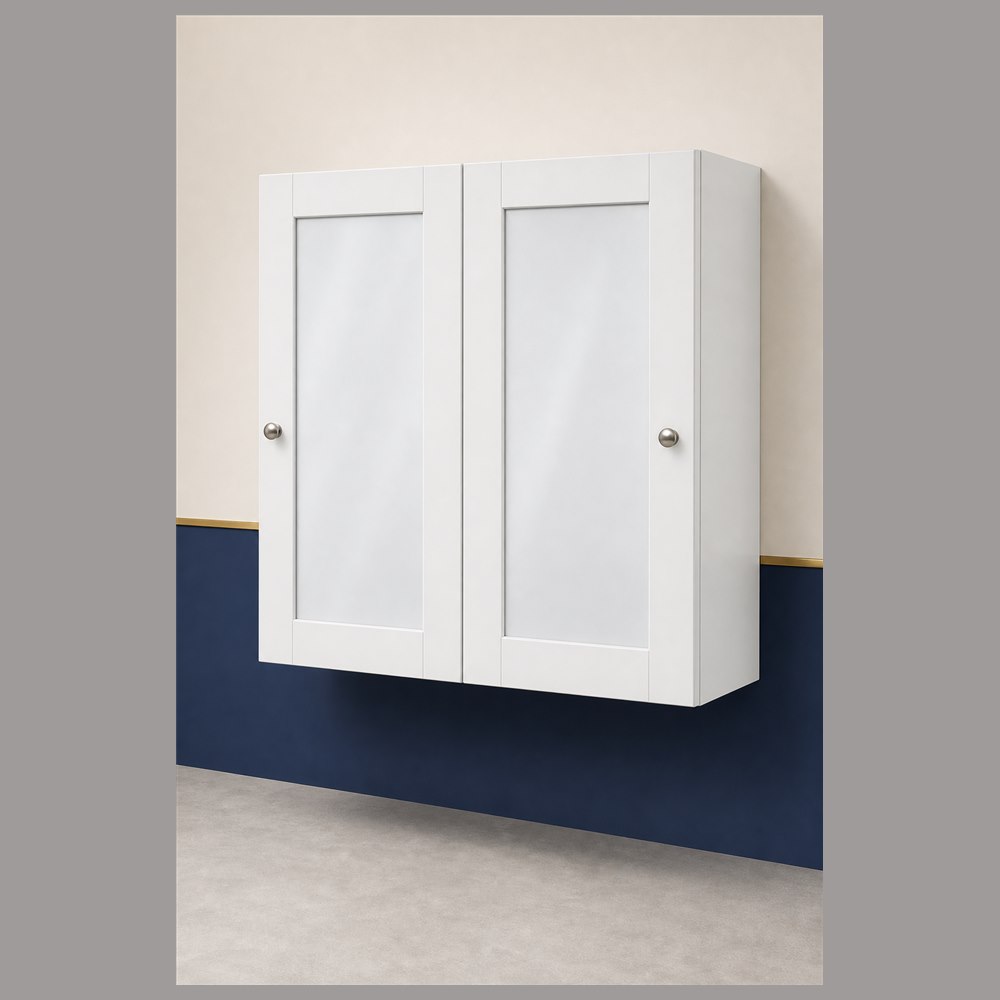

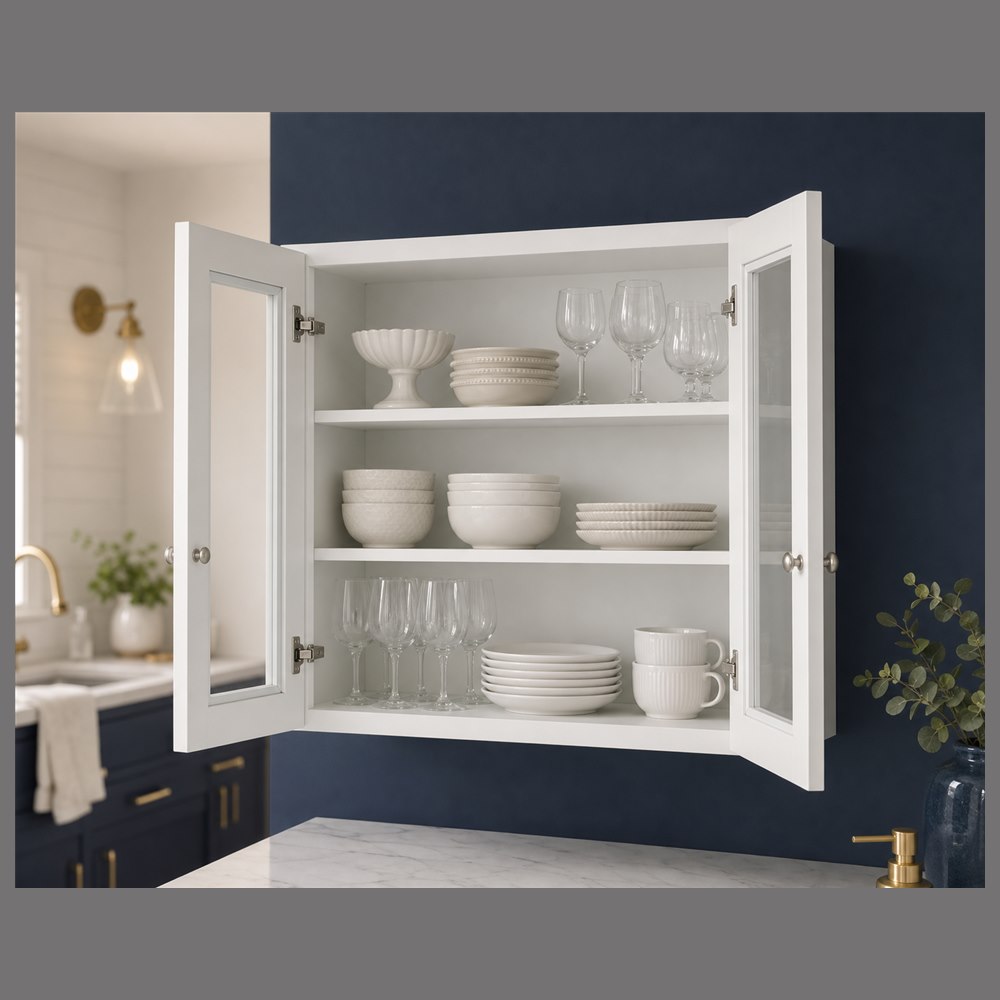

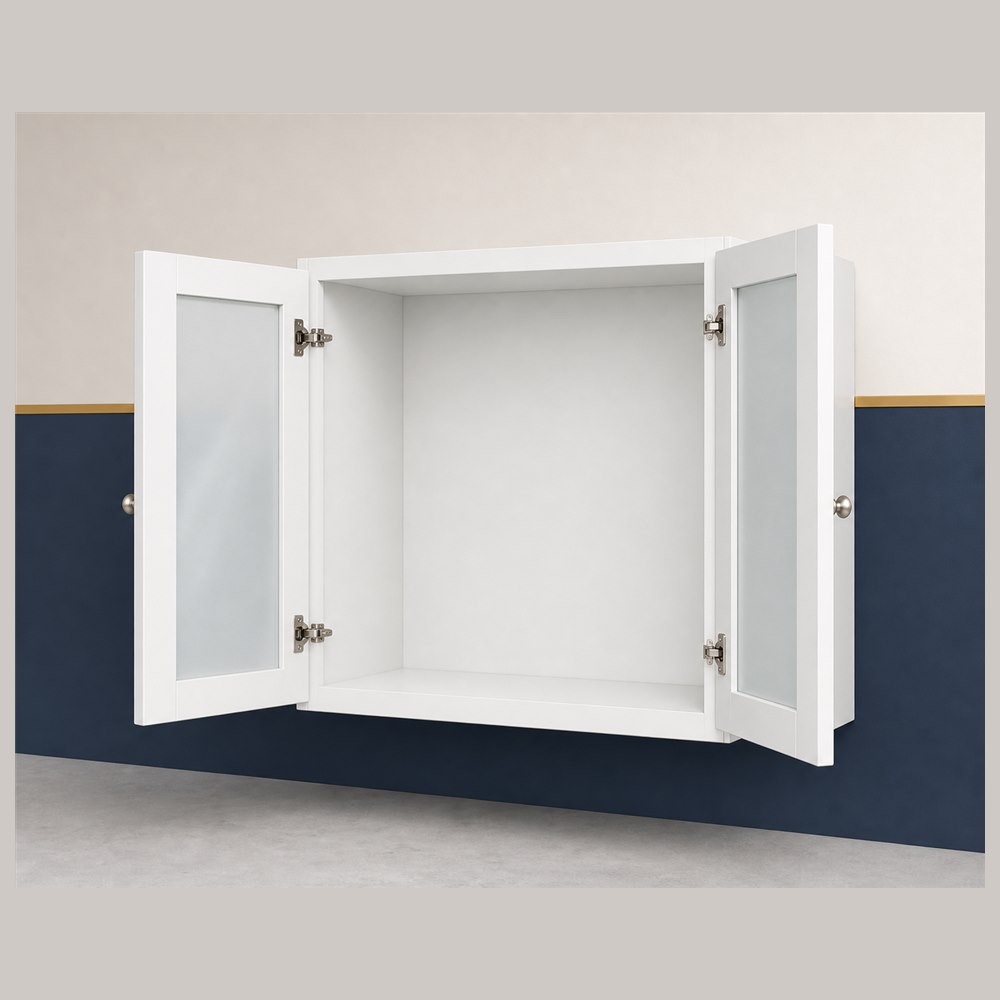

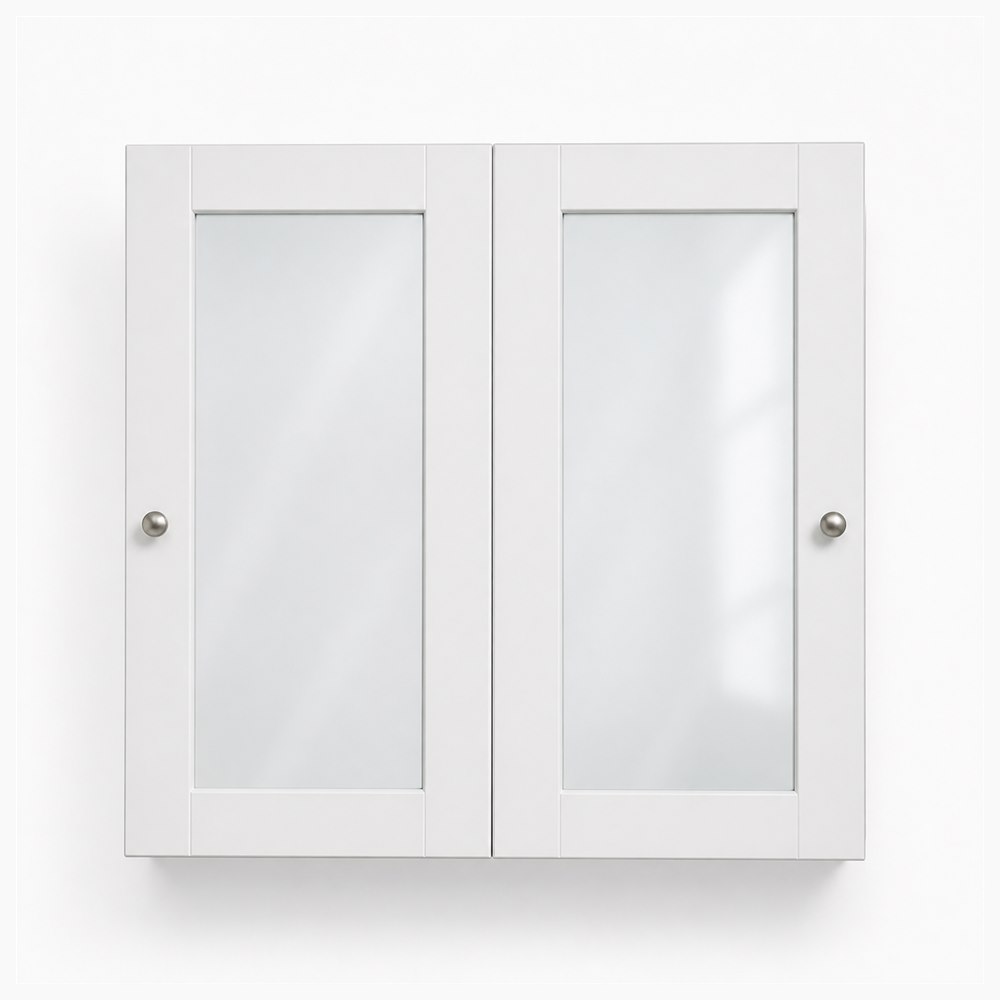

36-inch Shaker Glass-Door Wall Cabinet
WGD3636
36" W × 36" H × 12" D

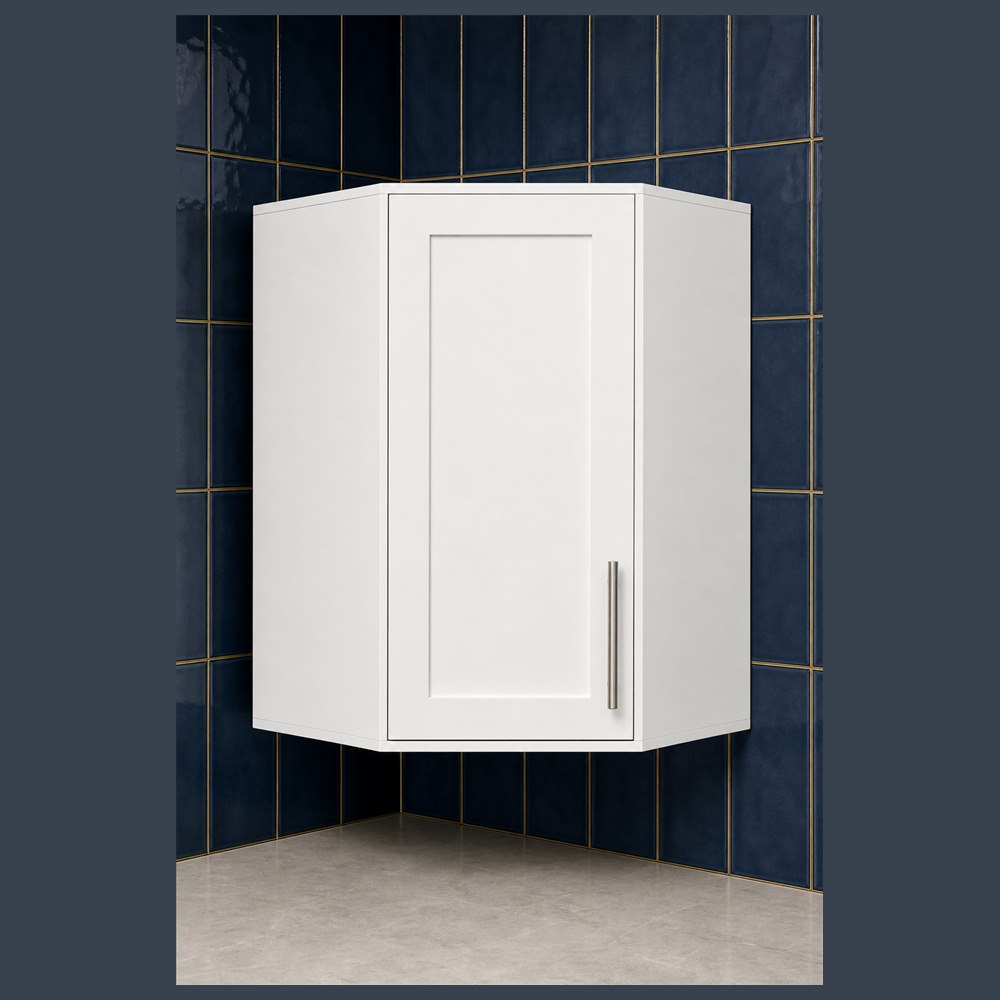

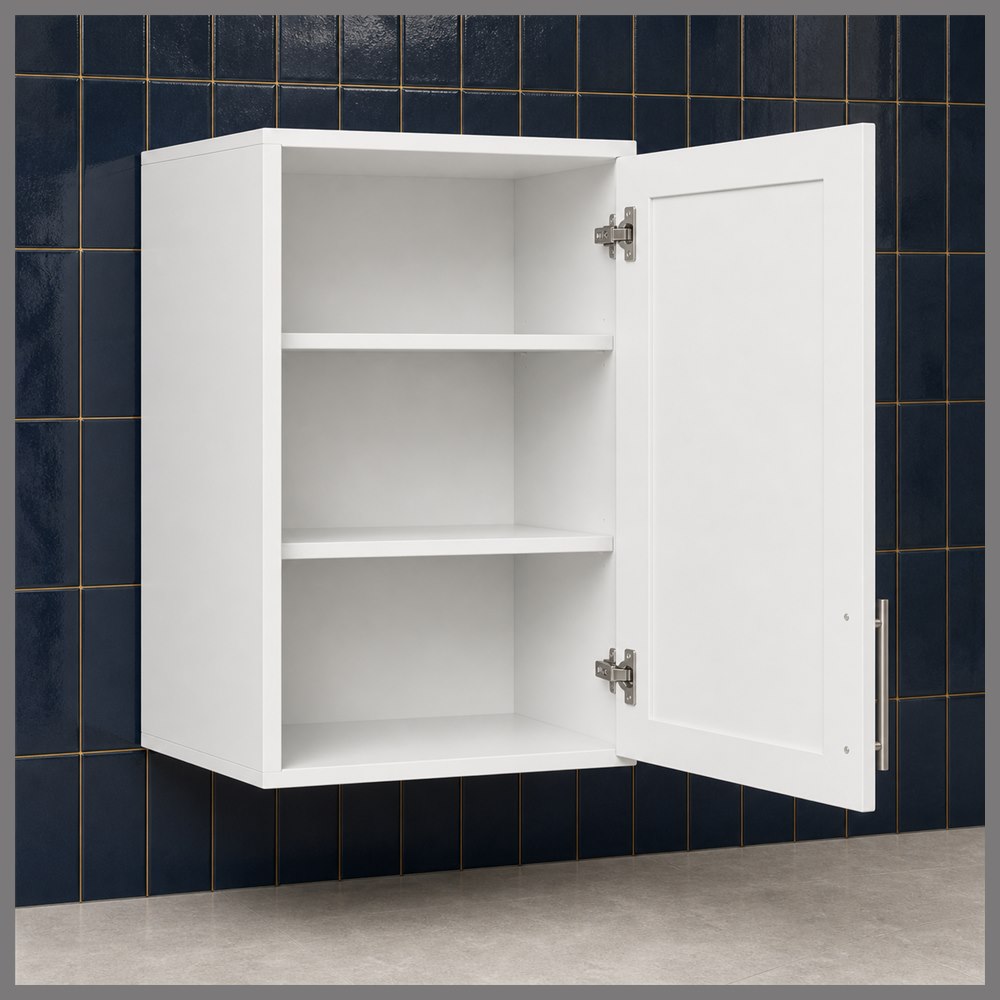

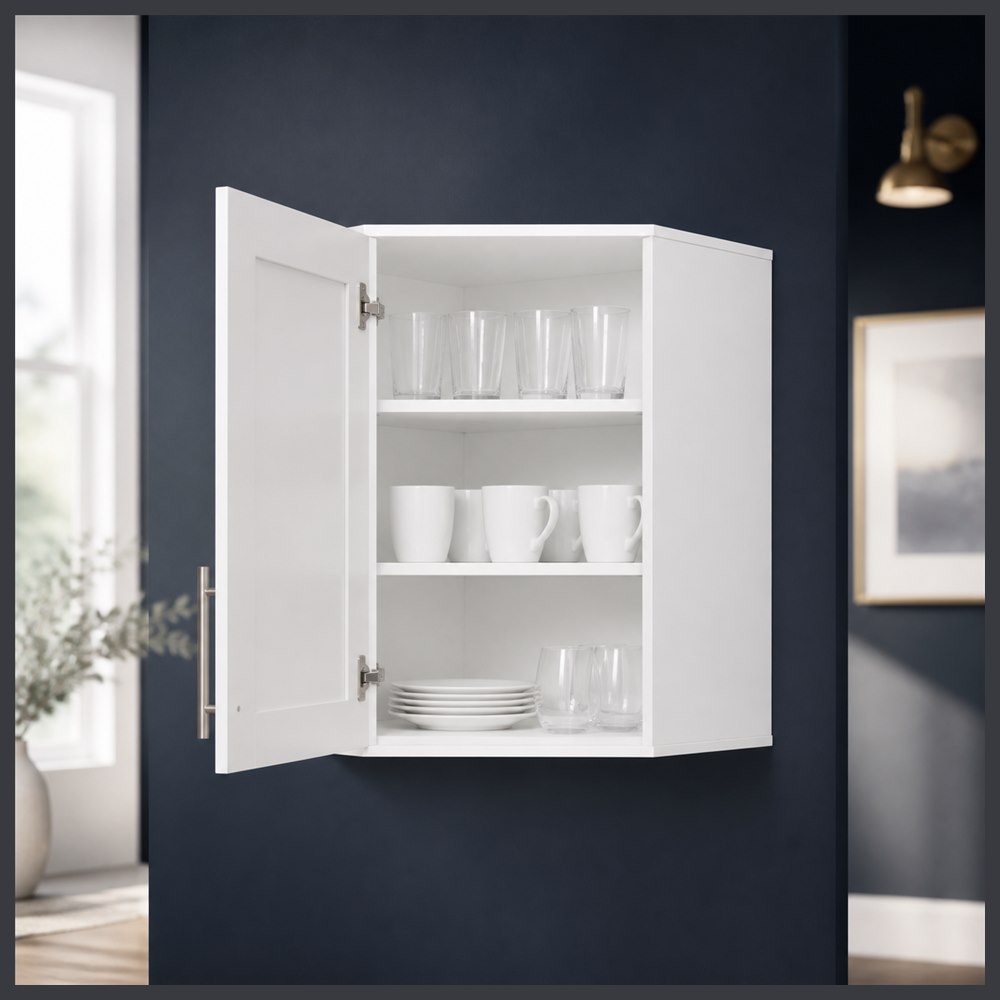

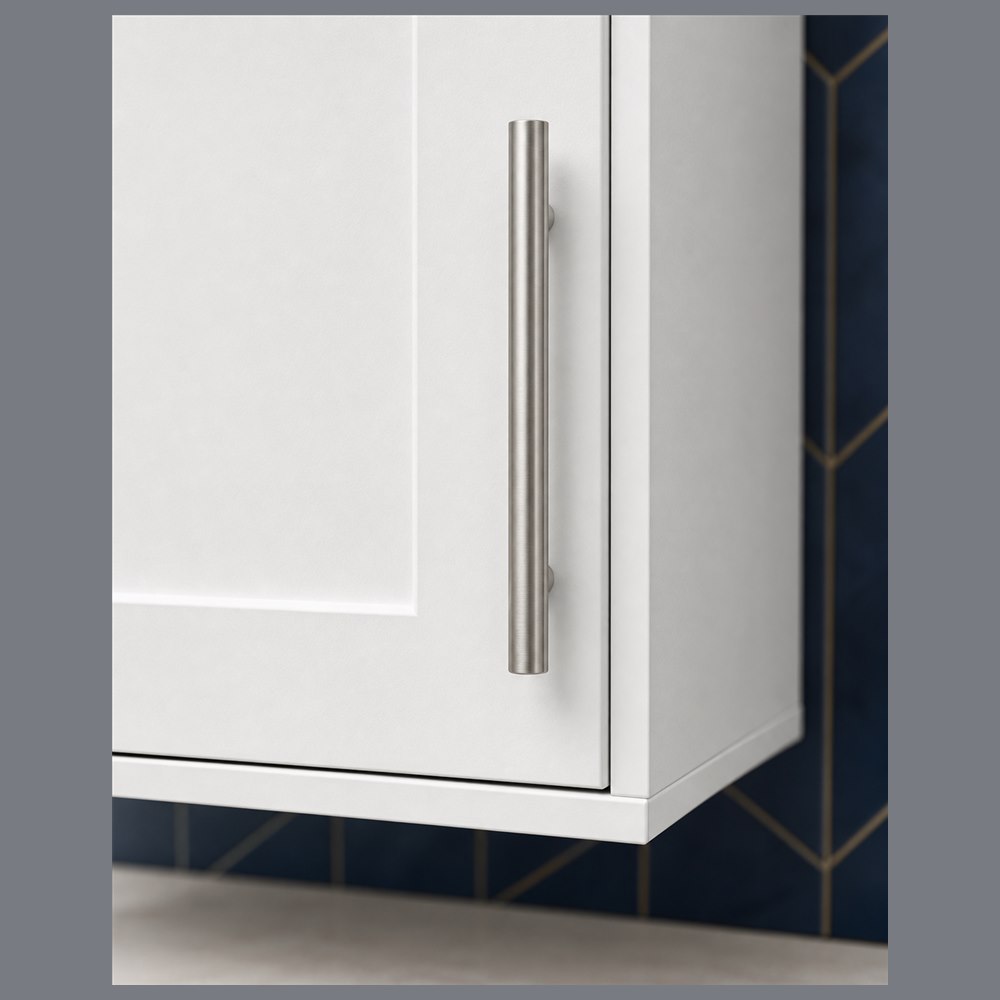

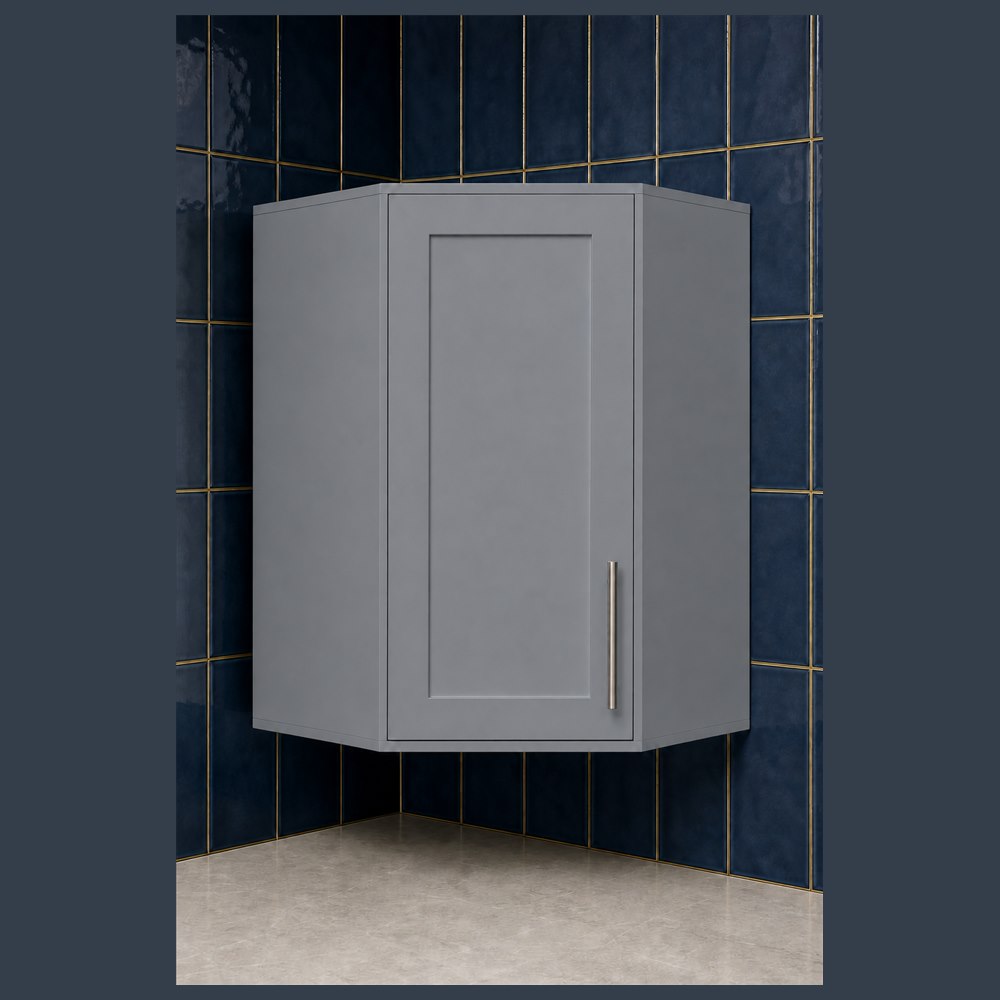

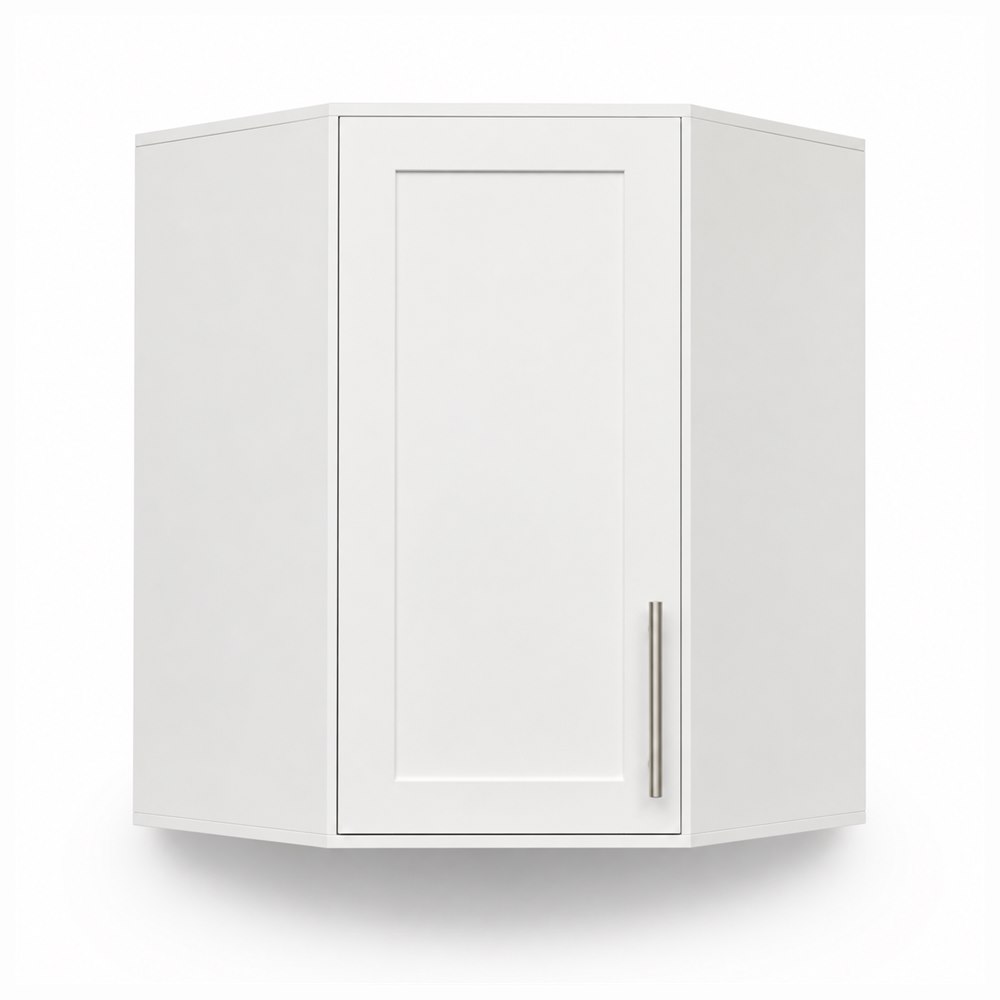

24-inch Shaker Corner Wall Cabinet
WDC243012
24" W × 30" H × 12" D
Tall & Pantry Cabinets
Tall pantry cabinets maximize vertical storage where base cabinets end — 84-inch, 90-inch, and 96-inch heights accommodate standard and 9-foot ceilings. Full-height pantry units anchor a kitchen, laundry, or garage run, and every unit matches the shaker profile of the base and wall lines for a unified look.
Dimension drawing coming soon

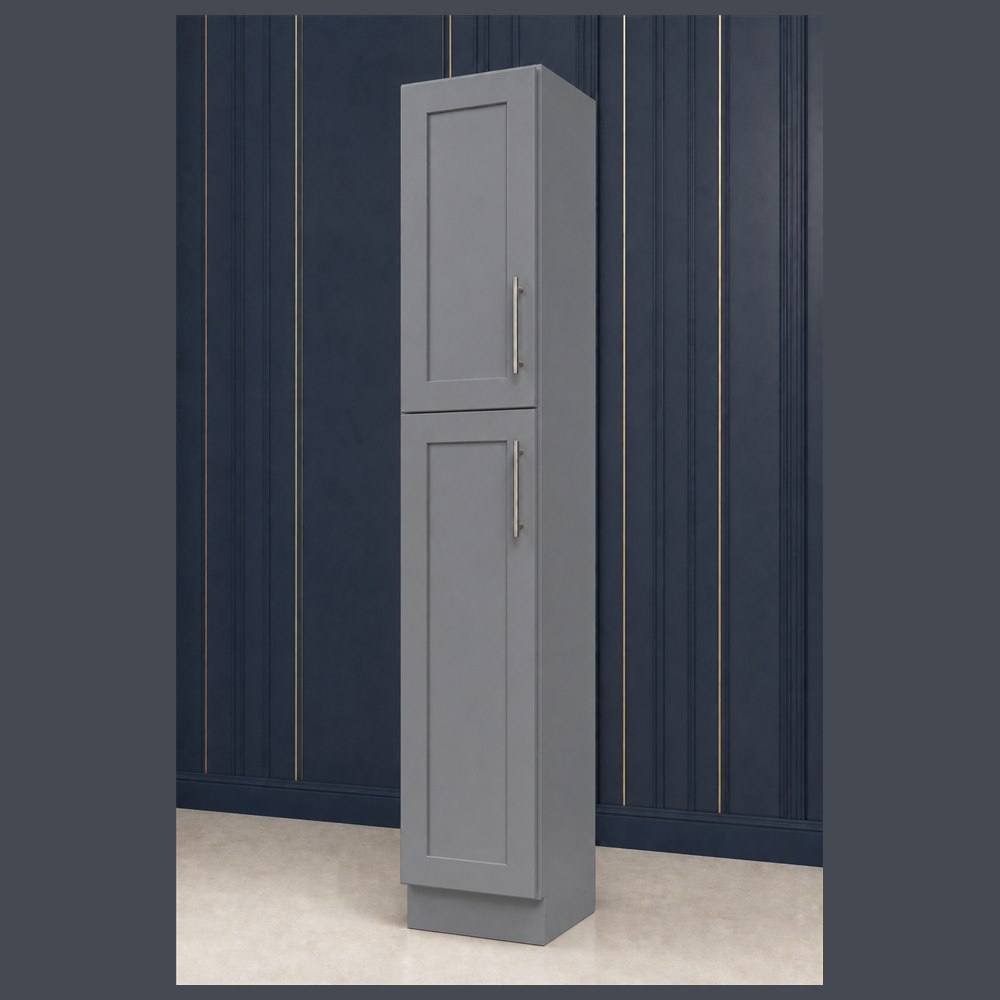

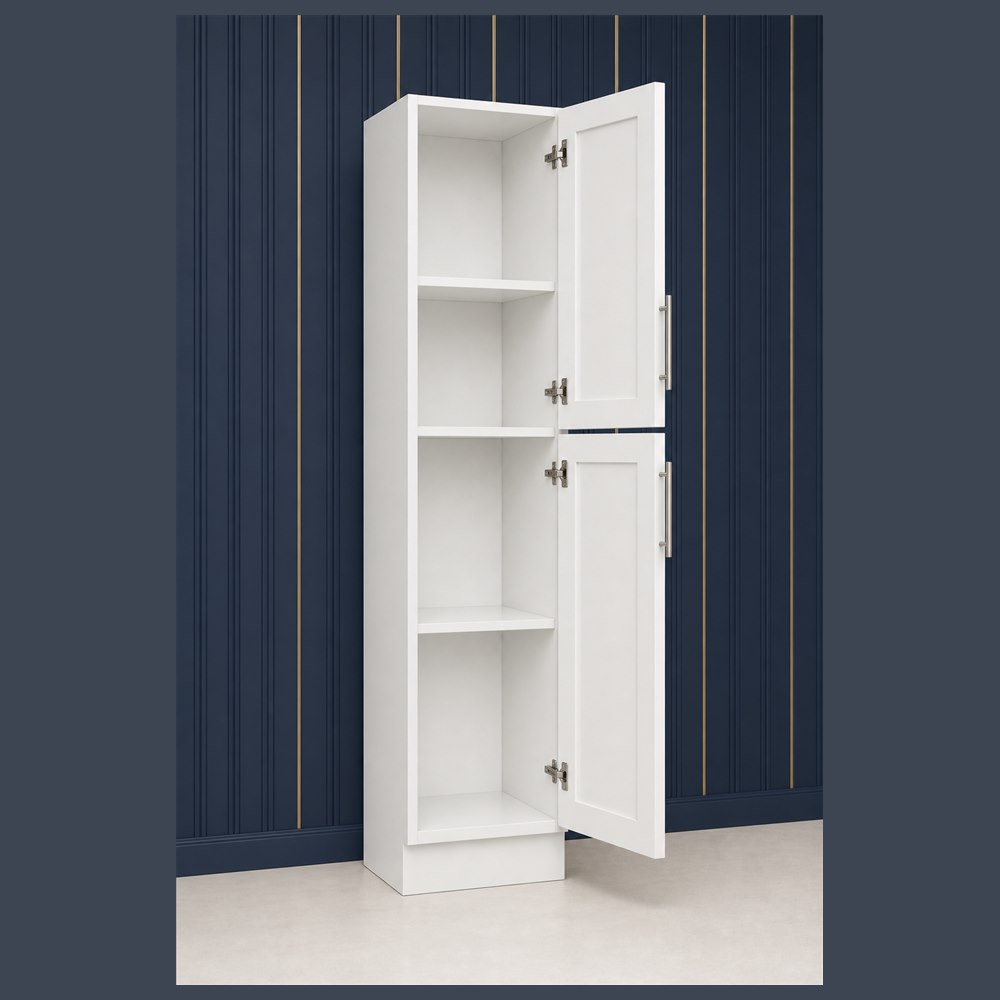

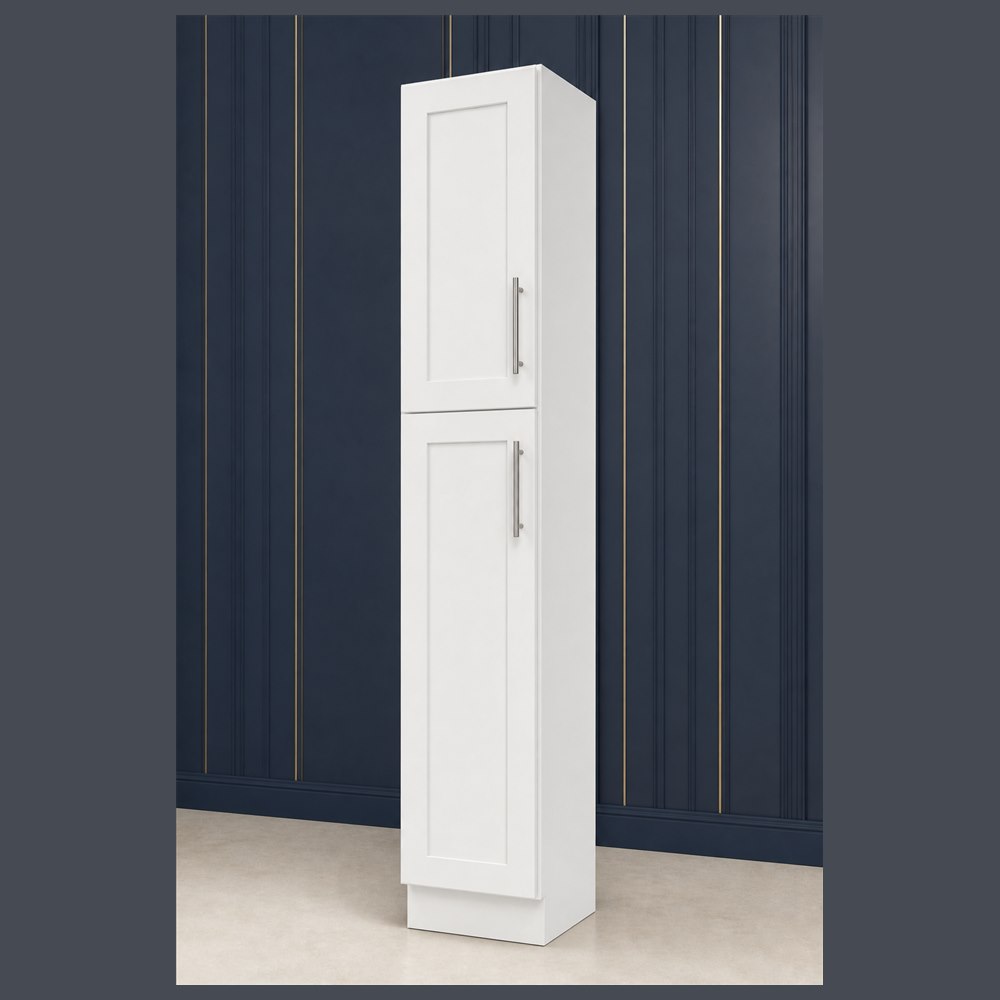

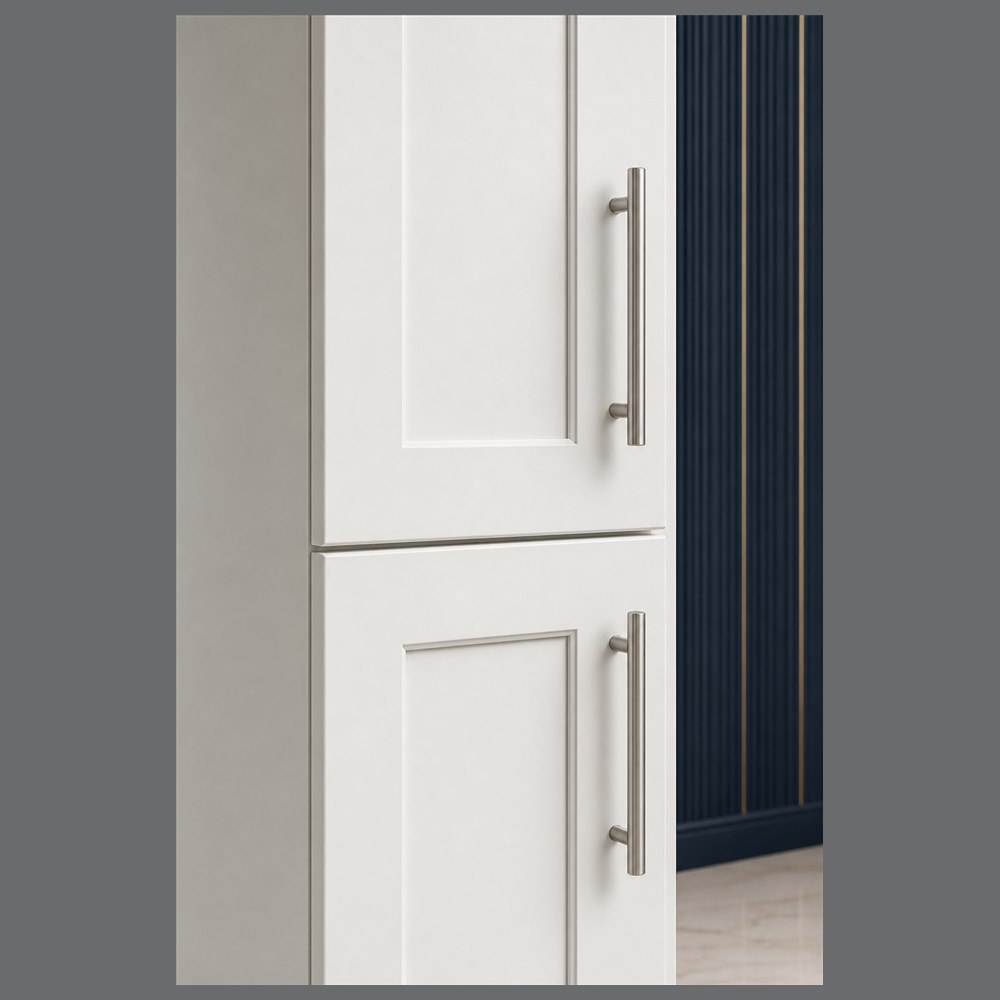

15-inch Shaker Pantry Cabinet
WP158424
15" W × 84" H × 24" D
Dimension drawing coming soon

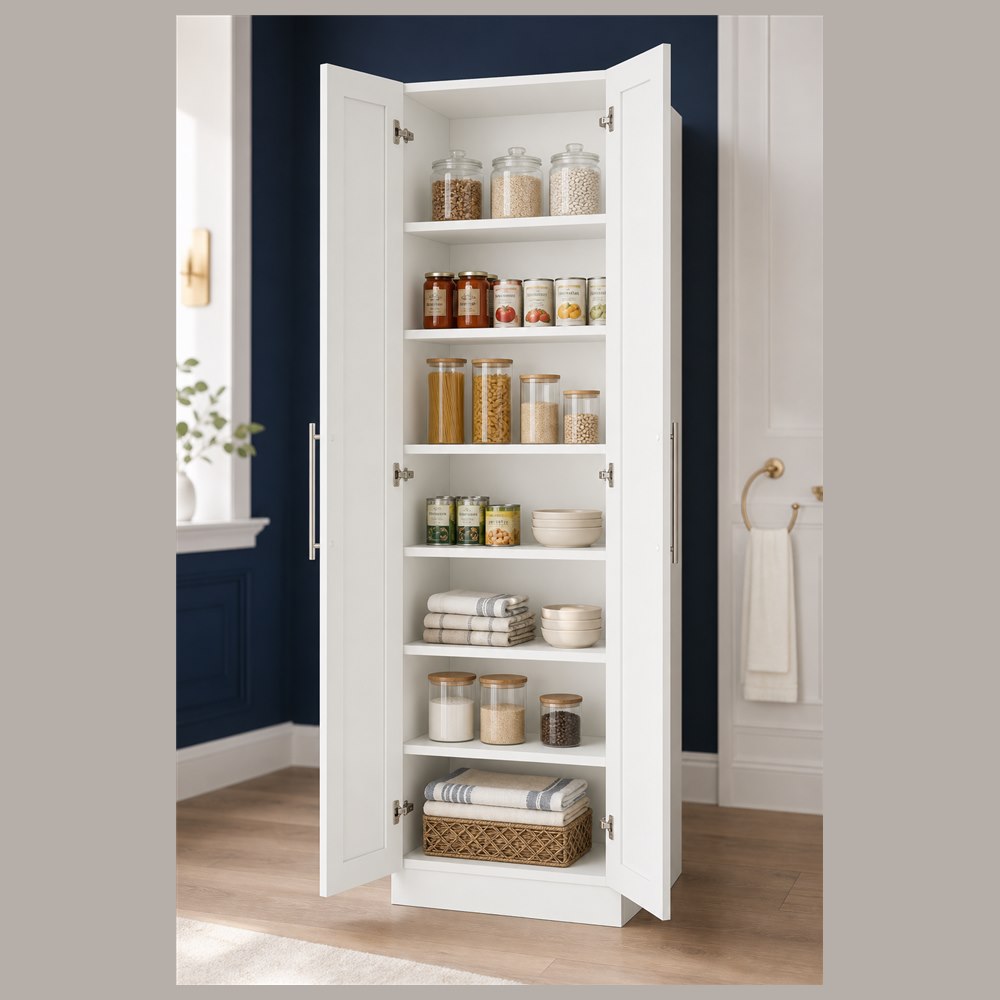

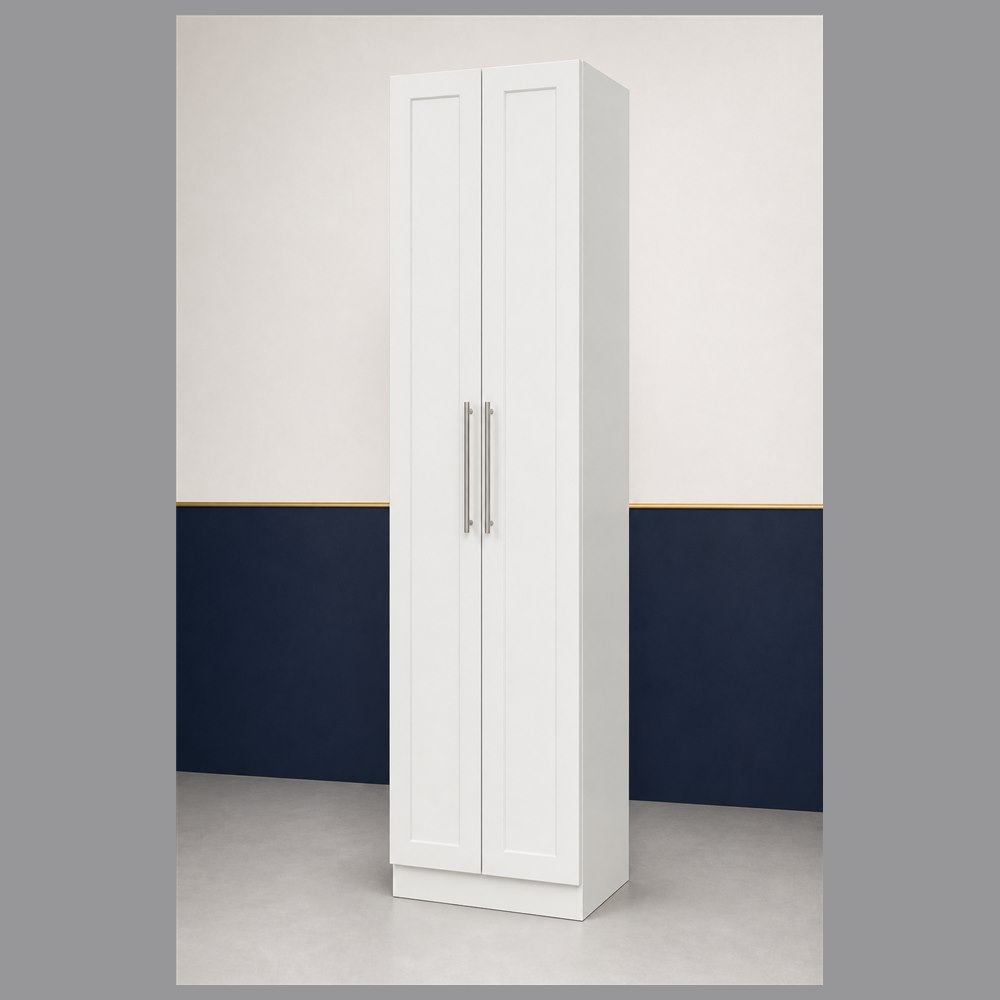

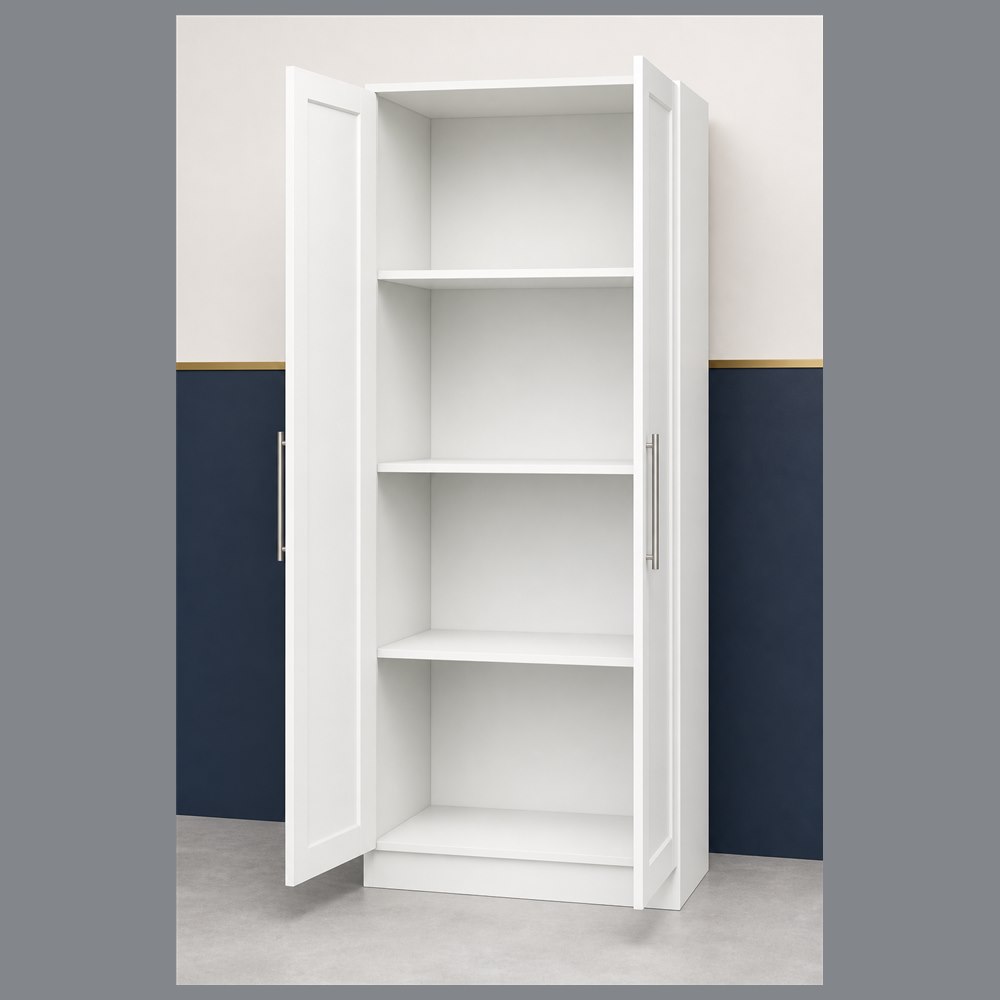

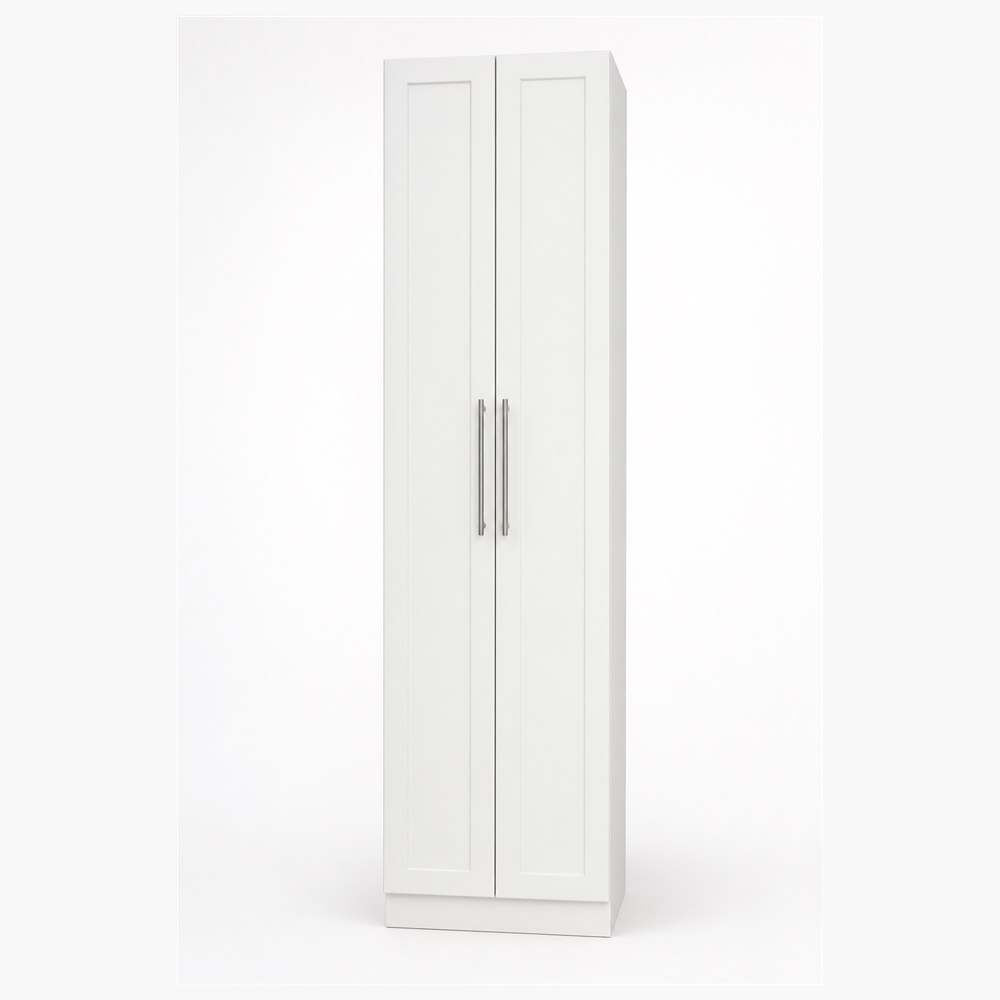

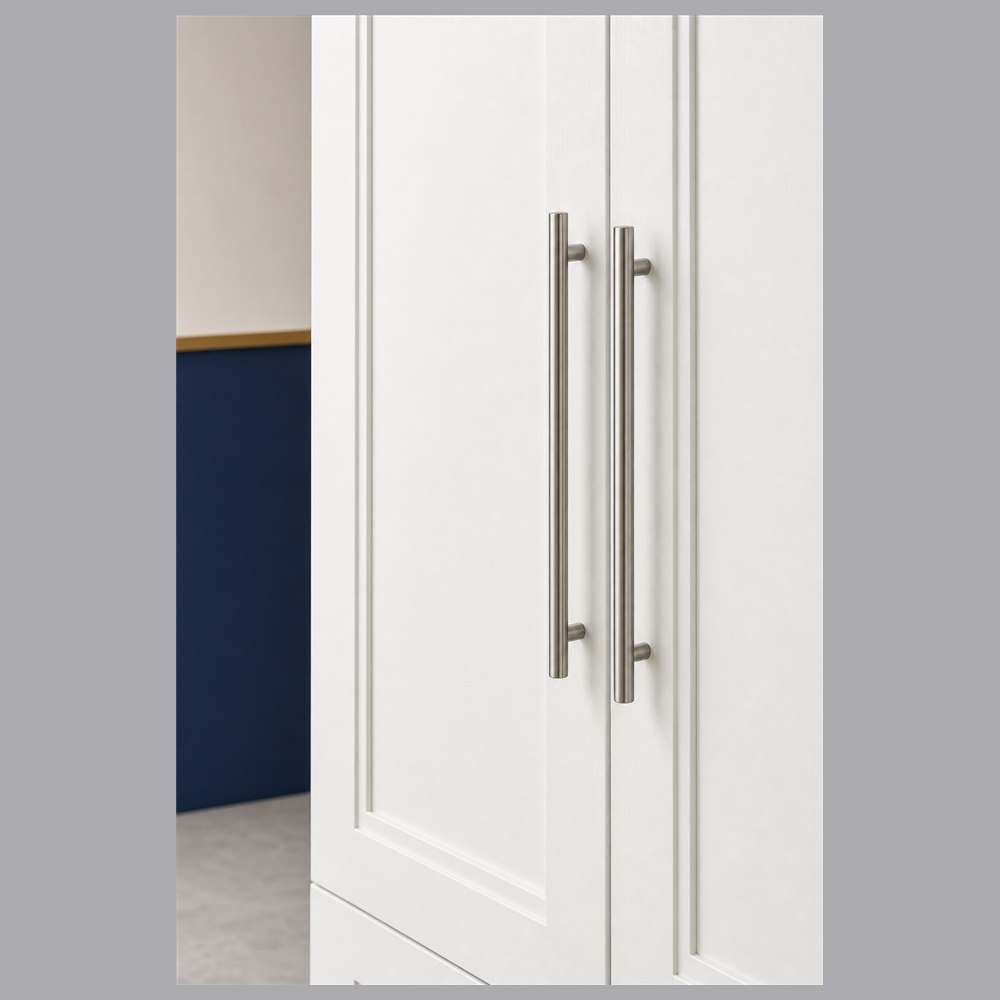

18-inch Shaker Pantry Cabinet
WP188424
18" W × 84" H × 24" D
Dimension drawing coming soon

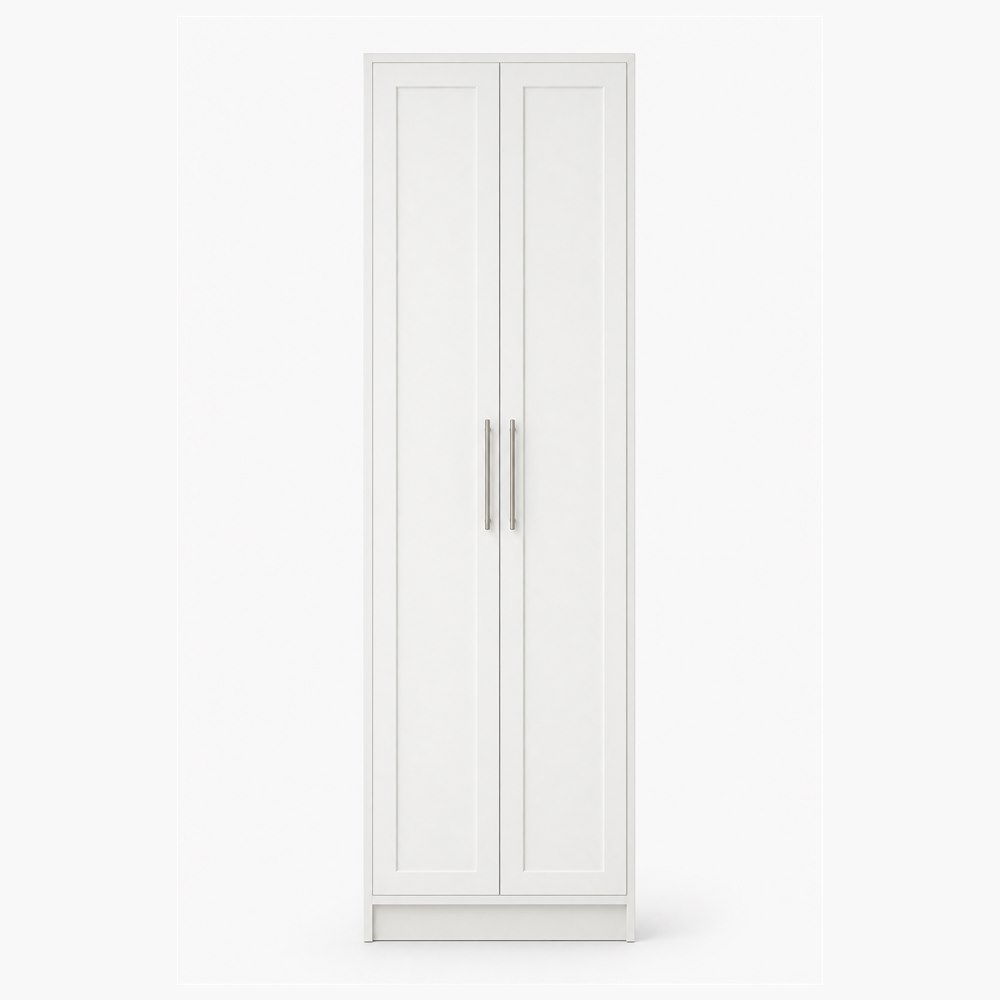

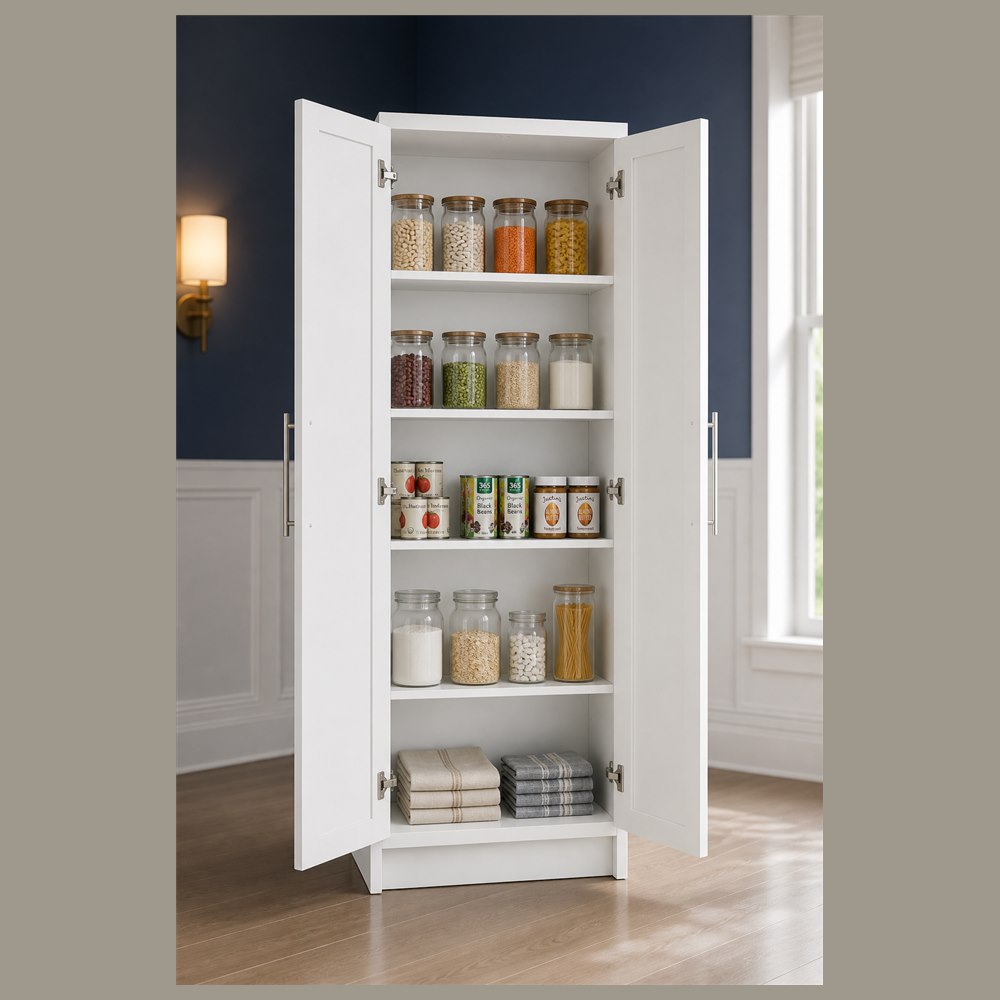

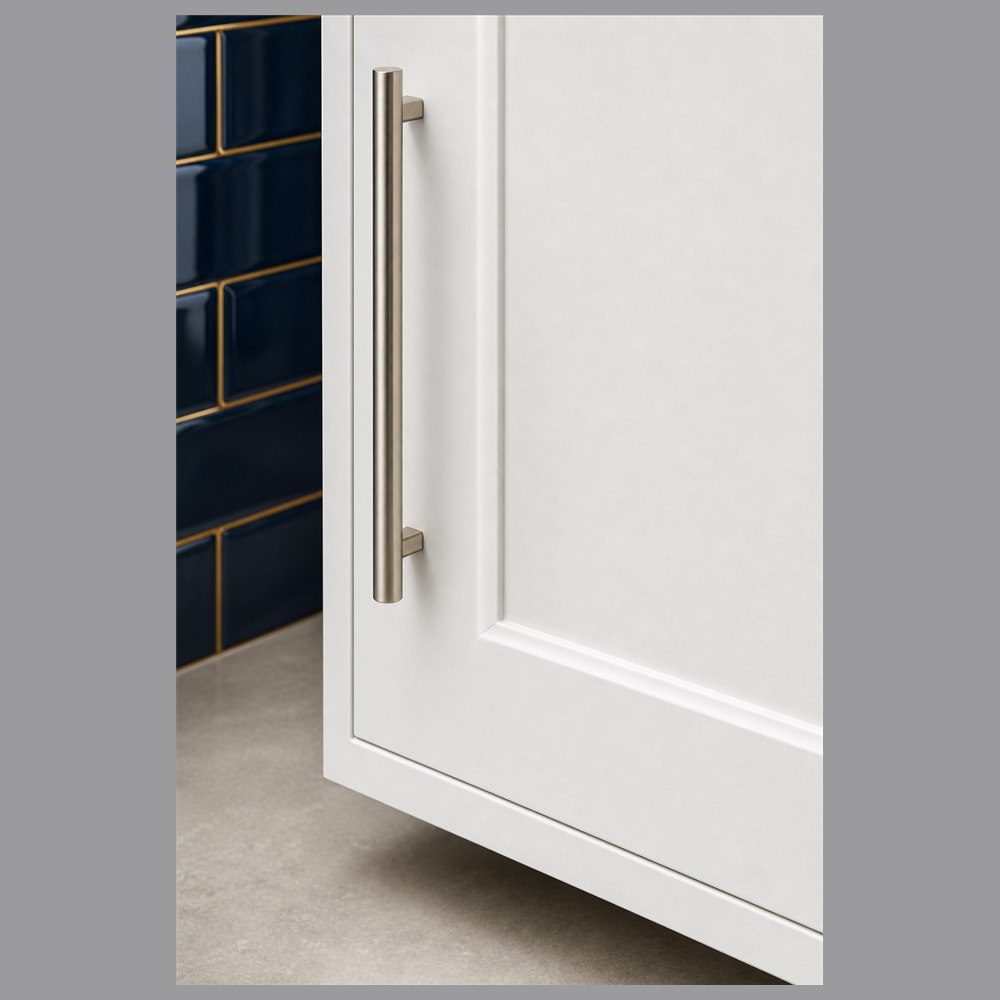

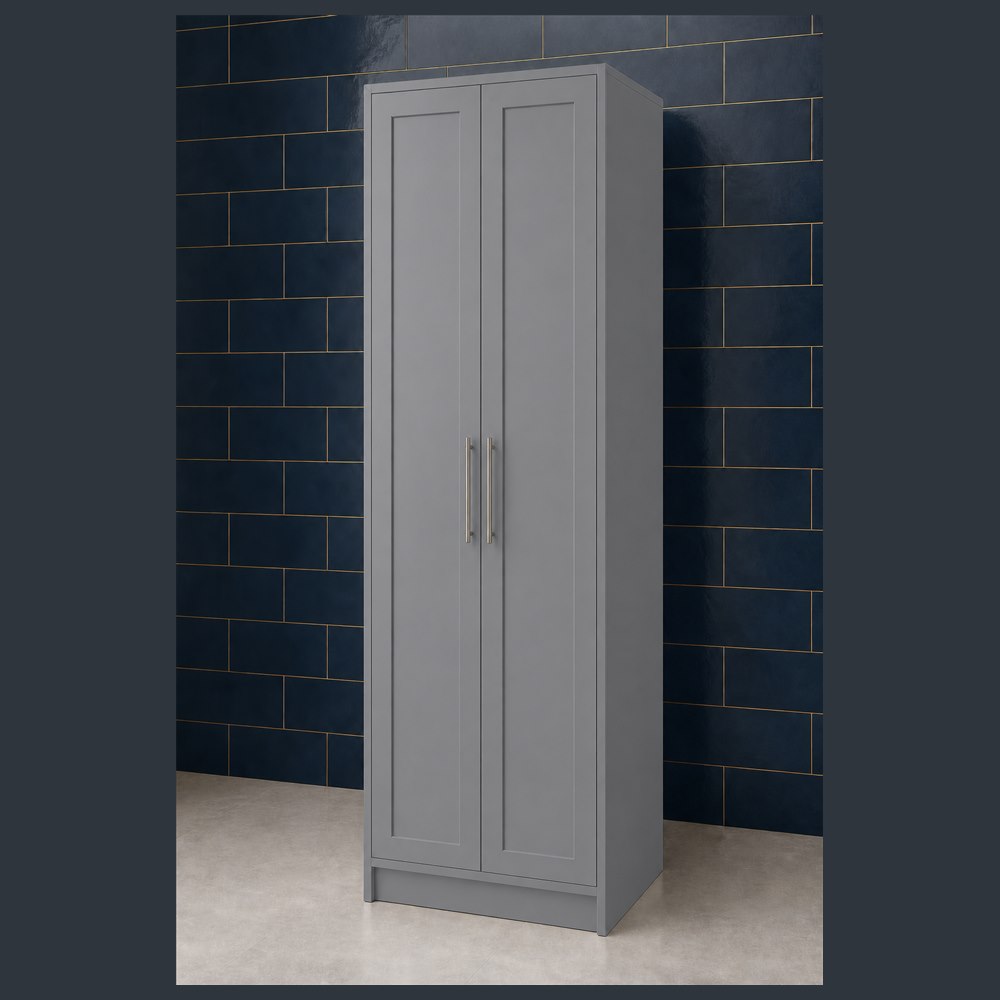

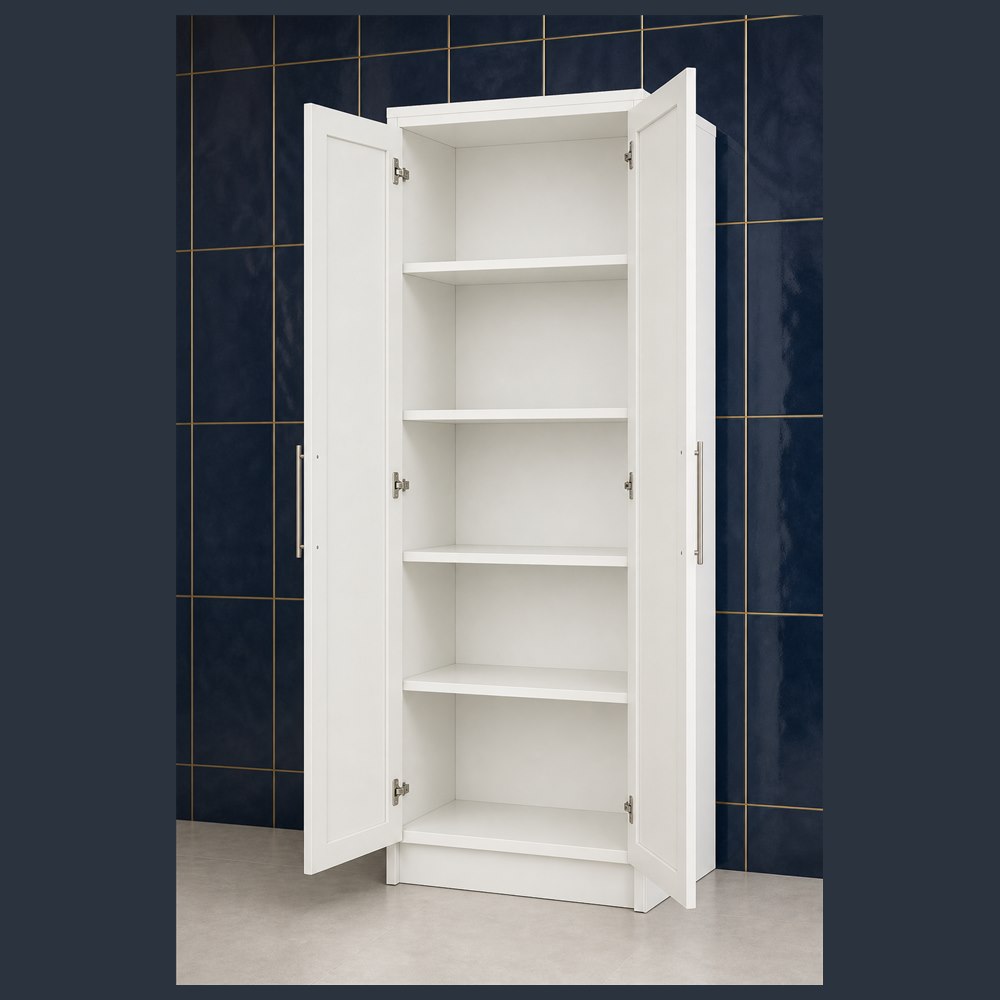

24-inch Shaker Pantry Cabinet
WP248424
24" W × 84" H × 24" D
Dimension drawing coming soon

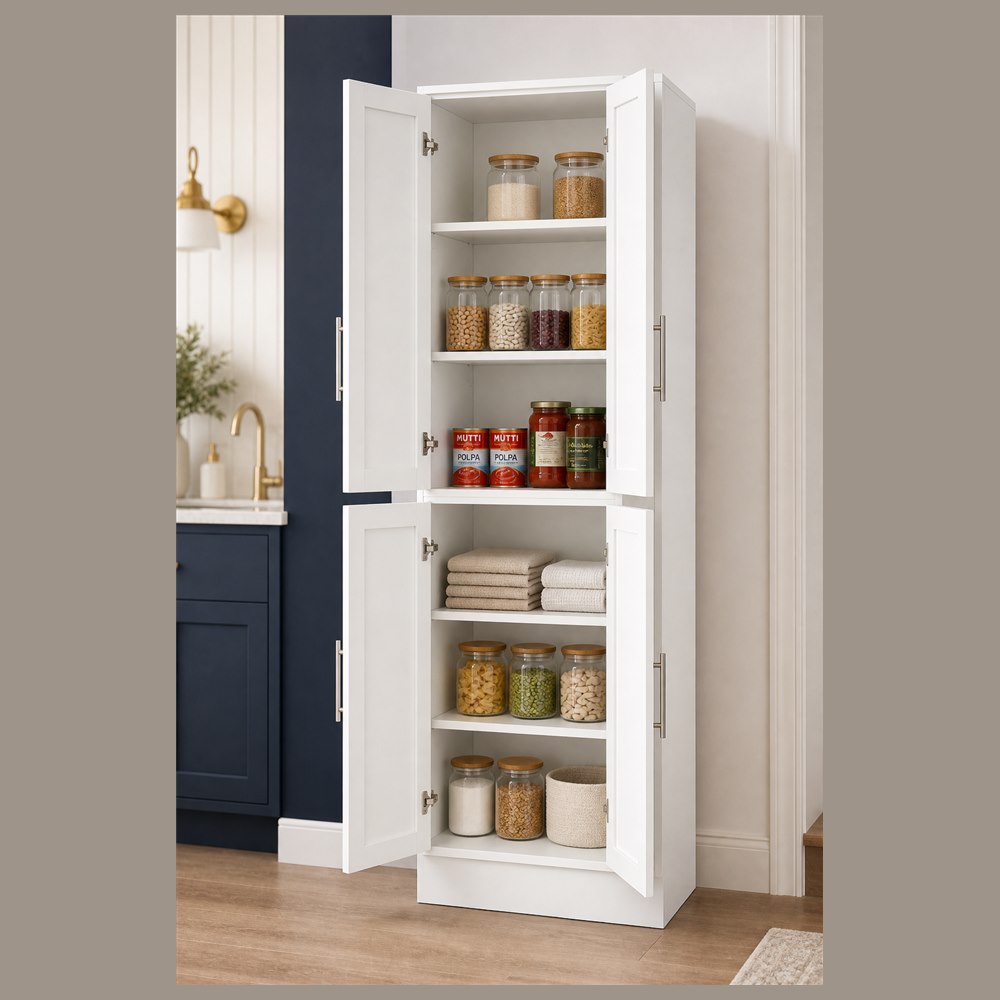

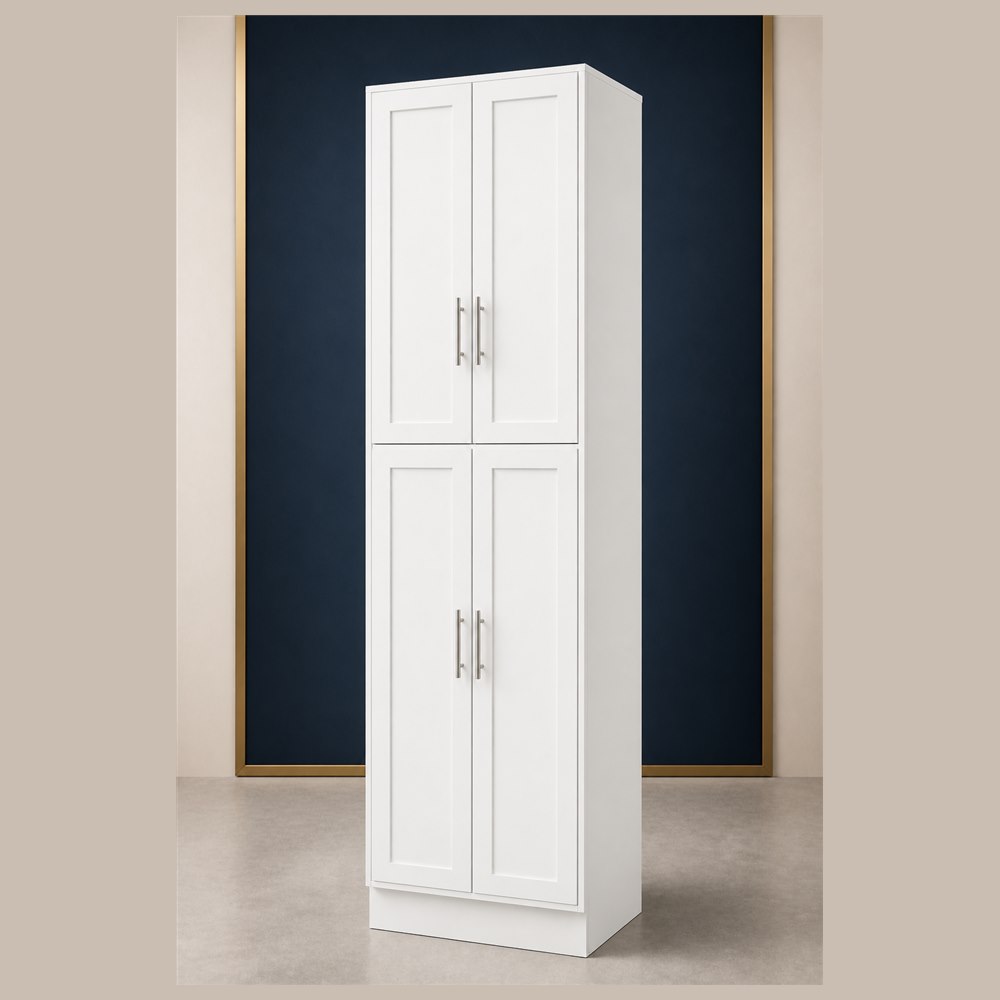

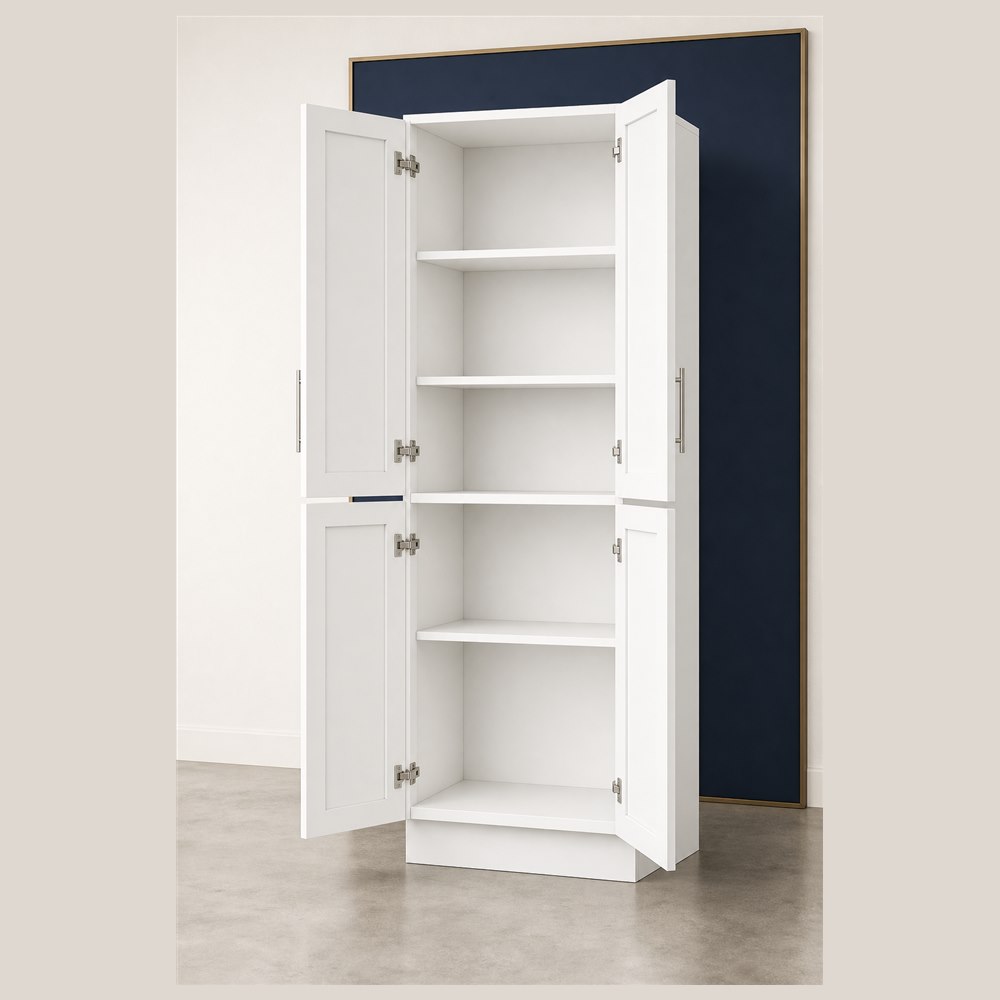

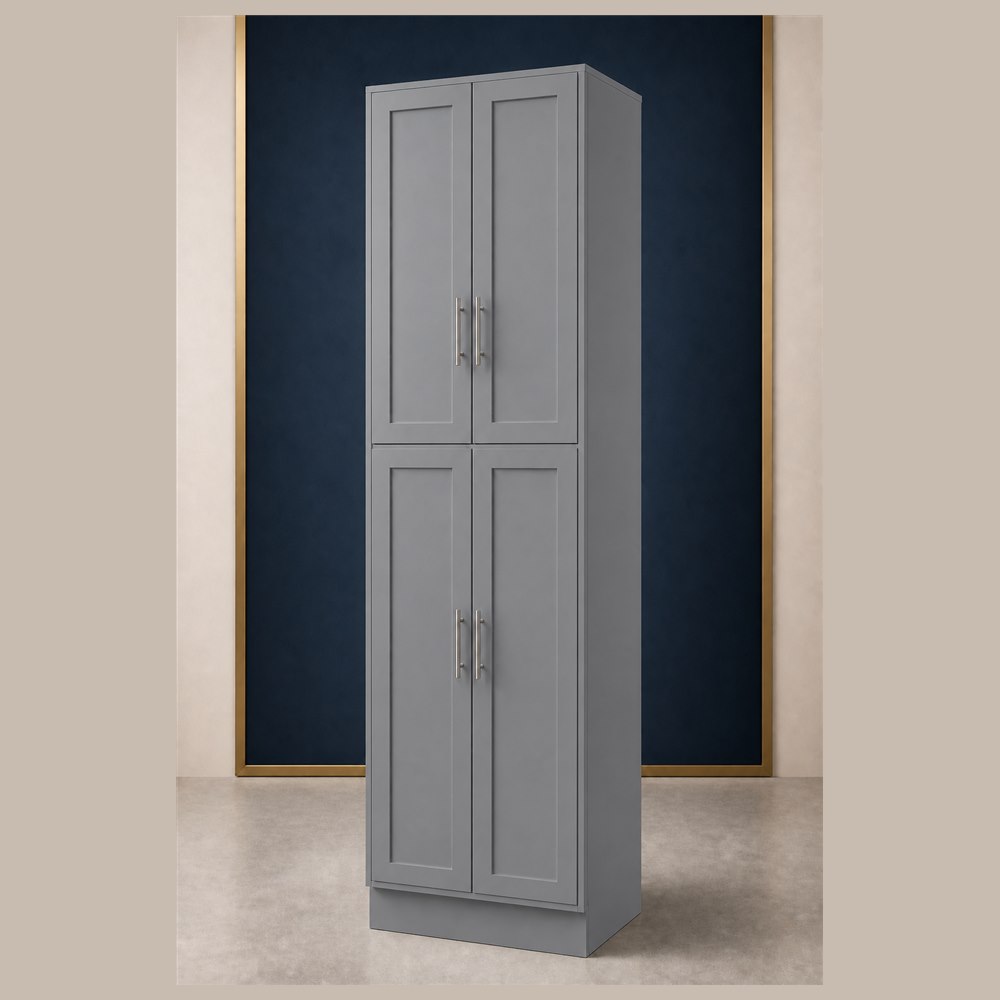

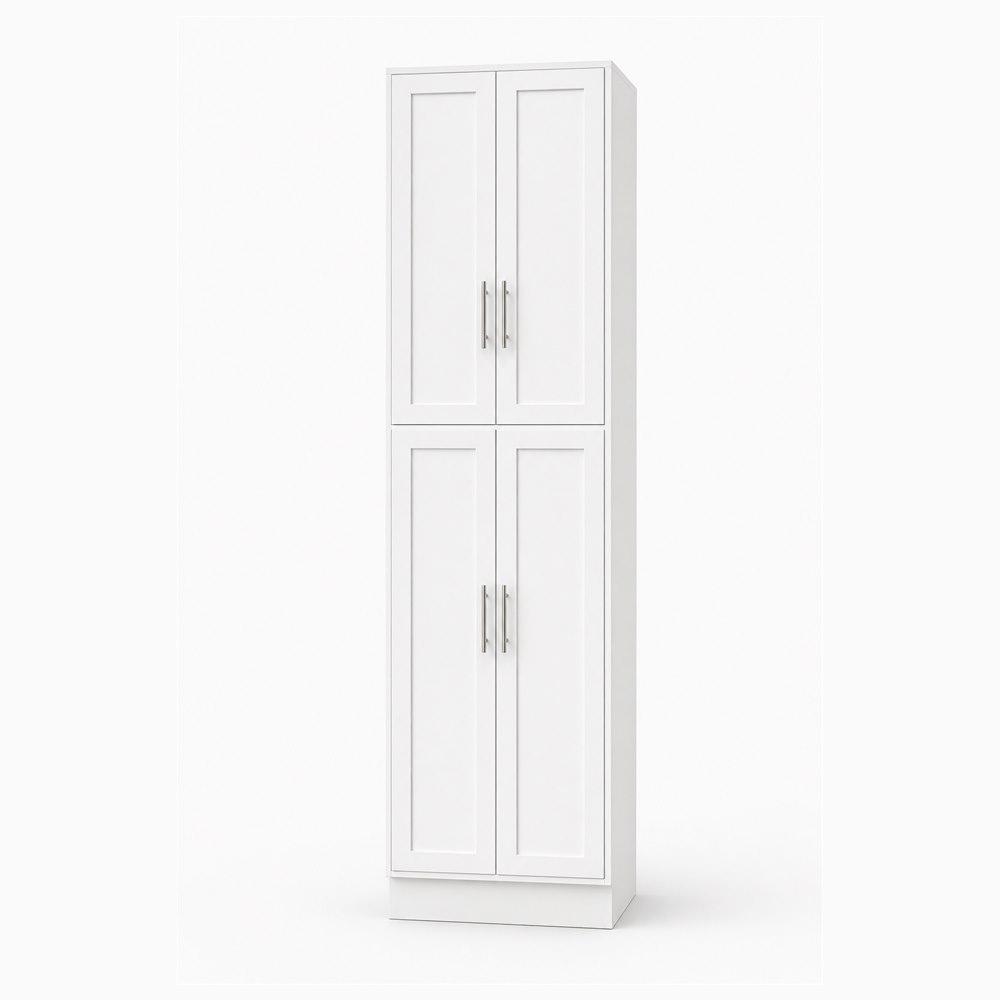

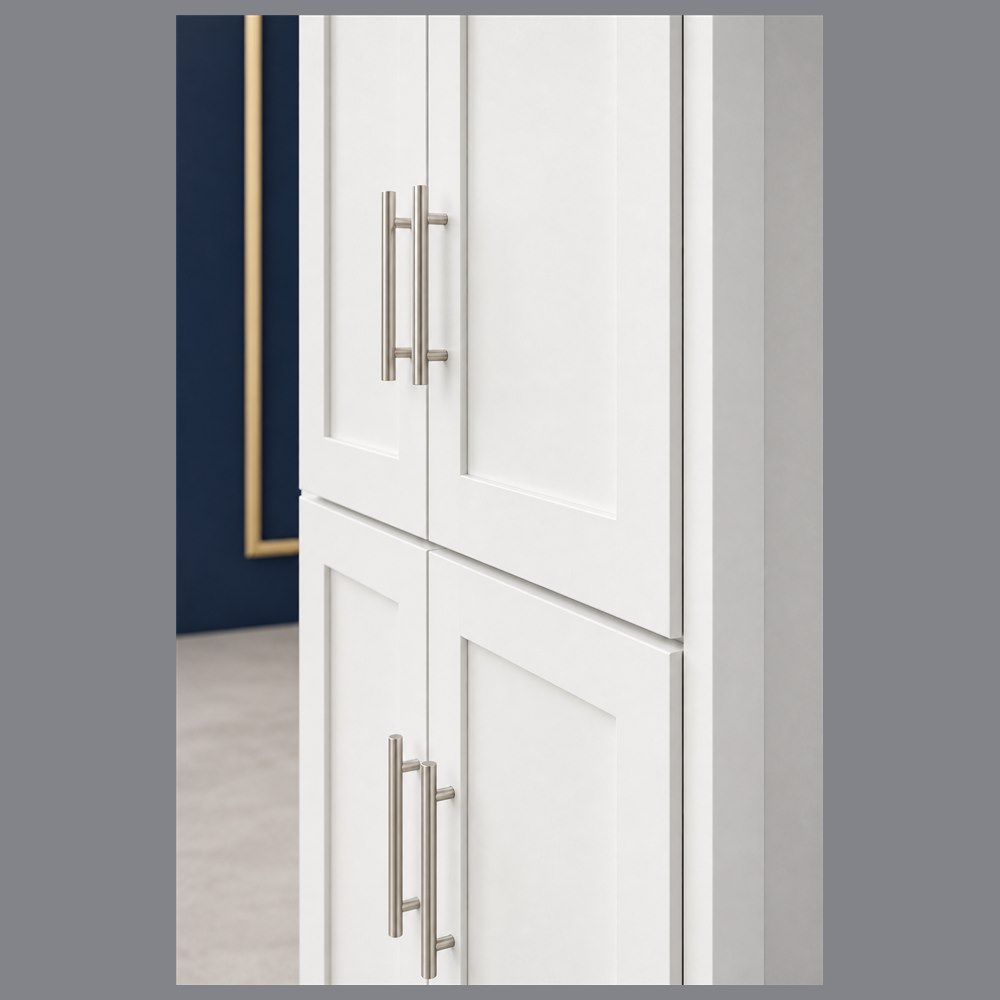

30-inch Shaker Pantry Cabinet
WP309024
30" W × 90" H × 24" D
Dimension drawing coming soon

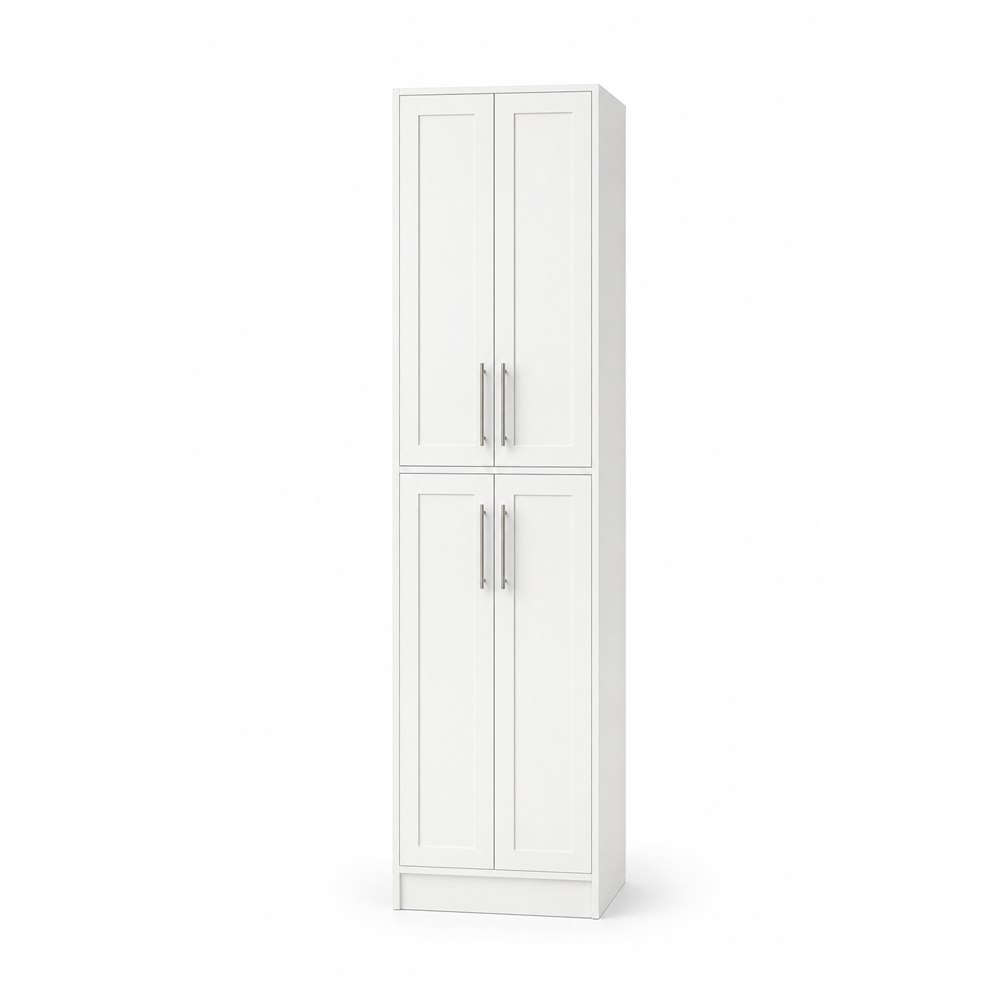

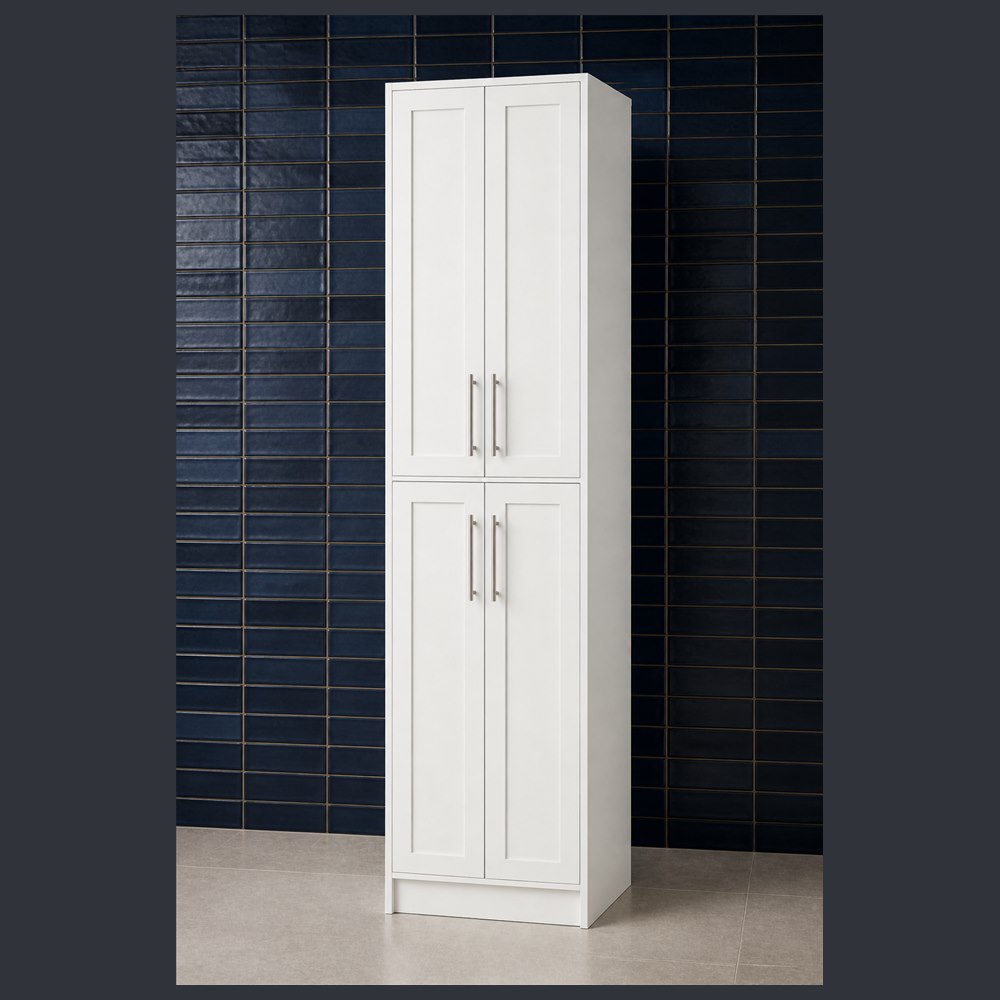

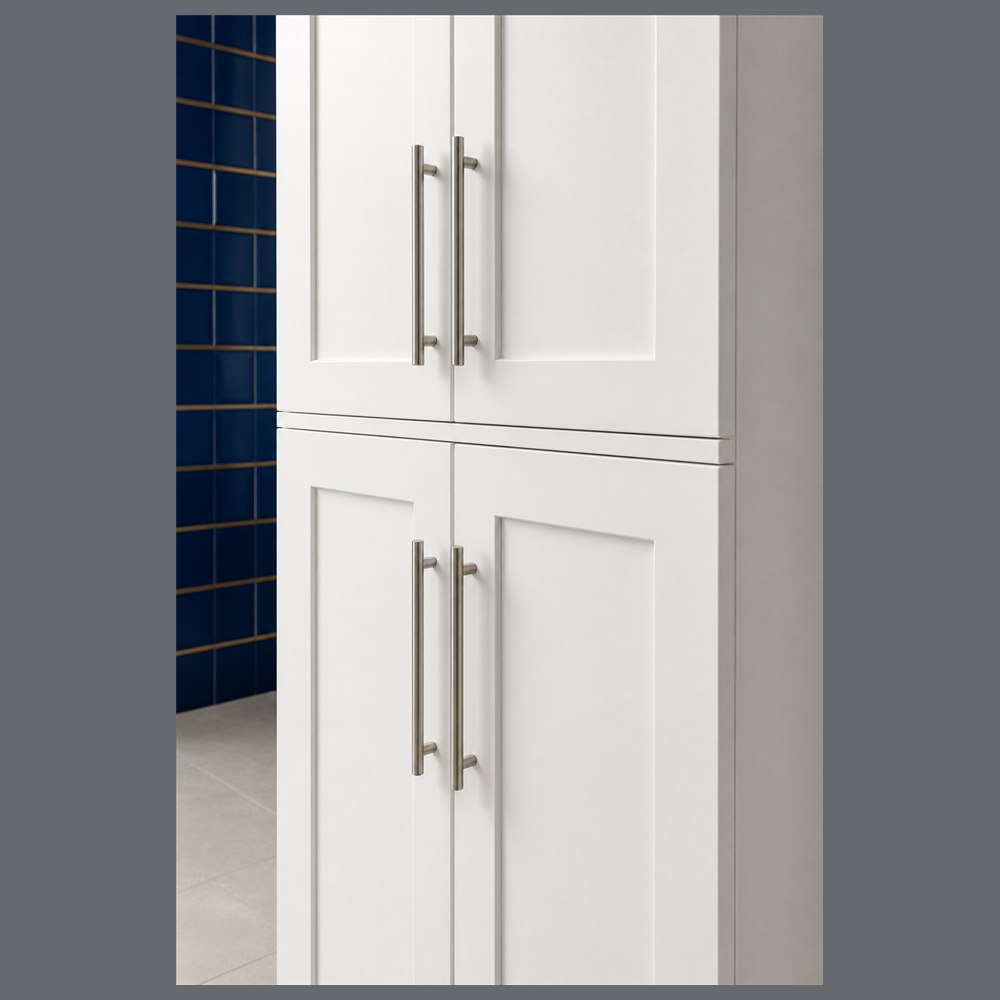

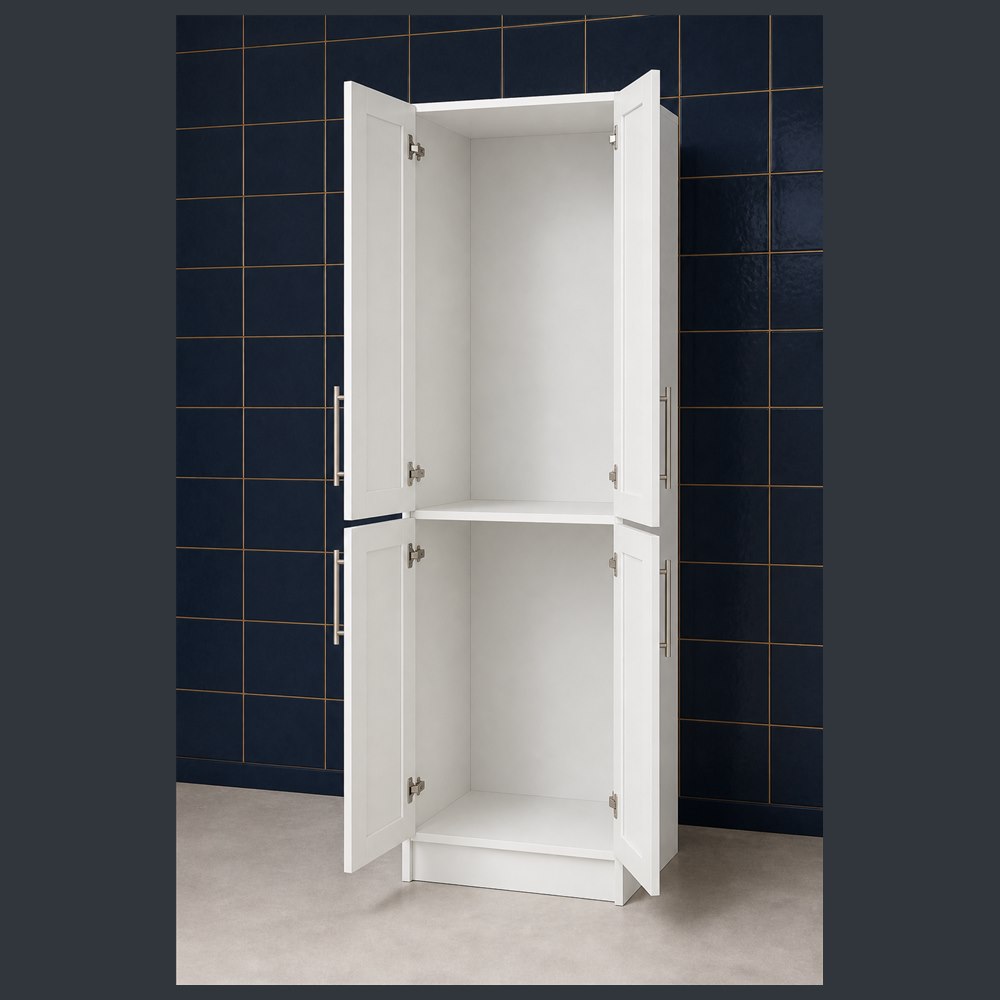

24-inch Shaker Tall Pantry Cabinet
WP249624
24" W × 96" H × 24" D
Dimension drawing coming soon

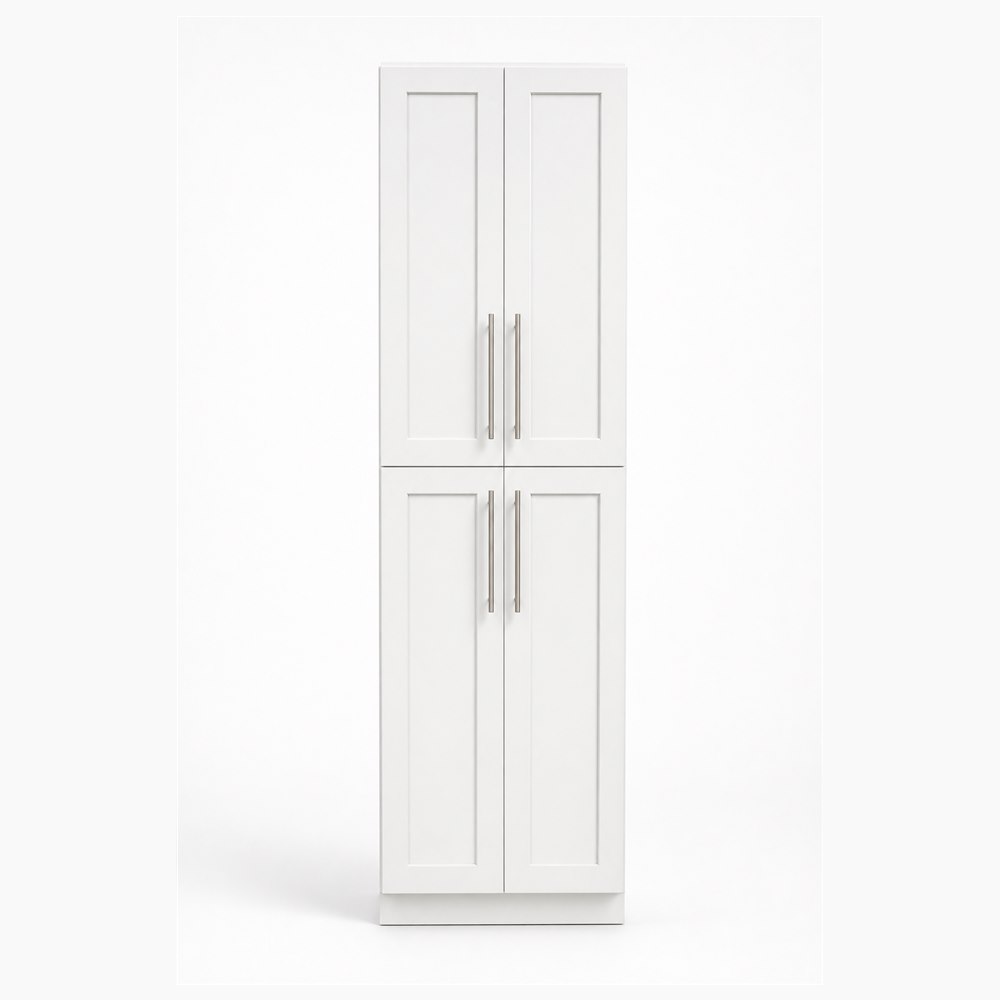

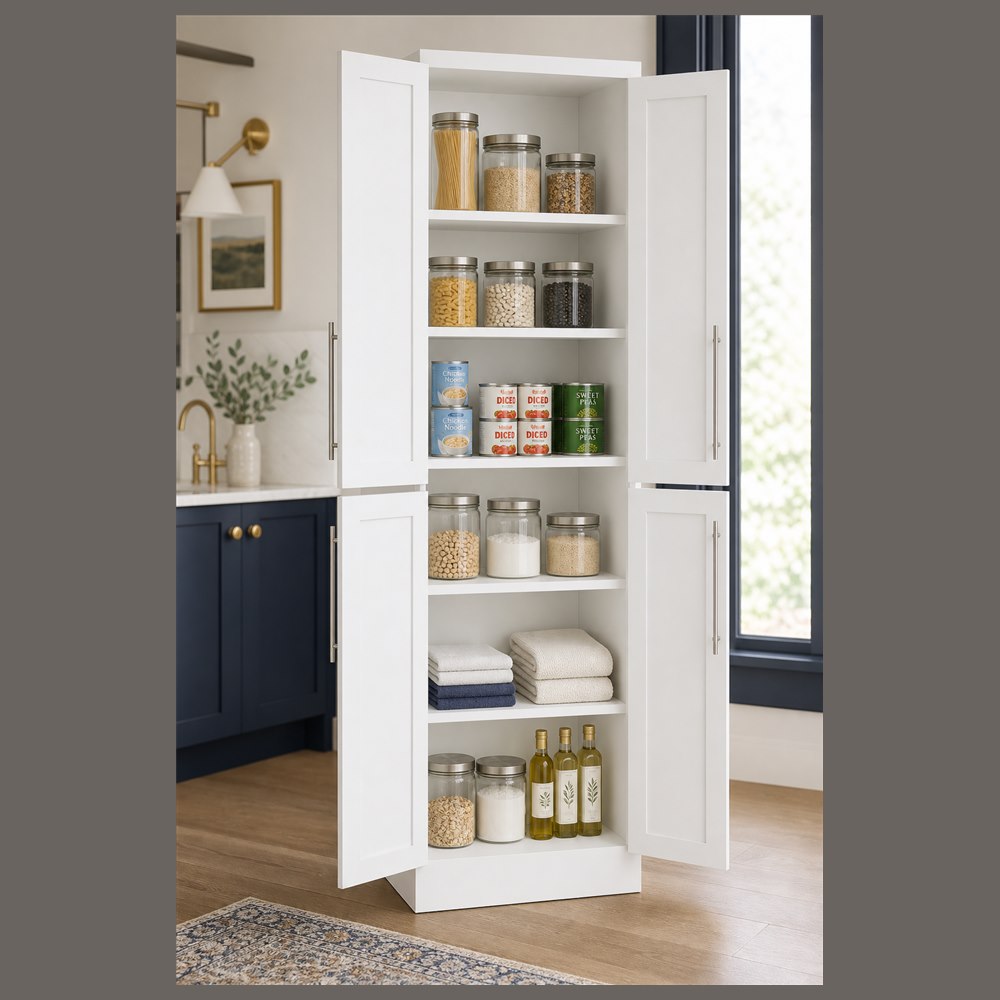

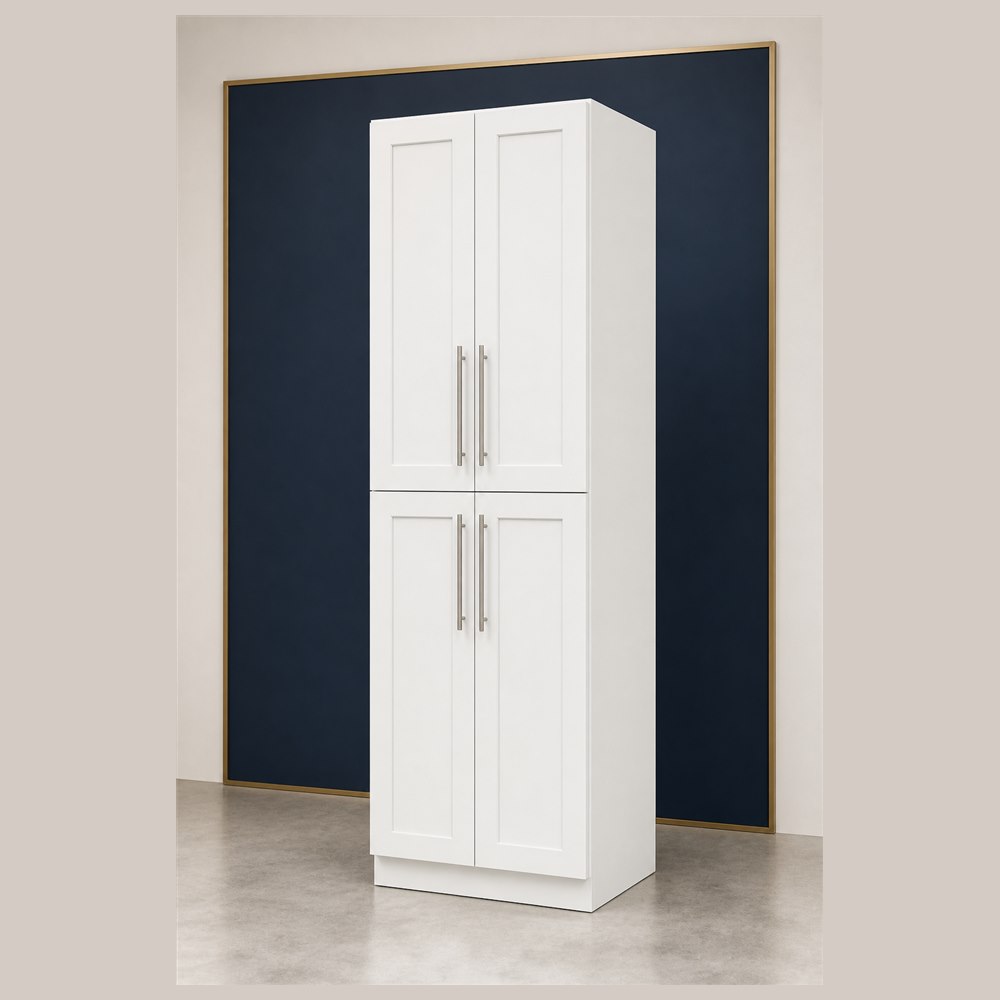

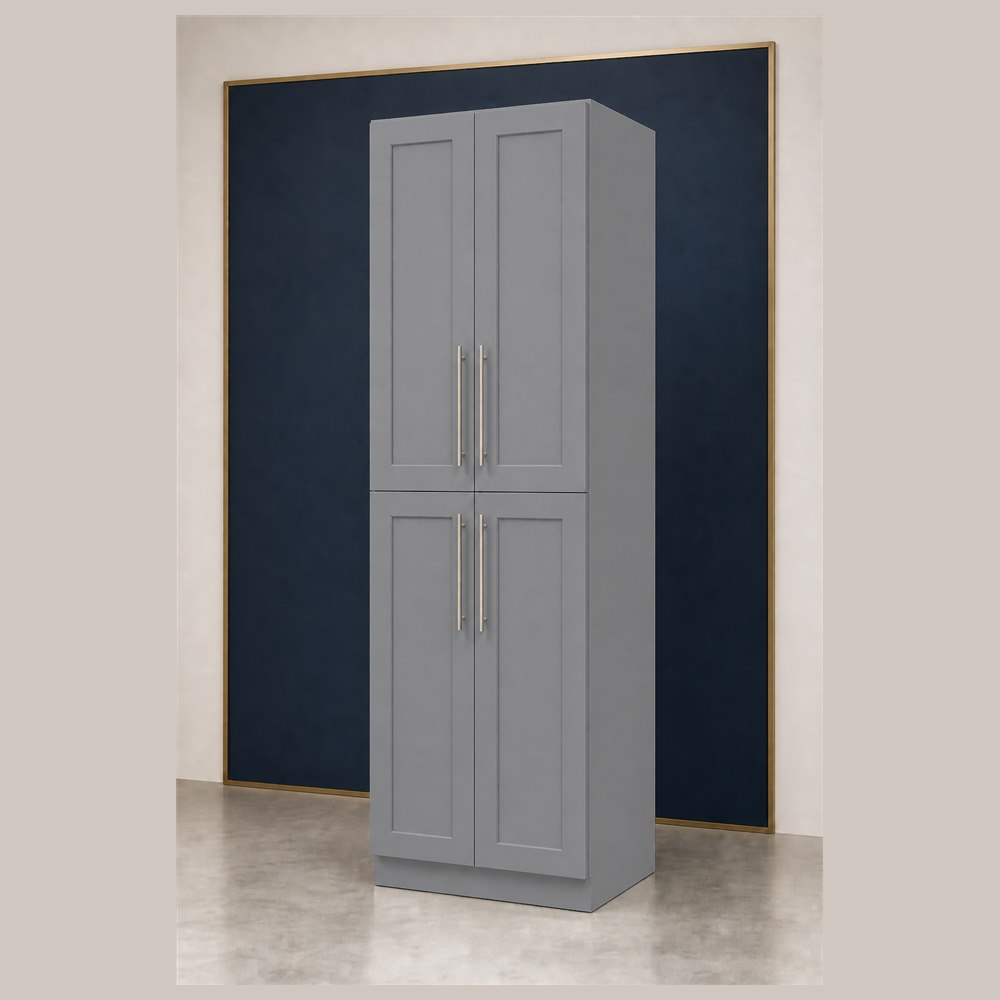

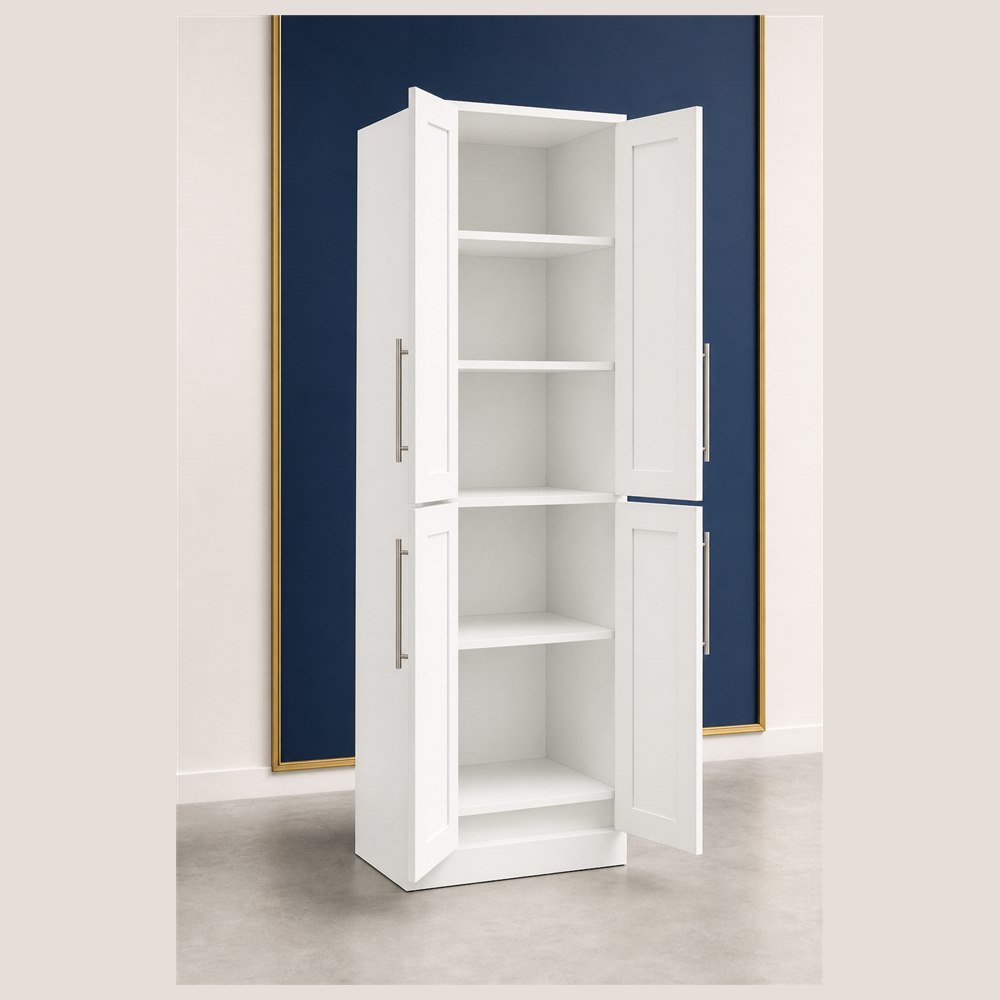

30-inch Shaker Tall Pantry Cabinet
WP309624
30" W × 96" H × 24" D
Bathroom Vanity Cabinets
Factory-direct shaker vanity cabinets in single and double configurations — 24-inch through 60-inch widths — built to the same all-plywood box standard as the kitchen line. The vanity cabinet ships without a top so you choose your own countertop and sink. Standard vanity height is 34½ inches. Request a quote for volume or trade orders.

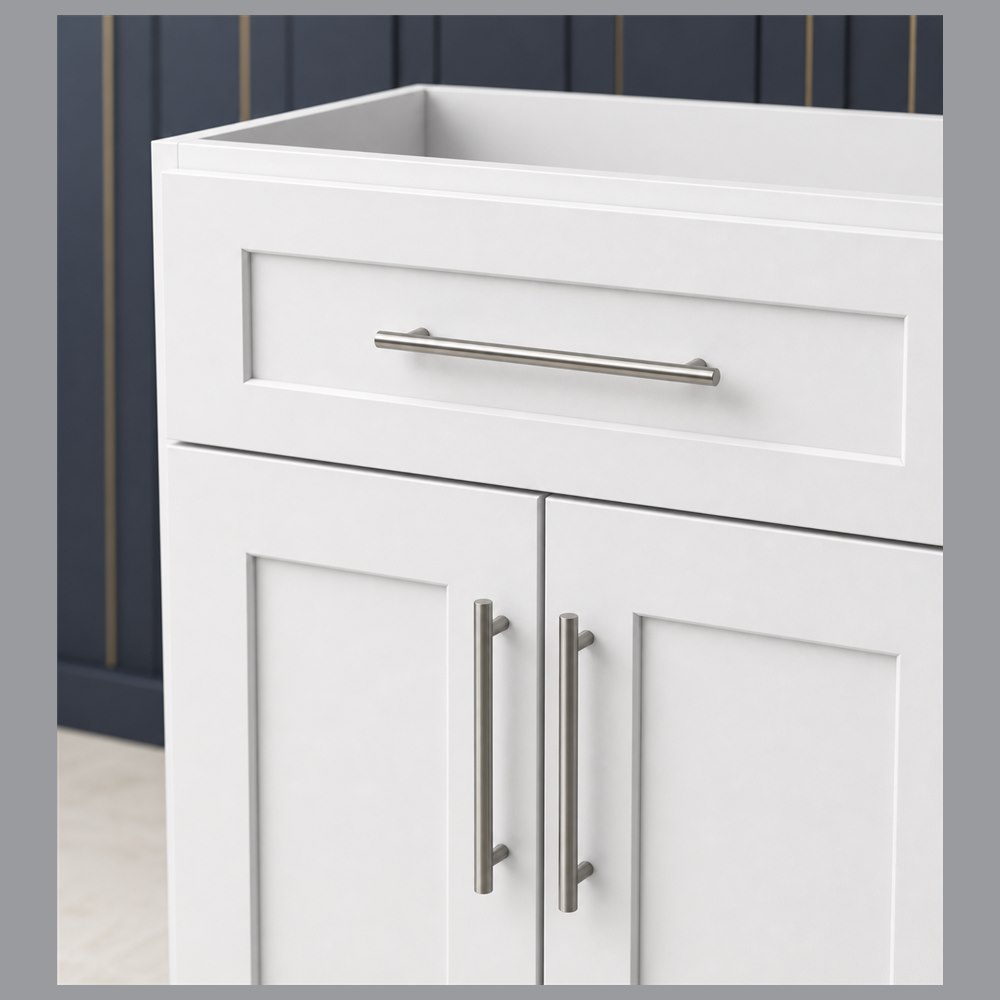

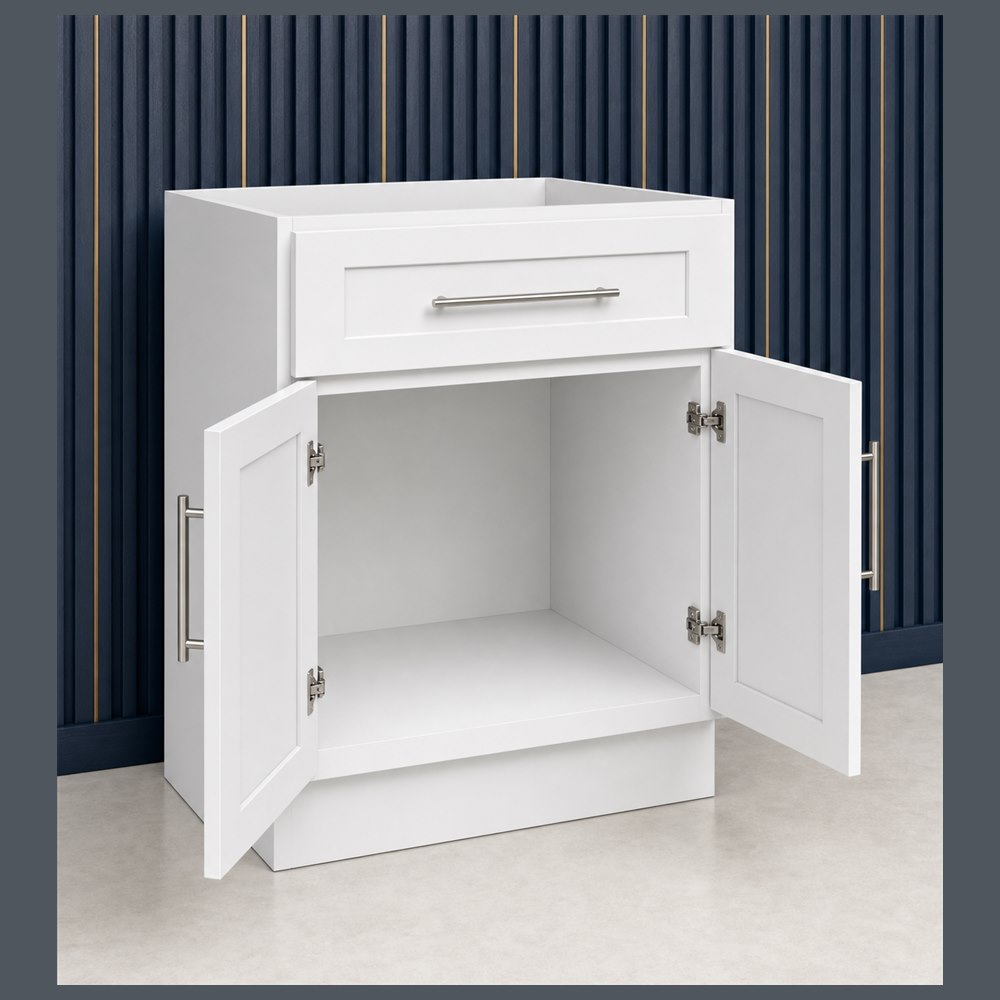

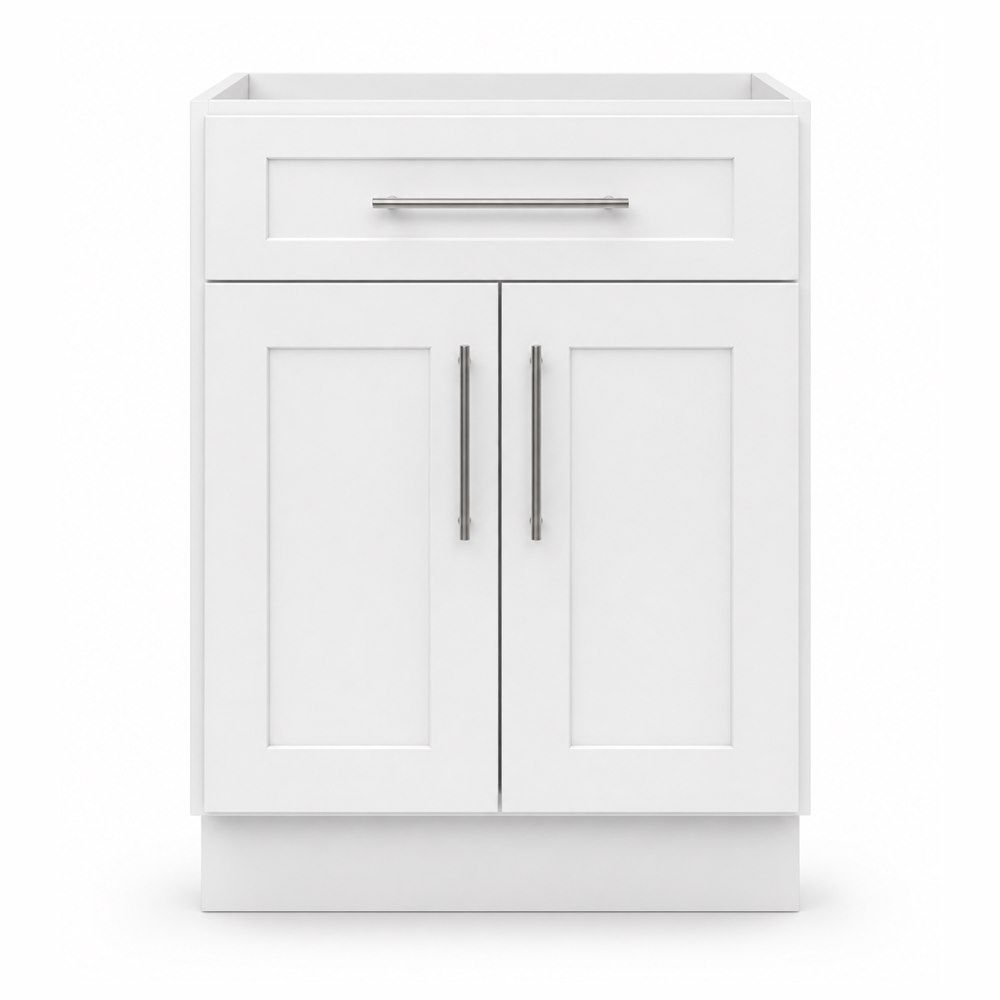

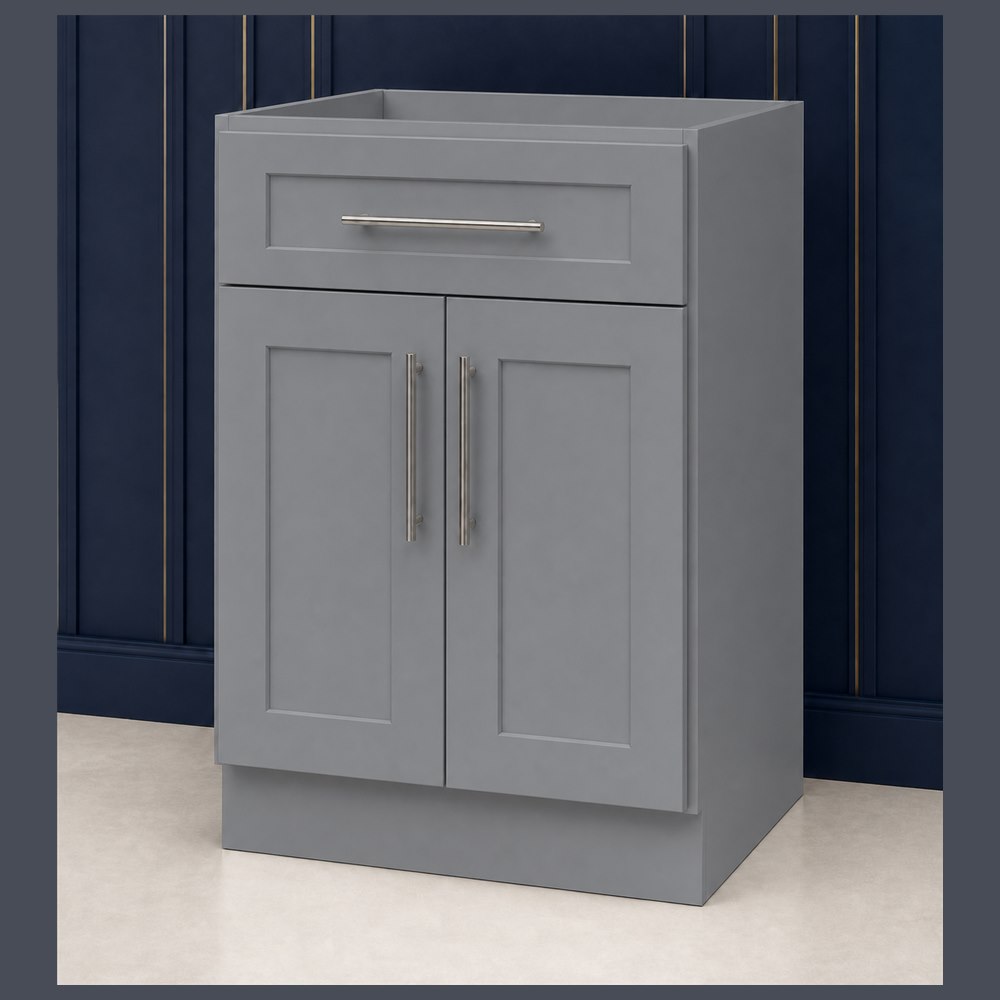

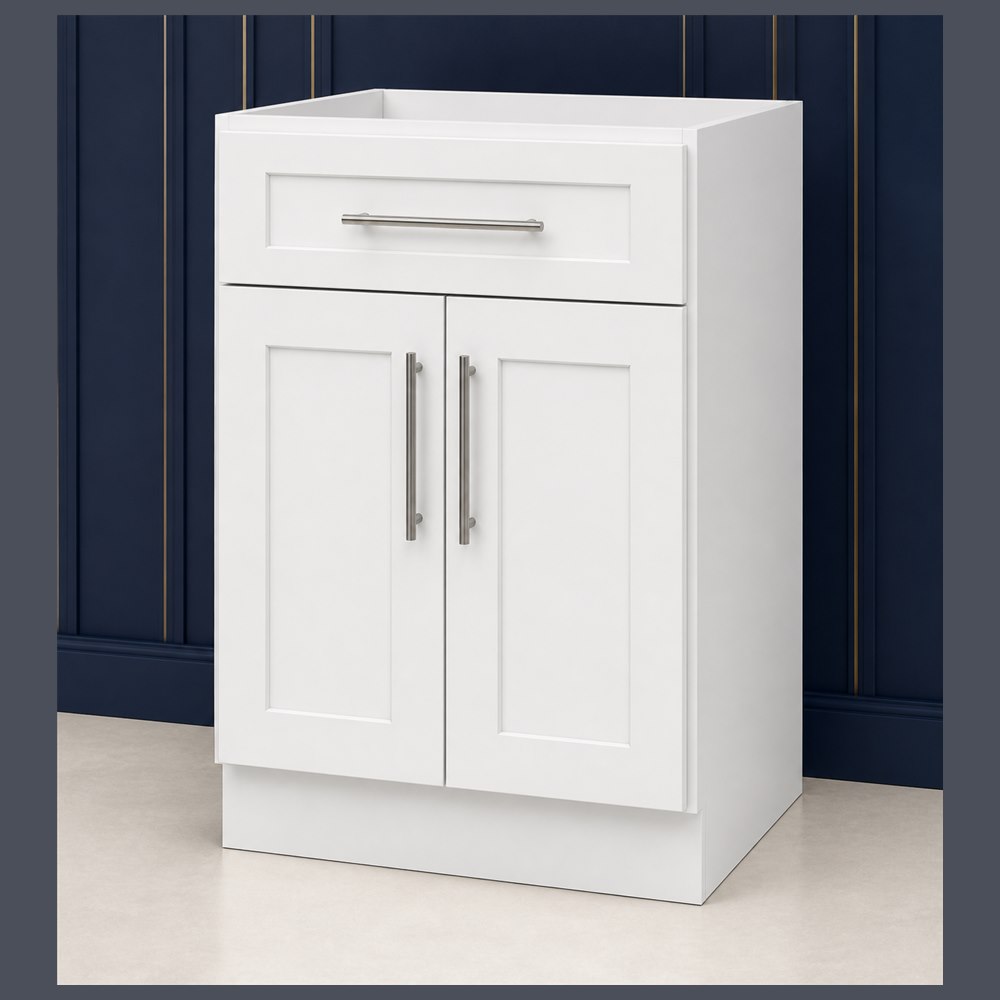

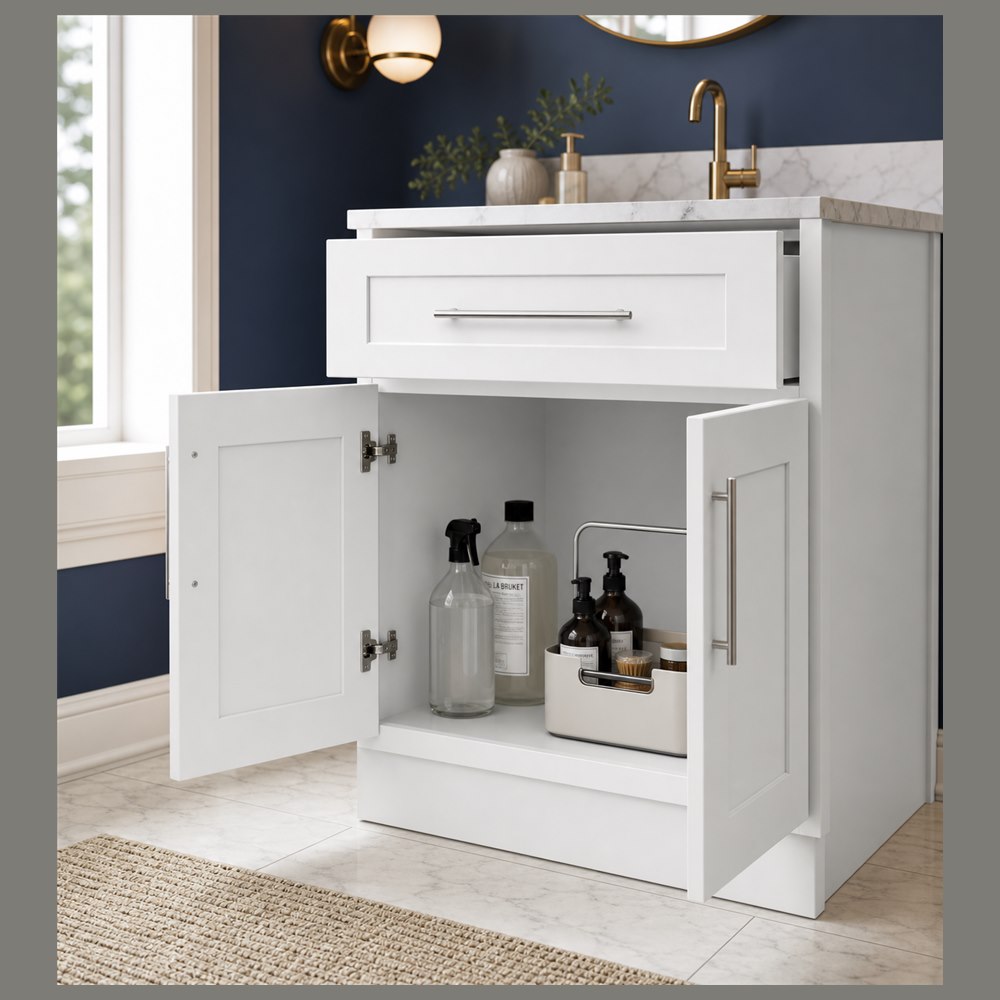

24-inch Shaker Vanity Cabinet
VAN24
24" W × 34 1/2" H × 21" D

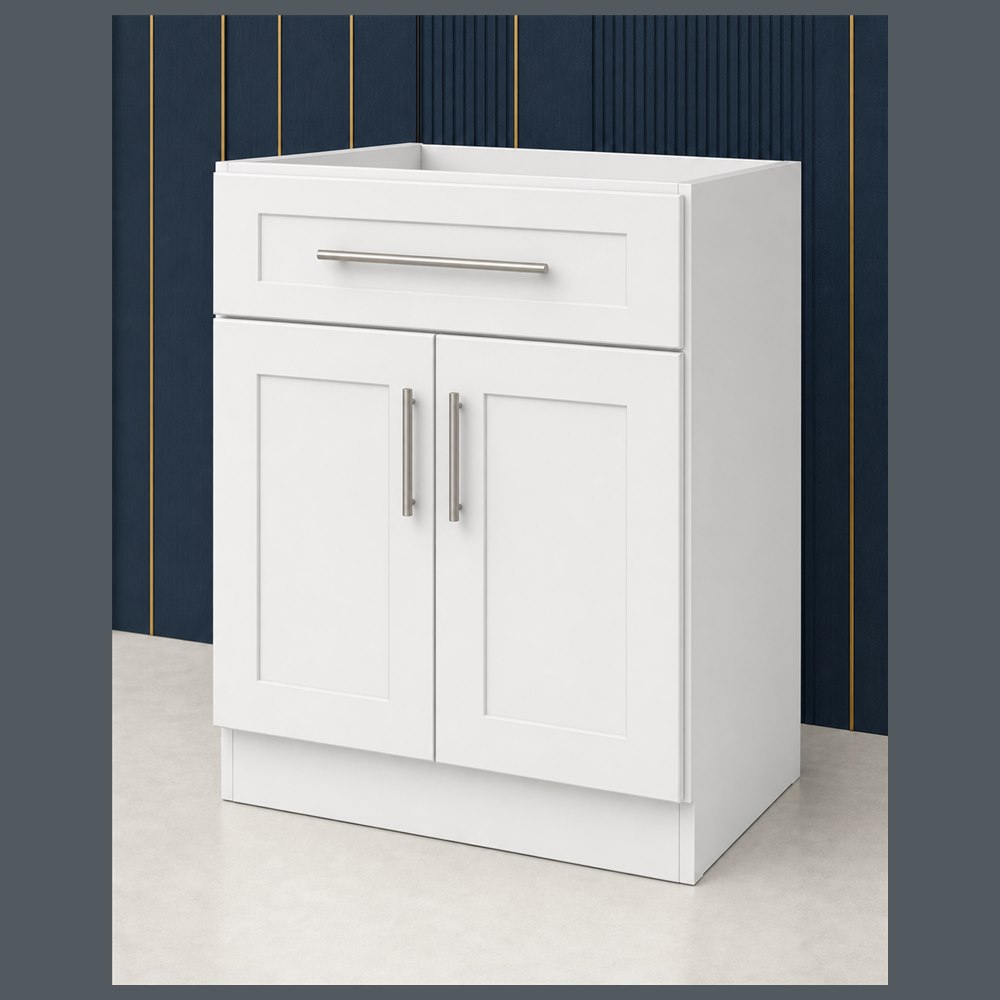

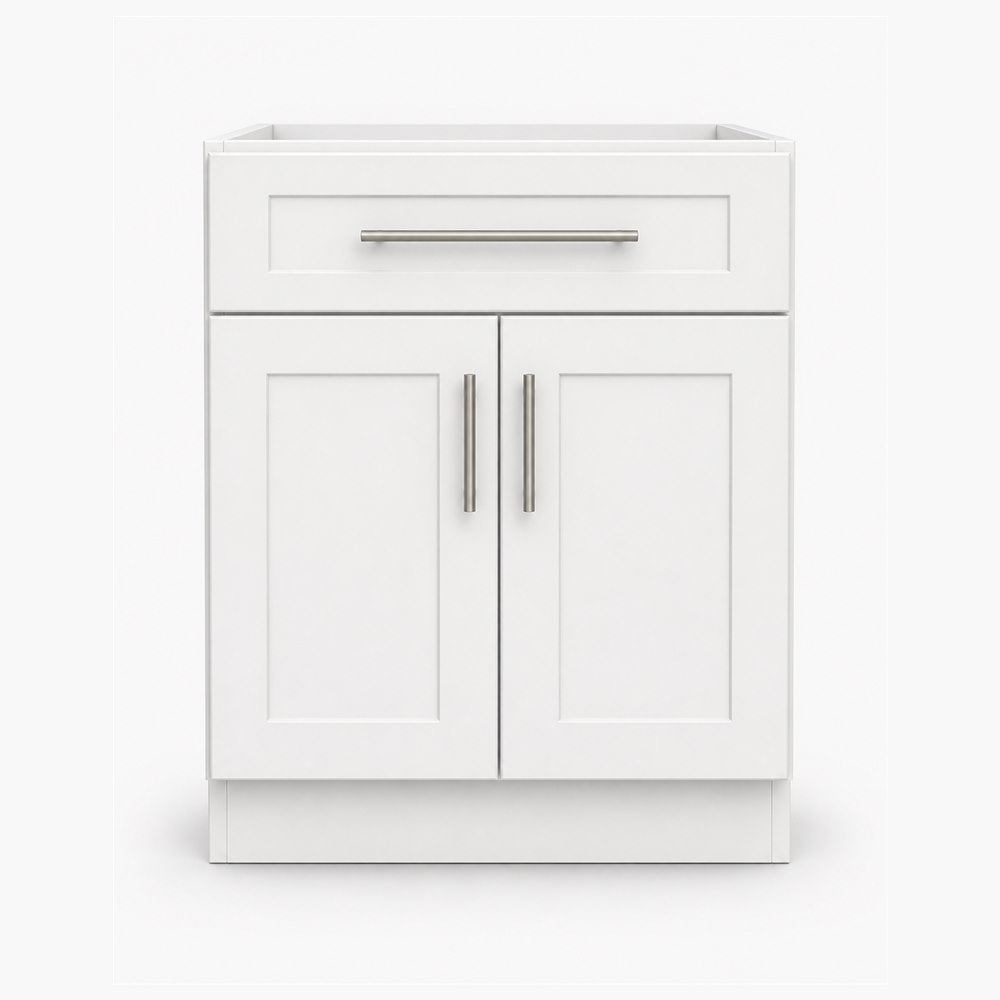

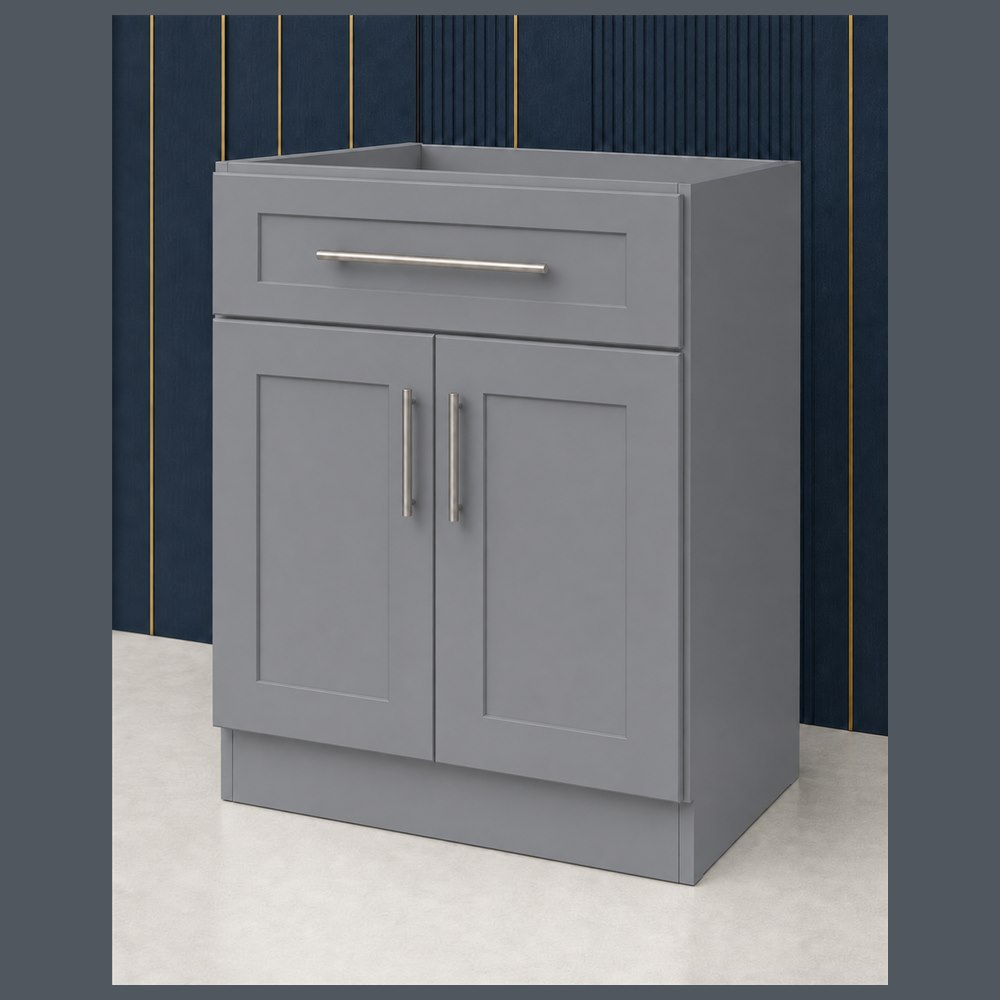

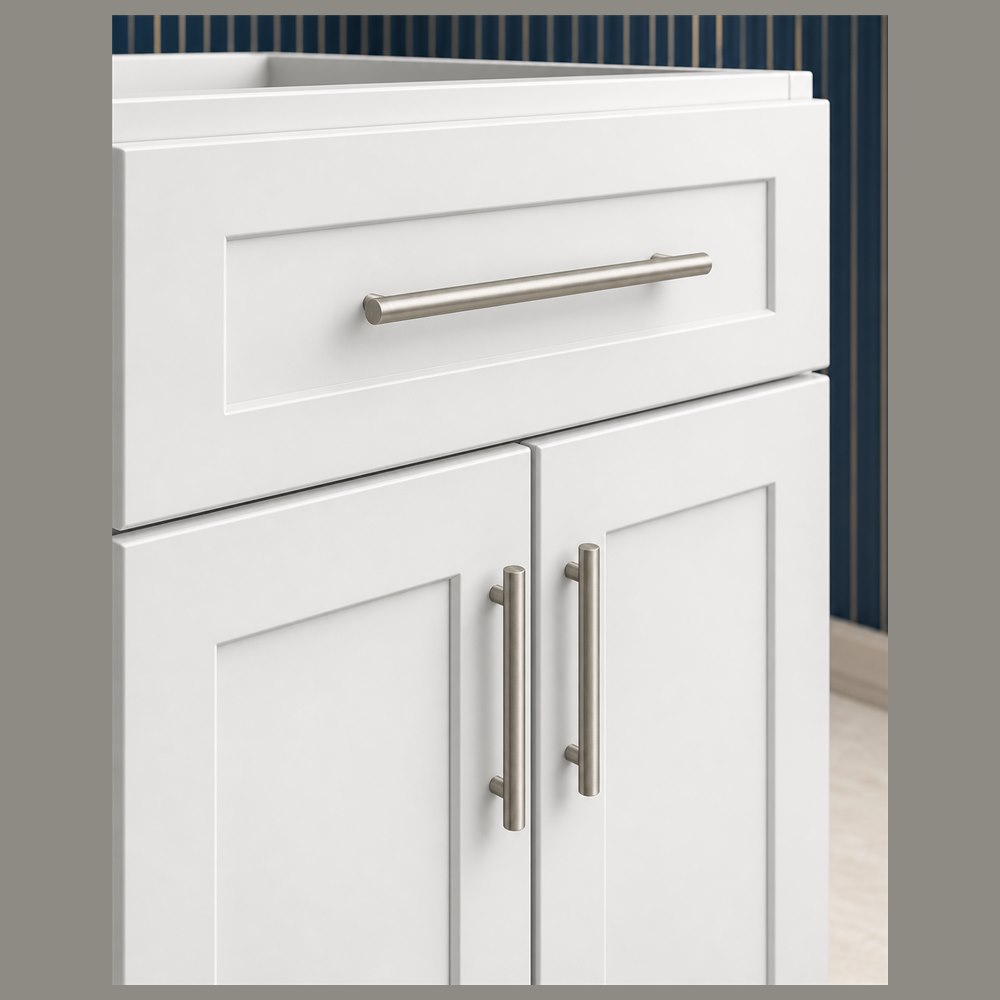

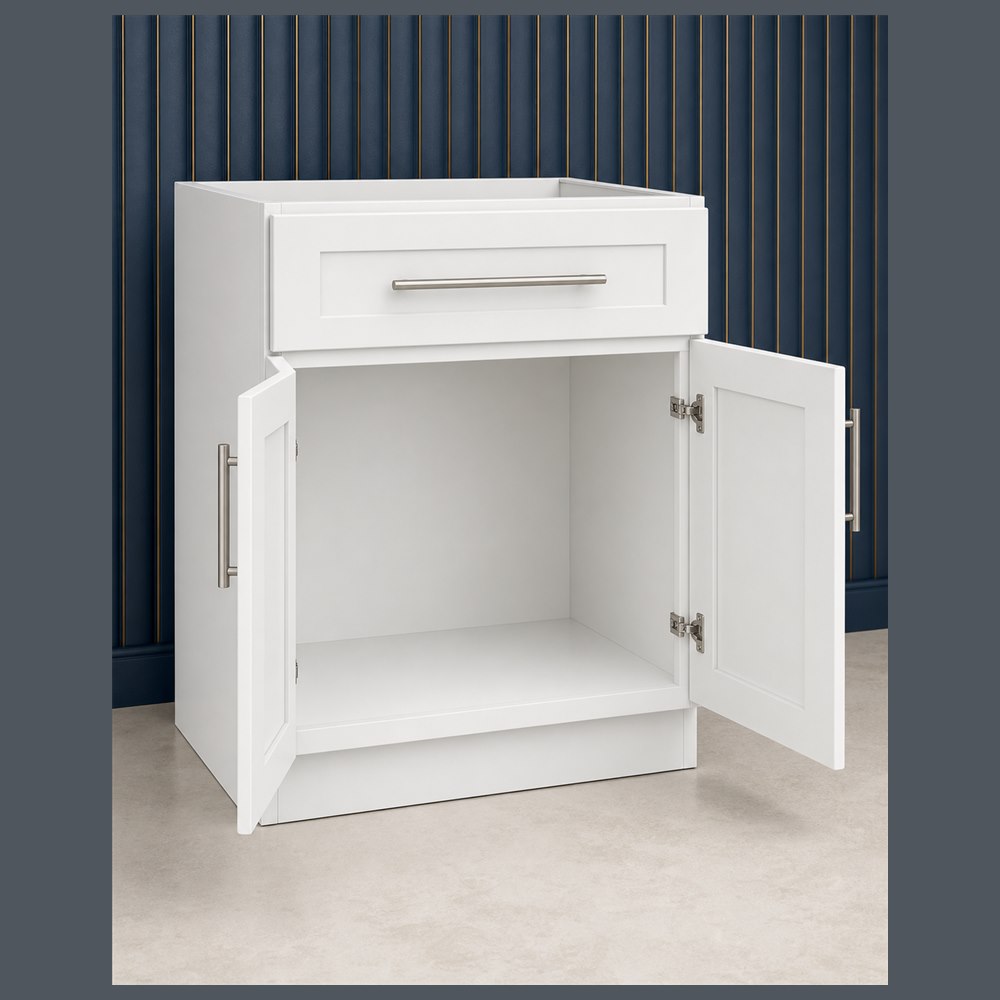

30-inch Shaker Vanity Cabinet
VAN30
30" W × 34 1/2" H × 21" D

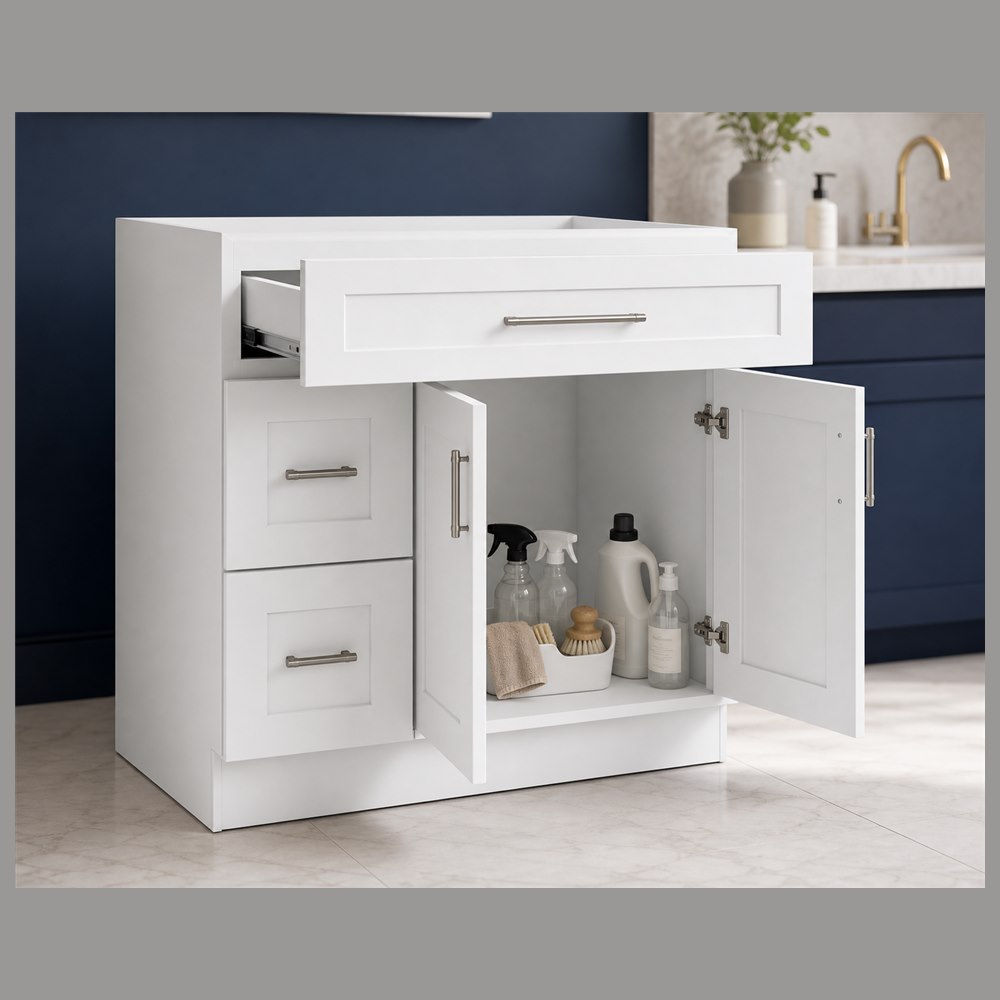

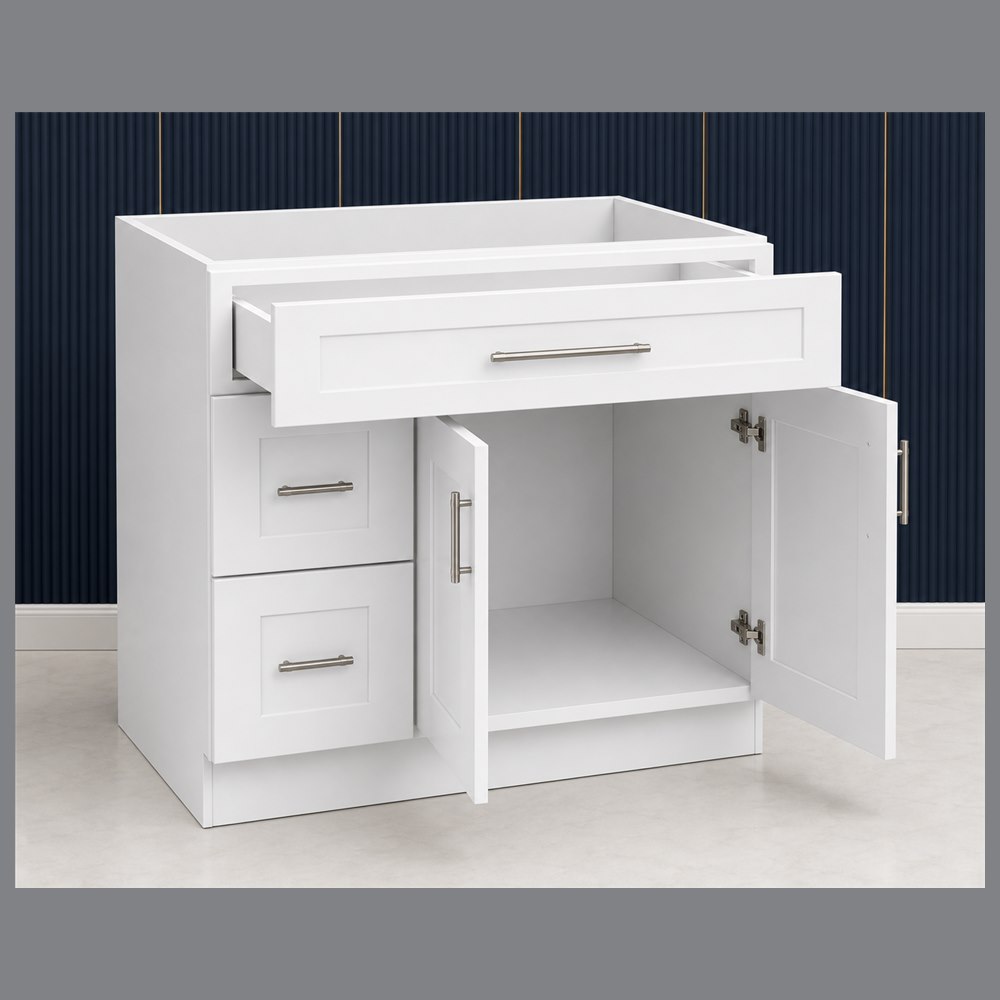

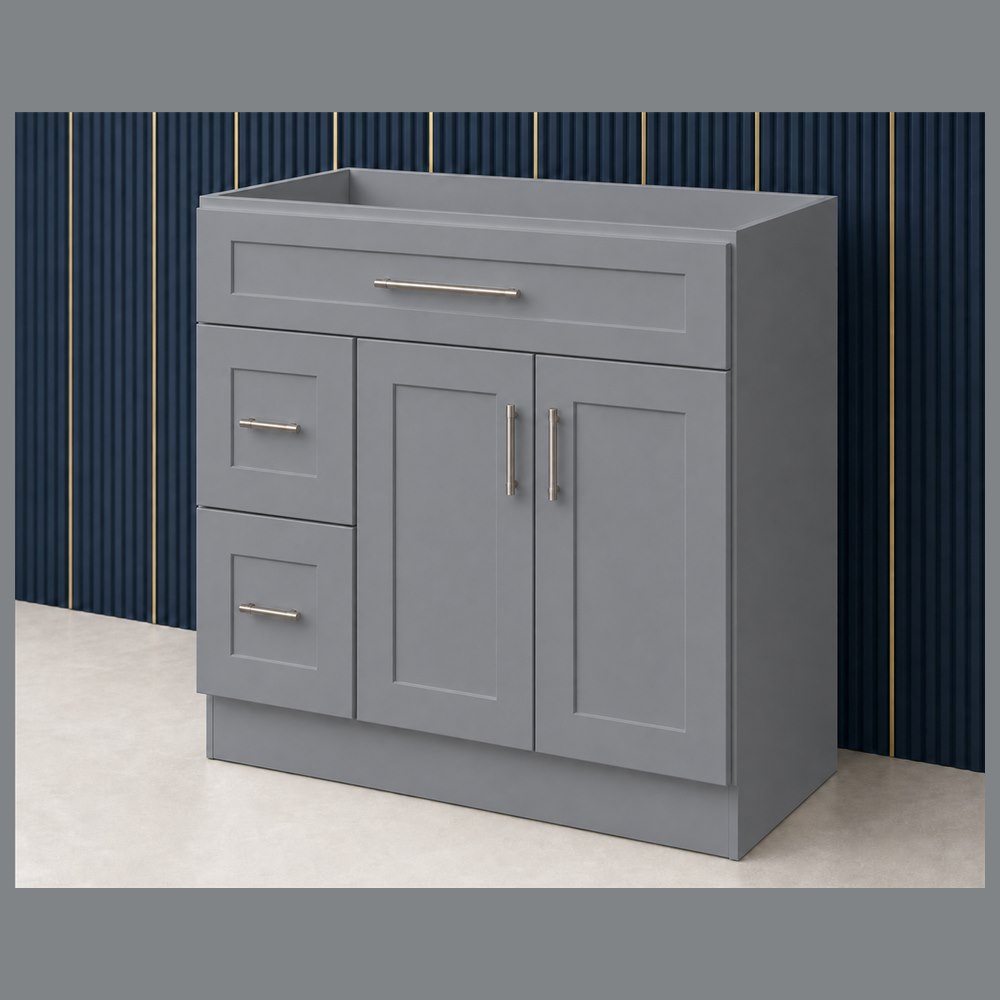

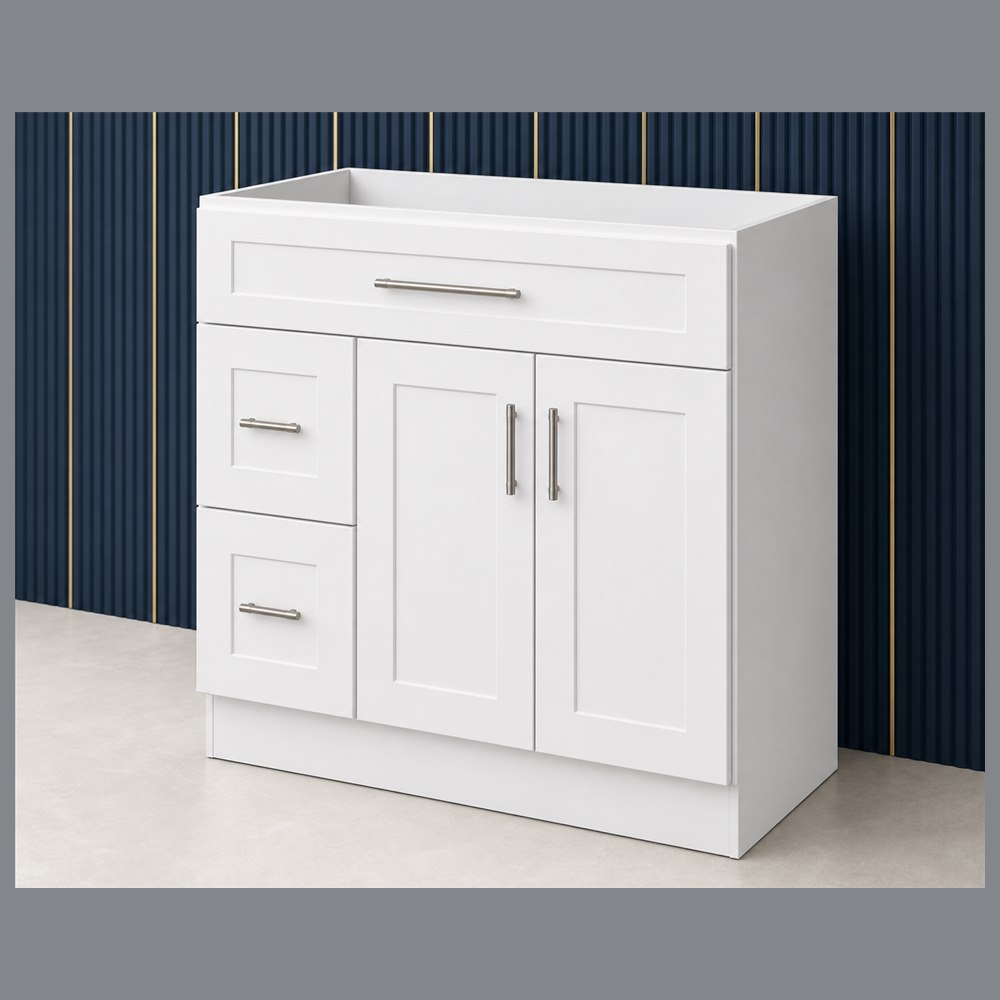

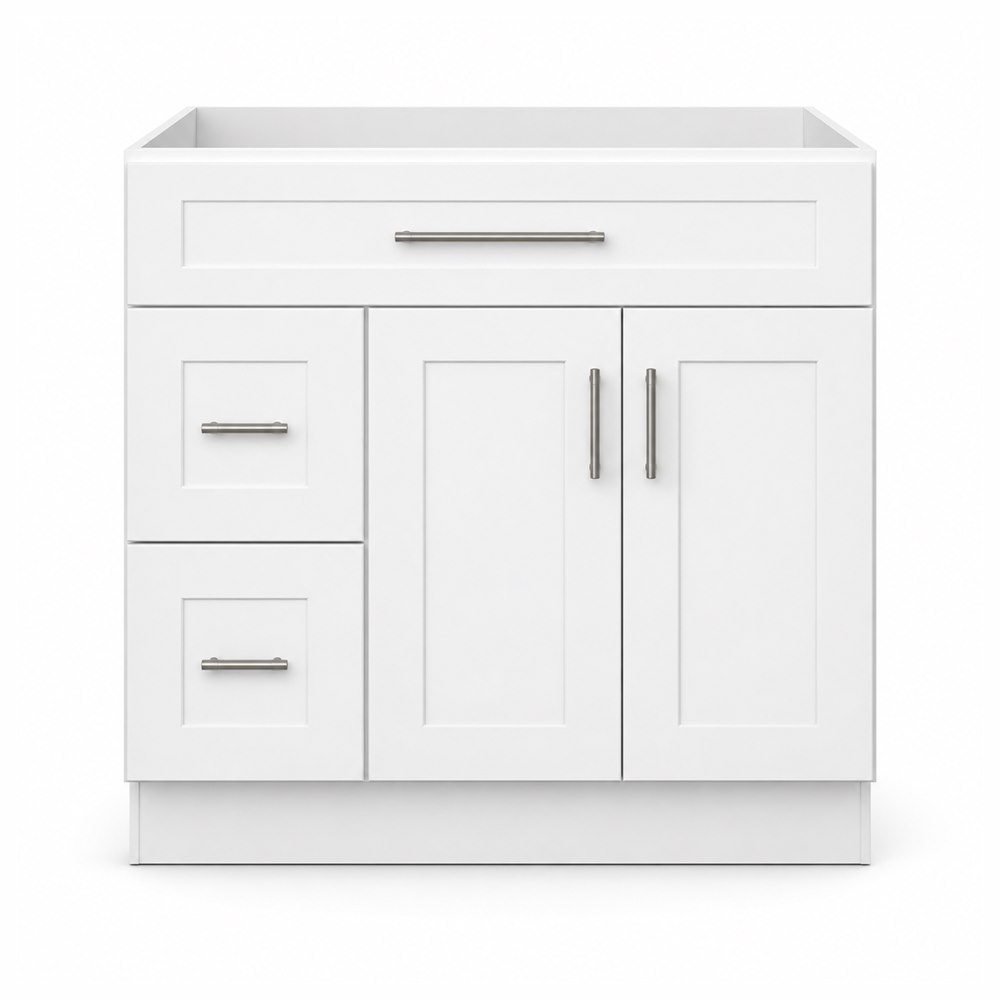

36-inch Shaker Vanity Cabinet
VAN36DL
36" W × 34 1/2" H × 21" D

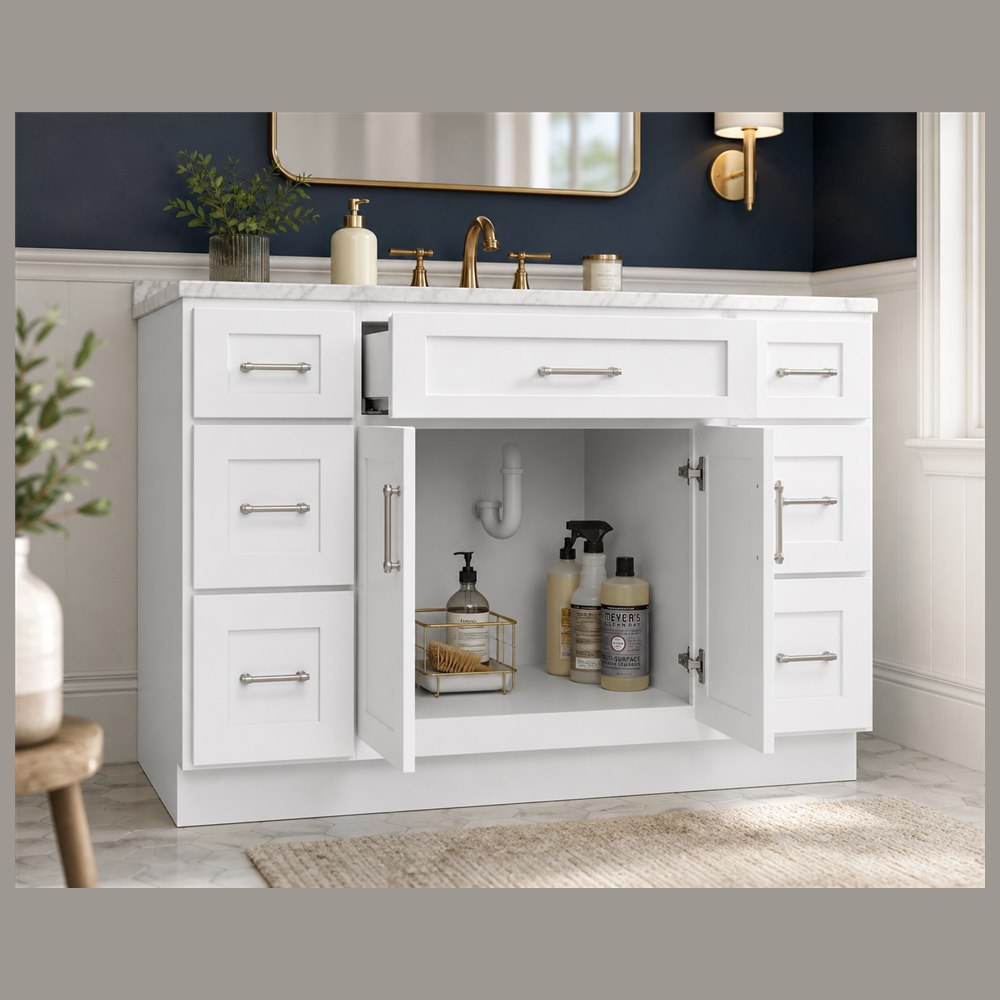

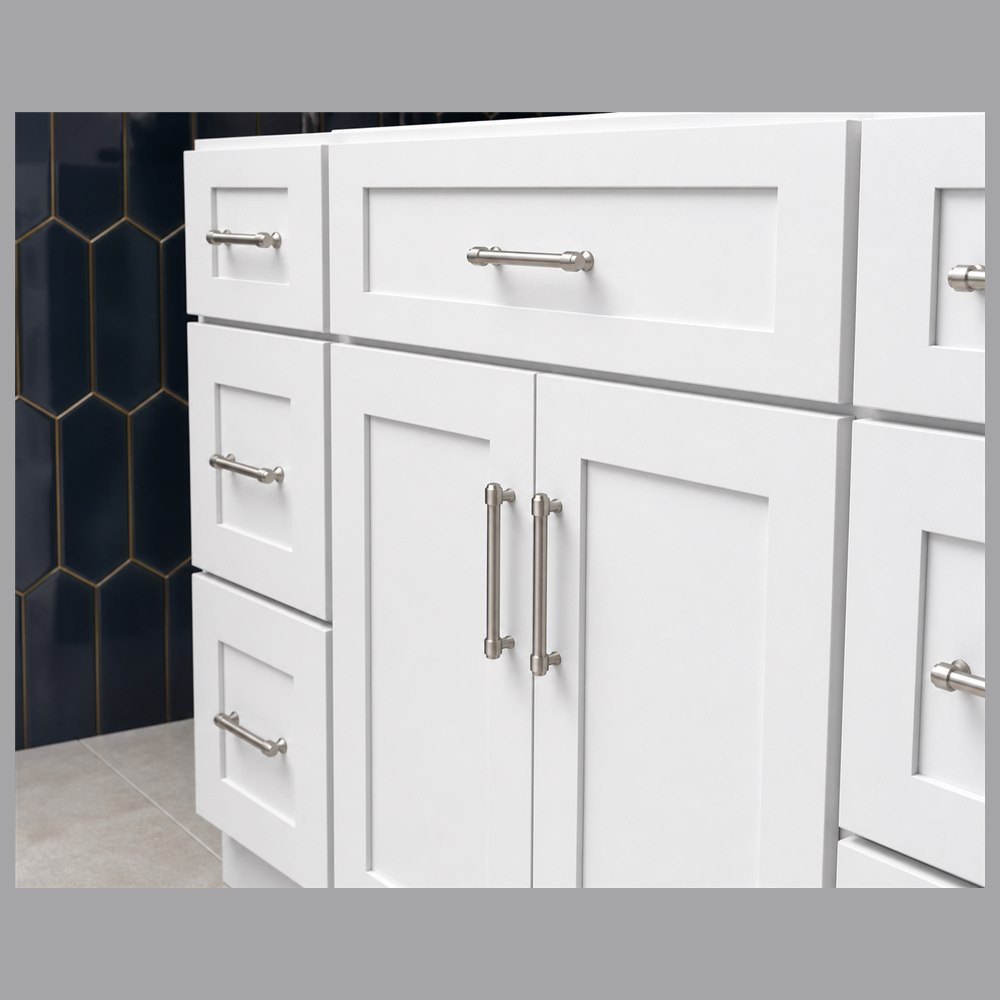

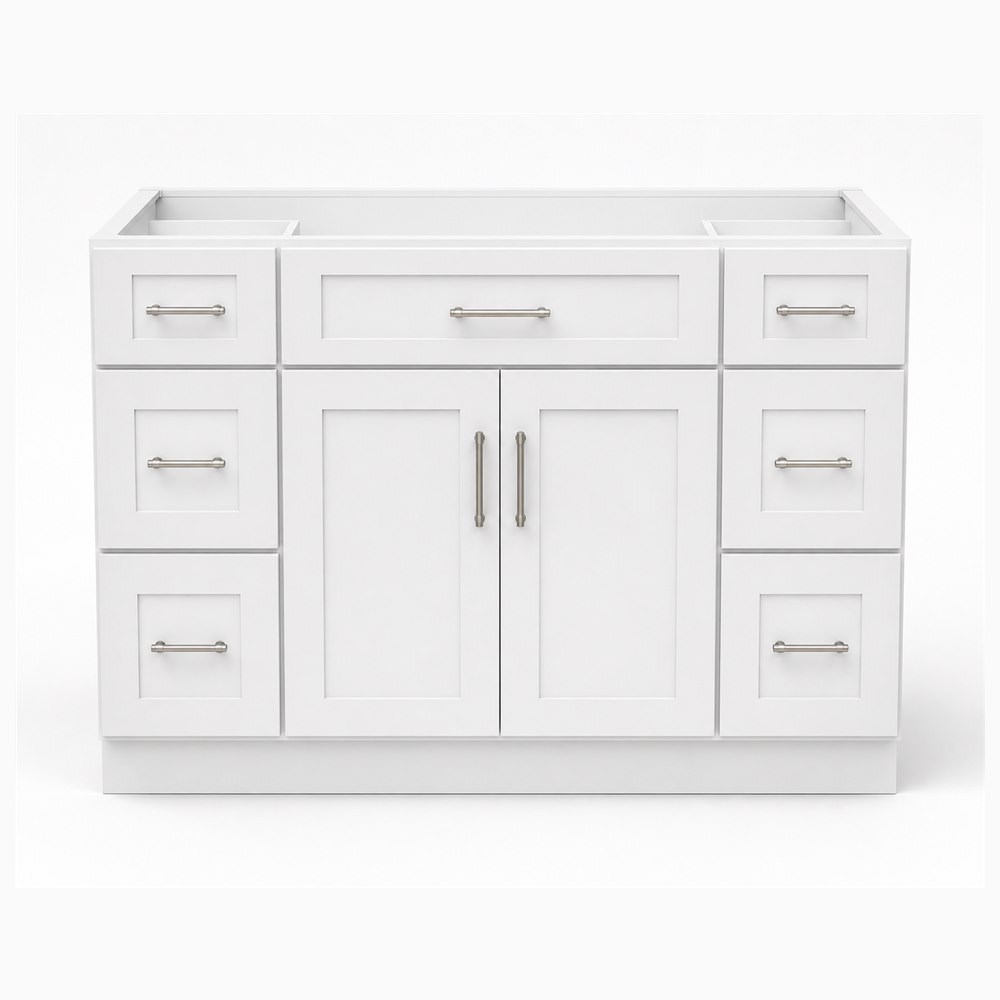

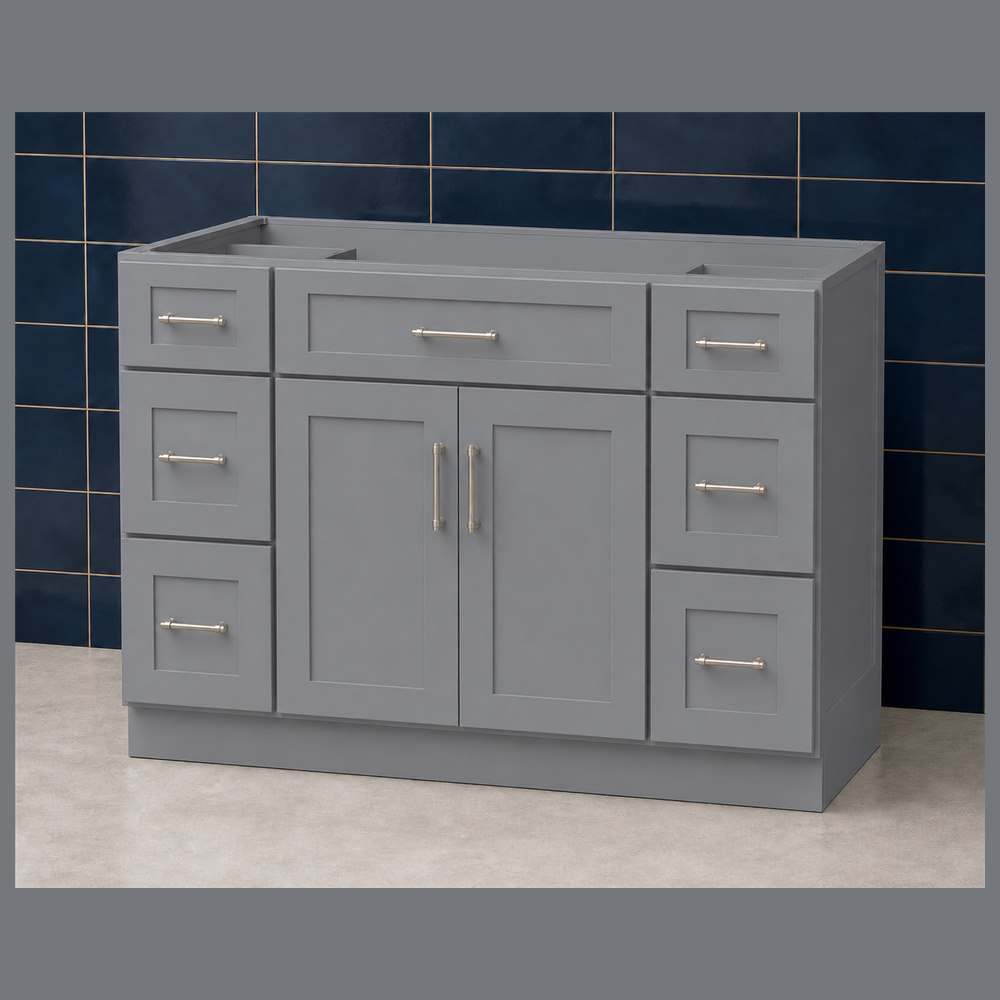

48-inch Shaker Vanity Cabinet
VAN48D-6
48" W × 34 1/2" H × 21" D

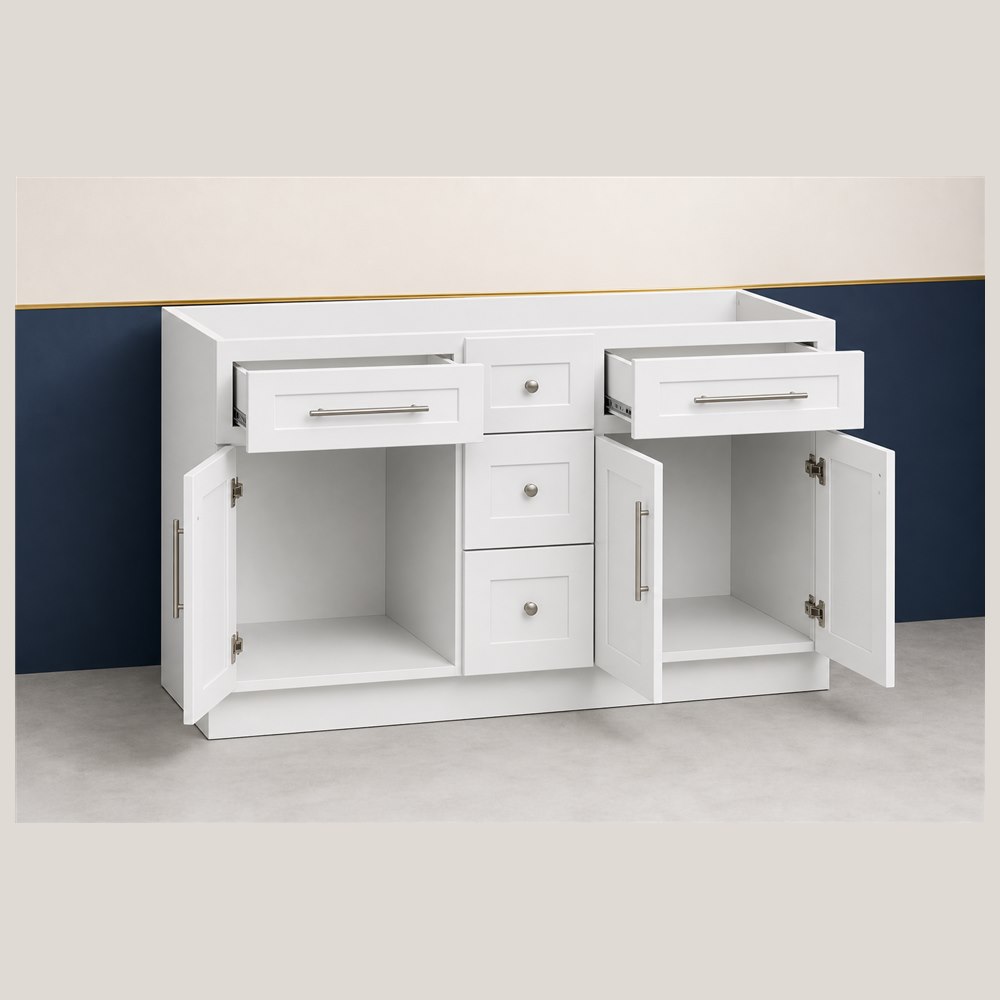

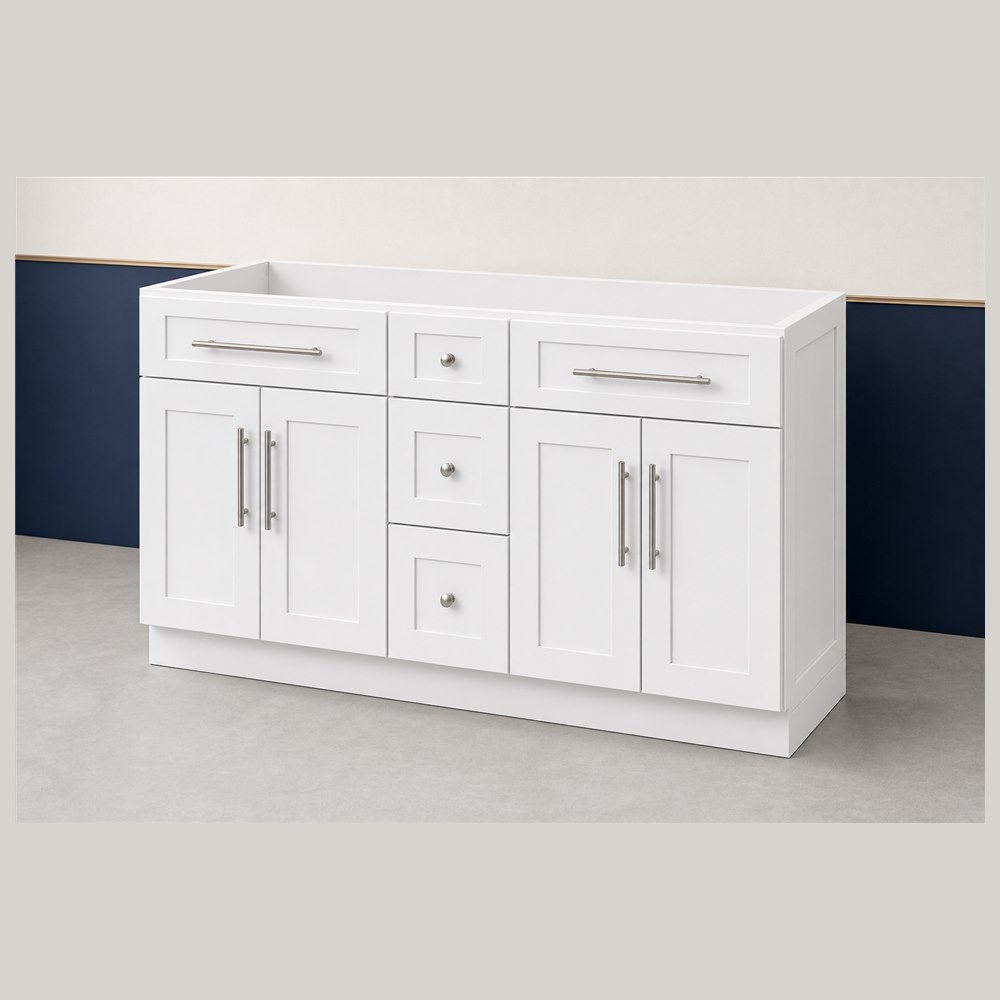

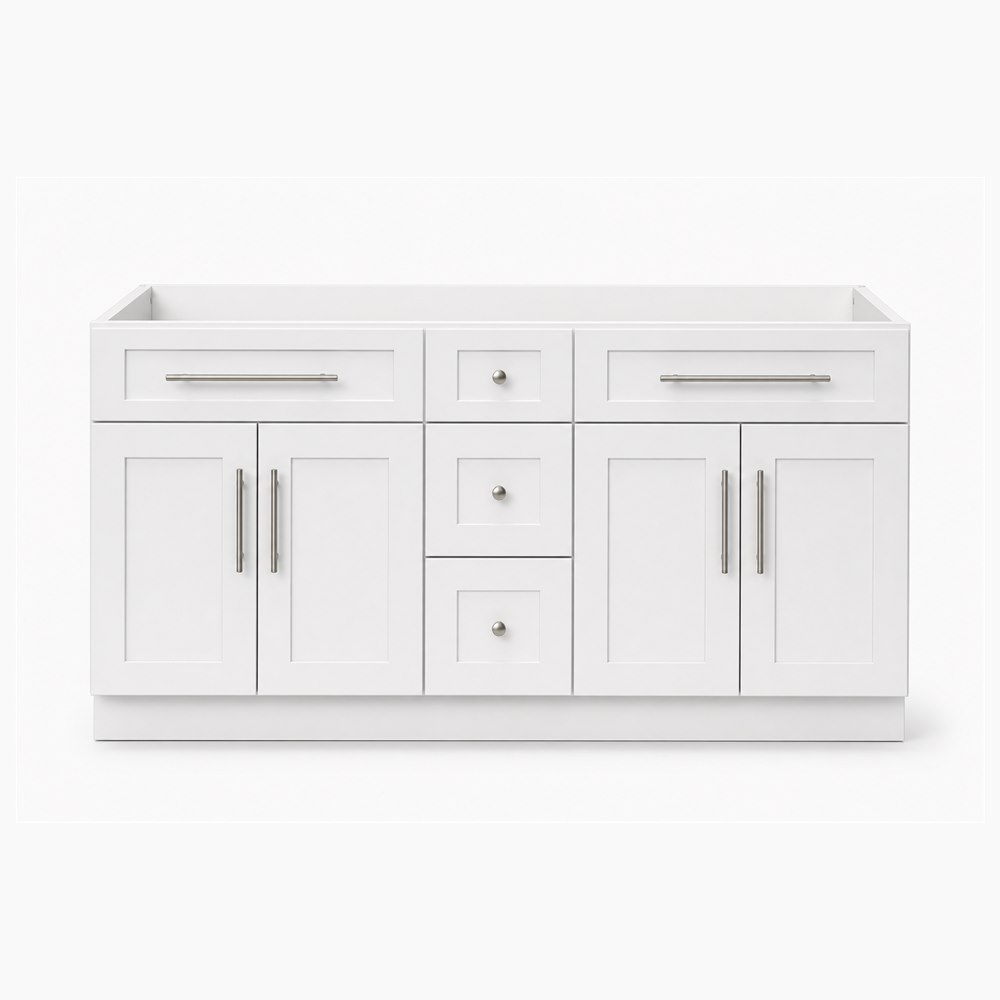

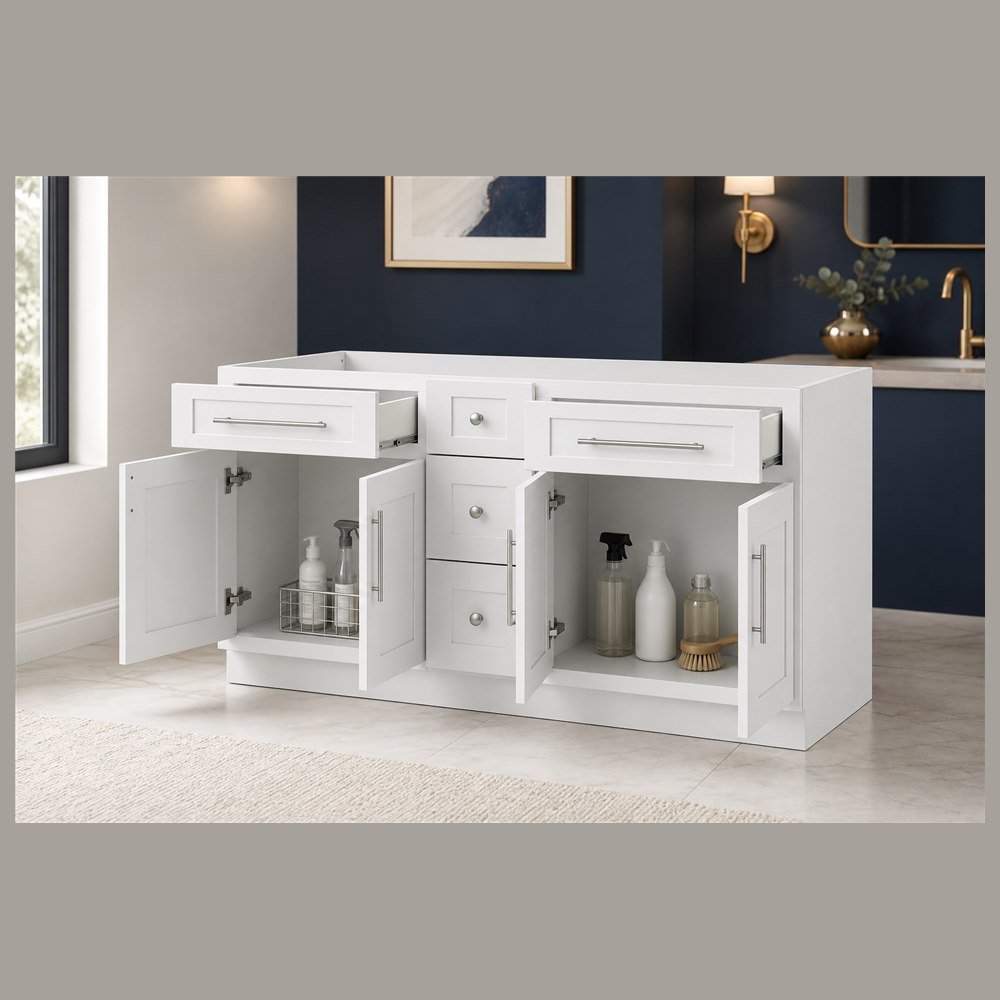

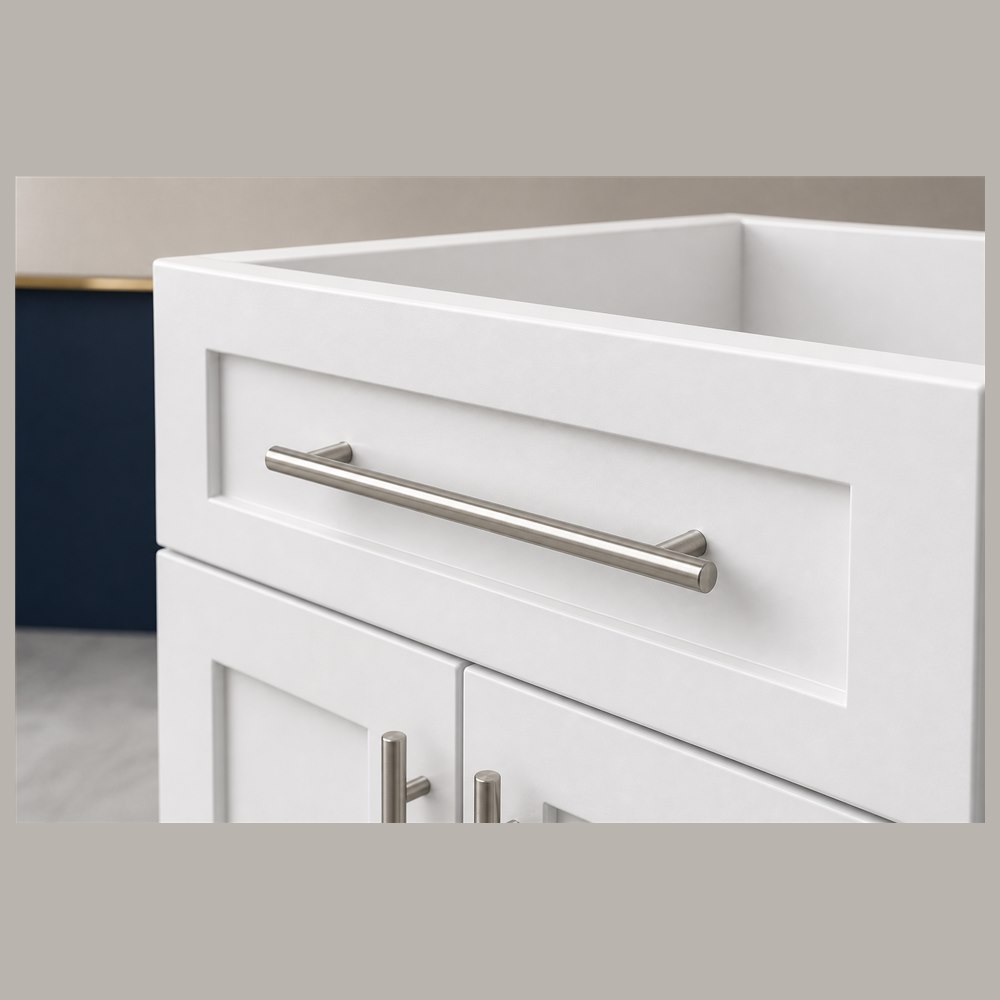

60-inch Shaker Double Vanity Cabinet
VAN60DD-3
60" W × 34 1/2" H × 21" D

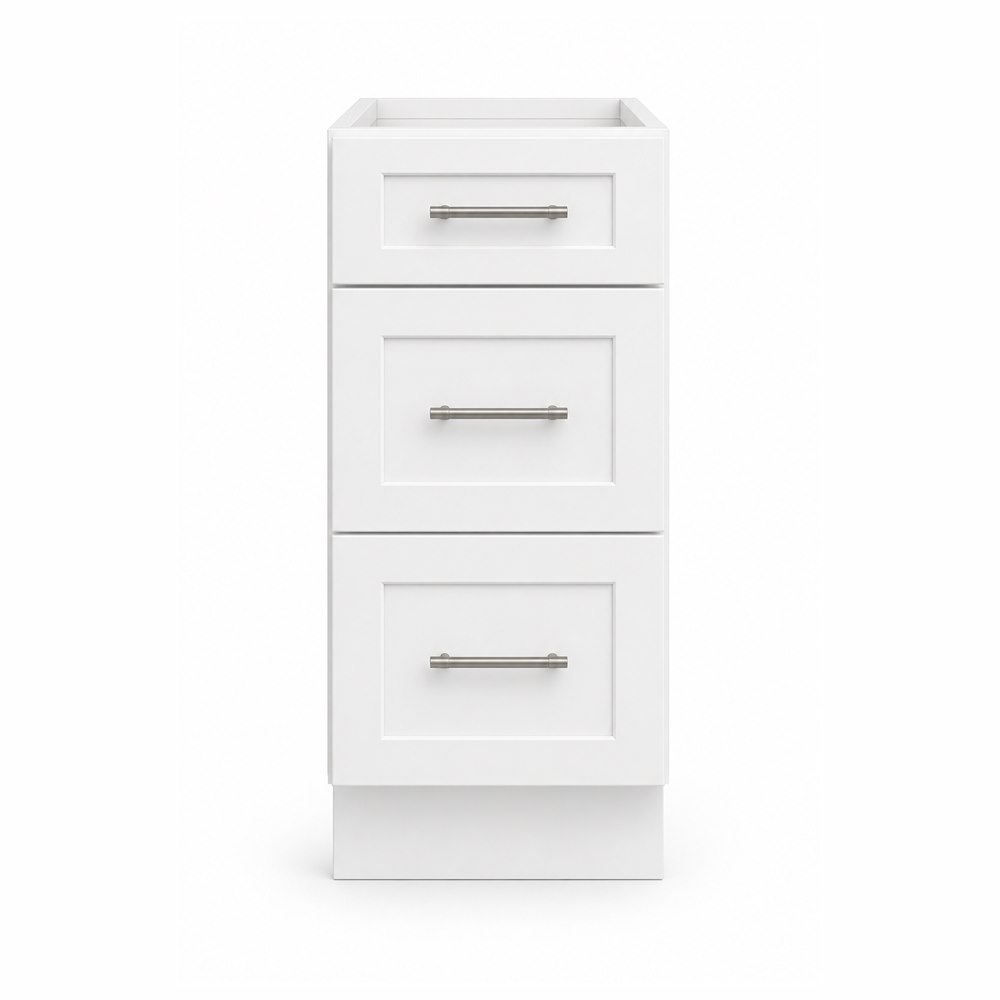

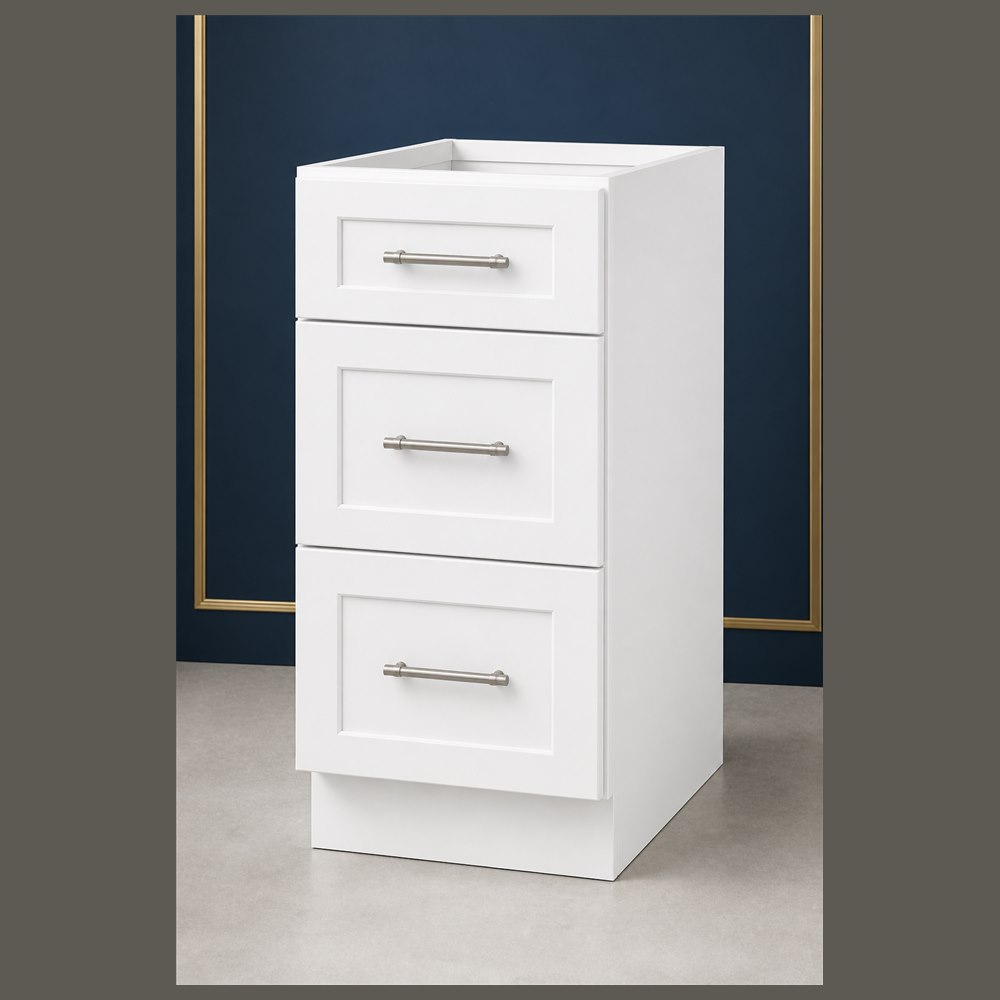

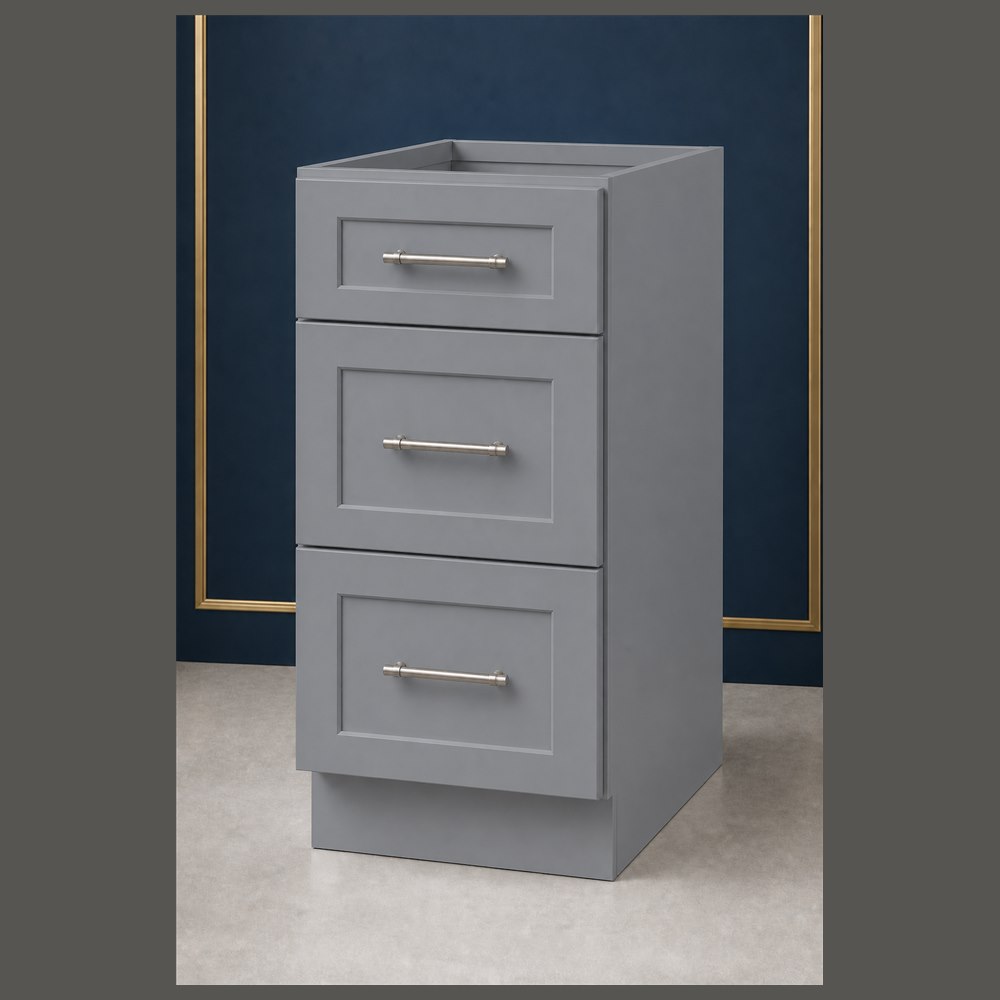

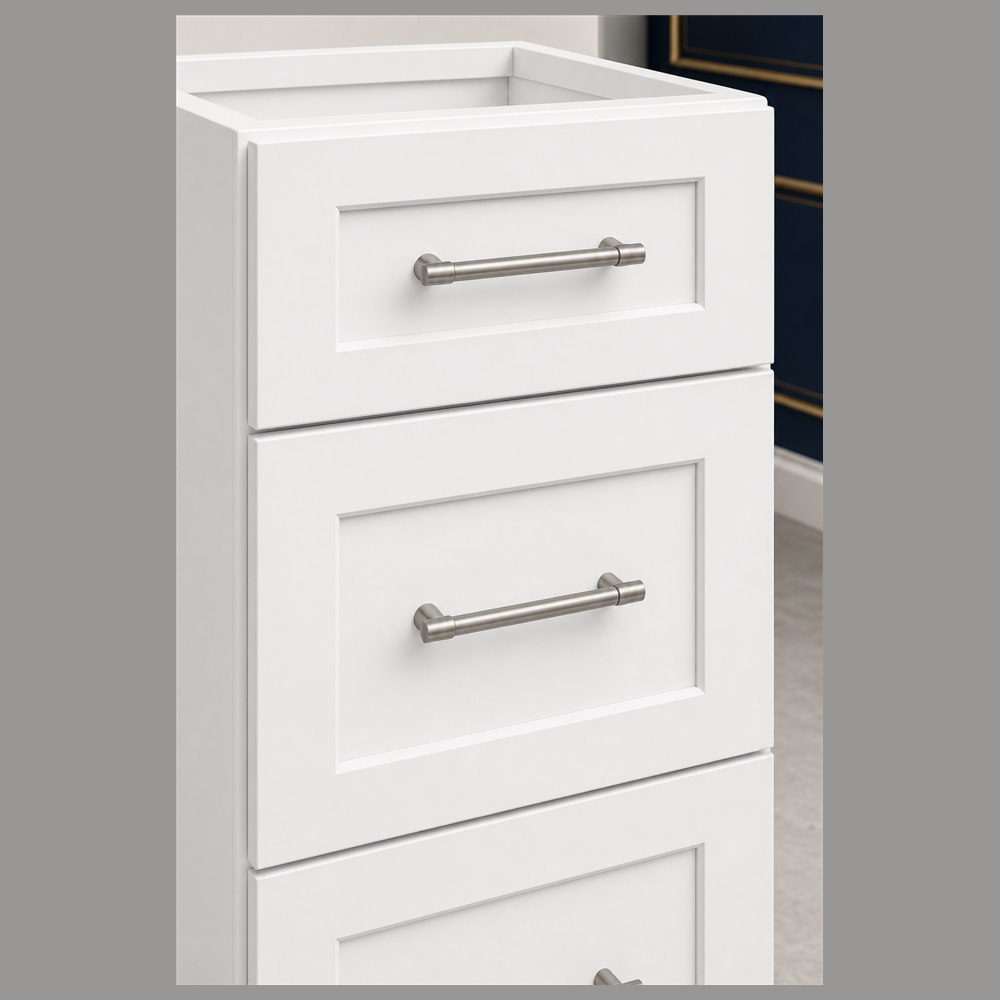

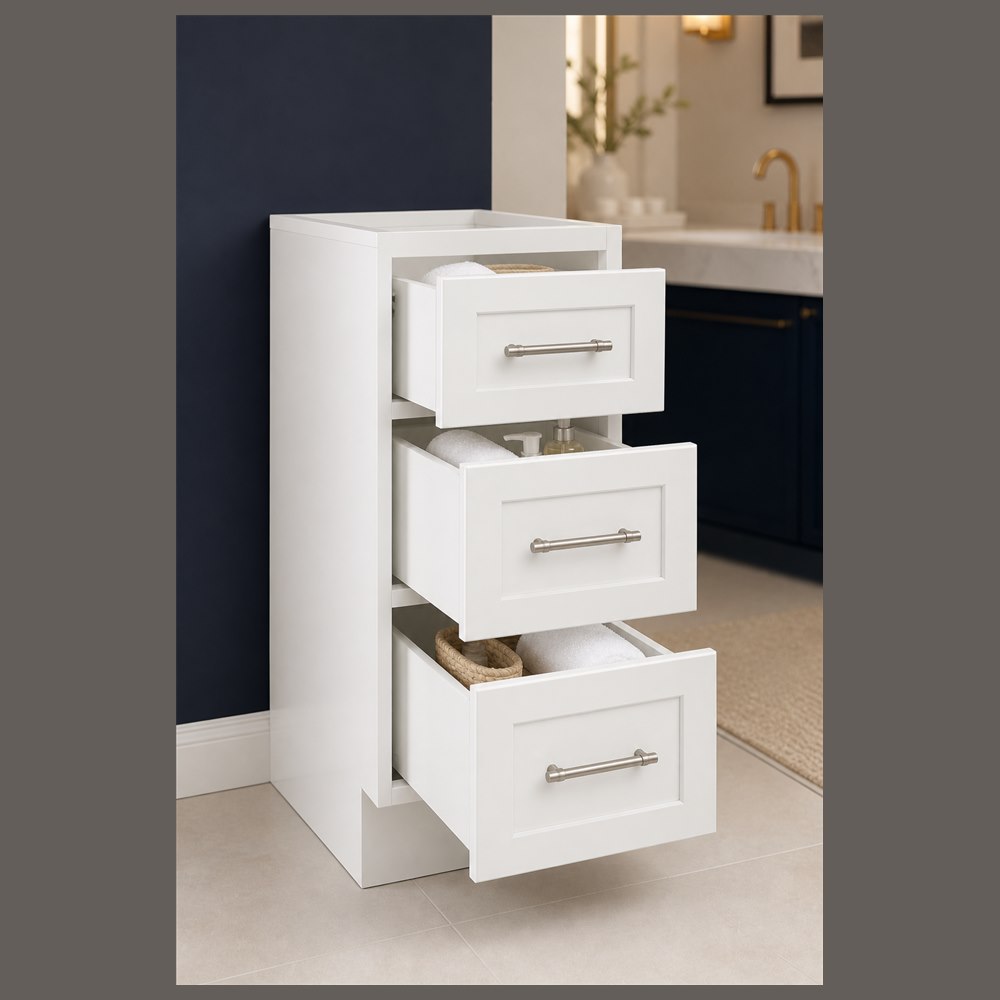

18-inch Shaker Vanity Drawer Base Cabinet
VDB18
18" W × 34 1/2" H × 21" D
Cabinet sizing & buying questions
What are standard base cabinet sizes?
Base cabinets come in widths from 9 inches to 48 inches, in 3-inch increments. Standard height is 34½ inches (not counting the countertop) and standard depth is 24 inches. The most common widths are 30 and 36 inches. TC Wholesale Cabinetry offers base cabinets in every standard width from 9 to 48 inches — see the grid above for the representative sizes in our Shaker line.
What is the difference between base, wall, and tall cabinets?
Base cabinets sit on the floor and support the countertop — typically 34½ inches tall and 24 inches deep. Wall cabinets mount above the counter, are 12–15 inches deep, and leave counter workspace below. Tall (pantry) cabinets run floor-to-ceiling height (84–96 inches) and provide full-height storage for pantry goods, appliances, or laundry supplies without a separate upper or lower unit.
What are standard wall cabinet sizes?
Wall cabinets typically come in 30-inch or 42-inch heights (the gap is filled with a filler or soffit) and widths that match the base run (9–48 inches). Depth is 12 inches for most kitchen walls and 15 inches for above-refrigerator units. Standard mounting height places the bottom of the wall cabinet 18 inches above the countertop, leaving comfortable working clearance.
What are RTA cabinets and are they good quality?
RTA (ready-to-assemble) cabinets ship flat-packed and are assembled on-site with included hardware — typically within 20–40 minutes per box. Quality varies widely: budget RTA uses particleboard boxes and MDF doors that swell and chip. TC Wholesale Cabinetry's RTA line uses all-plywood boxes and CARB P2-compliant materials — a premium all-wood construction standard at factory-direct pricing.
What sizes do bathroom vanity cabinets come in?
Bathroom vanity cabinets are available in widths from 18 to 72 inches. The most common single-sink sizes are 24, 30, and 36 inches; double-sink vanities are typically 48, 60, and 72 inches. Standard vanity height is 34½ inches (comfort height). TC Wholesale Cabinetry offers shaker vanity cabinets from 24 to 60 inches, shipped without a top so you can pair your own countertop and sink.
What is a shaker-style cabinet?
A shaker cabinet has a five-piece door: a flat center panel recessed within a square-edged frame. The style originated in 19th-century Shaker communities and became the dominant American kitchen door style because it suits both traditional and contemporary hardware and finishes. TC Wholesale's line uses overlay doors for a clean, modern look on the same classic five-piece profile.
Accessories & trim
We also supply matching accessories and trim by quote: fillers, base and crown moldings, skin panels, dishwasher panels, toe kicks, corbels, pull-out organizers, and tall oven/appliance cabinets. Mention them in your free quote request.
